Mitsubishi Lancer (4A9 engine). Manual - part 27

ACA00348AD

60˚

Figure A

Figure B

Paint
markings

Crankshaft
pulley centre bolt

CRANKSHAFT PULLEY

ENGINE MECHANICAL <4A9>

11A-22

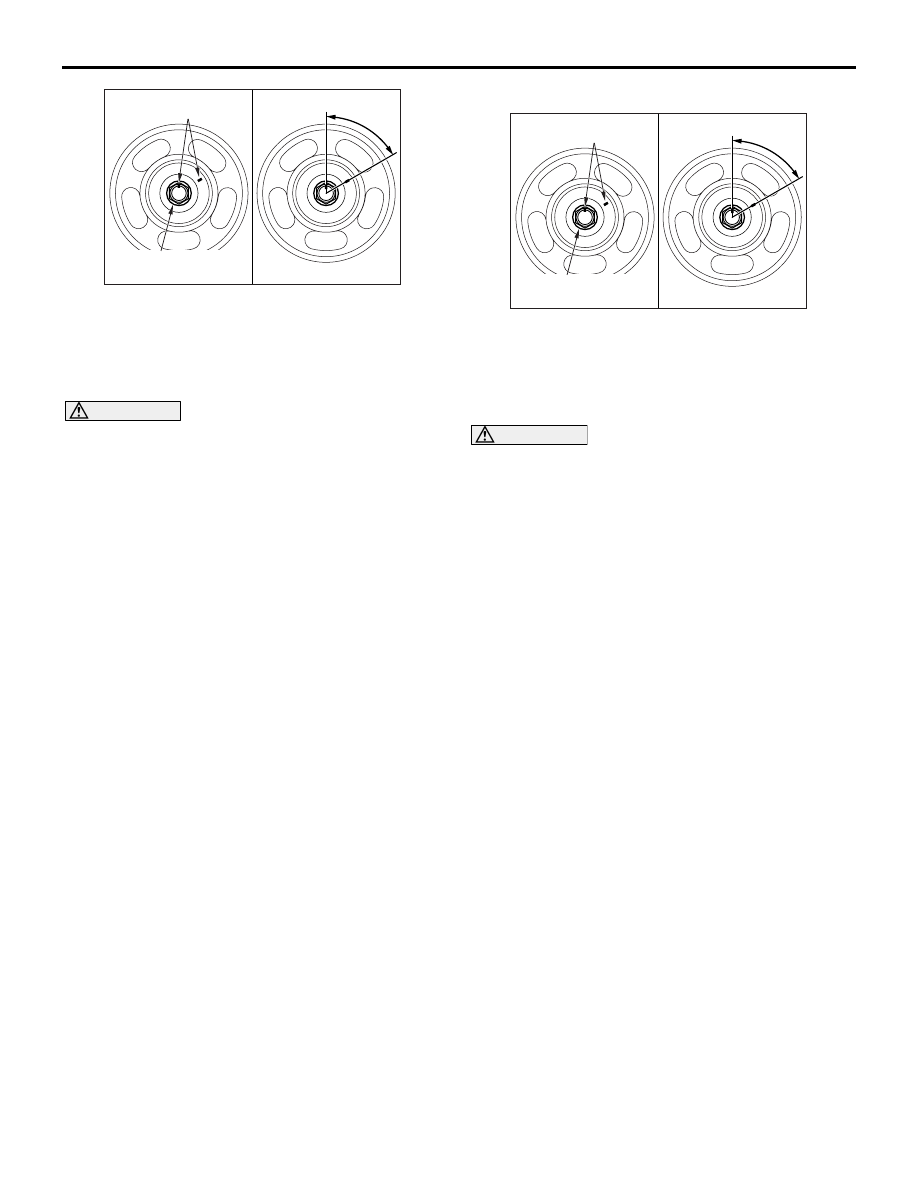

9. As shown in figure A, put a paint mark on one

angle of the crankshaft pulley centre bolt. Then,
put a paint mark on the crankshaft damper pulley
on the extended line of the angle next to the
marked angle.

CAUTION

• When the tightening angle is smaller than the

specified tightening angle, the appropriate
tightening capacity cannot be secured.

• When the tightening angle is larger than the

specified tightening angle, remove the bolt to
start from the beginning again according to
the procedure.

10.Tighten the crankshaft pulley centre bolt in a 60

degree angle, and check that the paint mark on
the crankshaft pulley centre bolt aligns with the
paint mark on the crankshaft damper pulley as
shown in figure B.

11.Loosen the crankshaft pulley centre bolt fully.
12.Hold the crankshaft damper pulley and tighten the

crankshaft pulley centre bolt to the specified
torque.

Tightening torque: 50 N

⋅m

ACA00348AD

60˚

Figure A

Figure B

Paint
markings

Crankshaft
pulley centre bolt

13.As shown in figure A, put a paint mark on one

angle of the crankshaft pulley centre bolt. Then,
put a paint mark on the crankshaft damper pulley
on the extended line of the angle next to the
marked angle.

CAUTION

• When the tightening angle is smaller than the

specified tightening angle, the appropriate
tightening capacity cannot be secured.

• When the tightening angle is larger than the

specified tightening angle, remove the bolt to
start from the beginning again according to
the procedure.

14.Tighten the crankshaft pulley centre bolt in a 60

degree angle, and check that the paint mark on
the crankshaft pulley centre bolt aligns with the
paint mark on the crankshaft damper pulley as
shown in figure B.

CRANKSHAFT PULLEY

ENGINE MECHANICAL <4A9>

11A-23

>>B<< DRIVE BELT INSTALLATION

CAUTION

• To reuse the drive belt, install it by aligning

the arrow mark on the backside of belt
marked at the removal with the rotating direc-
tion.

•

AC704717 AJ

Notched pulley

Flat pulley

Drive belt

Check that the notches of notched pulley and

notches of drive belt are fit correctly.

•

ACA00833AB

Water pump
pulley

Crankshaft damper
pulley

Alternator
pulley

A/C compressor
pulley

<Vehicles with A/C>

ACA00740AB

Water pump
pulley

Crankshaft damper pulley

Alternator
pulley

<Vehicles without A/C>

Check that the drive belt is installed in the
centre of flat surface of flat pulley.

Install the drive belt to each pulley as shown in the
figure.

>>C<< POWER STEERING OIL PUMP DRIVE
BELT INSTALLATION

CAUTION

• To reuse the drive belt, install it by aligning

the arrow mark on the backside of belt
marked at the removal with the rotating direc-
tion.

• Check that the notches of the notched pulley

and the notches of the drive belt are fit cor-
rectly.

1. Install the drive belt to the power steering oil pump

pulley.

CAUTION

Hang special tool drive belt installer (MB992858)
on the vehicle components (including front side-
members) using a cord and paper clip to prevent
from falling.

ACB01459AB

MB992858

2. Set the special tool and drive belt in the

crankshaft pulley and hold it by a finger as shown.

CAUTION

Be careful that the finger holding the special tool
is not pinched.
3. Slightly turn the crankshaft pulley clockwise until

the special tool is pinched and held between the
crankshaft pulley and the drive belt.

4. If the special tool is held, move the finger off.

CAUTION

If the drive belt is installed, be careful that the
special tool is detached and fallen.
5. Slowly turn the crankshaft pulley clockwise and

install the drive belt.

6. Turn the crankshaft pulley until the special tool is

detached from the crankshaft pulley and fallen,
and then remove the special tool.

7. Turn the crankshaft pulley clockwise on several

times and check that the drive belt is installed in
the power steering oil pump pulley and the
crankshaft pulley securely.

CAMSHAFT

ENGINE MECHANICAL <4A9>

11A-24

CAMSHAFT

REMOVAL AND INSTALLATION

M1112007801352

ACA00763

2

16

12

11

10

8

6

14

5

4

3

AB

N

11 ± 3 N·m

13

65 ± 5 N·m

20 ± 1 N·m

15

15

15

11 ± 1 N·m

11 ± 1 N·m

17

19

18

N

22

21

44 ± 5 N·m

20

7

N

1

Apply engine oil to all
moving parts before
installation.

(Engine oil)

(Engine oil)

N

9

5

3.0 ± 1.0 N·m   5.5 ± 0.5 N·m

9.5 ± 2.5 N·m

9.5 ± 2.5 N·m

92 ± 13 N·m

10 ± 2 N·m

Camshaft removal steps

•

Air cleaner assembly removal
(Refer to GROUP 15

− Air Cleaner )

1.

Engine cover

•

Ignition coil (Refer to GROUP 16

−

Ignition System, Ignition Coil )

2.

Breather hose connection

3.

PCV hose connection

Camshaft removal steps

CAMSHAFT

ENGINE MECHANICAL <4A9>

11A-25

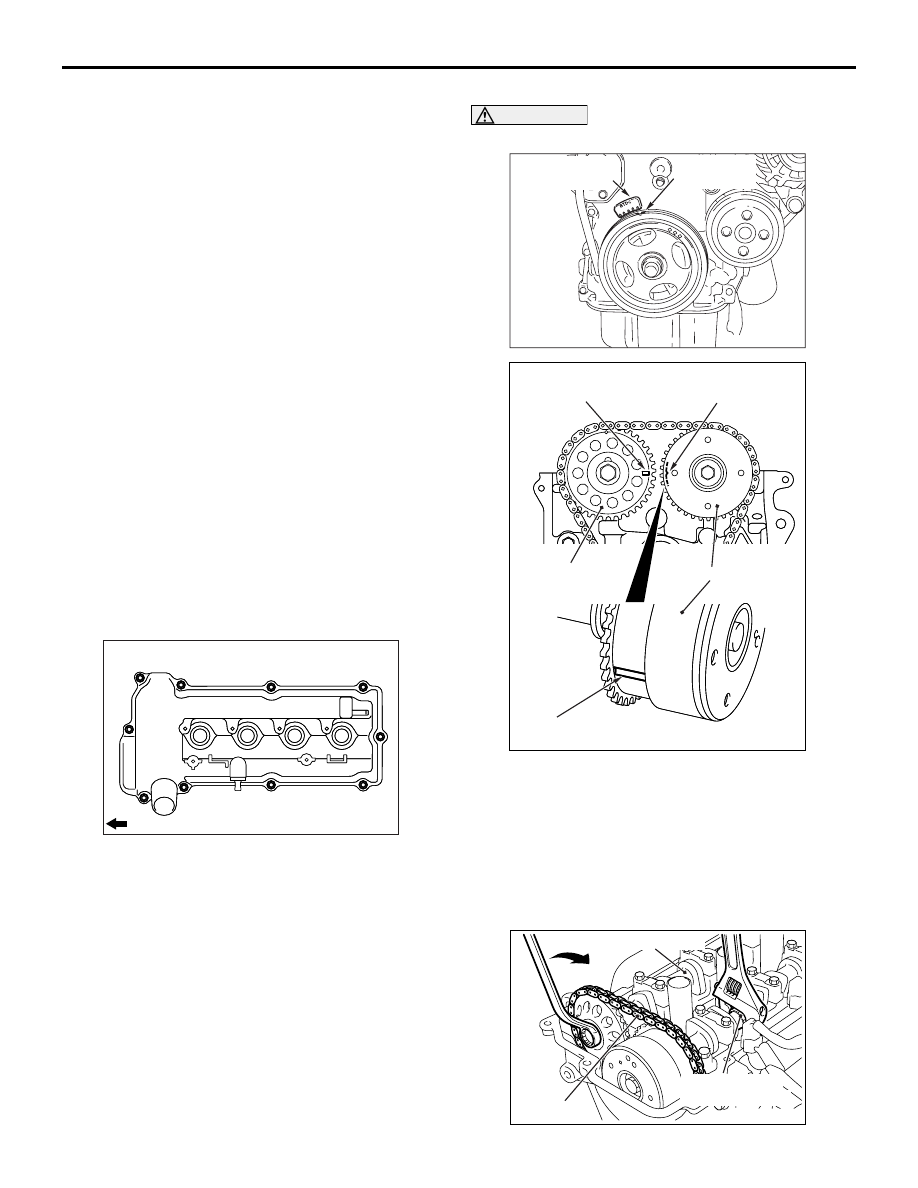

REMOVAL SERVICE POINTS

<<A>> CYLINDER HEAD COVER ASSEMBLY
REMOVAL

ACA00275AD

2

4

6

1

9

8

3

10

7

5

Engine front

ACA00275

Loosen the cylinder head cover assembly mounting
bolts in the order of the numbers shown in the illus-
tration, and remove the cylinder head cover assem-
bly.

<<B>> TIMING CHAIN TENSIONER REMOVAL

CAUTION

Never turn the crankshaft anti-clockwise.

20

10

T

AC613570AB

Timing mark
(Slot portion)

Timing mark
(BTDC portion)

ACA00277

AC

Timing mark

Timing mark
(Groove)

V.V.T. sprocket assembly

Timing mark
(Groove)

ACA00277

Camshaft sprocket

1. Turn the crankshaft clockwise, and align the

timing mark of the crankshaft with the T position of
BTDC. Then, align the timing mark of the
camshaft sprocket (2 conceive areas in front of
the camshaft sprocket) and that of the V.V.T.
sprocket assembly (the groove of V.V.T. sprocket
assembly side face). Then set No.1 cylinder to the
top dead centre of compression

AC311262

AC

Timing chain

Hexagon part of
the inlet camshaft

Exhaust camshaft

4.

Fuel injector connector

5.

Control harness clamp connection

6.

Engine oil level gauge and guide
assembly

7.

O-ring

<<

A

>>

>>

F

<<

8.

Cylinder head cover assembly

9.

Cylinder head cover gasket

•

Valve clearance adjustment (Refer
to )

>>

E

<<

10. Timing chain tensioner cover

<<

B

>>

>>

D

<<

11. Timing chain tensioner

<<

C

>>

>>

C

<<

12. Camshaft sprocket

<<

C

>>

>>

C

<<

13. V.V.T. sprocket assembly

<<

C

>>

>>

C

<<

14. Front camshaft bearing cap

<<

C

>>

>>

C

<<

15. Camshaft bearing cap

<<

C

>>

>>

C

<<

16. Camshaft

Oil feeder control valve removal
steps

17. Oil feeder control valve (OCV)

connector

<<

D

>>

>>

B

<<

18. Oil feeder control valve (OCV)

>>

B

<<

19. O-ring
20. Oil feeder control valve filter bolt
21. Gasket

<<

D

>>

>>

A

<<

22. Oil feeder control valve filter

Camshaft removal steps
