REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-193

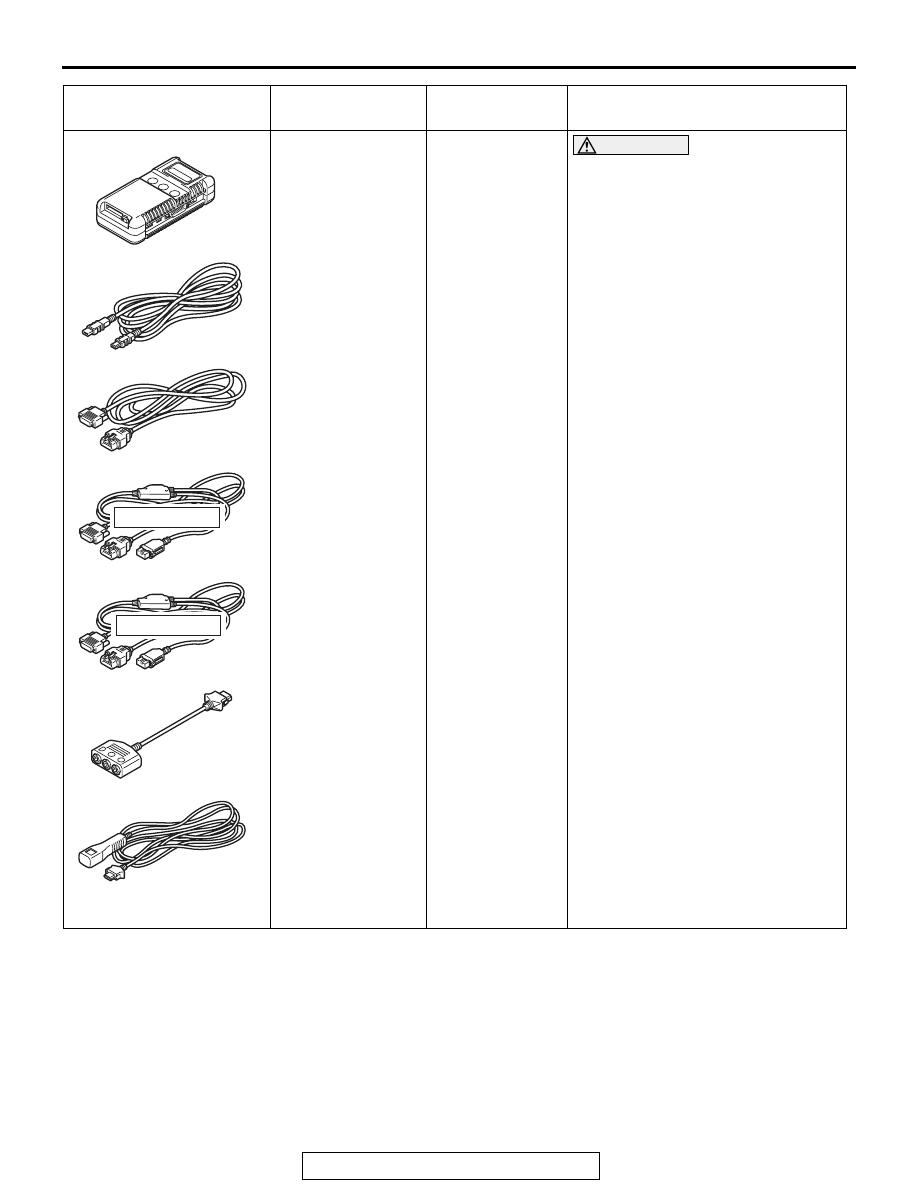

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
DTC, data list and actuator test
check.

Tool

Tool number and
name

Supersession

Application

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-194

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1541402500081

Refer to GROUP 00,  How to use Troubleshooting/inspection
Service Points, Troubleshooting Contents

P.00-7

.

DIAGNOSTIC FUNCTION

M1541400900038

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with CAN

communication system)

.

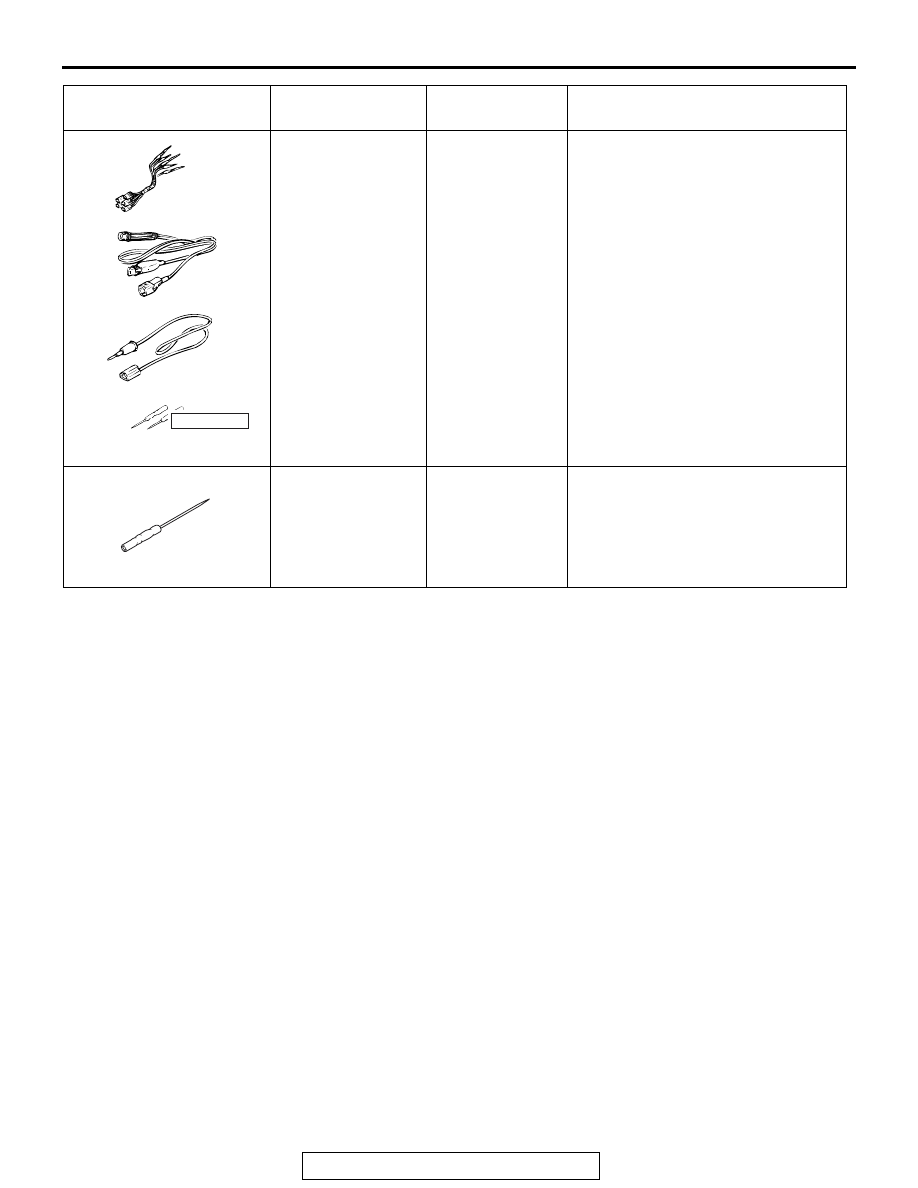

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

General service
tool (jumper)

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-195

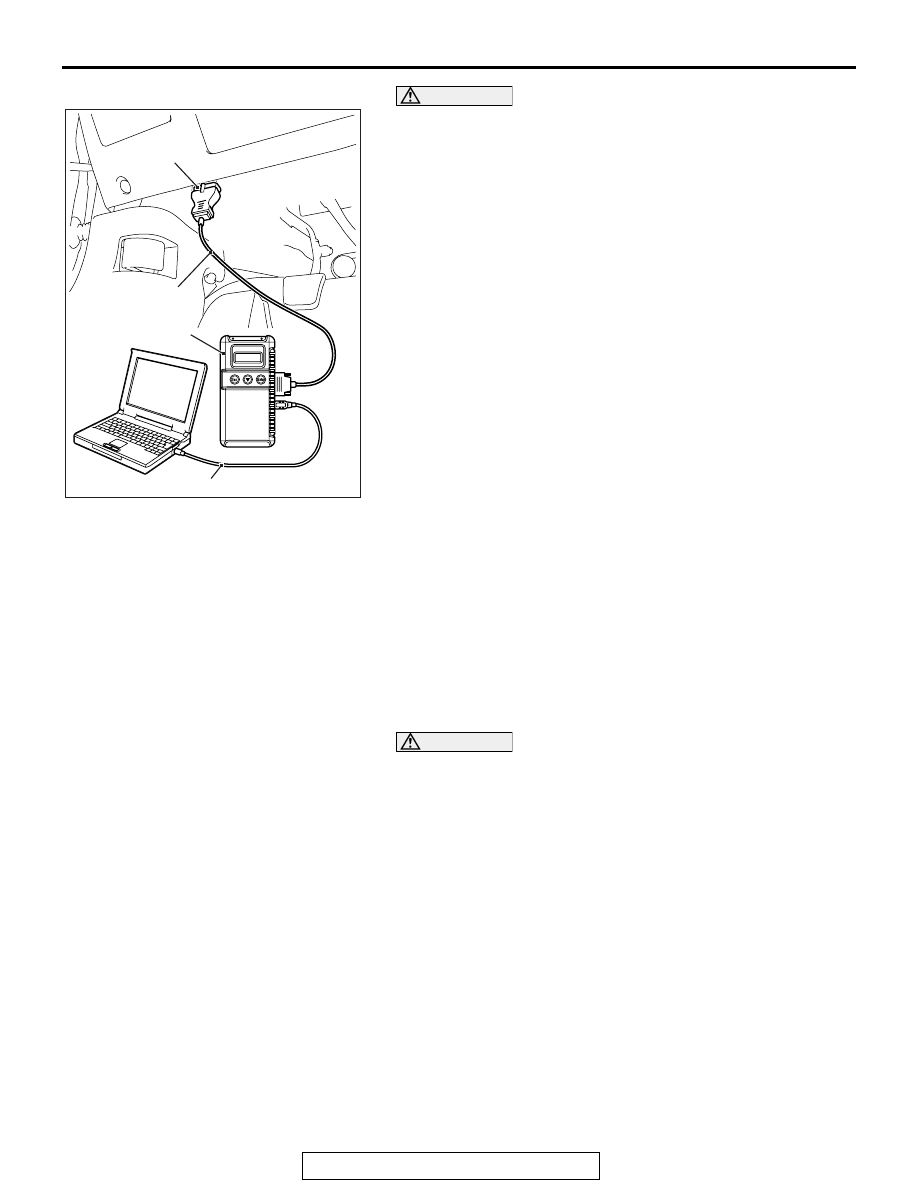

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with CAN

communication system)

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if scan tool MB991958 does not
display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "ETACS" from "System List", and press the "OK"

button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select "Diagnostic Trouble Code."
7. If a DTC is set, it is shown.
8. Choose "Erase DTCs" to erase the DTC.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

REAR COMBINATION LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-196

DIAGNOSTIC TROUBLE CODE CHART

M1541400200136

CAUTION

On troubleshooting, if the ignition switch is
turned ON while disconnecting connector(s),
diagnostic trouble code(s) associated with other
system may be set. On completion, confirm all
systems for diagnostic trouble code(s). If diag-
nostic trouble code(s) are set, erase them all.

Diagnostic trouble
code No.

Diagnostic item

Reference
page

B16A0

Taillight (RH) circuit open (Open circuit in taillight (RH) or position light
(RH))

P.54A-197

B16A7

Taillight (RH) circuit short (Short circuit in taillight (RH) or position light
(RH))

B16A1

Taillight (LH) circuit open (Open circuit in taillight (LH), position light (LH),
or license plate light)

P.54A-203

B16A8

Taillight (LH) circuit short (Short circuit in taillight (LH), position light (LH),
or license plate light)
