HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-185

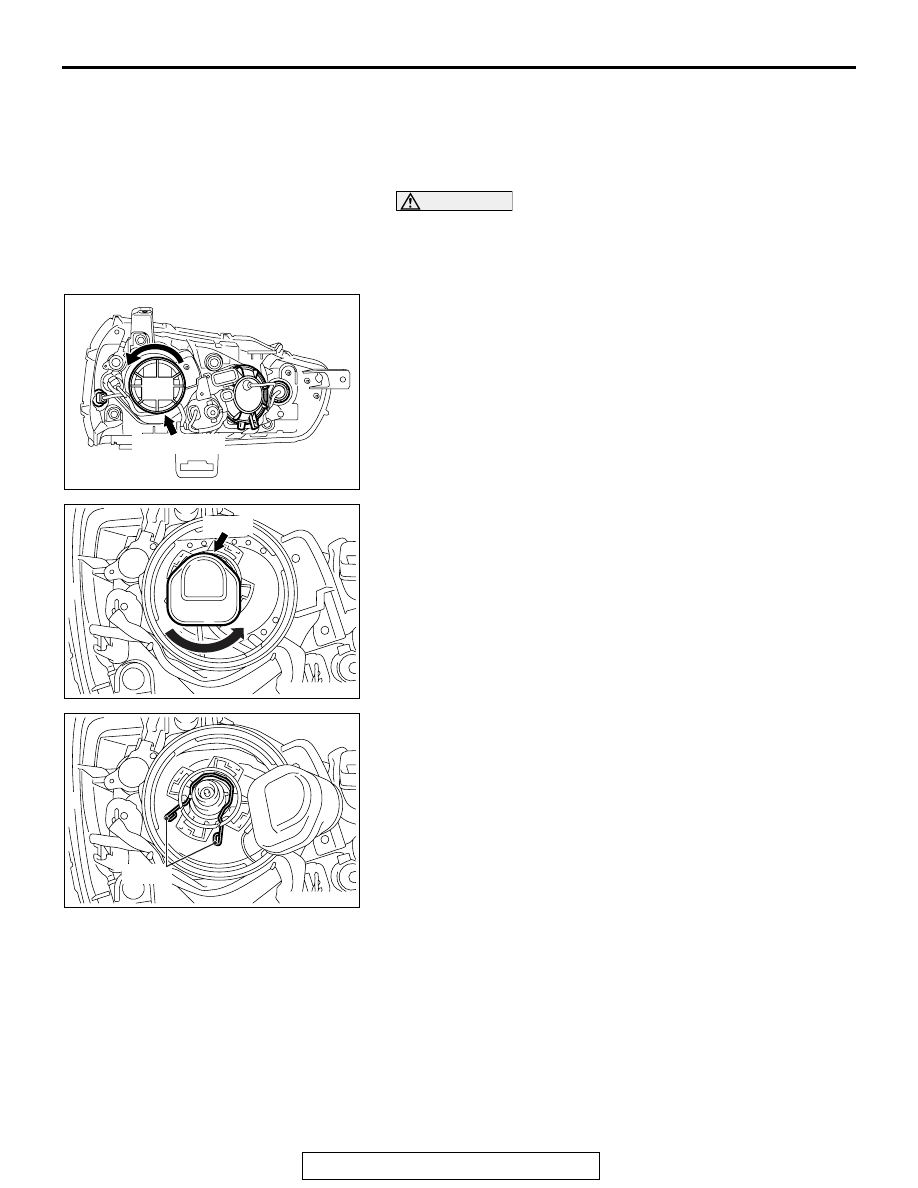

REMOVAL SERVICE POINT

.

 <<A>> HEADLIGHT (LOW-BEAM) BULB
REMOVAL <VEHICLES WITH DISCHARGE



HEADLIGHT>

CAUTION

Do not touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, immedi-
ately clean it with alcohol or thinner. After drying com-
pletely, install the bulb.
1. Twist the socket cover to remove.

2. Disconnect the igniter.

3. Release the bulb securing spring, and remove the bulb.

AC609615

AC

Socket cover

AC609658

AB

Igniter

AC609659

AB

Spring

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-186

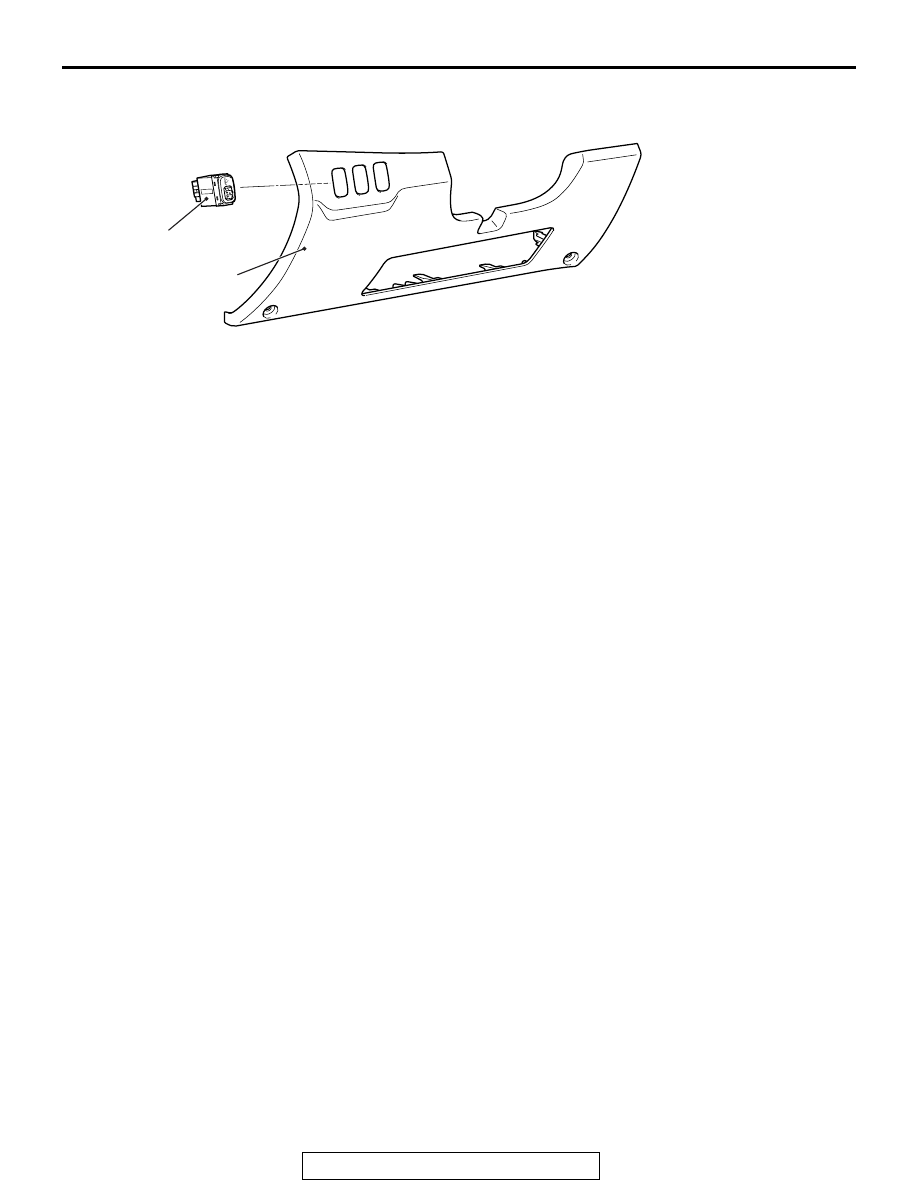

HEADLIGHT LEVELING SWITCH REMOVAL AND INSTALLATION

M1540105200137

AC709250

AB

1

2

Removal Steps

1.

Instrument panel cover assembly
(Refer to GROUP 52A

− Instrument

Lower Panel

P.52A-8

).

2.

Headlight leveling switch

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-187

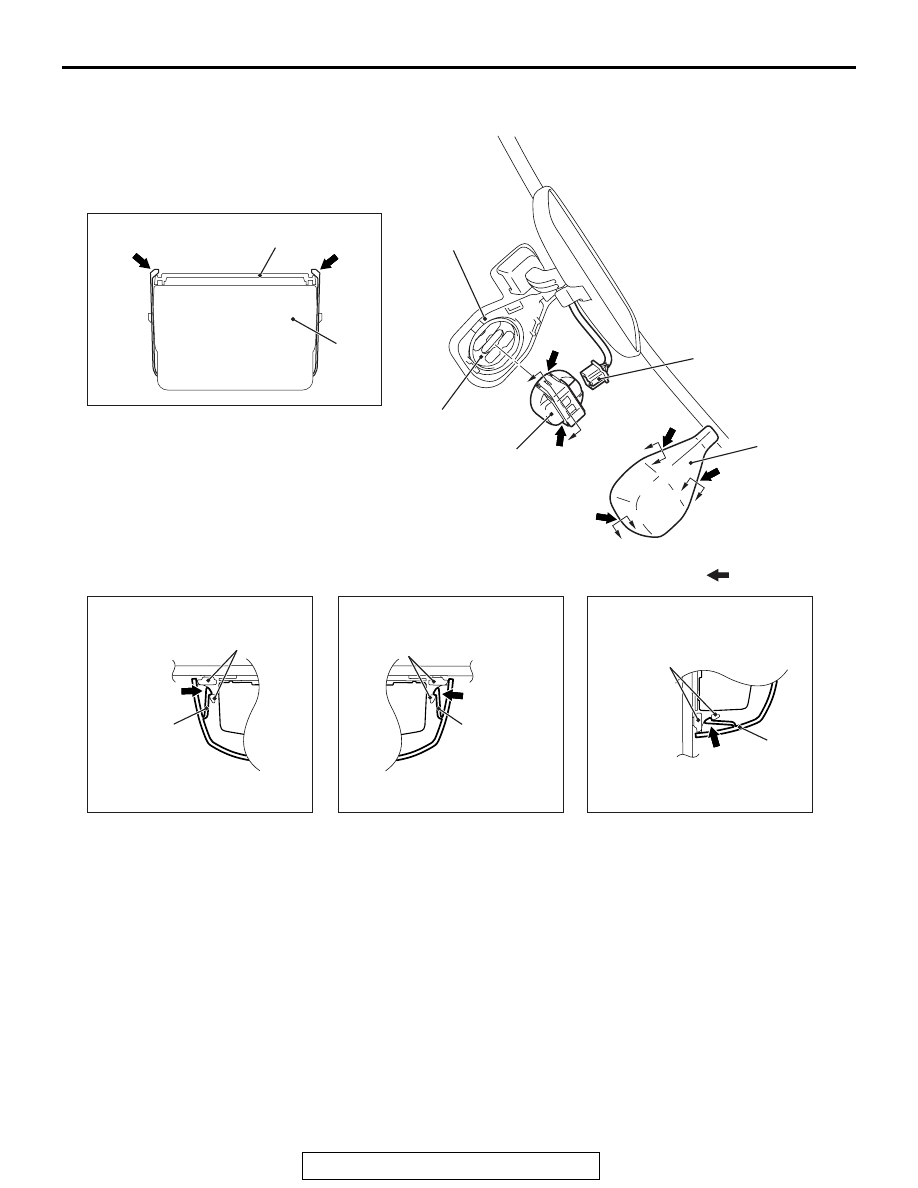

LIGHTING CONTROL SENSOR REMOVAL AND INSTALLATION

M1540108500126

AC709252

Optical coupler

AB

1

2

3

Note
         : Claw positions

A

A

Section A - A

Section B - B

Section C - C

Section D - D

Optical coupler

3

D

C

B

D

C

1

1

1

Claw

Claw

Lighting control
sensor bracket

Lighting control
sensor bracket

Lighting control
sensor bracket

Lighting control
sensor bracket

Claw

Claw

Claw

B

Removal Steps

1.

Lighting control sensor cover

2.

Connector

<<

A

>>

>>

A

<<

3.

Lighting control sensor

Removal Steps (Continued)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-188

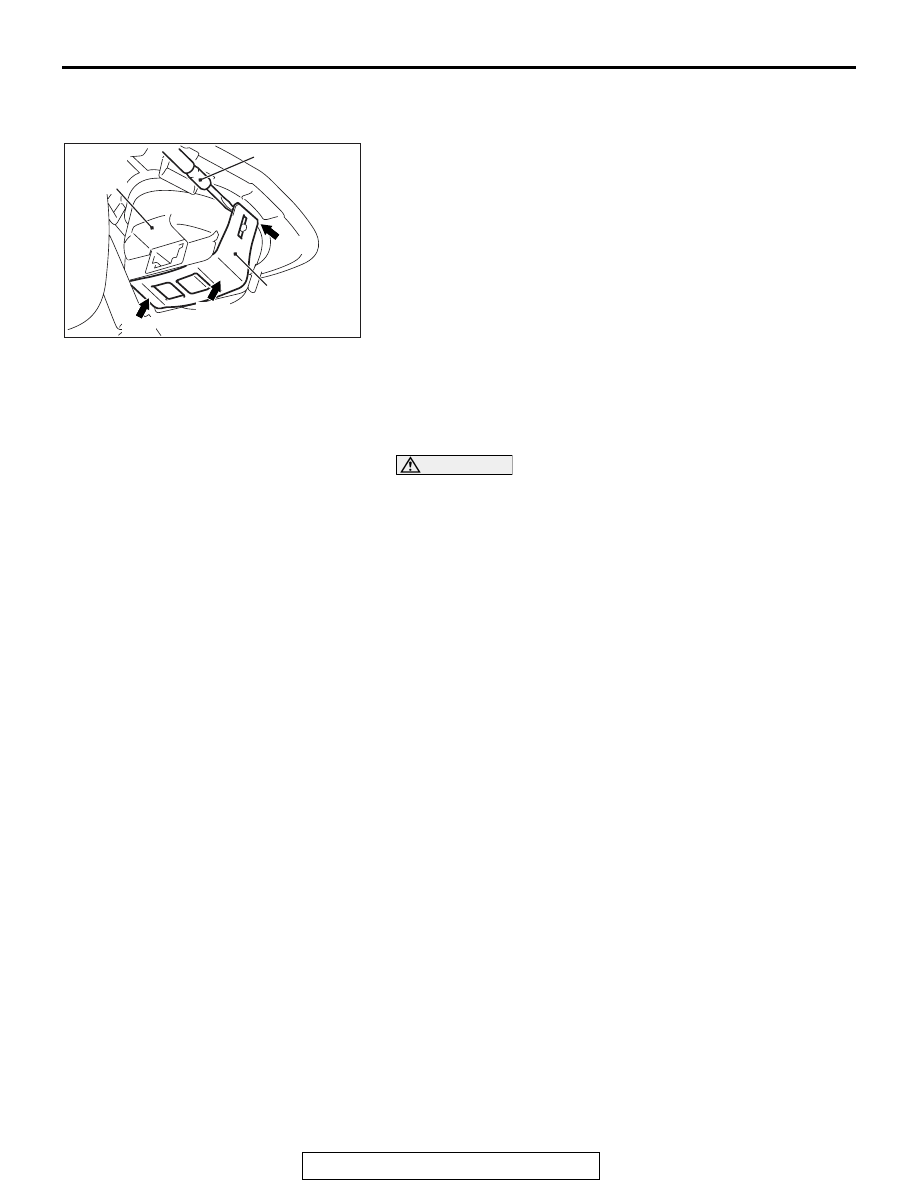

REMOVAL SERVICE POINT

.

<<A>> LIGHTING CONTROL SENSOR REMOVAL

While pushing the clamp to the windshield side, pry up the
clamp to disengage the right and left claws using the screw-
driver (

−), and then remove the lighting control sensor.

INSTALLATION SERVICE POINT

.

>>A<< LIGHTING CONTROL SENSOR INSTALLA-
TION

CAUTION

After executing the lighting control sensor (rain sensor)
adaptation, do not touch the lighting control sensor (or do
not move it from the fixed position).

• Mount the lighting control sensor onto the optical coupler,

and then connect the connector.

• When reusing the lighting control sensor or when the light-

ing control sensor is pushed to check the installation condi-
tion, install the connector and the lighting control sensor
cover and wipe the windshield thoroughly. When the wind-
shield is dry, execute the lighting control sensor (rain sen-
sor) adaptation. <Refer to GROUP 51

− Lighting Control

Sensor (Rain Sensor) Adaptation

P.51-76

>.

NOTE: Be careful not to touch the lighting control sensor
receiver. (The lighting control sensor receiver has limited resis-
tance to oil.)

AC700066

Screwdriver (-)

AG

Claw

Lighting
control
sensor

Clamp

Push

Push
