HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-181

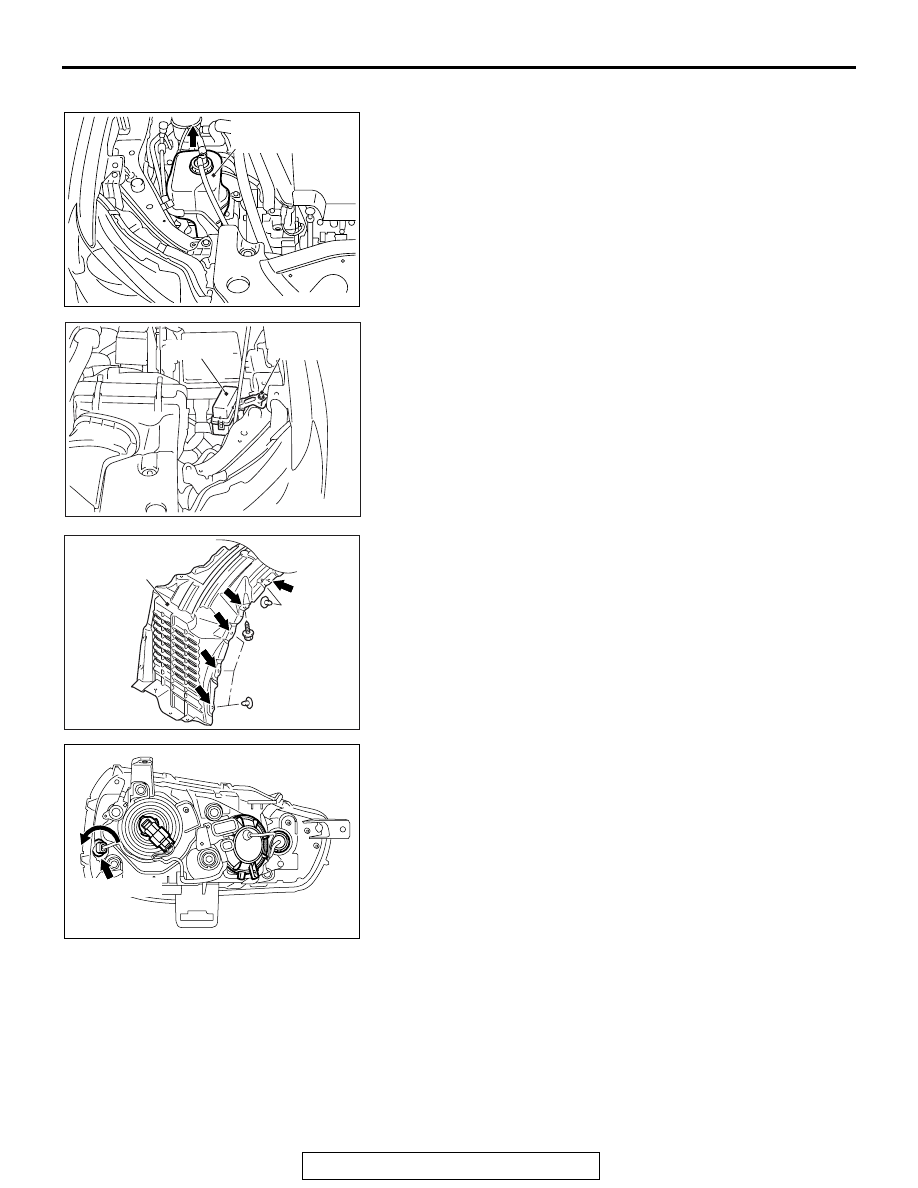

POSITION LIGHT BULB REPLACEMENT

1. When replacing the right bulb, lift the radiator condenser

tank upward, and remove it. When replacing the left bulb,
remove the relay box. <Vehicles without discharge
headlight>

2. Remove the front splash shield assembling clip shown in the

figure, and turn up the front splash shield. <Vehicles with
discharge headlight>

3. Twist the position light socket to remove.

AC706628

AC

Radiator condenser
tank

AC706373AC

Relay box

4.0 ± 2.0 N·m
36 ± 17 in-lb

AC706808AC

Front
splash shield

AC609613

AD

Position light

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-182

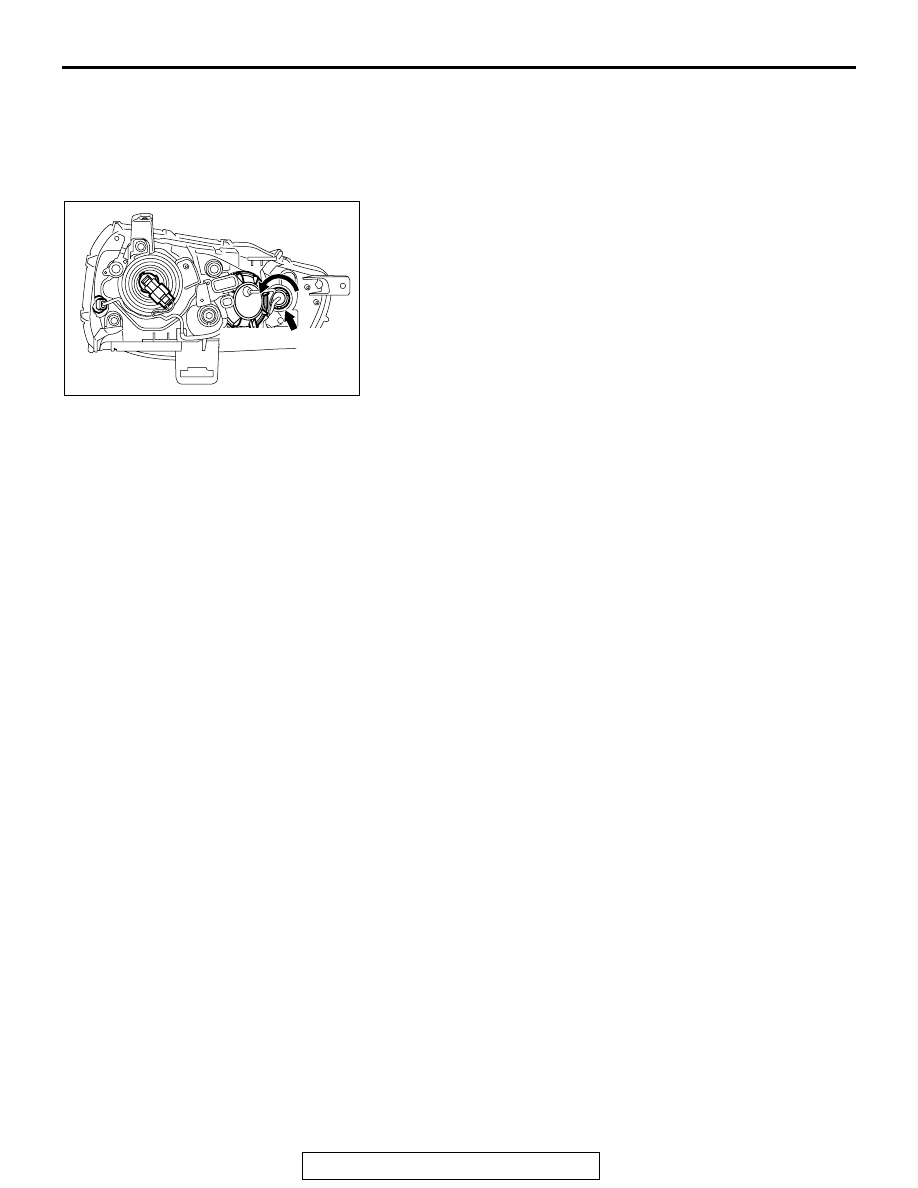

FRONT TURN-SIGNAL LIGHT BULB
REPLACEMENT

1. Remove the headlight support panel cover. (Refer to

GROUP 51

− Front Bumper Assembly and Radiator Grille

P.51-3

.)

2. Twist the front turn-signal light socket to remove.

HEADLIGHT AUTOMATIC-SHUTDOWN
FUNCTION CHECK

M1540100800220

Confirm that the headlights turn OFF in one second if the
driver's door is opened when the ignition switch is OFF and the
lighting switch is ON (HEAD position). If there is a malfunction,
perform the troubleshooting (Refer to

P.54A-127

).

HEADLIGHT AUTO LIGHT FUNCTION CHECK

M1540100900164

Under the direct sunlight with the ignition switch ON and the
lighting switch in the AUTO position, check that the headlight
automatically illuminates when the lighting control sensor
receiver is covered by hand. If there is any trouble, carry out
the troubleshooting. (Refer to

P.54A-127

.)

NOTE: When covering the lighting control sensor receiver, be
careful not to touch the windshield surface (where the lighting
control sensor receiver is mounted). (The lighting control sen-
sor receiver has limited resistance to oil.)

AC609613

AE

Front turn-signal light

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-183

CUSTOMIZATION FUNCTION

M1540103700404

By operating the ETACS system or MMCS of scan
tool MB991958, the following functions can be pro-
grammed. The programmed information is held even
when the battery is disconnected.

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

ACC power
auto cut

Time to ACC power
cut-off when the
ignition switch is in
the ACC position

Disable

No function (default)

30 min

30 minutes

60 min

60 minutes

Turn power
source

Adjustment of
turn-signal light
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort flasher
function

Disable

No function

Enable

With function (default)

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard answer
back

Adjustment of the
number of keyless
hazard warning light
answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Sensitivity for
auto light

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with auto light>

Level 1 (+)bright

High-high ambient brightness

Level 2

High ambient brightness

Level 3

Standard ambient brightness (default)

Level 4(

−)dark

Low ambient brightness

Level 5(

−)dark

Low-low ambient brightness

Headlight auto
cut customize

Adjustment of
headlight automatic
shutdown function

Disable

No function

Enable (C-spec.)

With function (default)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-184

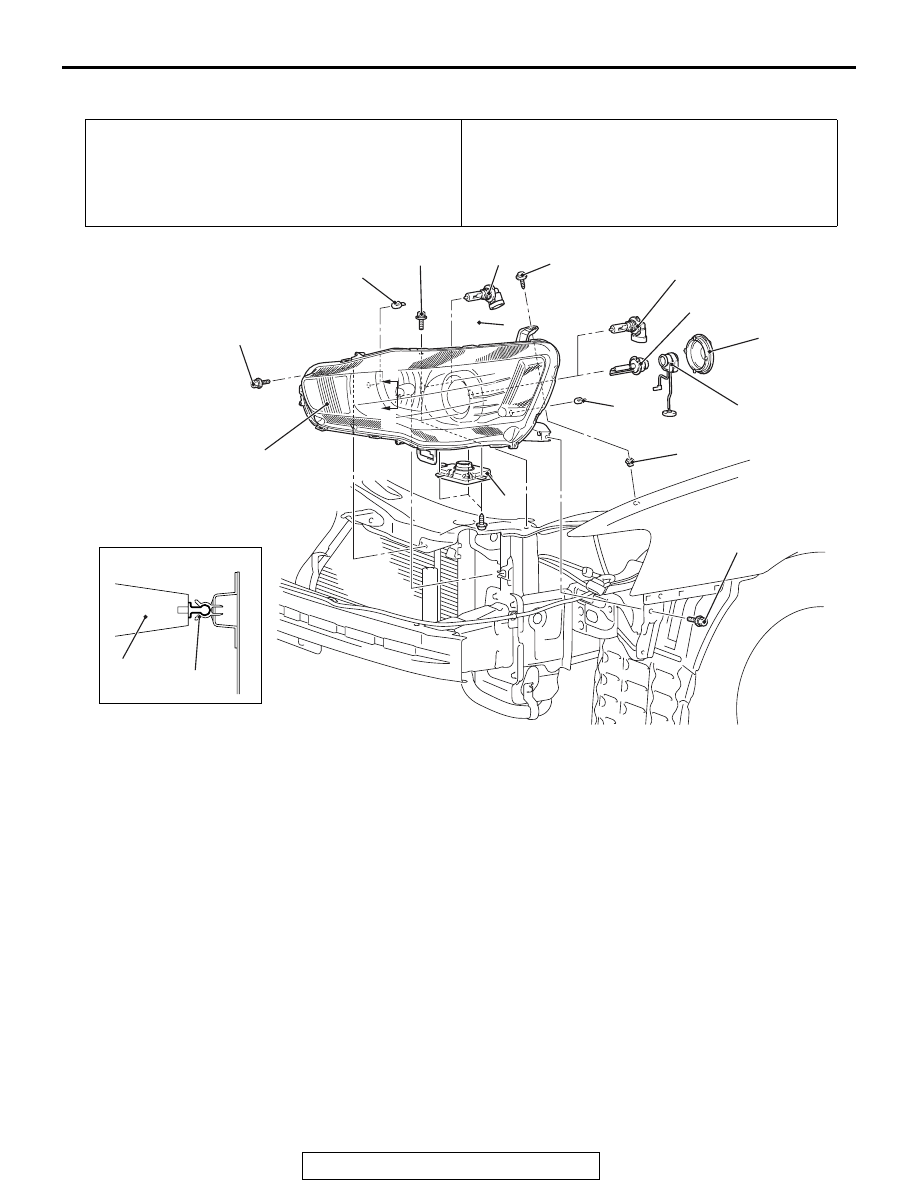

HEADLIGHT REMOVAL AND INSTALLATION

M1540101000346

Pre-removal operation
Front bumper and radiator grille assembly removal (Refer to
GROUP 51

− Front Bumper Assembly and Radiator Grille

P.51-3

.)

Post-installation operation
• Front bumper and radiator grille assembly installation

(Refer to GROUP 51

− Front Bumper Assembly and Radi-

ator Grille

P.51-3

).

• Check the beam direction of the headlight (Refer to Head-

light Aiming

P.54A-175

).

AC613544AG

6

4.5 ± 1.5 N·m
40 ± 13 in-lb

10

1

2

9

3

4

6

7

5

8

4.5 ± 1.5 N·m
40 ± 13 in-lb

4.5 ± 1.5 N·m
40 ± 13 in-lb

1.5 ± 0.3 N·m
14 ± 2 in-lb

Grommet

Section A - A

1

A

A

Removal Steps

1.

Headlight assembly

2.

Headlight bulb socket cover
<Vehicles with discharge
headlight>

<<

A

>>

3.

Headlight bulb <Vehicles with
discharge headlight>

4.

Headlight bulb (low-beam)
<Vehicles without discharge
headlight>

5.

Front turn-signal light bulb

6.

Position light bulb

7.

Headlight bulb (high-beam)
<Vehicles without discharge
headlight> or daytime running light
bulb <Vehicles with discharge
headlight>

8.

Headlight control unit <Vehicles
with discharge headlight>

9.

Headlight control unit (harness)
<Vehicles with discharge
headlight>

10. Grommet

Removal Steps (Continued)
