HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-177

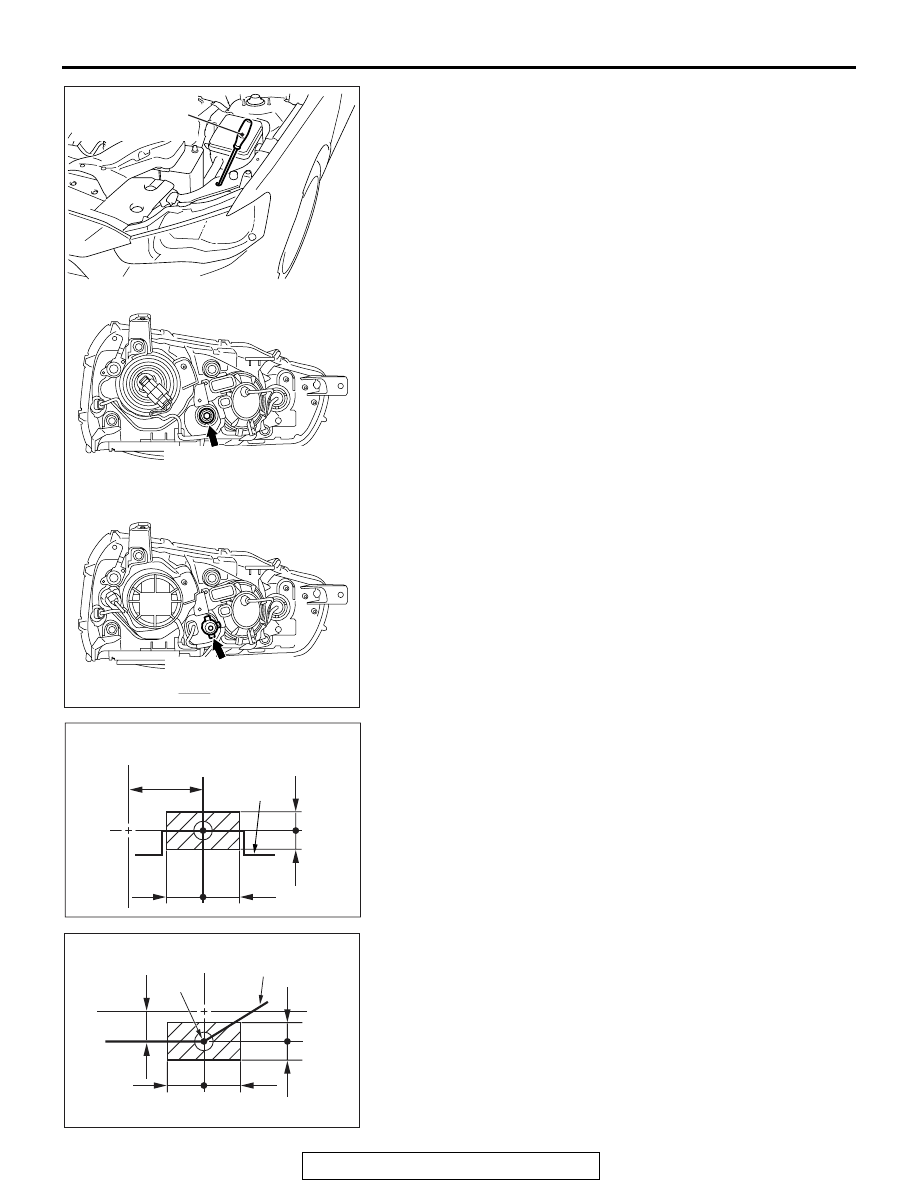

2. Turn the adjusting screw to achieve the specified low-beam

cut-off location on the aiming screen.

Standard value



<Vehicles without discharge headlight>:

(Vertical direction) Horizontal line (H)

± 50.5 mm (± 2.0

inches) (

± 0.38 degrees angle)

(Horizontal direction):

± 126.4 mm (± 5.0 inches)

(

± 0.95 degrees angle) from the axis, which is 266.1

mm (10.5 inches) (2 degrees angle) rightward from

the vertical line (V)

Standard value <Vehicles with discharge headlight>:

(Vertical direction) 53.2 mm (2.1 inches) (0.4

degrees) below horizontal line (H).

± 50.5 mm

(

± 2.0 inches) (± 0.38 degrees angle)

(Horizontal direction): Elbow point intersects the ver-

tical line (V).

± 126.4 mm (± 5.0 inches) (± 0.95

degrees angle)

AC709195

AB

Phillips screwdriver
(Vertical direction
adjustment)

<Vehicles without discharge headlight>

<Vehicles with discharge headlight>

Adjusting screw
(Vertical direction adjustment)

Adjusting screw
(Vertical direction adjustment)

AC710559

(H)

mm (in)

AB

50.5 (2.0)

50.5 (2.0)

Cutoff

line

126.4 (5.0)

126.4 (5.0)

266.1

(10.5)

(V)

<Vehicles without discharge headlight>

AC710555

(H)

mm (in)

AB

50.5 (2.0)

50.5 (2.0)

Cutoff line

126.4 (5.0)

126.4 (5.0)

(V)

53.2

(2.1)

<Vehicles with discharge headlight>

Elbow

point

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-178

CAUTION

Do not cover a headlight for more than three minutes to
prevent the plastic headlight lens deformation.
NOTE: High-beam pattern should be correct when the
low-beams are adjusted properly.

LUMINOUS INTENSITY MEASUREMENT

M1540100600129

1. Set the headlights to high-beam.
2. Using a photometer, and following its manufacturer's

instruction manual, measure the headlight center intensity
and check to be sure that the limit value is satisfied.

Limit: 40,000 cd or more {When a screen is set 18.3m
(60 feet) ahead of the vehicle}

NOTE: When measuring the intensity, maintain an engine
speed of 2,000 r/min, with the battery fully charged.
There may be special local regulations pertaining to headlight
intensity. Be sure to make any adjustments necessary to satisfy
such regulations.
If an illuminometer is used to make the measurements, convert
its values to photometer values by using the following formula.

I =E

×  r

2

• I = intensity (cd)

• E = illumination (lux)

• r = distance (m) from headlights to illuminometer

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-179

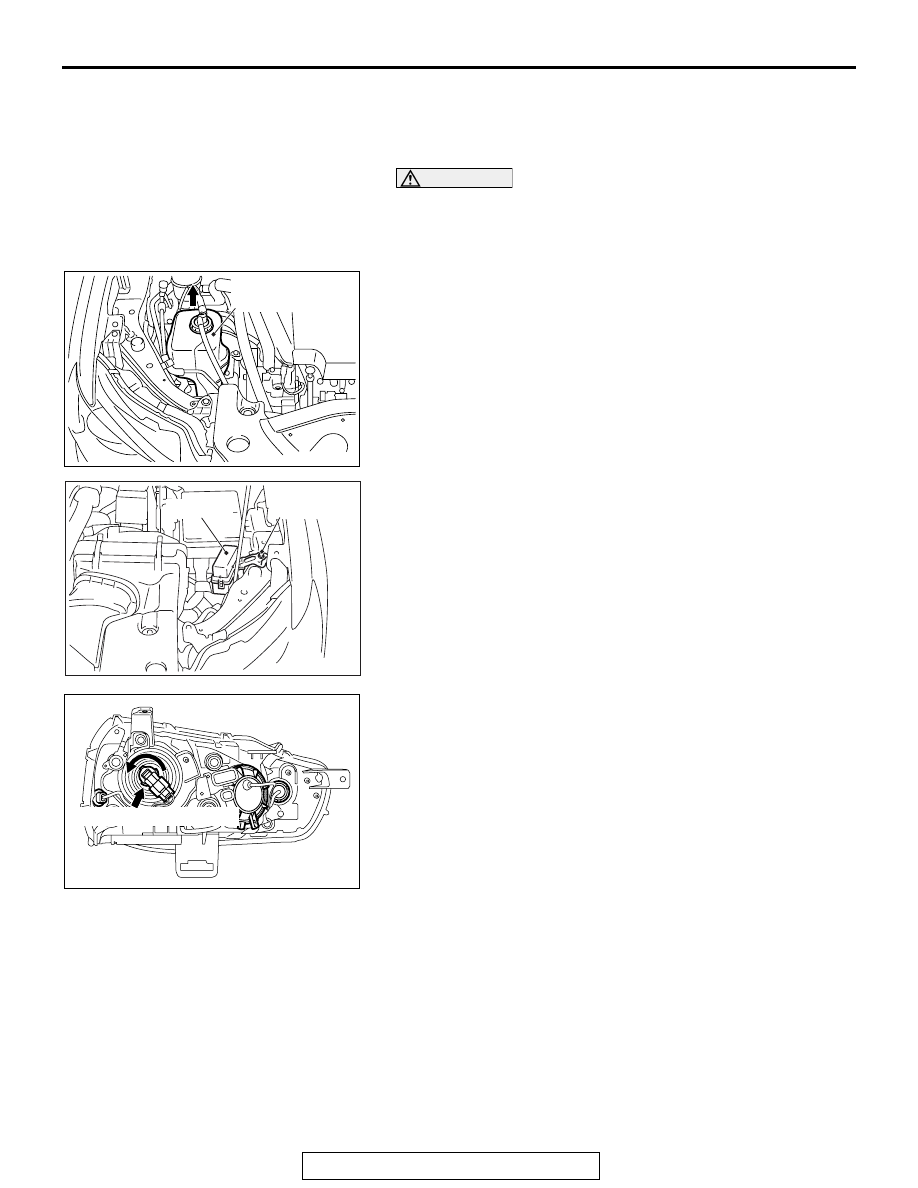

REPLACE THE BULB

M1540100700290

HEADLIGHT BULB (LOW-BEAM) REPLACEMENT
<VEHICLES WITHOUT DISCHARGE HEADLIGHT>

CAUTION

Do not touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, immedi-
ately clean it with alcohol or thinner. After drying com-
pletely, install the bulb.
1. When replacing the right bulb, lift the radiator condenser

tank upward, and remove it. When replacing the left bulb,
remove the relay box.

2. Disconnect the connector, and twist the headlight bulb

(low-beam) to remove.

AC706628

AC

Radiator condenser
tank

AC706373AC

Relay box

4.0 ± 2.0 N·m
36 ± 17 in-lb

AC609613

AB

Headlight bulb (Low-beam)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-180

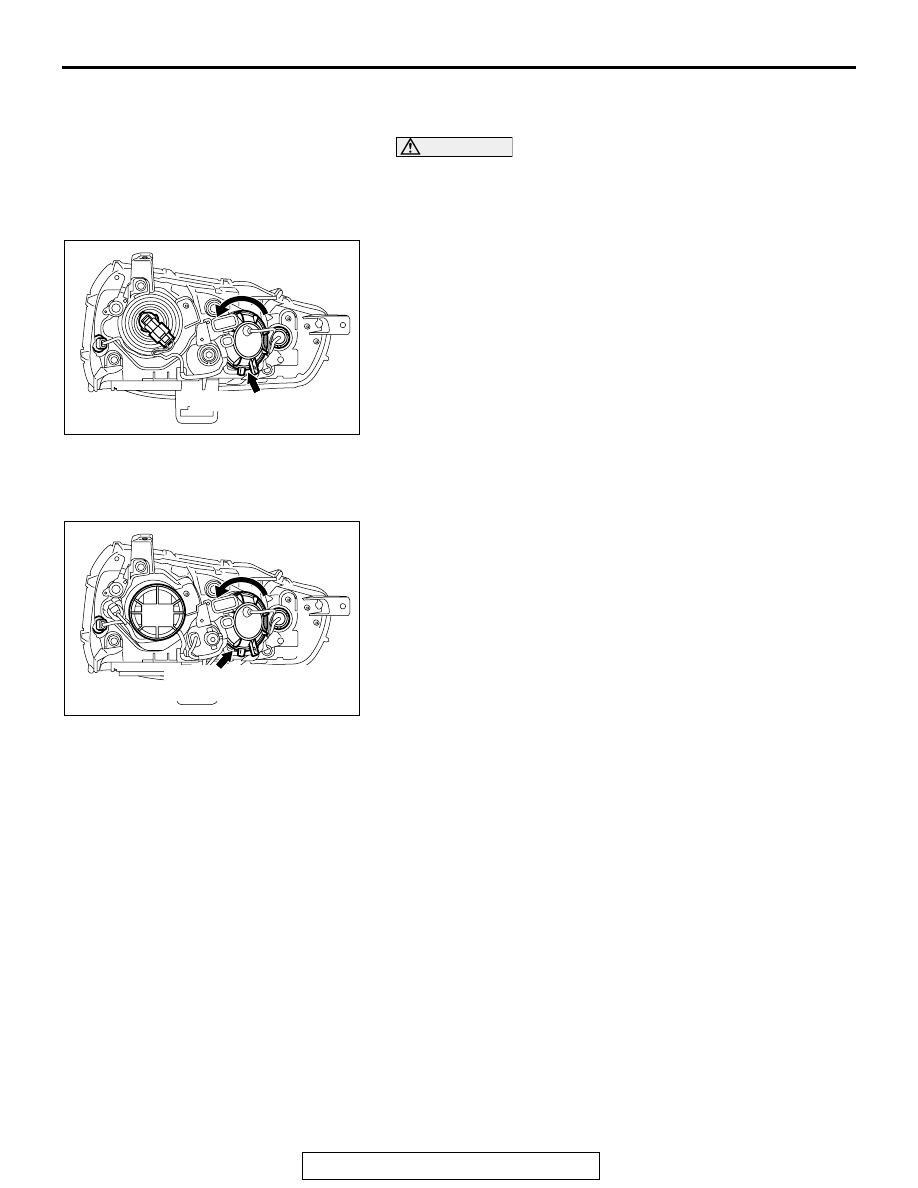

HEADLIGHT BULB (HIGH-BEAM) REPLACEMENT
<VEHICLES WITHOUT DISCHARGE HEADLIGHT>

CAUTION

Do not touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, immedi-
ately clean it with alcohol or thinner. After drying com-
pletely, install the bulb.

1. Twist the socket cover to remove.

2. Disconnect the connector, and twist the headlight bulb

(high-beam) to remove.

DAYTIME RUNNING LIGHT BULB REPLACEMENT
<VEHICLES WITH DISCHARGE HEADLIGHT>

1. Twist the socket cover to remove.

2. Twist the daytime running light socket to remove it.

AC609613

AC

Socket cover (High-beam)

AC609615

AB

Socket cover
(Daytime running light bulb)
