HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-157

STEP 9. Check the wiring harness between daytime
running light (LH) connector A-41 (terminal 1) or daytime
running light (RH) connector A-56 (terminal 1) and ground.

• Check the ground wires for open circuit.

Q: Is the wiring harness between daytime running light

(LH) connector A-41 (terminal 1) or daytime running
light (RH) connector A-56 (terminal 1) and ground in
good condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to Cope with Intermittent

Malfunction

P.00-15

).

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the daytime running lights illuminate normally.

STEP 10. Check daytime running light relay connector
A-24X for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is daytime running light relay connector A-24X in good

condition?
YES : Go to Step 11.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 11. Check the daytime running light relay.
Refer to

P.54A-189

.

Q: Is the daytime running light relay in good condition?

YES : Go to Step 12.
NO :  Replace the daytime running light relay. Verify that the

daytime running lights illuminate normally.

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-158

STEP 12. Check the battery power supply circuit to the
daytime running light relay. Measure the voltage at daytime
running light relay connector A-24X.

CAUTION

The top and bottom of the daytime running light relay are
difficult to identify. Prior to inspection, confirm the triangle
mark on the relay box.
(1) Disconnect daytime running light relay connector A-24X

and measure the voltage available at the relay box side of
the connector.

(2) Measure the voltage between terminal 2 and ground, and

also between terminal 4 and ground.

OK: The voltage should measure approximately 12
volts (battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 14.
NO :  Go to Step 13.

STEP 13. Check the wiring harness between daytime
running light relay connector A-24X (terminal 2 and 4) and
fusible link (36).

• Check the power supply line for open circuit.

Q: Is the wiring harness between daytime running light

relay connector A-24X (terminal 2 and 4) and fusible link
(36) in good condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to Cope with Intermittent

Malfunction

P.00-15

).

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the daytime running lights illuminate normally.

STEP 14. Check ETACS-ECU connector C-312 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-312 in good condition?

YES : Go to Step 15.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC709325 AC

Harness side: A-24X

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-159

STEP 15. Check the wiring harness between daytime
running light relay connector A-24X (terminal 1) and
ETACS-ECU connector C-312 (terminal 10).

• Check the communication wires for open circuit.

Q: Is the wiring harness between daytime running light

relay connector A-24X (terminal 1) and ETACS-ECU
connector C-312 (terminal 10) in good condition?
YES : Go to Step 16.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the daytime running lights illuminate normally.

STEP 16. Retest the system.
Q: Does the daytime running lights illuminate in good

condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to use
Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the ETACS-ECU.

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-160

Inspection Procedure 9: Any of the tail lights, the position lights or the license plate lights does not
Illuminate.

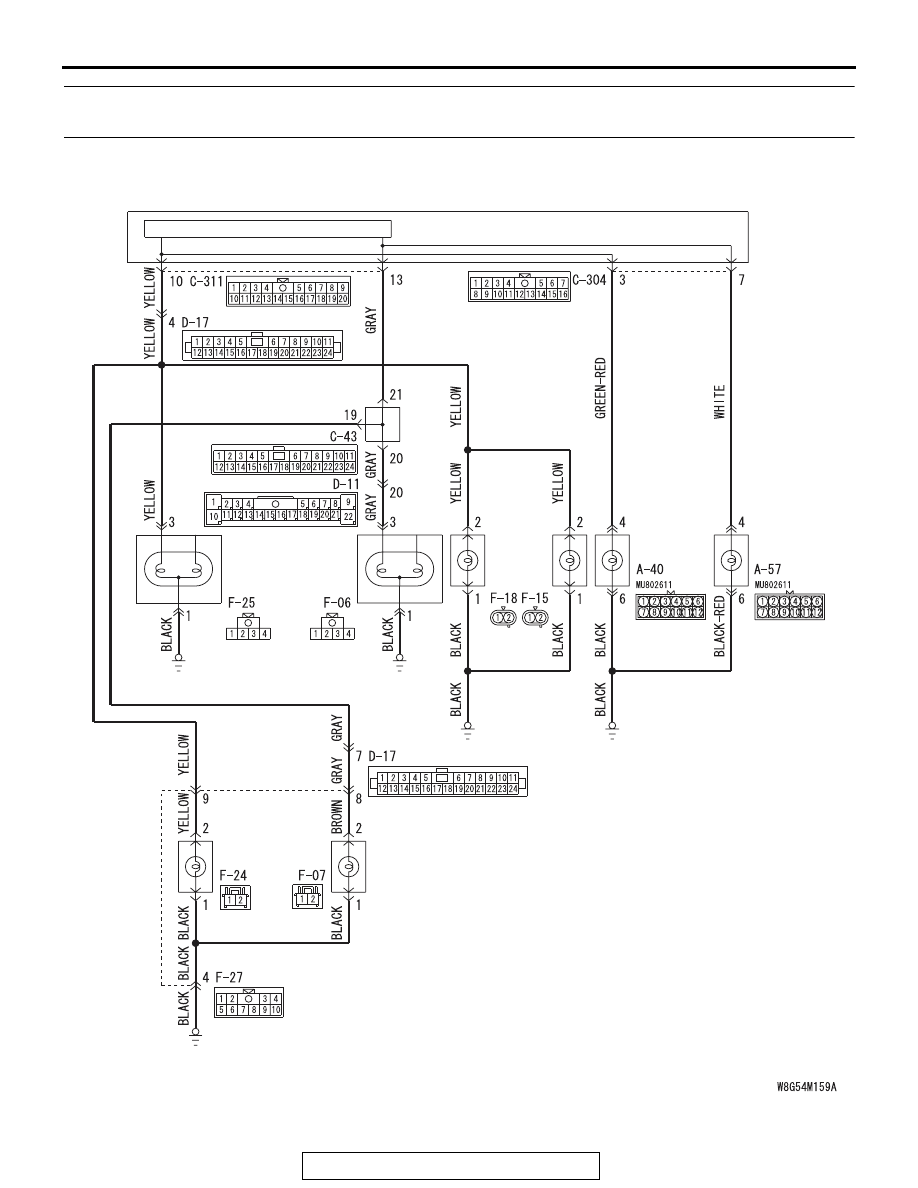

Position Lights, Licence Plate Lights and Tail Lights Circuit

REAR
COMBINATION
LIGHT [TAILLIGHT]
(LH)                  (RH)

ETACS-
ECU

TAILLIGHT CONTROL CIRCUIT

JOINT
CONNECTOR

LICENCE
PLATE
LIGHT
(LH)  (RH)

    TAILLIGHT
(LH)              (RH)

POSITION
LIGHT: LH

POSITION
LIGHT: RH
