FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-9

FRONT AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M1261001701356

CAUTION

• The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that

the magnetic encoder should not collect metallic particles. Check that there is not any trouble
prior to reassembling it.

• When removing and installing the front wheel hub assembly, make sure that the magnetic encoder

(integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.

• When removing and installing the front wheel speed sensor, make sure that the sensor head at the

end does not contact with surrounding parts to avoid damage.

• During maintenance, take care not to contact the parts or tools to the caliper because the paint of

caliper will be scratched. And if there is brake fluid on the caliper, wipe off quickly.

Post-installation operation

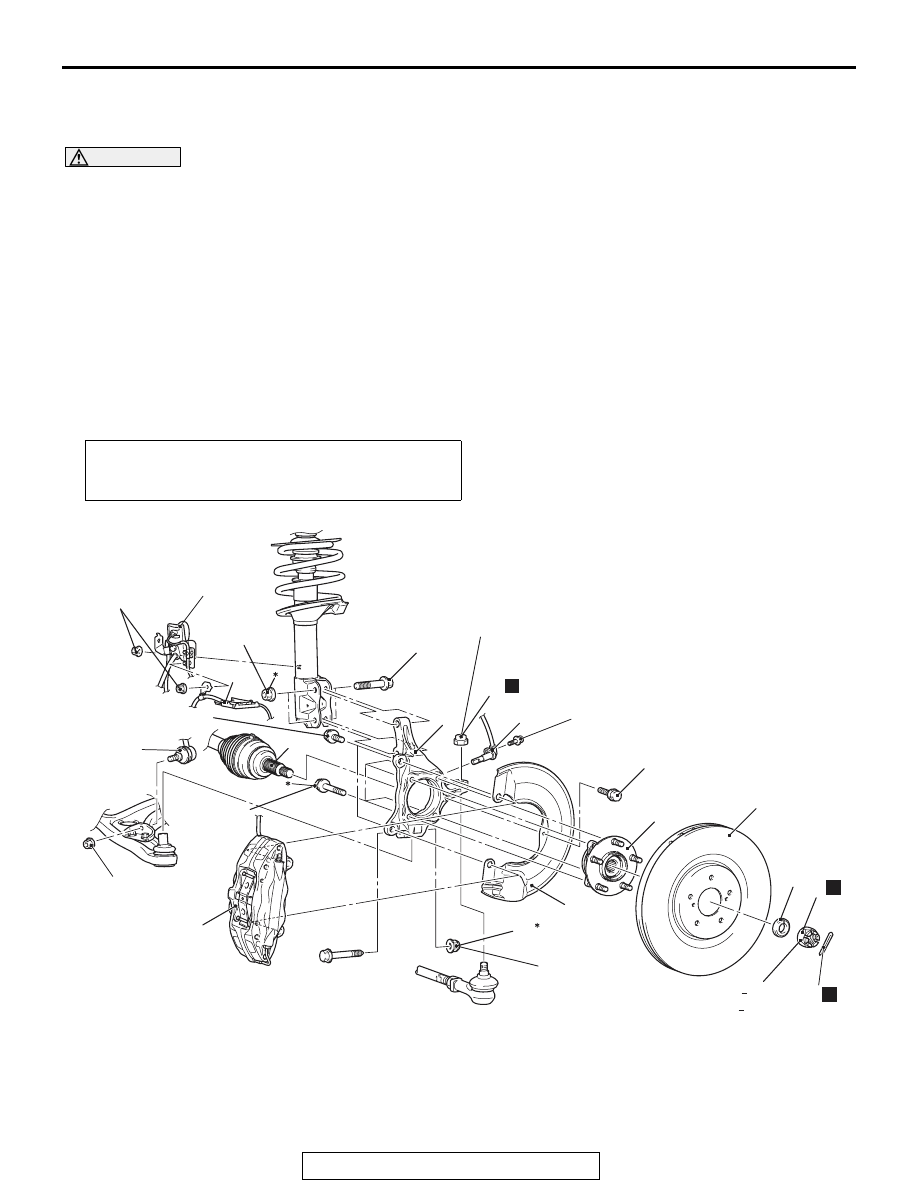

• Using your fingers, press the Ball Joint Dust Cover to

check for a crack or damage.

AC709834

7

1

16

144   176 N·m
107  129 ft-lb

80 ± 10 N·m
59 ± 7 ft-lb

AC

15

9

N

8.9 ± 1.9 N·m
79 ±17 in-lb

3

2

5

N

4

8

10

11

12

13

8.5 ± 1.5 N·m
76 ±13 in-lb

N



71 ± 10 N·m
52 ± 7 ft-lb

110 ± 11 N·m
81 ± 8 ft-lb

13 ± 2 N·m
111 ± 22 in-lb

6

135 ± 15 N·m
100 ± 11 ft-lb

39 ± 6 N·m
29 ± 4 ft-lb

40 ± 8 N·m
30 ± 5 ft-lb

14

The parts indicated by * are the bolt and nuts with friction coefficient stabilizer. In removal, ensure
there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them
to the specified torque.

Removal steps

1.

Cotter pin

<<

A

>> >>

B

<< 2.

Front driveshaft nut

>>

B

<< 3.

Washer

4.

Front wheel speed sensor

5.

Front wheel speed sensor harness
clip

6.

Brake hose bracket

Removal steps (Continued)

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-10

Required Special Tools:

• MB990242: Puller Shaft

• MB990244: Puller Bar

• MB990767: Front Hub and Flange Yoke Holder

• MB991354: Puller Body

• MB991897 or MB992011: Ball Joint Remover

REMOVAL SERVICE POINTS

.

<<A>> FRONT DRIVESHAFT NUT REMOVAL

CAUTION

Do not apply the vehicle weight on the front wheel hub
assembly with the driveshaft nut loosened. Otherwise, the
wheel bearing may be broken.

AC102462

MB990767

AB

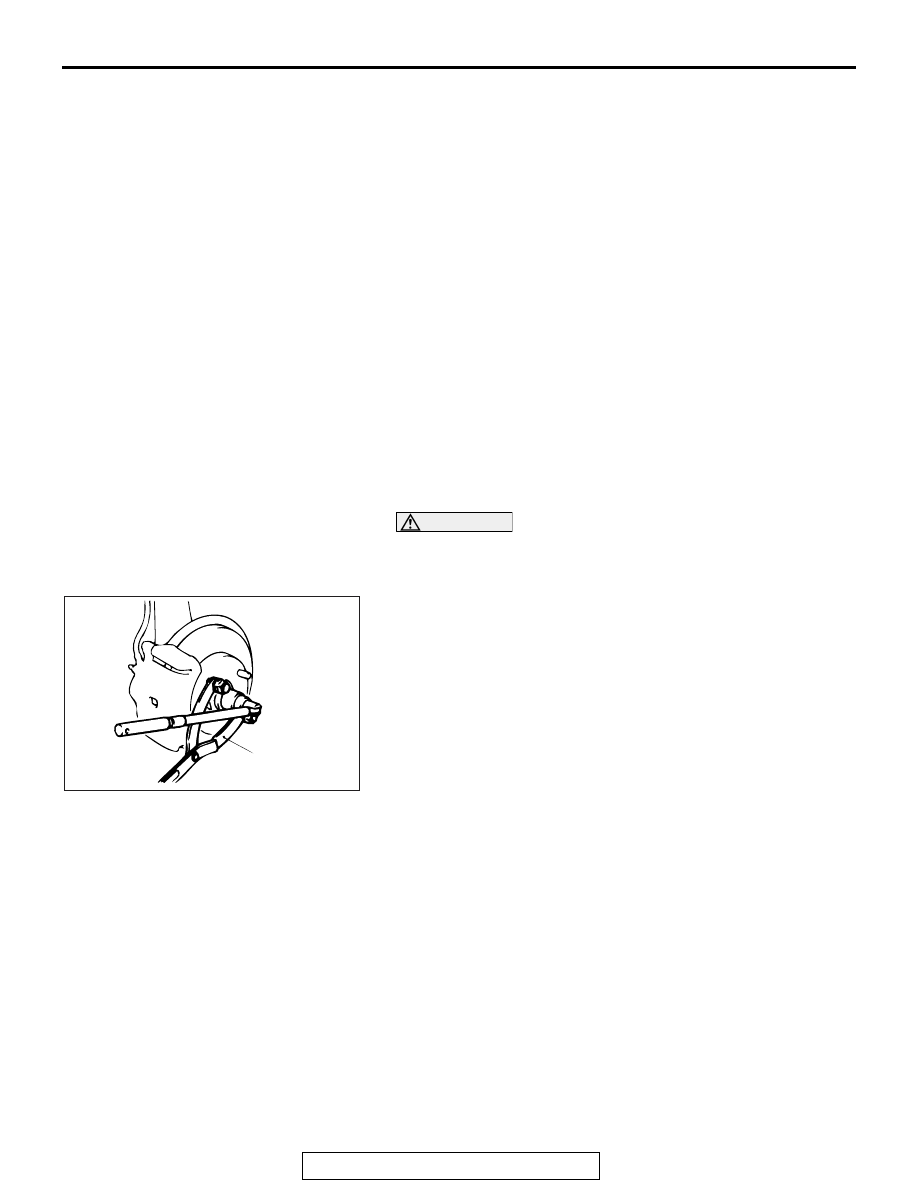

Use special tool MB990767 to counter the hub as shown in the
figure to remove the front driveshaft nut.

.

<<B>> FRONT CALIPER ASSEMBLY REMOVAL

1. Remove the front caliper assembly with brake hose.
2. Retain the removed front caliper assembly with a wire and

the like in a place not to disturb the front hub assembly and
knuckle removal.

.

7.

Front stabilizer link and lower arm
connection

<<

B

>>

8.

Front caliper assembly

<<

C

>>

9.

Front brake disk

<<

D

>>

10. Self locking nut (tie-rod end

connection)

11. Nut (lower arm ball joint

connection)

<<

E

>>

12. Front hub assembly and front

driveshaft assembly connection

>>

A

<< 13. Knuckle and strut assembly

connection bolt

14. Knuckle
15. Front hub assembly
16. Dust shield

Removal steps (Continued)

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-11

<<C>> FRONT BRAKE DISK REMOVAL

AC505409 AC

Bolts
(M8 × 1.25)

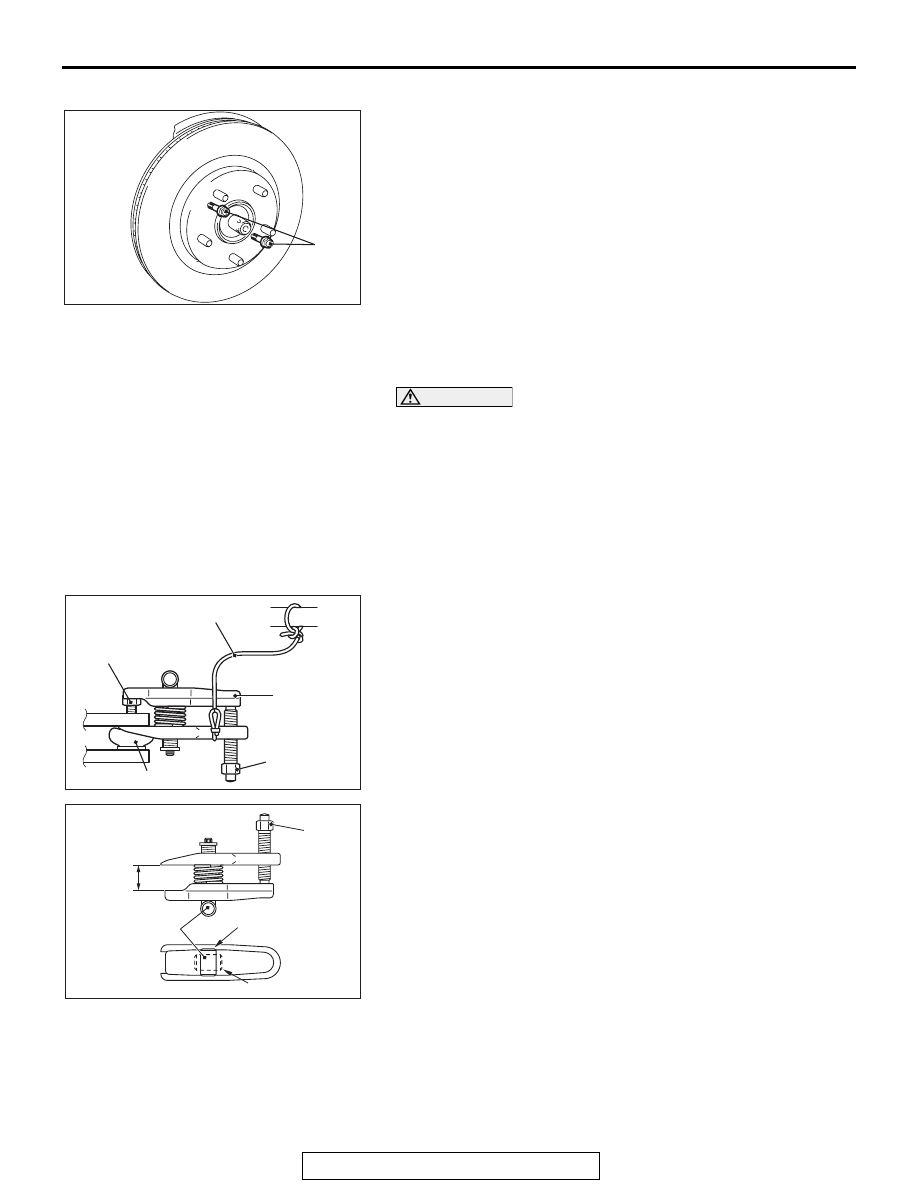

If the front brake disk removal is difficult, install bolts (M8 x
1.25) shown in the figure, and tighten them evenly and gradu-
ally to remove the front brake disk.

.

<<D>> SELF-LOCKING NUT (TIE-ROD END
CONNECTION) REMOVAL

CAUTION

• Loosen the self-locking nut (tie-rod end connection)

from the ball joint, but do not remove here. Use the spe-
cial tool.

• To prevent the special tool from dropping off, suspend

it with a rope.

• If the dust cover is damaged during operation, replace

the tie-rod end. (Refer to GROUP 37

 Power Steering

Gear and Linkage Disassembly and Reassembly

P.37-36

.)

AC208247AN

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

1. Install special tool MB991897 or MB992011 as shown in the

figure.

AC104739AB

Parallel

Knob

Bolt

Correct

Wrong

2. Turn the bolt and knob to make the special tool jaws parallel,

then hand-tighten the bolt. After tightening, check that the
jaws are still parallel.
NOTE: To adjust the special tool jaws to be parallel, set the
orientation of the knob as shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end.

.

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-12

<<E>> FRONT HUB ASSEMBLY AND FRONT
DRIVESHAFT ASSEMBLY DISCONNECTION

AC704652 AB

Oil seal

Magnetic
encoder

Wheel
bearing

Hub

CAUTION

• The magnetic encoder collects metallic particles easily,

because it is magnetized. Make sure that the magnetic
encoder does not collect metallic particles.

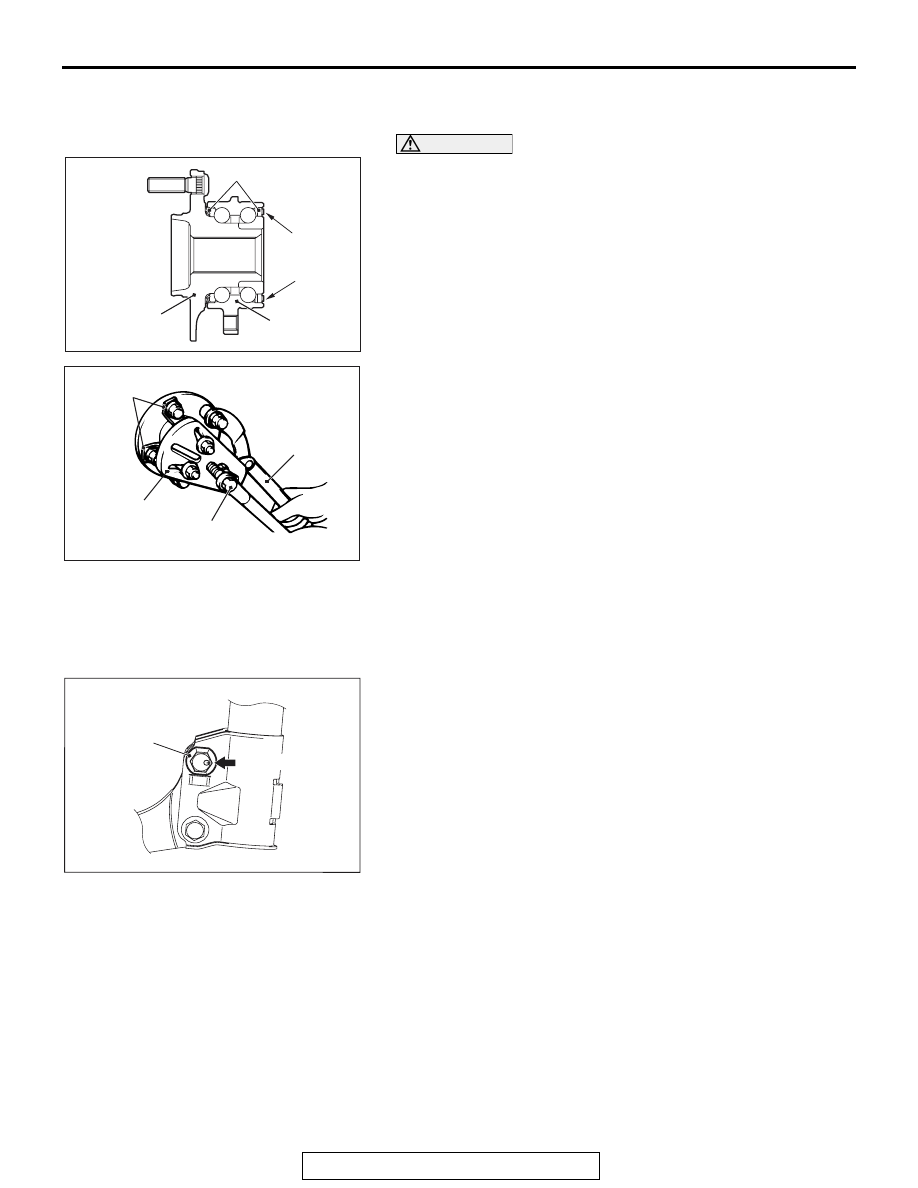

AC303949

MB990767

MB990242

MB991354

MB990244
  (Three)

AB

When removing the front driveshaft, make sure that it
does not contact with the magnetic encoder (integrated
with the inner oil seal) to avoid damage.

If the front driveshaft and front hub are seized, use special tools
MB990242 and MB990244, MB991354 and MB990767 to push
the front driveshaft assembly out from the front hub.

INSTALLATION SERVICE POINTS

.

>>A<< KNUCKLE AND STRUT ASSEMBLY CON-
NECTION BOLT INSTALLATION

AC708457AC

Upper bolt

Mark position

Locate the knuckle and strut assembly upper connection bolt’s
marking position as shown in the figure and tighten it.

.
