Mitsubishi Evolution X. Manual - part 850





26-1

GROUP 26

FRONT AXLE

CONTENTS

GENERAL INFORMATION . . . . . . . .

26-2

GENERAL SPECIFICATIONS . . . . . .

26-3

SERVICE SPECIFICATIONS. . . . . . .

26-4

LUBRICANTS  . . . . . . . . . . . . . . . . . .

26-4

FRONT AXLE DIAGNOSIS . . . . . . . .

26-4

TROUBLESHOOTING STRATEGY . . . . . .

26-4

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

26-4

SYMPTOM PROCEDURES . . . . . . . . . . . .

26-5

SPECIAL TOOLS. . . . . . . . . . . . . . . .

26-6

ON-VEHICLE SERVICE . . . . . . . . . . .

26-7

WHEEL BEARING END PLAY CHECK  . . .

26-7

HUB BOLT REPLACEMENT. . . . . . . . . . . .

26-8

FRONT AXLE HUB ASSEMBLY . . . .

26-9

REMOVAL AND INSTALLATION  . . . . . . . .

26-9

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

26-13

DRIVESHAFT ASSEMBLY. . . . . . . . .

26-15

REMOVAL AND INSTALLATION  . . . . . . . .

26-15

DISASSEMBLY AND ASSEMBLY  . . . . . . .

26-20

EBJ BOOT REPLACEMENT . . . . . . . . . . . .

26-23

GENERAL INFORMATION

TSB Revision

FRONT AXLE

26-2

GENERAL INFORMATION

M1261000100994

For the front axle, the unit bearing (double row angu-
lar contact ball bearing) in which the hub and ball
bearing are incorporated has been adopted for the
front wheel bearing, and the EBJ-ETJ type constant
velocity joint for the front driveshaft.
There are the following features.

• The lightweight front driveshaft and compact

EBJ-ETJ type constant velocity joint have been
equipped.

• Due to the use of the output shaft, the right and

left driveshafts have been approximately the
same in length, reducing noise, vibration, and
torque steer.

• The front driveshaft spline diameter on the

wheel-side and differential-side has been
increased, improving torsional strength.

• The ABS magnetic encoder for wheel speed

detection has been integrated into the front wheel
bearing, and the protector cover of magnetic
encoder for wheel speed detection has been
equipped to the driveshaft.

• The lead-free grease has been adopted for the

constant velocity joint.

• Hexavalent chromium has been eliminated from

the dust cover material and protector cover of
magnetic encoder for wheel speed detection.

NOTE:

.

EBJ (High Efficiency Compact Birfield Joint): the

lighter and smaller constant velocity joint com-
pared with the conventional BJ has been
achieved by adopting the eight small balls.

ETJ (High Efficiency Compact Tripod Joint): The

lighter and smaller constant velocity joint com-
pared with the conventional TJ has been
installed.

GENERAL SPECIFICATIONS

TSB Revision

FRONT AXLE

26-3

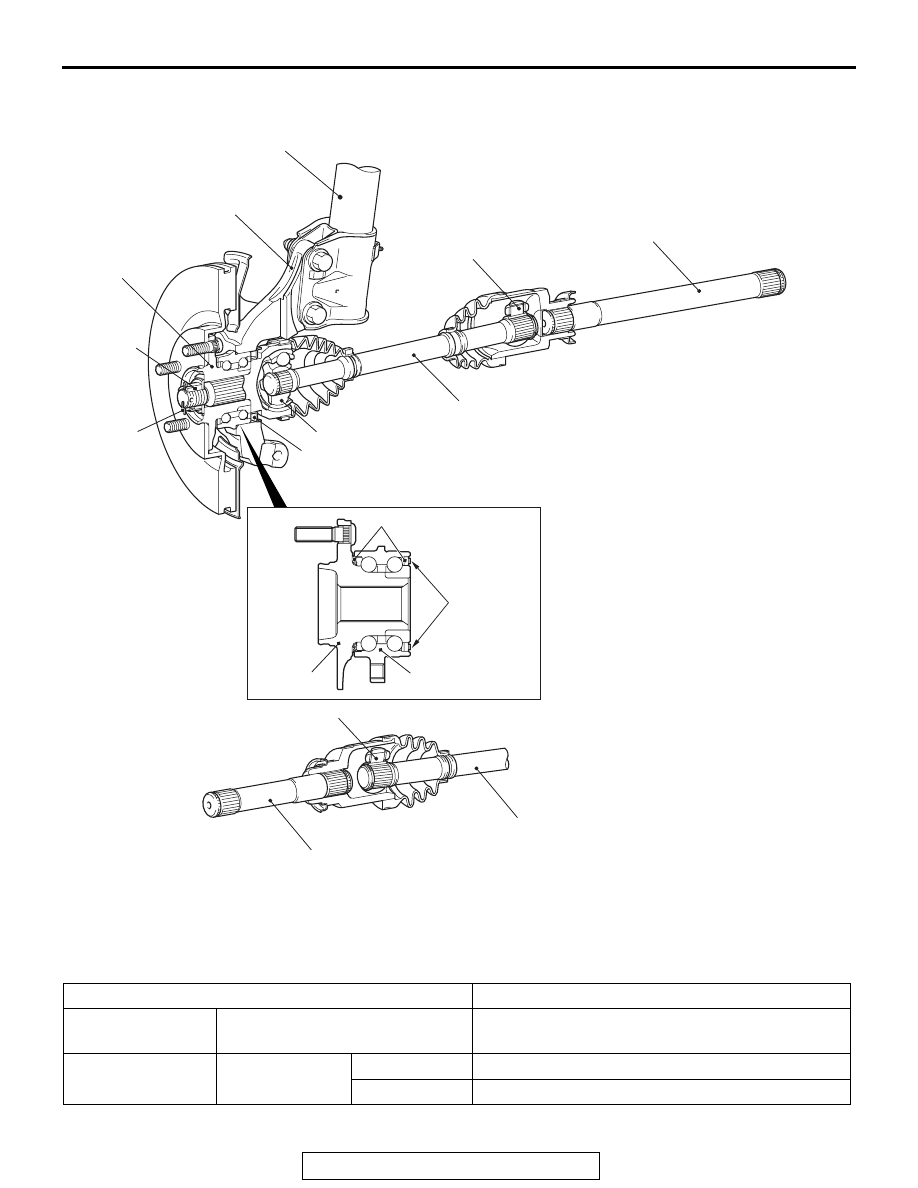

CONSTRUCTION DIAGRAM

AC704636

ETJ

EBJ

AC704652

AB

ETJ

<LH>

<RH>

Knuckle

Strut assembly

Front driveshaft (LH)

Front hub

Front driveshaft (RH)

Front wheel
bearing

Oil seal

Magnetic
encoder

Front hub

Magnetic encoder
protection cover

Output shaft

Output shaft

Front
driveshaft
nut

Split pin

GENERAL SPECIFICATIONS

M1261000200418

Item

Specification

Front wheel
bearing

Type

Unit bearing (double-row angular contact ball
bearing)

Front driveshaft

Joint type

Outer

High efficiency compact Birfield joint

Inner

High efficiency compact tripod joint

SERVICE SPECIFICATIONS

TSB Revision

FRONT AXLE

26-4

SERVICE SPECIFICATIONS

M1261000301054

Item

Standard value Limit

Wheel bearing end play mm (in)

0.05 (0.002)

Wheel bearing rotation starting torque N

⋅ m(in-lb)

1.4 (12.39)

Setting of ETJ boot length mm (in)

80

± 3 (3.14 ±

0.12)

Opening dimension of the special
tool (MB991561) mm (in)

When the EBJ boot band (small) is
crimped

2.9 (0.11)

When the EBJ boot band (large) is
crimped

3.2 (0.13)

Crimped width of the EBJ boot band mm (in)

2.4

− 2.8 (0.10 −

0.11)

LUBRICANTS

M1261000401147

Item

Specified lubricant

Quantity

ETJ

Repair kit grease

120

± 10 g (4.2 ± 0.3 oz)

EBJ

Repair kit grease

105

± 10 g (3.7 ± 0.3 oz)

FRONT AXLE DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1261005600251

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
front axle fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1261005700311

Symptom

Inspection
procedure

Reference page

Driveshaft

Noise during wheel rotation

1

P.26-5

Noise due to excessive play of wheel in turning
direction

2

P.26-6
