Mitsubishi Evolution X. Manual - part 848

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-75

AC707936AB

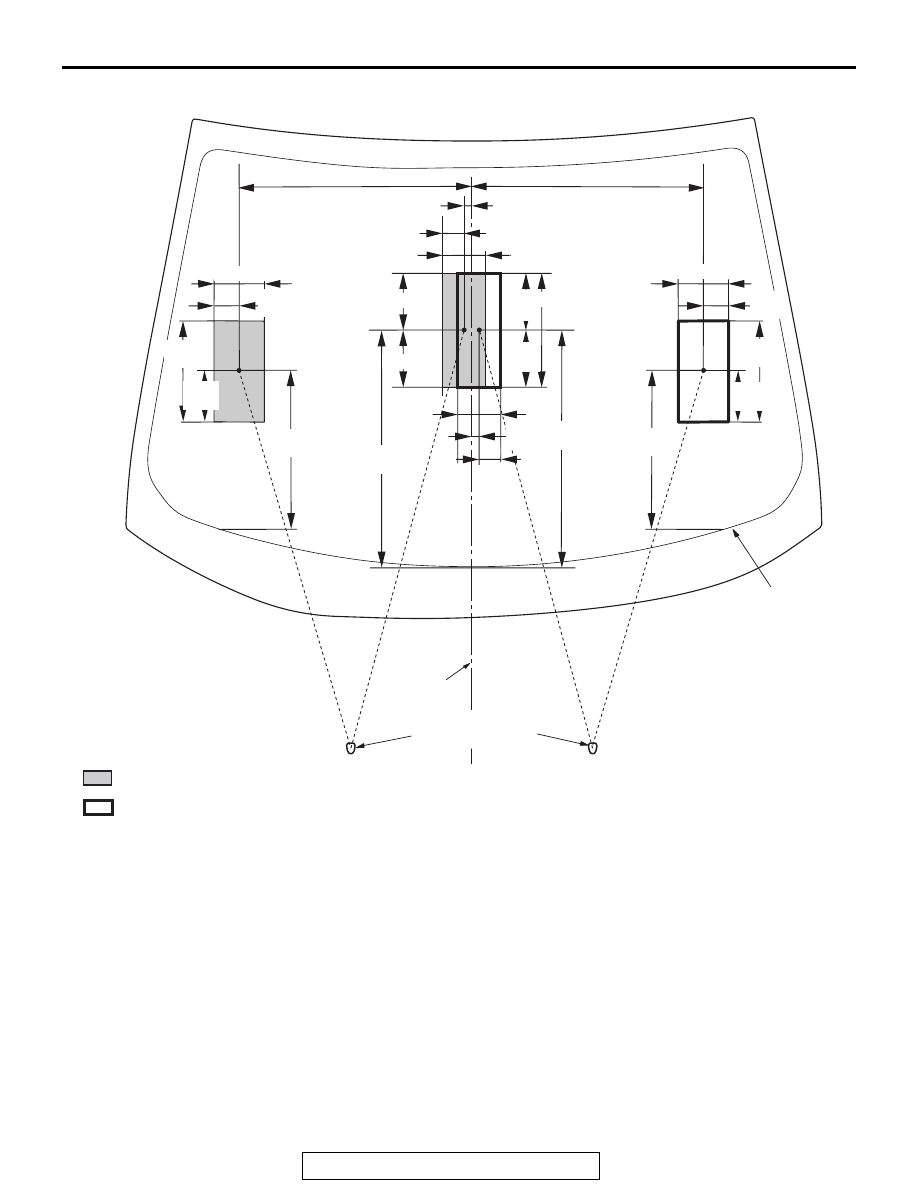

Windshield washer
nozzle

<Left>

<Right>

Unit: mm(in)

Ceramic line terminal

15

(0.59)

445

(17.52)

445

(17.52)

15
(0.59)

105(4.13)

90(3.54)

90(3.54)

45

(1.77)

Vehicle center

line

105(4.13)

105
(4.13)

: Right side washer

: Left side washer

210(8.27)

105
(4.13)

45

(1.77)

295

(11.61)

190

(7.48)

95

(3.74)

50

(1.97)

100(3.94)

295

(11.61)

190

(7.48)

95

(3.74)

50

(1.97)

100(3.94)

480(18.89)

480(18.89)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-76

LIGHTING CONTROL SENSOR

 REMOVAL AND INSTALLATION

M1511028300020

Refer to GROUP 54A

−Lighting control sensor

(

P.54A-187

 ).

ADAPTATION

M1511028600010

CAUTION

• Before performing the adaptation, check if the lighting

control sensor (rain sensor)-related diagnostic trouble
code is set. (if set, refer to GROUP 54A, Headlight Diag-
nostic Trouble Code Chart

P.54A-107

).

• Turn the wiper switch to the OFF position.

1. Clean the windshield in fine weather.
2. Wipe the surface of the windshield thoroughly, and check

that the surface is dry.

3. Turn the ignition switch to the ON position.
4. Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Before connecting or disconnecting scan tool MB991958,
always turn the ignition switch to the LOCK (OFF) position.
5. Connect the scan tool MB991958 to the data link connector.
6. Turn the ignition switch to the ON position.
7. Wipe the windshield surface of the lighting control sensor

section thoroughly, and check that the surface is dry.

8. Select "LIN" on the "System Select" screen, and press the

"OK" button.

9. Select "Rain light sensor" on the "System Select" screen,

and press the "OK" button.

10.Select "Special Function" on the "Rain light sensor" screen.
11.Select "Rain Sensor Adaptation" on the "Special Function"

screen.

12.Press the "OK" button, and execute the "Rain Sensor

Adaptation."

13.Press the "OK" button after the execution screen is

displayed.

14.Press the "OK" button after "Completed" is displayed.

MARK

TSB Revision

EXTERIOR

51-77

MARK

REMOVAL AND INSTALLATION

M1511011802308

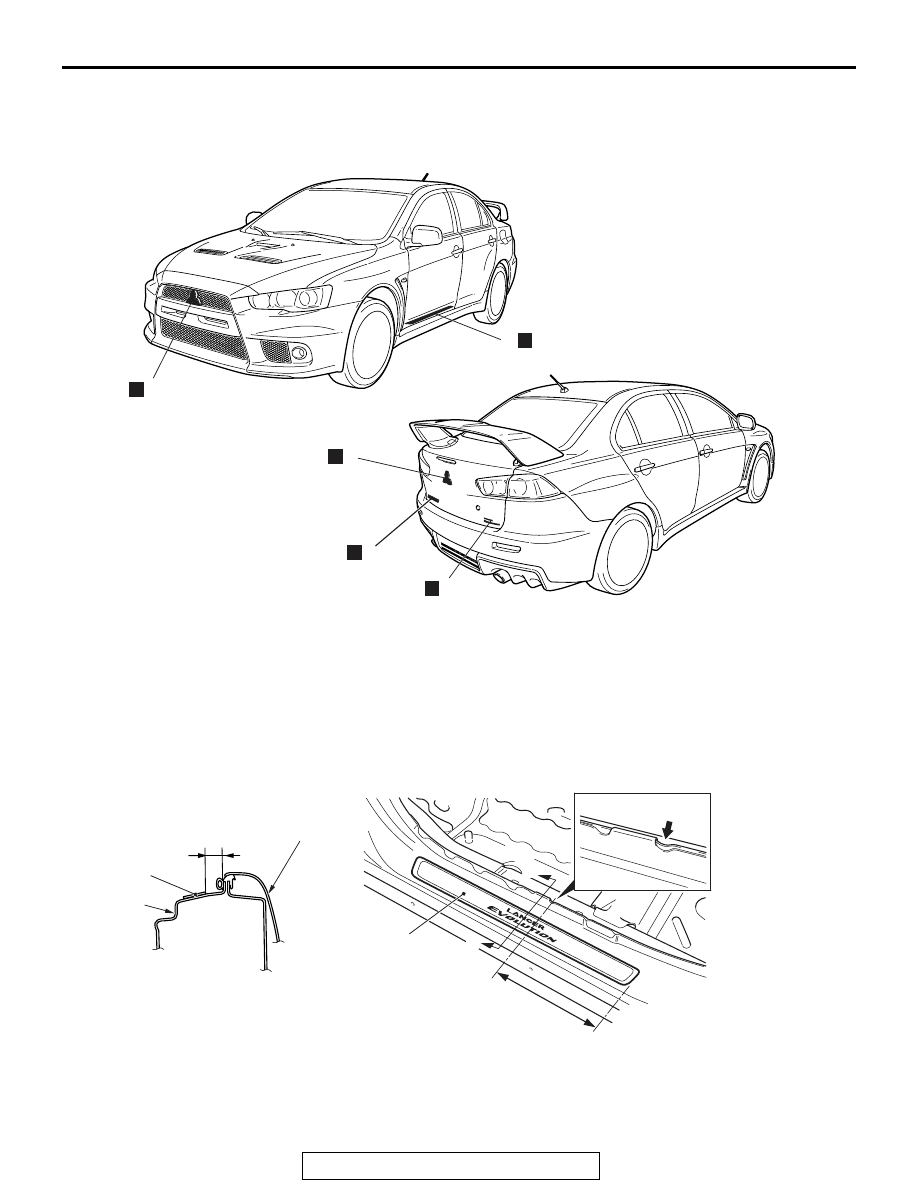

INSTALLATION SERVICE POINT

.

>>A<< MARK INSTALLATION

AC708418

1

3

2

4

N

N

N

N

AD

5

N

Removal

1.

Front three-diamond mark (Refer to

P.51-4

.)

>>A<<

2.

Front step plate

>>A<<

3.

Rear three-diamond mark

>>A<<

4.

MITSUBISHI mark

>>A<<

5.

LANCER EVOLUTION mark

Removal (Continued)

AC704761AB

2

2

A

A

Scuff plate

Section A - A

2. Front step plate

side sill

Body panel notch

24.0 mm

(0.94 in)

190.0 mm

(7.48 in)

MARK

TSB Revision

EXTERIOR

51-78

1. Installation position

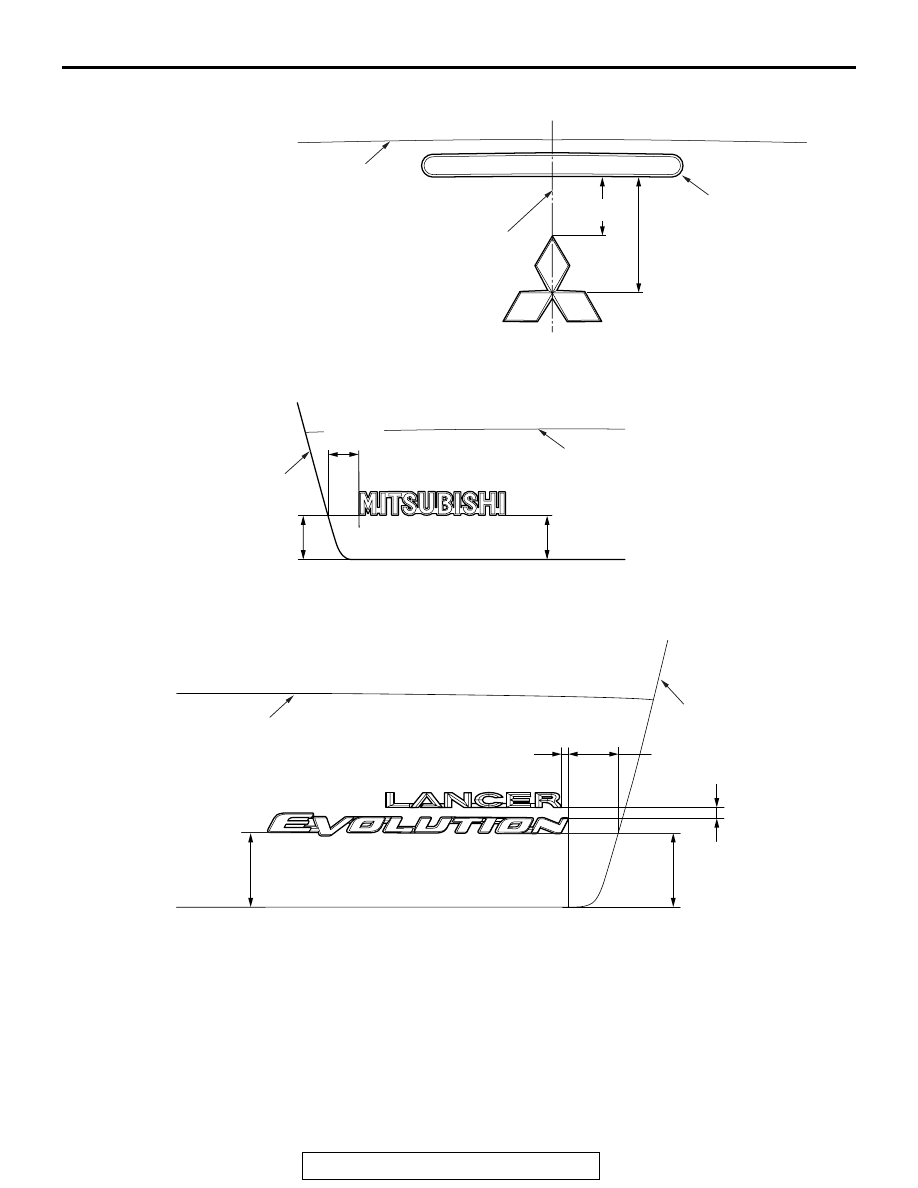

Attach each mark to the position shown in the illustration.

2. Installation procedure

(1) Use 3M

™ AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

AC609448 AE

116.3 mm

(4.58 in)

3. Rear three-diamond mark

Center line of vehicle

Trunk lid panel
press line

High mount stop light

61.5 mm

(2.42 in)

AC609134

AE

44.7 mm

(1.76 in)

4. MITSUBISHI mark

Trunk lid panel
end line

30.5 mm

(1.20 in)

Trunk lid panel
press line

45.5 mm

(1.79 in)

AC708779

AB

44.7 mm

(1.76 in)

5. LANCER EVOLUTION mark

Trunk lid panel
end line

30.5 mm

(1.20 in)

Trunk lid panel
press line

45.7 mm

(1.80 in)

6.0 mm

(0.24 in)

4.0 mm

(0.16 in)
