Mitsubishi Evolution X. Manual - part 847





WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-71

.

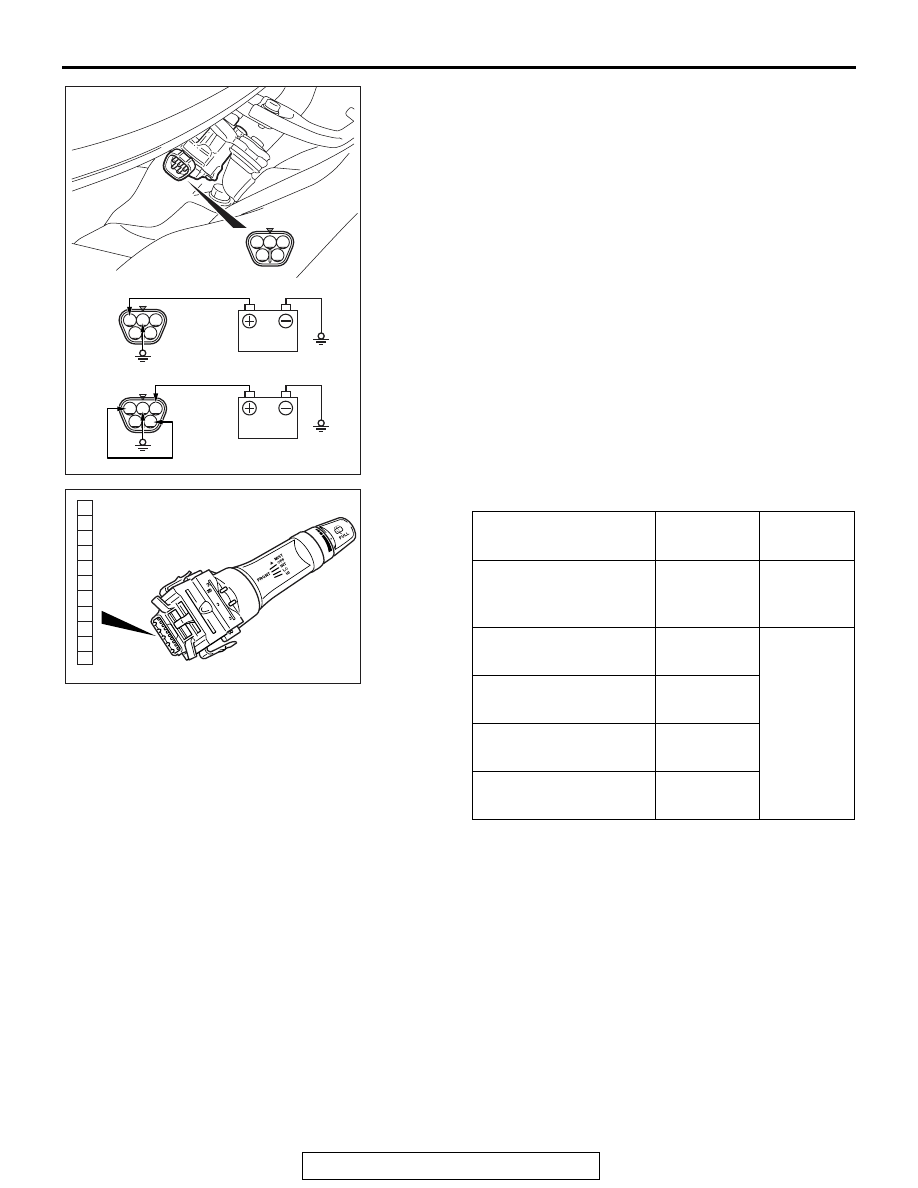

WINDSHIELD WIPER MOTOR AT STOP POSITION
OPERATION

1. Connect the battery to the windshield wiper motor as shown

in the illustration (A).

2. Run the windshield wiper motor at low speed, then

disconnect the battery in the middle of the motor rotation
and check to see that the motor stops.

3. Connect the battery to the windshield wiper motor as shown

in the illustration (B).

4. Connect the terminals of the windshield wiper motor

connector as shown in the illustration (B).

5. Check to see that the windshield wiper motor runs at low

speed and then stops at the automatic stop position.

.

WINDSHIELD WIPER SWITCH CHECK

Check continuity between the switch terminals.

Switch position

Tester
connection

Specified
condition

OFF

− 11, 6 −

10, 6

− 9, 6 −

8

Open
circuit

Windshield mist wiper
switch

− 11

Continuity
(Less than
2 ohms)

Windshield intermittent
wiper switch

− 10

Windshield low-speed
wiper switch

− 9

Windshield high-speed
wiper switch

− 8

4 5

3

1 2

4 5

3

1 2

4 5

3

1 2

AC608788AB

(B) Automatic stop

(A) Low speed

Stop position check

AC609144

1

6

8

11

10

9

7

5

4

3

2

AB

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-72

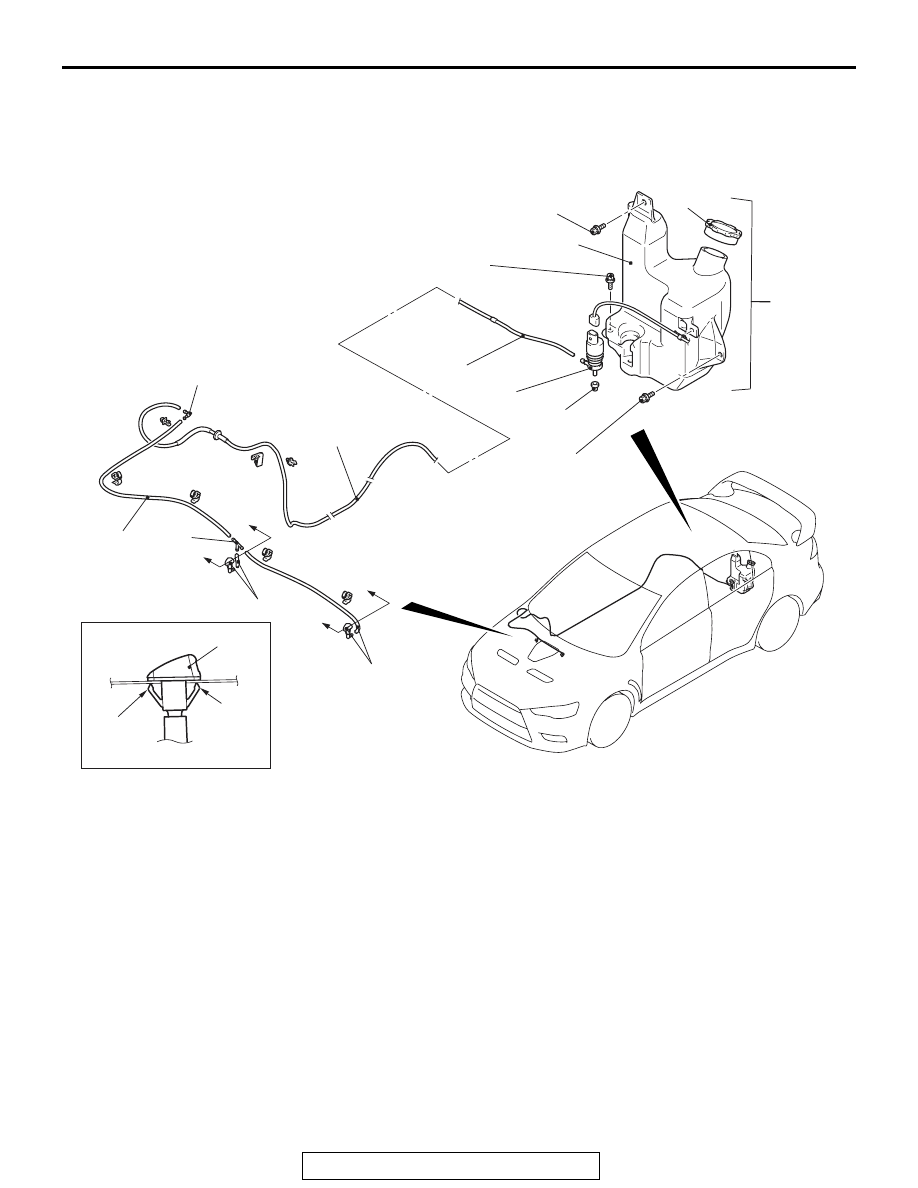

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008201079

AC709017

1,2

1

4

6

A

A

A

A

AB

7

8

5

9

10

2

3

3

5

10.5 ± 2.5 N·m
93 ± 22 in-lb

10.5 ± 2.5 N·m
93 ± 22 in-lb

10.5 ± 2.5 N·m
93 ± 22 in-lb

Section A – A

Claw

Claw

Windshield washer nozzle removal
steps
• Connection of windshield washer

hose A

• Hood insulator A and B (Refer to

GROUP 42A, Hood

P.42A-7

)

1. Windshield washer nozzle assembly

(LH)

2. Windshield washer nozzle assembly

(RH)

3. Joint
Windshield washer hose removal
steps
• Front scuff plate, rear scuff plate,

center pillar trim lower, trunk room
trim front (Refer to GROUP 52A,
Interior trim

P.52A-11

)

• Connection of washer nozzle/washer

motor

3. Joint

4. Windshield washer hose A
5. Windshield washer hose B
Windshield washer tank removal
steps
• Trunk room trim front (Refer to

GROUP 52A, Interior trim

P.52A-11

)

• Connection of windshield washer

hose

• Windshield washer motor connector

connection

<<

A

>>

6. Windshield washer tank assembly
7. Washer tank cap
8. Windshield washer motor
9. Grommet
10. Windshield washer tank

Windshield washer hose removal
steps (Continued)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-73

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-278

.

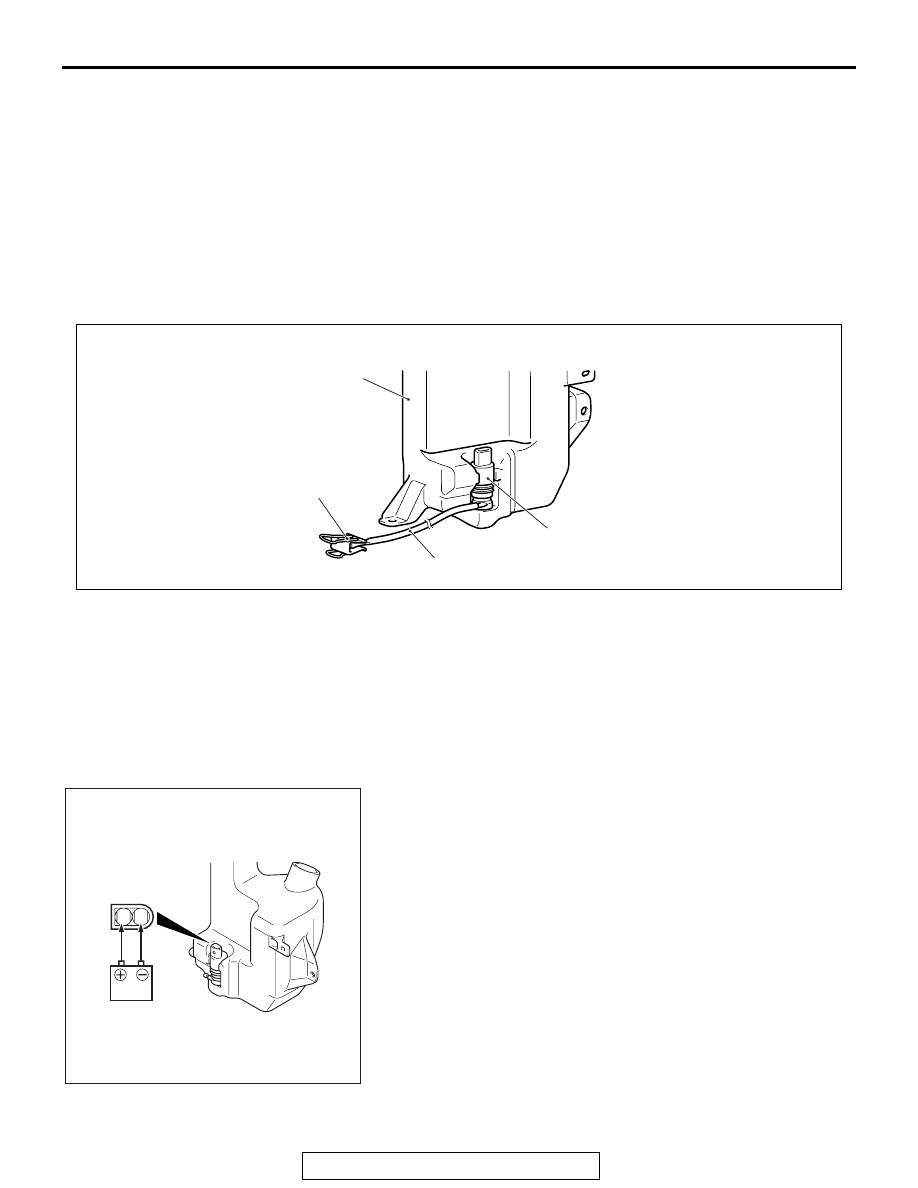

REMOVAL SERVICE POINT

.

<<A>> WINDSHIELD WASHER TANK ASSEMBLY
REMOVAL

When removing the windshield washer tank assembly, close
the windshield washer hose by a binder clip as shown, to pre-
vent the windshield washer from flowing out.

INSPECTION

M1511008300385

WINDSHIELD WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose

attached. Then fill the washer tank with water.

2. Check to see that the water is vigorously sprayed when

connecting the positive battery terminal to terminal number
2 and terminal number 1 to ground.

Windshield washer motor removal
steps
• Connection of windshield washer

hose B

• Windshield washer motor connector

connection

8. Windshield washer motor
9. Grommet

Windshield washer motor removal
steps (Continued)

AC709018AB

Windshield washer motor

Windshield washer tank assembly

Windshield washer hose

Binder clip

2 1

AC709022 AB

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-74

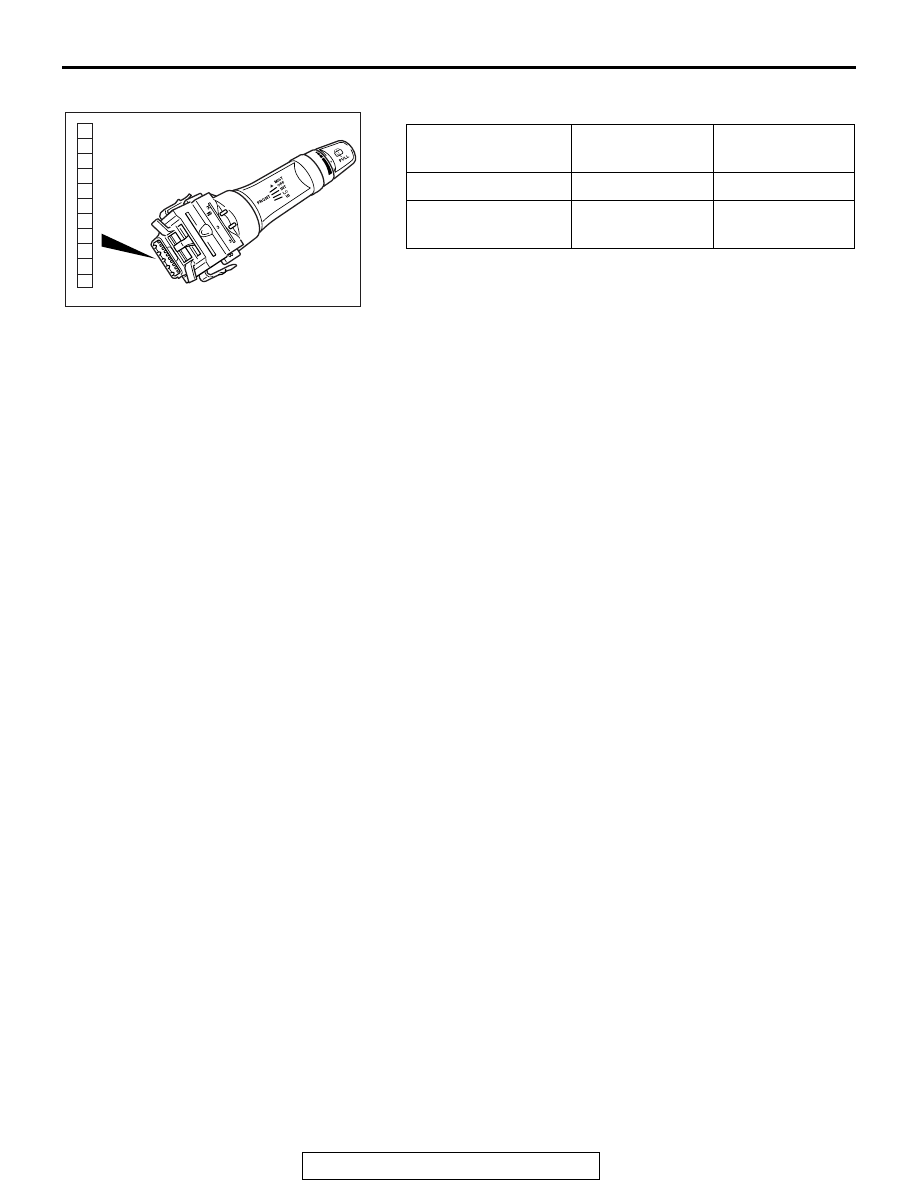

WINDSHIELD WASHER SWITCH CHECK

WINDSHIELD WASHER FLUID EJECTION CHECK

NOTE: The splashing point cannot be adjusted by the nozzle. If
the splashing point of the washer fluid is different from the fig-
ure below, replace the nozzle.

Switch position

Tester
connection

Specified
condition

OFF

− 7

Open circuit

Windshield washer
switch ON

− 7

Continuity (Less
than 2 ohms

AC609144

1

6

8

11

10

9

7

5

4

3

2

AB
