WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-19

WINDSHIELD WIPER AND WASHER

GENERAL INFORMATION

M1511000101540

WINDSHIELD WIPER AND WASHER OPERATION

.

Intermittent control (Vehicle speed-dependent
variable type) <Initial condition: with function>

1. ETACS calculates the windshield intermittent wiper interval

T1 from the position of the windshield intermittent wiper
switch on the column switch and the vehicle speed signal
(sent from the combination meter to ETACS via CAN com-
munication).
NOTE: Using the configuration function, the vehicle
speed-dependent intermittent function can be invalidated
(Refer to

P.51-65

).

2. When ETACS receives the ON signal of the windshield

intermittent wiper switch, it turns the windshield wiper relay
ON. When the wiper reaches the stop position, the wind-
shield wiper auto-stop signal turns OFF, and the windshield
wiper relay turns OFF.
When the intermittent time T1 calculated by step 1 has
elapsed after the windshield wiper relay ON, the windshield
wiper relay turns ON again, and the above-mentioned oper-
ation is repeated.

.

Mist wiper control

When the windshield wiper mist switch on the column switch is
turned ON while the ignition switch is in ACC or ON position,
the column switch turns the windshield wiper relay ON. At the
same time, the wiper speed switching relay turns ON (HI).
When the windshield mist wiper switch is ON, the windshield
wiper operates at high speed.

.

AC101502 AC

FAST

SLOW

0

100

30

0

30

Variable intermittent wiper
control switch position

Intermittent
time T1
(seconds)

Intermittent
time T1
(seconds)

Change in intermittent time by variable
intermittent wiper control switch
(when vehicle is stationary)

Change in intermittent time according
to vehicle speed

When at FAST position

When at SLOW position

Vehicle speed  (km/h)

AC101493AJ

ON

OFF

ON

OFF

Windshield
wiper auto-
stop signal

Windshield
wiper relay

T1

T1

T1

AC207004AI

ON

OFF

ON

OFF

ON

OFF

ON (HIGH)

Windshield mist
wiper switch

Windshield wiper
auto-stop signal

Windshield wiper
relay

Windshield wiper
speed switching
relay

OFF (LOW)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-20

Low speed wiper and high speed wiper control

When the windshield low speed wiper switch on the
column switch is turned ON while the ignition switch
is in ACC or ON position, the column switch turns the
windshield wiper relay ON. Also, the wiper speed
switching relay turns OFF (LO), and the windshield
wiper operates at low speed.

When the windshield high speed wiper switch is
turned ON, the windshield wiper relay turns ON.
Also, the wiper speed switching relay turns ON (HI),
and the windshield wiper operates at high speed.

.

Windshield wiper linked with washer function <Initial condition: with function>

AC506610AH

ON

OFF

ON

OFF

ON

OFF

(HI) ON

Windshield low-speed
wiper switch

Windshield high-speed
wiper switch

Windshield wiper auto-stop
signal

ON

OFF

Windshield wiper
relay

Windshield wiper speed
switching relay

(LO) OFF

Low speed operations

High speed operations

AC707462 AB

t

ON

OFF

ON

OFF

ON

OFF

ON

OFF

T

T

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper relay

Wiper switch in
off position

Wiper switch in intermittent
operation position

t: 0.3 second
T: Intermittent wiper intermittent time

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-21

When the windshield washer switch on the column
switch is turned ON while the ignition switch is in
ACC or ON position, ETACS turns the windshield
washer relay ON.
When the windshield washer switch is kept ON for
0.3 seconds or longer, the windshield wiper relay (the
wiper relay output time varies depending on the con-
ditions. For details, see the table.) is turned ON, and
the windshield wiper operates at high speed. The
windshield wiper is turned OFF with 3 seconds delay
after the windshield washer switch is turned OFF.
Even when the windshield washer switch is turned
ON while the windshield wiper is operating intermit-
tently, the intermittent action starts again after the
linked operation is finished.

If the ignition switch is turned to ACC position while
the windshield washer switch is ON, the windshield
washer relay turns ON, but the windshield wiper
does not perform the linked operation. When the
windshield washer switch is turned OFF and then
ON, the windshield wiper starts the linked operation.
NOTE:

.

Using the configuration function, the washer
linked windshield wiper function can be invali-
dated (Refer to

P.51-65

).

Using the configuration function, when the
washer linked windshield wiper function is invali-
dated, only the washer operates. It is useful to
melt down the ices of the frozen windshield.

.

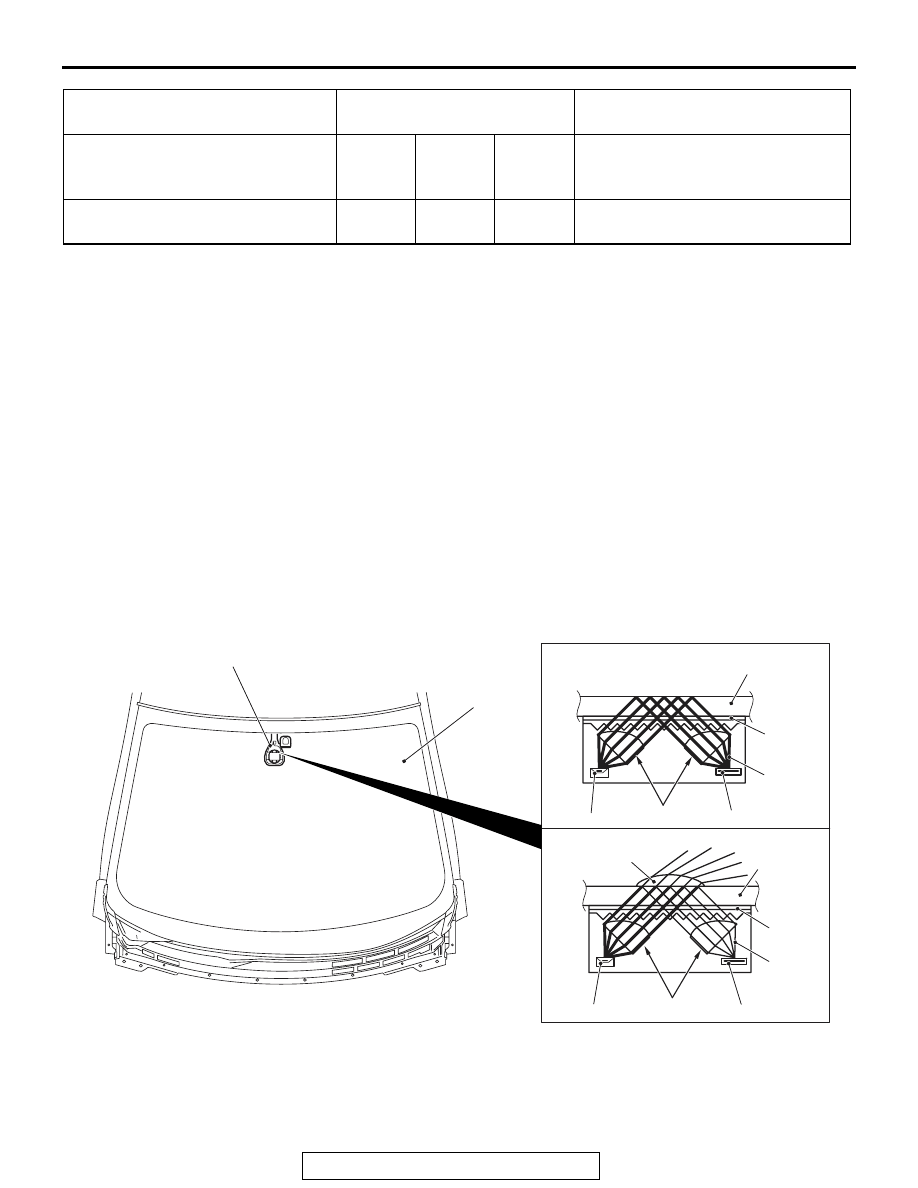

Rain sensitive wiper function



<Optional: Vehicles for USA with lighting control sensor (rain sensor)>

• Lighting control sensor (rain sensor) has been

installed in the upper part of the windshield to
sense the raindrops and windshield wiper can be
operated when the ignition switch is at ON and
wiper switch is at AUTO position.

• The lighting control sensor detects the raindrops

on the windshield surface using the optical ele-
ment, and it automatically switches the wind-
shield wiper operation, depending on the amount
of rainfall, to the intermittent or LO/HI operation.

Wiper switch

OFF position
AUTO position

Low-speed or high-speed
operation position

Washer switch ON time (t)

0.3
second
or less

0.3 to 0.5
second

0.5
second
or more

-

Intermittent wiper time (T)

0 second 2

seconds


seconds

3 seconds

AC708778AB

Windshield

Lighting control sensor (rain sensor)

Windshield

Receiver diode

Emitter diode

Raindrop

High
intensity

Receiver diode

Emitter diode

Reduced
intensity

Windshield

Optical
element

Optical
element

Dry windshield

Wet windshield

Infrared rays

Infrared rays

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-22

• The lighting control sensor detects the raindrops

using the reflections of infrared rays, and
depending on the amount of rainfall, it automati-
cally adjusts the wiping speed.

• Dry windshield: All infrared rays emitted from the

emitter diode are reflected by the windshield and
directed to the receiver diode as they are.

• Wet windshield: Part of the infrared rays emitted

from the emitter diode are transmitted to outside
of the windshield through the raindrops, and the
infrared rays with reduced intensity are directed
to the receiver diode.

NOTE: Using the configuration function, the rain sen-
sitive wiper function can be invalidated (Refer to

P.51-65

).

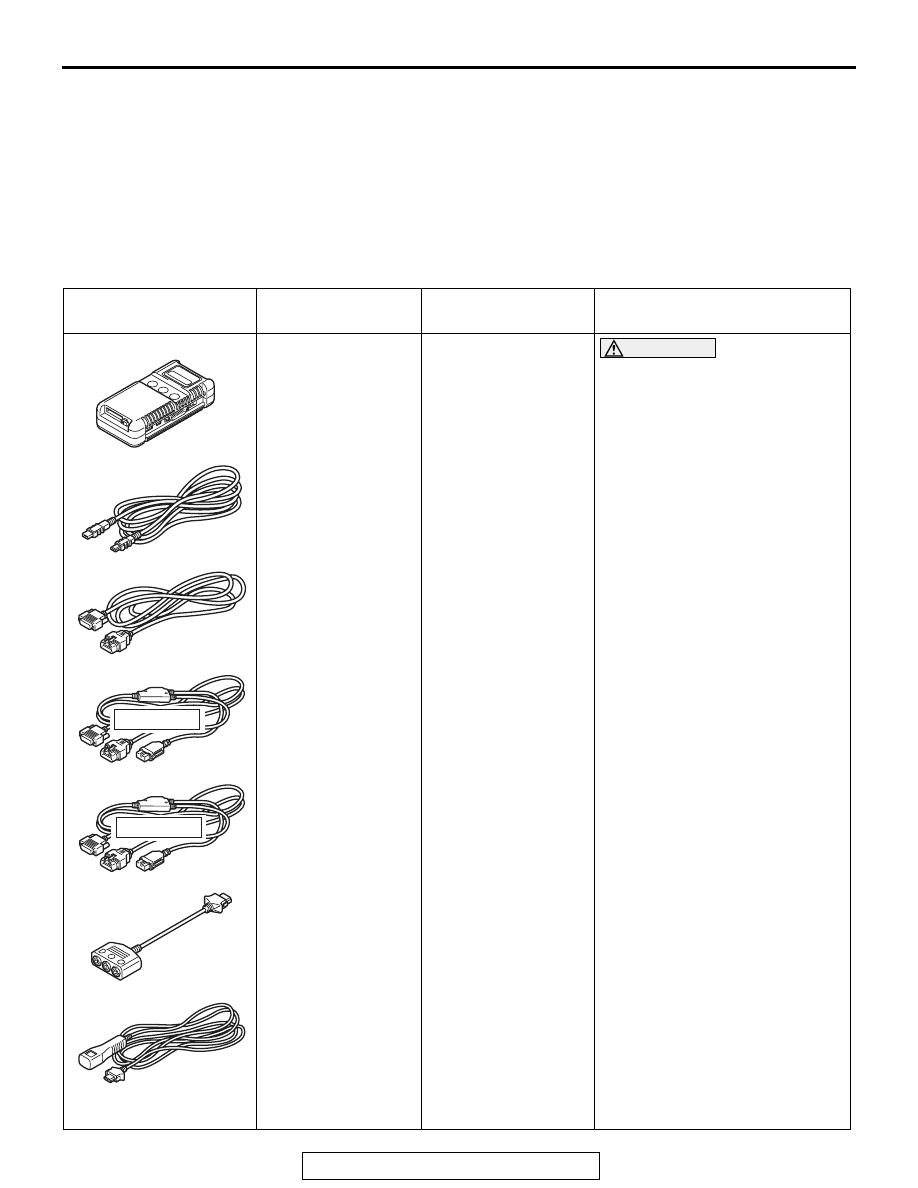

SPECIAL TOOLS

M1511000602214

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Windshield wiper intermittent time
check

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use
