Mitsubishi Evolution X. Manual - part 832





DOOR SASH TAPE

TSB Revision

EXTERIOR

51-11

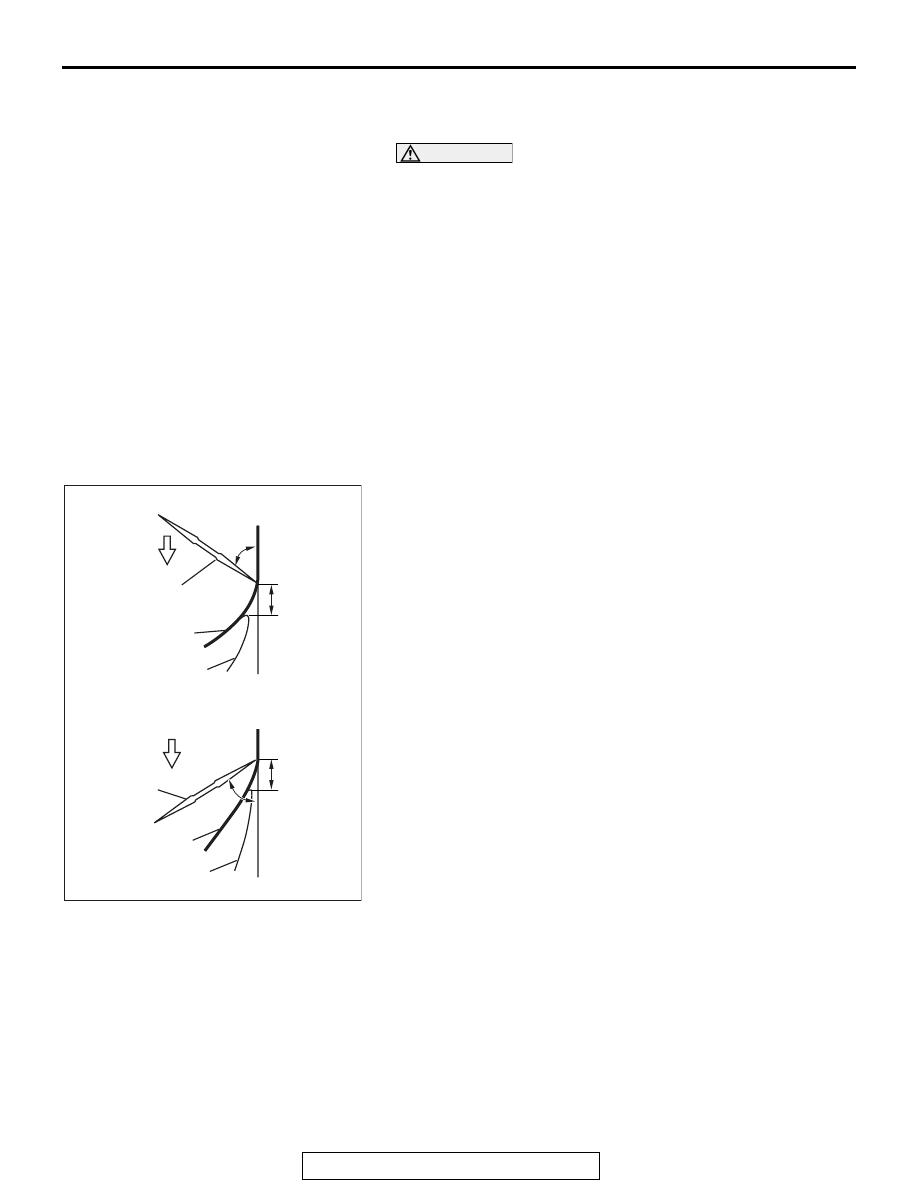

INSTALLATION SERVICE POINT

.

>>A<< DOOR SASH TAPES INSTALLATION

CAUTION

• The ambient temperature should be 20(68° F) to

30

° C(86° F). Ensure that the working area is clean. Ide-

ally, the tape application should be done at ambient
temperature of 25

° C(77° F).

• If ambient temperature is less than 15° C(59° F), heat the

tape and application surface to a temperature of 20(68)
to 30

° C(86° F). If ambient temperature is 35° C(95° F) or

higher, cool down them. The adhesive property of the
tape is deteriorated at low temperature, so the tape may
come loose easily. Meanwhile, it gets softened at hot
temperature.

• When beginning to apply the tape, pay particular atten-

tion. If the end of the tape cannot be applied to the
specified position with an accuracy of less than 1
mm(0.04 in), it may cause the poor appearance or adhe-
sion.

• Use the special tool MB990528 to apply the tape with a

steady pace and pressure. If you do not apply the tape
with a steady pace or pressure, or abort the application,
a shallow groove (lateral groove called as "Shock line")
may be present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be formed under
the tape.

1. Wrap a soft cloth (synthetic fiber) around the tip of the

special tool.

2. Use white gasoline to degrease the tape application surface.
3. Wipe away dirt from the tape.

AC303428

AD

MB990528

Unit: mm(in)

MB990528

40 to 50˚

30 to 45˚

10 to 20
(0.39 to 0.79)

10 to 20
(0.39 to 0.79)

Door sash tape

Backing paper

Door sash tape

Backing paper

<Pushing direction>

<Pulling direction>

3 to 7 cm/sec.

3 to 7 cm/sec.

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-12

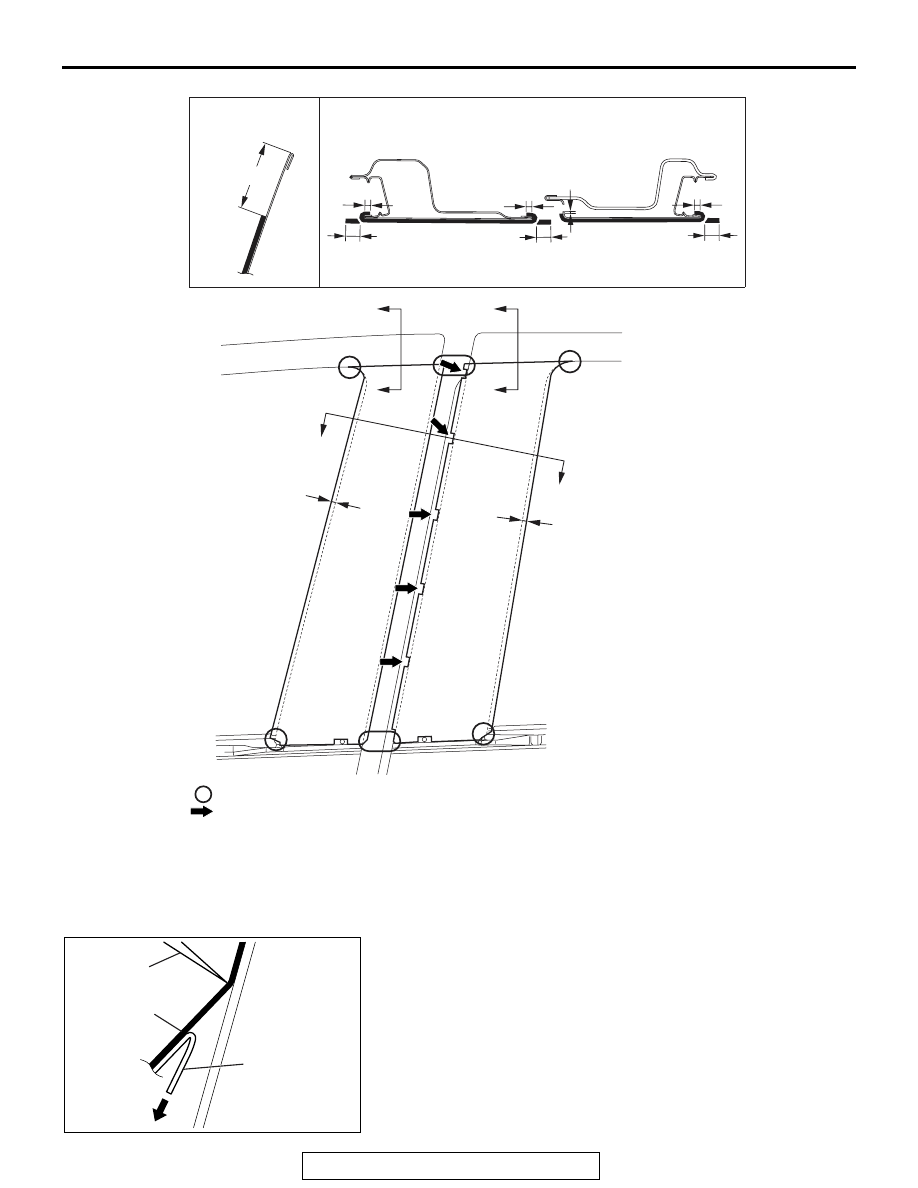

4. Apply the door sash tape according to the procedure below.

(1) Position the tape at the upper and lower locating points.
(2) Peel of backing strip from the top of the tape and attach it

temporarily.

(3) Peel off the backing strip to the half length of the tape.
(4) Apply the tape using the special tool while peeling off the

remaining backing strip.

AC506859

AC607960AB

4(0.16)

4(0.16)

4(0.16)

4(0.16)

4(0.16)

1(0.04)

3(0.12)

3(0.12)

3(0.12)

: Tape locating points

: T-stud for door opening weatherstrip attaching locations (5 places in all).

Section A – A

B

B

A

A

A

A

Section B – B

Unit: mm (in)

   36(1.42)

AC402197

AI

MB990528

Backing paper

Door sash
tape

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-13

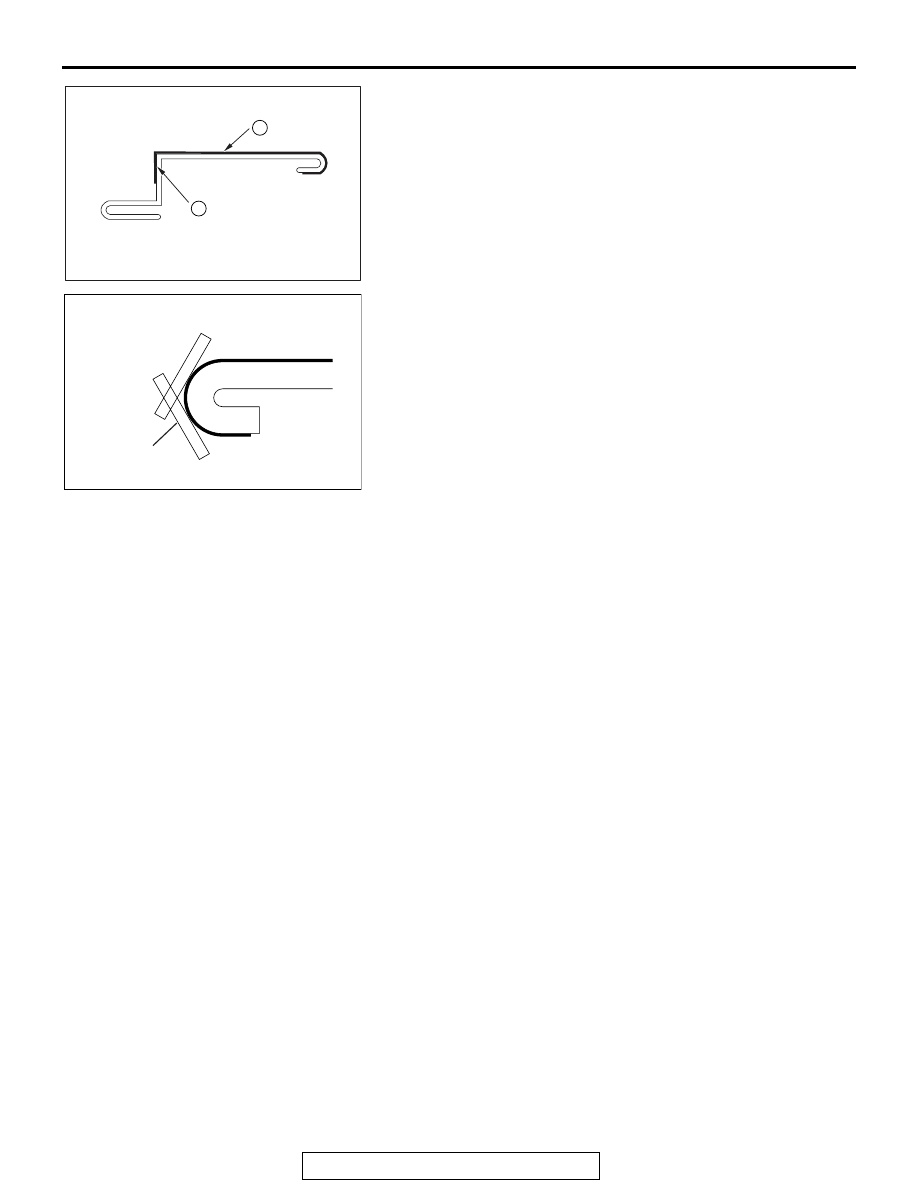

(5) For the rear door sash tape, apply it to plain surface (A).

Then apply it to stepped surface (B).

(6) Press the folded area of the tape by three stages (60

° ,

120

° , and holding), rolling in toward the vehicle inside

direction.

AC506860

AB

A

B

Rear door sash tape front

Stepped part

Plain part

AC303415

AG

MB990528

120˚

60˚

Hemming part

SIDE AIR DAM

TSB Revision

EXTERIOR

51-14

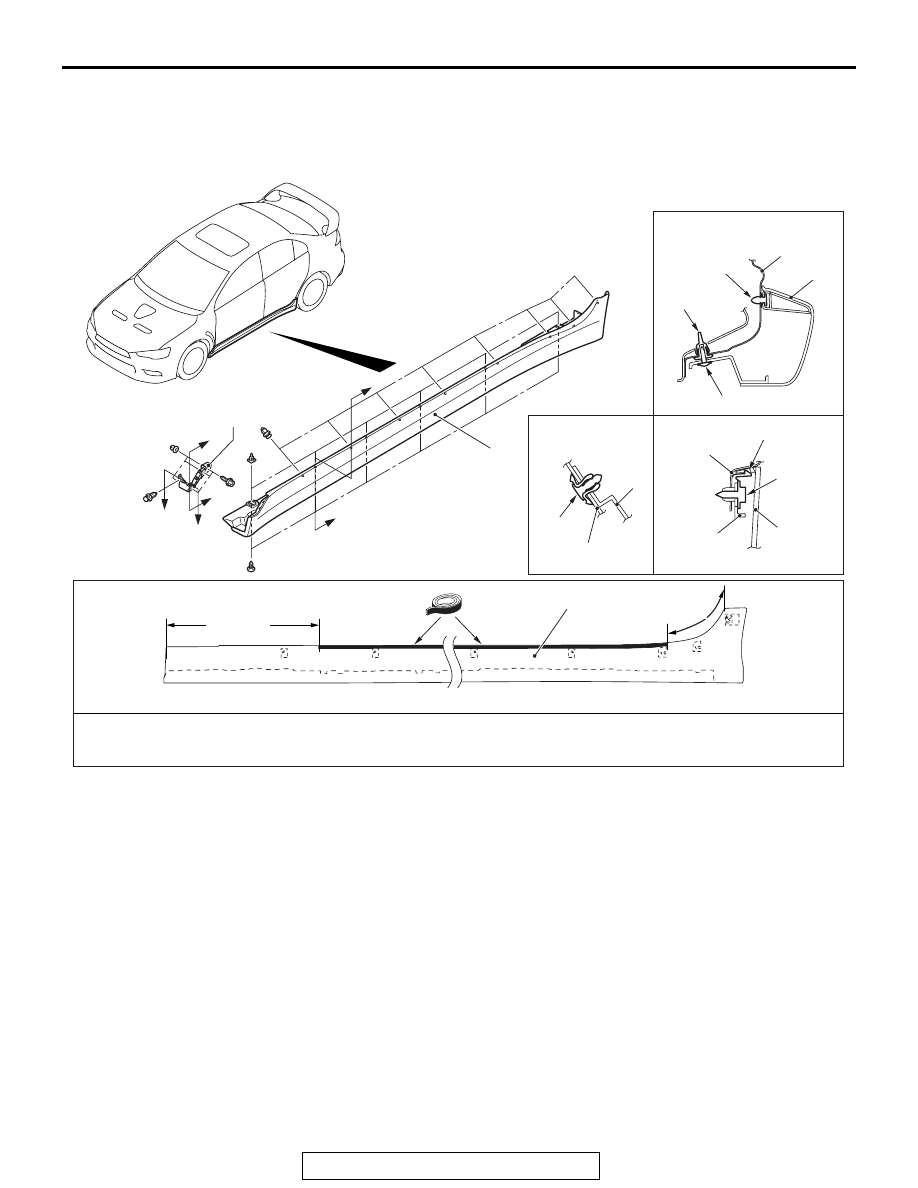

SIDE AIR DAM

REMOVAL AND INSTALLATION

M1511005500562

REMOVAL SERVICE POINT

.

<<A>> SIDE AIR DAM REMOVAL

Gently lift and remove the side air dam. If there is any dou-
ble-sided tape remaining on the side air dam, remove accord-
ing to the following instructions.
1. Remove double-sided tape remaining on the body surface

(when replacing side air dam).

AC704709

1

1

1

A

B

B

A

C

C

2

1

2

2

AC

Double-sided tape affixed location

Clip

Splash shield

Clip

Claw

Bolt

Screw

Grommet

Fender

Section C – C

Section B – B

Section A – A

Side outer
panel

Double-sided tape:
4 mm (0.16 in) width and 1.2 mm (0.05 in) thickness

460 mm

(18.11 in)

200 mm

(7.87 in)

Removal steps

<<A>> >>A<<

1. Side air dam
2. Side air dam bracket
