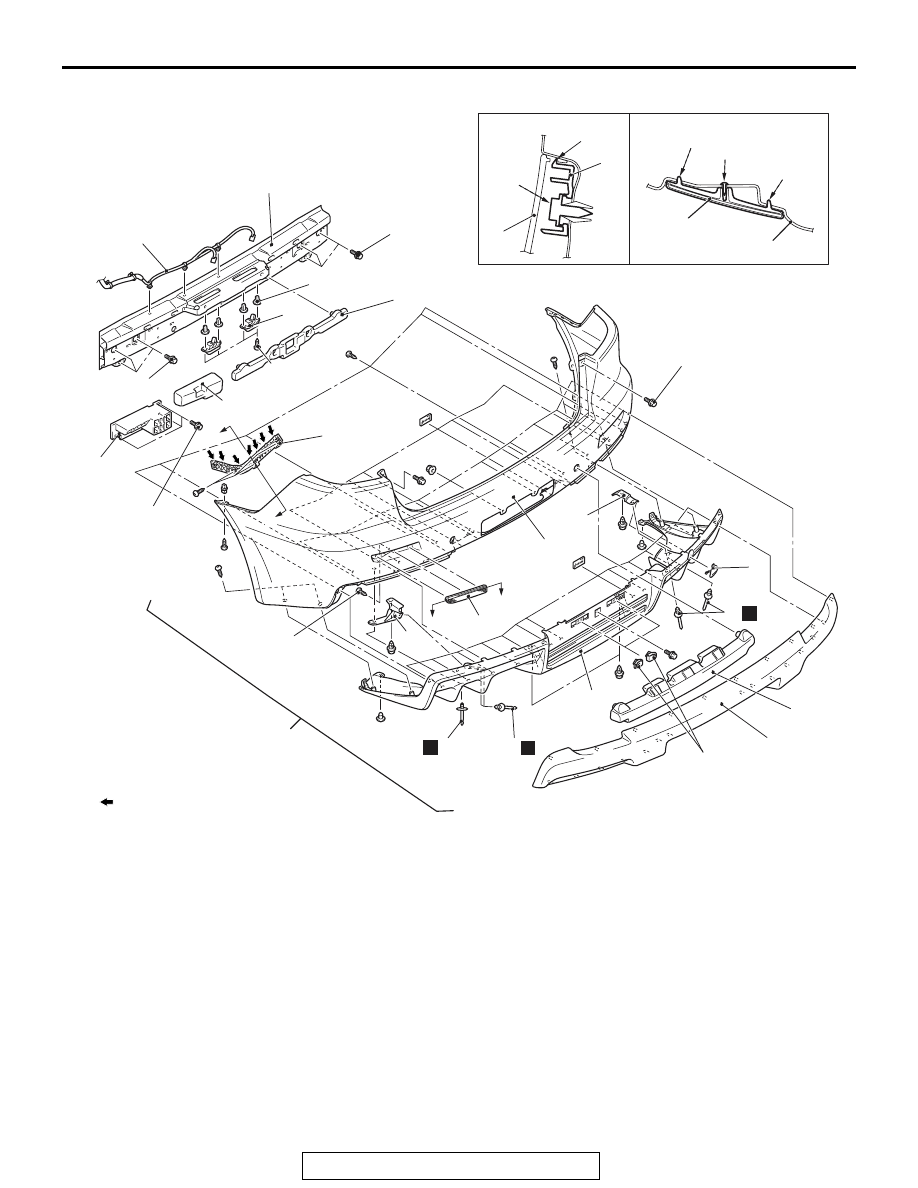

REAR BUMPER ASSEMBLY

TSB Revision

EXTERIOR

51-7

REMOVAL SERVICE POINT

.

<<A>> RIVETS REMOVAL

Refer to FRONT BUMPER DISASSEMBLY SERVICE POINT
(

P.51-4

).

AC708934 AB

10

9

10

11

1

B

A

B

2

3

5

5

10

6

6

15

16

11

9

4

18

N

N

A

Section A – A

Section B – B

Claw

: Claw positions

Screw

Boss

Boss

Screw

20 ± 5 N·m
15 ± 3 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

13

14

12

7

8

 <Vehicles for Canada>

5

N

5.0 ± 2.0 N·m
45 ± 17 in-lb

1.2 ± 0.7 N·m
11 ± 6 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

0.7 ± 0.1 N·m
6 ± 1 in-lb

17

Removal steps
1. Rear bumper assembly
2. Rear bumper extension
3. License plate bracket
4. Rear bumper cover

<<A>> >>A<<

5. Rivet
6. Rear bumper garnish side bracket
7. Rear bumper protector
8. Rear bumper core center
9. Reflector

10. Rear bumper face
11. Rear bumper side bracket
12. Rear bumper core lower
13. Rear bumper core upper
14. Rear bumper core side
15. Rear floor harness
16. Rear bumper reinforcement
17. License plate light assembly
18. Grommet

Removal steps (Continued)

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-8

INSTALLATION SERVICE POINT

.

>>A<< RIVETS INSTALLATION

Refer to FRONT BUMPER ASSEMBLY SERVICE POINT
(

P.51-4

).

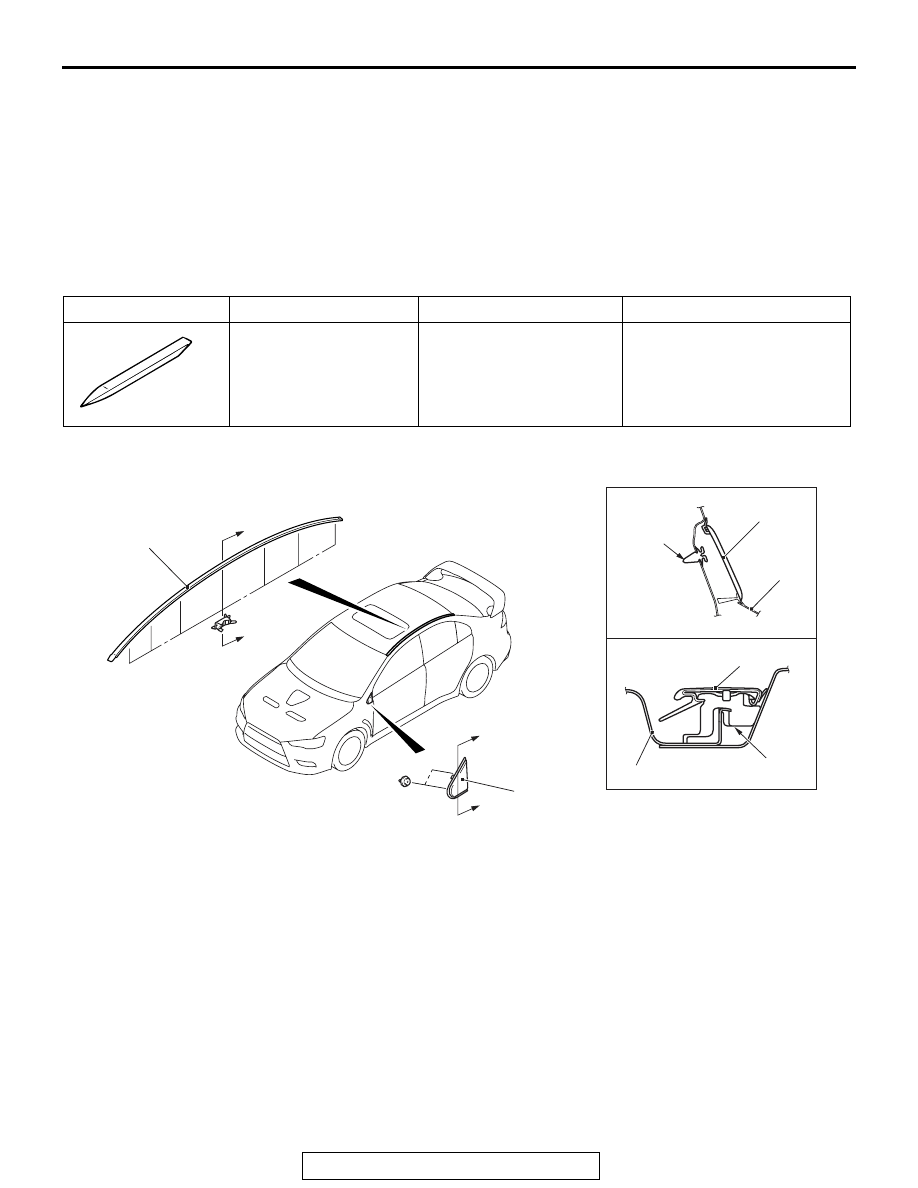

GARNISHES AND MOLDINGS

SPECIAL TOOL

M1511000602292

REMOVAL AND INSTALLATION

M1511004700950

Required Special Tool:

• MB990784: Ornament remover

REMOVAL SERVICE POINTS

.

<<A>> FRONT DELTA GARNISH REMOVAL

Use the ornament remover (MB990784) to remove the front
delta garnish.

.

Tool

Tool number and name Supersession

Application

MB990784
Ornament remover

General service tool

Removal of front delta garnish

MB990784

AC705108

B

2

B

1

2

AB

1

A

A

Roof panel

Clip

Clip

Fender

Section A – A

Section B – B

Front delta garnish removal

<<A>>

1. Front delta garnish
Roof drip molding removal

<<B>>

2. Roof drip molding

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-9

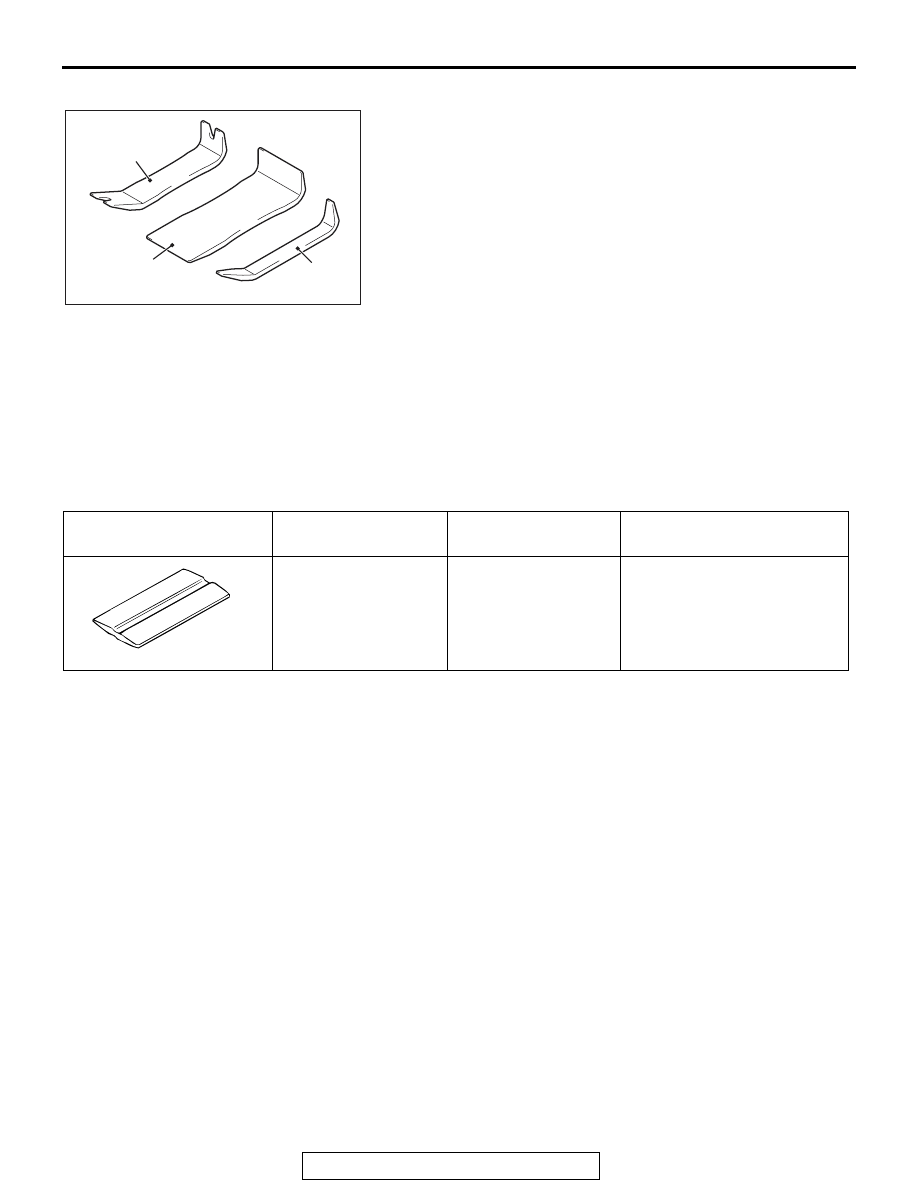

<<B>> ROOF DRIP MOLDING REMOVAL

The following tools are recommended for removing the roof
drip moldings.
Ornament remover set (parts number JS000004)
1. Remover A (parts number JS000001)
2. Remover B (parts number JS000003)
3. Remover C (parts number JS000002)
INQUIRY:
Service Tool Group Manager
No.2 Sales Promotion Dept.
Marketing Operation Office
MITSUBISHI AUTOMOTIVE ACCESSORIES & PRODUCTS
CO.,LTD.
FAX: +81-3-5445-0846
e-mail: sst.map@mitsubishi-motors.com

DOOR SASH TAPE

SPECIAL TOOL

M1511000602300

AC303685

3

2

1

AB

Tool

Tool number and
name

Supersession

Application

MB990528
Stripe tape spatula

General service tool

Installation of door sash tape

MB990528

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-10

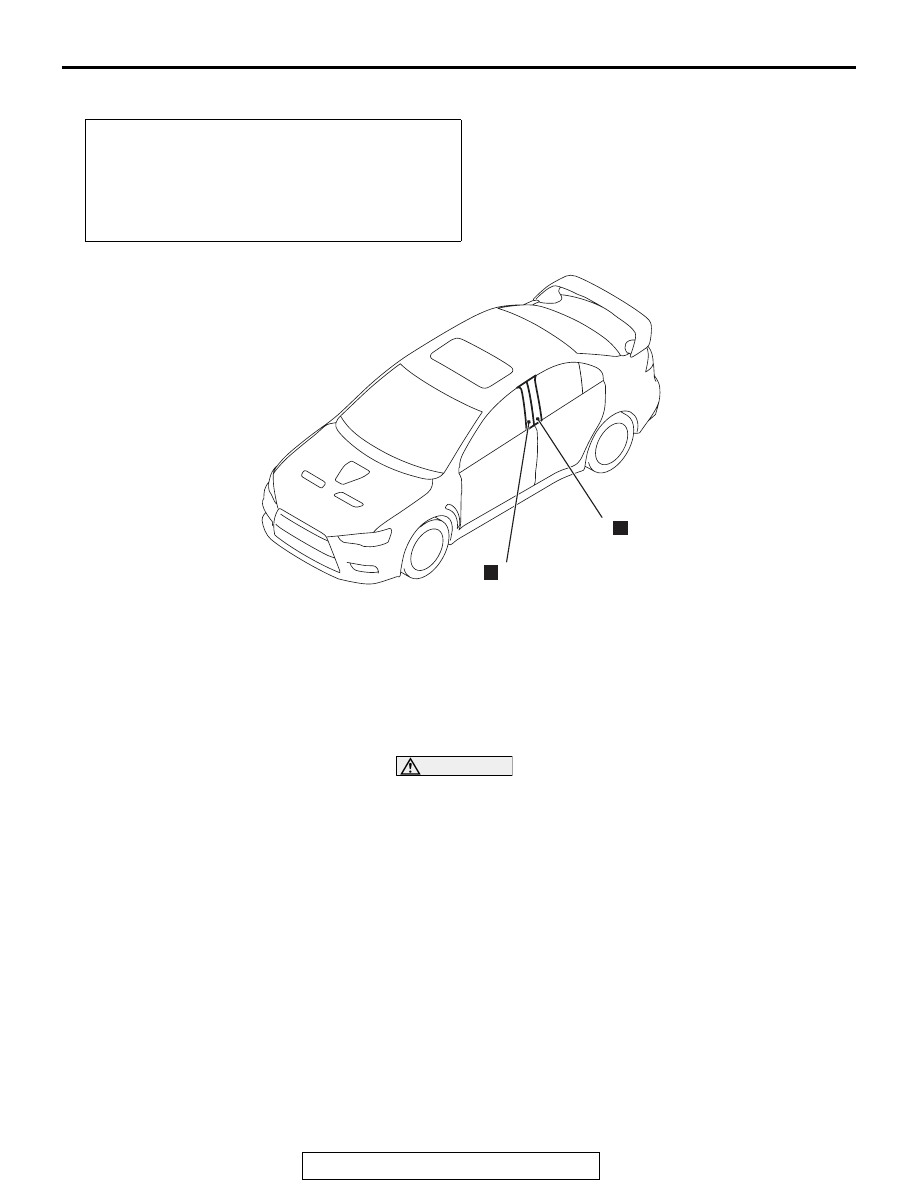

REMOVAL AND INSTALLATION

M1511024100477

Required Special Tool:

• MB990528: Stripe tape spatula

REMOVAL SERVICE POINT

.

<<A>> DOOR SASH TAPES REMOVAL

CAUTION

Pay attention to keep from getting burned by hot door
panel or tapes.
1. Use a hair drier to warm the tape.
2. Peel the tip of the tape with your finger, and then peel off the

tape in parallel with the application surface.

Pre-removal and post-installation operation
• Door Window Glass Runchannel Removal and Installation

(Refer to GROUP 42A

− Window Glass Runchannel and

Door Opening Weatherstrip

P.42A-136

).

• Door Beltline Molding Removal and Installation (Refer to

GROUP 42A

− Window Glass Runchannel and Door

Opening Weatherstrip

P.42A-136

).

AC706342

1

2

N

N

AB

Removal steps

<<

A

>>

>>

A

<<

1.

Front door sash tape, rear

<<

A

>>

>>A<<

2.

Rear door sash tape, front
