PASSENGER'S (FRONT) AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-395

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

) BATTERY CABLE DISCON-

NECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and air
bag(s) deployment.

.

<<B>> PASSENGER'S (FRONT) AIR BAG
MODULE REMOVAL

WARNING

The air bag module must not be measured with
such equipment as an ohmmeter.

The air bag module must not be disassembled.

The removed air bag module should be stored in a
clean, dry place with the deployment surface fac-
ing up.

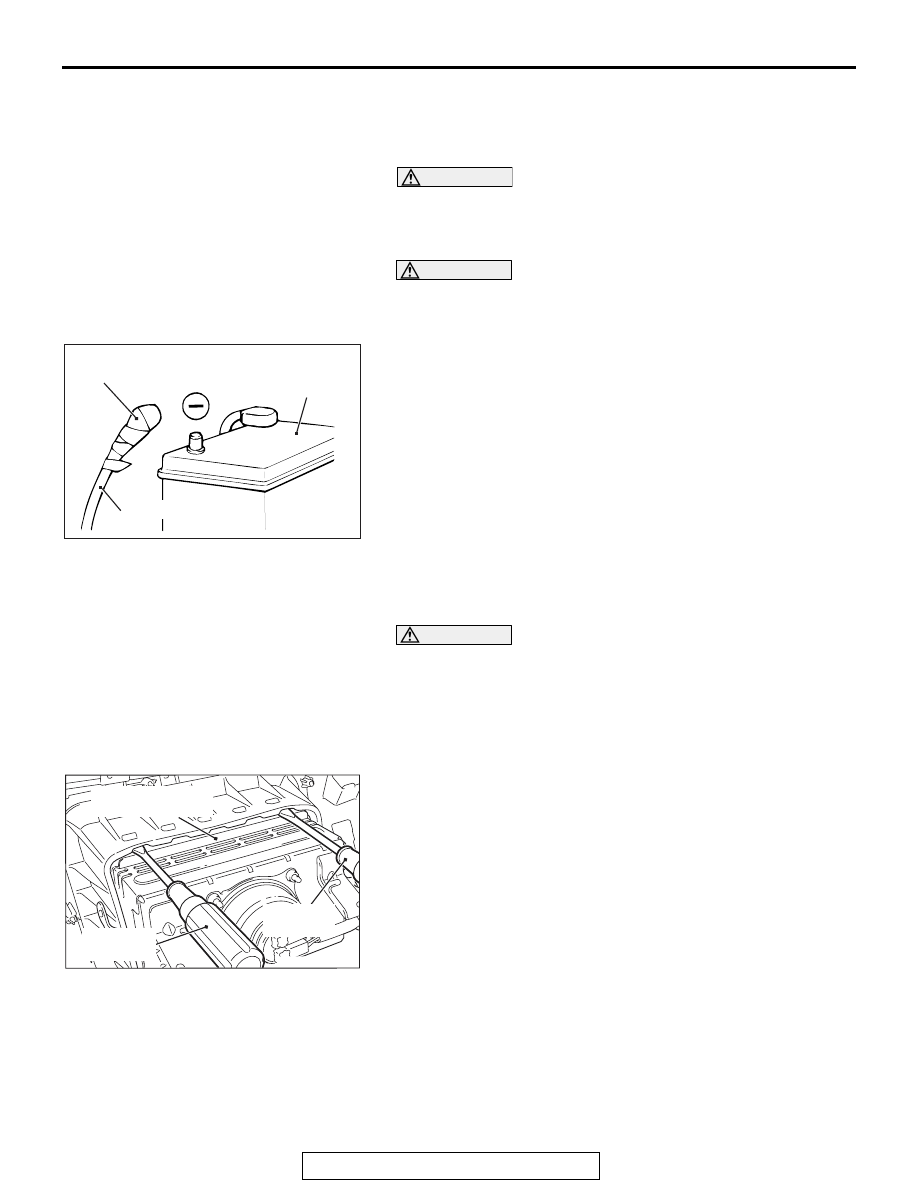

Insert a flat-tipped screwdriver or similar tool to the location
shown in the figure. After disengaging the tabs, remove the
passenger's (front) air bag module.

ACX00583

Insulating tape

Battery cable

Battery

AF

AC609682AB

Flat-tipped
screwdriver

Flat-tipped
screwdriver

Passenger's (front)
air bag module

PASSENGER'S (FRONT) AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-396

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION

WARNING

Dispose of air bag modules only according to the
specified procedure (Refer to

P.52B-417

).

1. When installing the new air bag modules, refer to

“INSPECTION” (

P.52B-397

).

2. Connect the negative (

−) battery cable.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

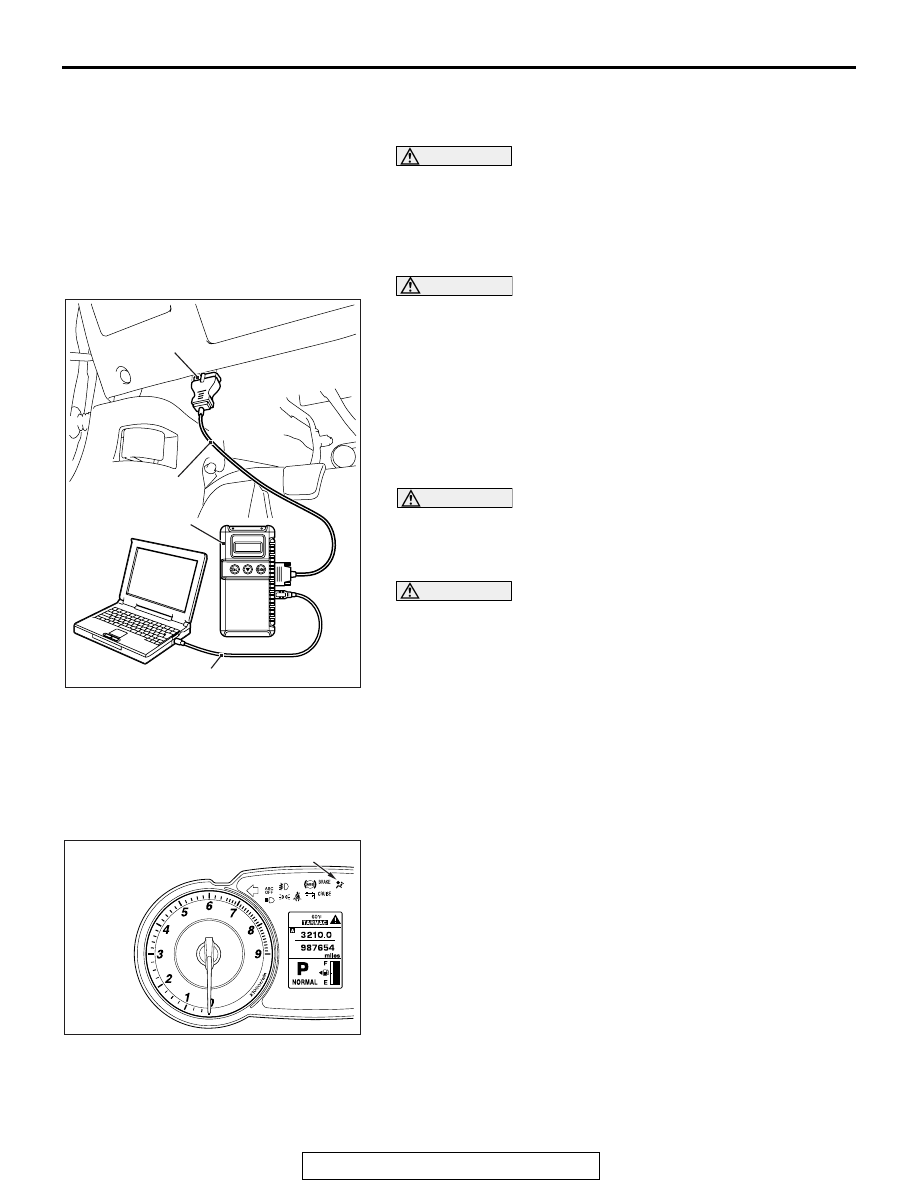

3. Connect scan tool MB991958 to the data link connector.
4. Turn the ignition switch to the “ON” position.
5. Check DTCs using scan tool MB991958 to ensure entire

SRS operates properly.
At this time, check that no DTC except B1B02, B1B06,
B1B0A and B1B0E are set.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

6. Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and air bags
deployment.

.

>>B<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-31

.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC709154

SRS warning light

AB

PASSENGER'S (FRONT) AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-397

INSPECTION

M1524047400059

CAUTION

• Never measure circuit resistance in the air bag modules

(squib) even with the specified tester. Measuring the
circuit resistance with a tester causes accidental air
bag deployment due to current that flows or static,
resulting in serious personal injury.

• When replacing the parts, discard the old parts after

deploying the air bag according to the specified proce-
dure (Refer to

P.52B-417

).

If any malfunction is found in the following inspections, replace
the air bag module with a new one.

1. Check the harness and connector for damage and the ter-

minal for deformation.

2. Check the air bag inflator cases for dents, cracks or defor-

mation.

3. Check the air bag module for proper installation.

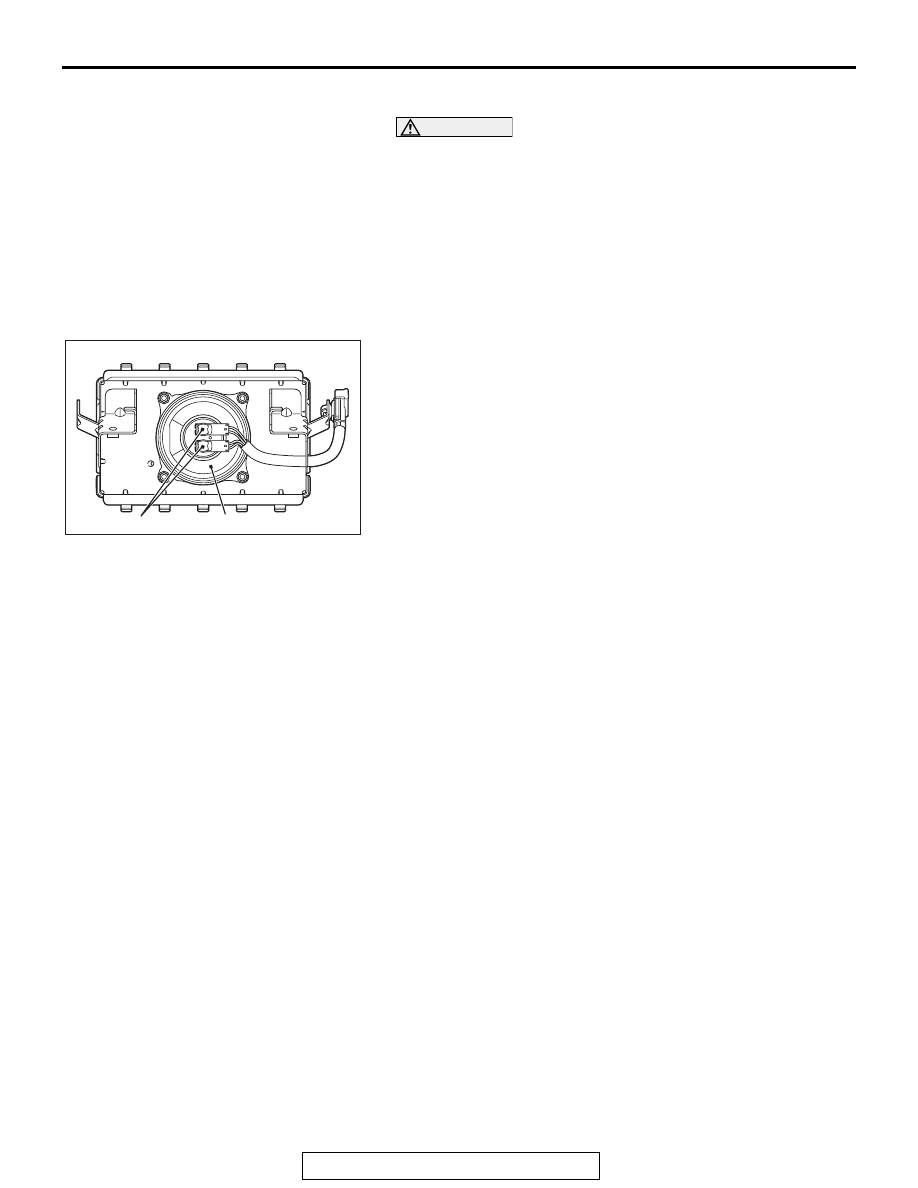

AC608598

Squib connectors

Inflator

AB

KNEE AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-398

KNEE AIR BAG MODULE

REMOVAL AND INSTALLATION

M1524044000074

WARNING

Never attempt to disassemble or repair the knee air bag modules. If faulty, replace it.

Do not drop the knee air bag modules or allow contact with water, grease or oil. Replace it
if a dent, crack, deformation or rust is detected.

Do not expose the knee air bag modules to temperatures over 93

°

C (200

°

F).

After deployment of the air bag, replace the air bag module with a new one.

Wear gloves and safety glasses when handling air bags that have already deployed.

An undeployed knee air bag module should only be disposed of in accordance with the
procedures (Refer to

P.52B-417

).

When removing and installing the front passenger seat, be sure to carry out accuracy
check occupant classification sensor after the seat has been installed in the vehicle
(On-vehicle Service

P.52B-378

).

Pre-removal Operation
• Turn the ignition switch to the "LOCK" (OFF) position.

AC609125

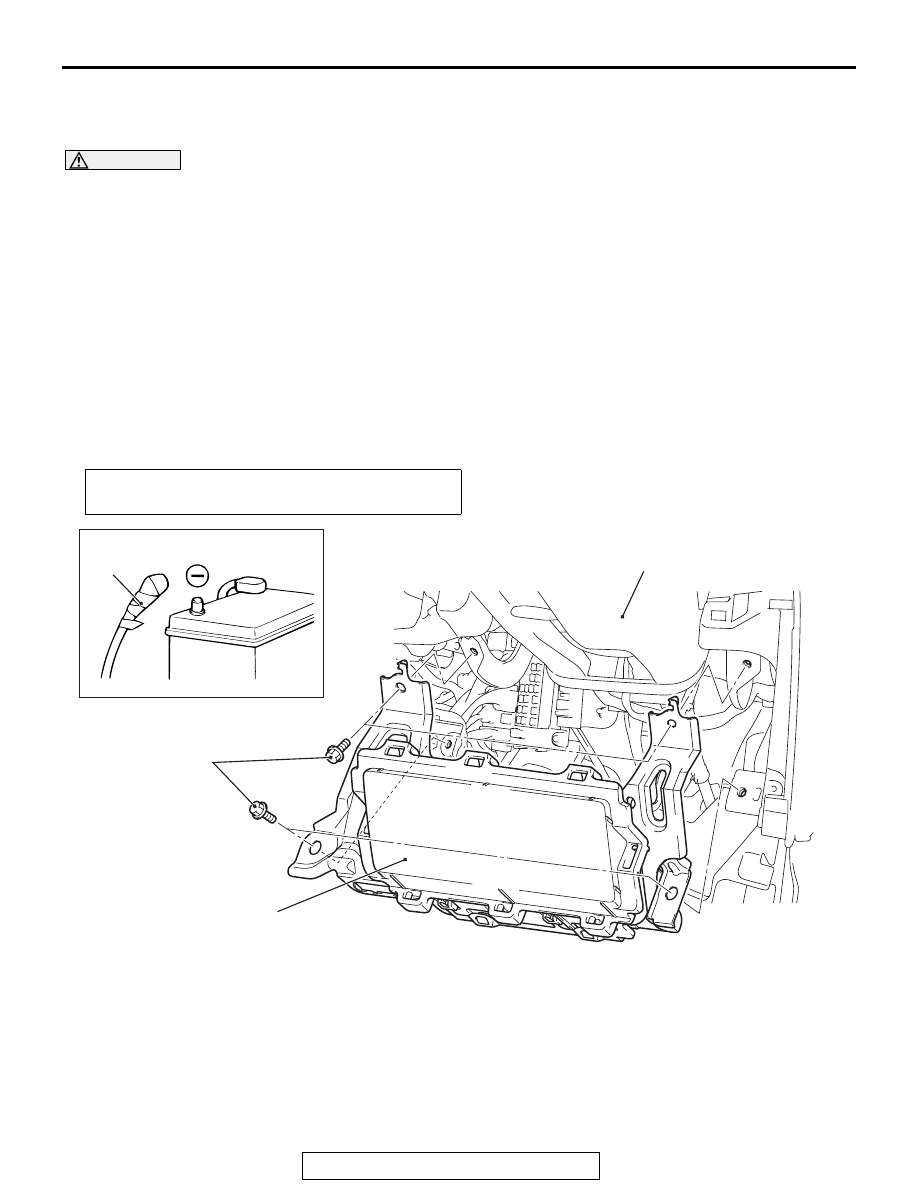

1

2

9.5 ± 3.5 N·m
84 ± 31 in-lb

AB

Steering column

Removal steps

<<

A

>>

1. Negative (

−) battery cable

• Instrument panel cover assembly

(Refer to GROUP 52A, Instrument
Lower Panel

P.52A-8

).

<<

B

>>

2. Knee air bag module

Installation steps

>>

A

<< • Pre-installation inspection

>>

B

<< 2. Knee air bag module

• Instrument panel cover assembly

(Refer to GROUP 52A, Instrument
Lower Pane

P.52A-8

).

1. Negative (

−) battery cable

>>

C

<< • Post-installation inspection
