DRIVER'S AIR BAG MODULE AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-391

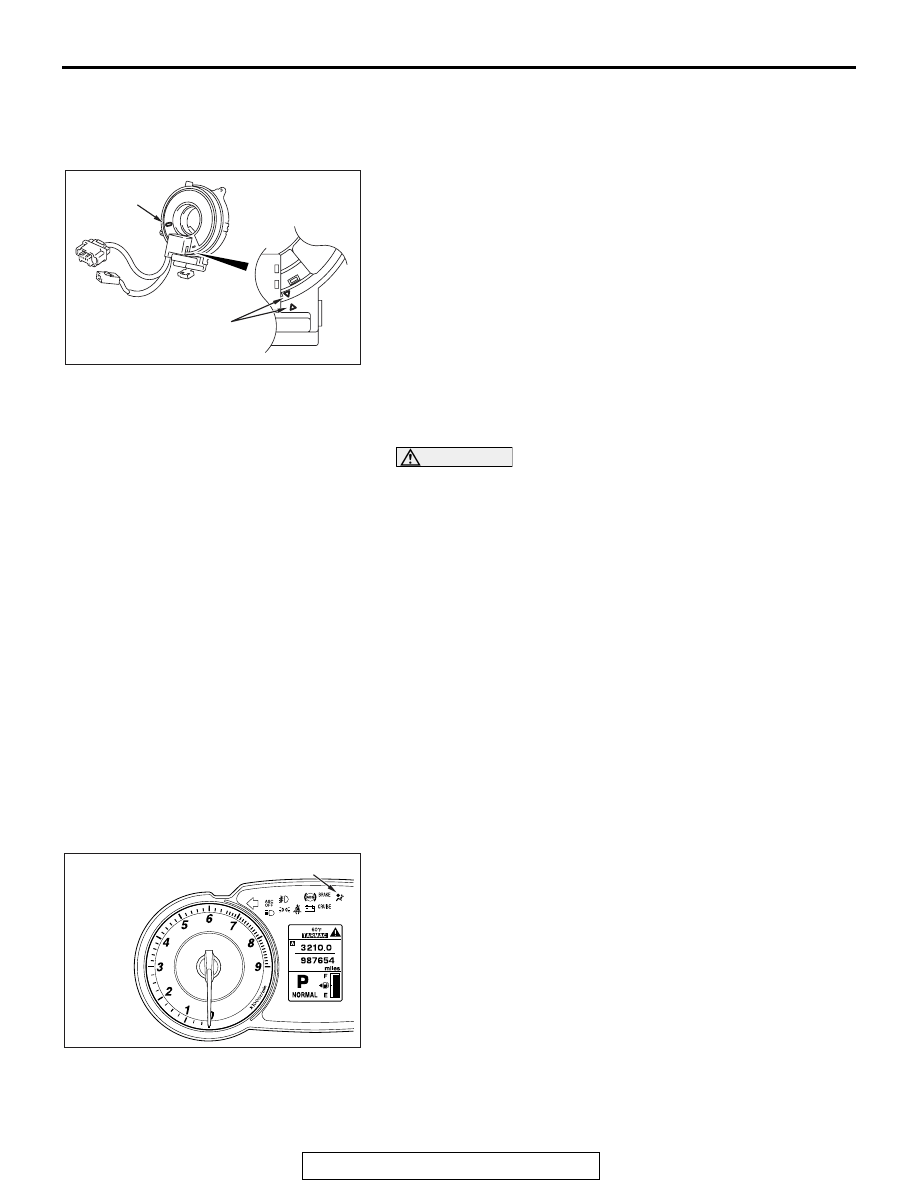

Alignment of mating marks

(1) Turn the clock spring clockwise fully.
(2) Turn the clock spring counterclockwise approximately

three and 3/4 turns to align the mating marks.

(3) Check that the white roller can be seen from the window

for checking the neutral point when the mating marks are
aligned.
NOTE: If the white roller cannot be seen, the neutral point
is not aligned correctly.

(4) Install the clock spring to the column switch.

.

>>C<< STEERING WHEEL ASSEMBLY/DRIVER’S
AIR BAG MODULE ASSEMBLY INSTALLATION

CAUTION

When installing the steering wheel and air bag module,
ensure that the harness of the clock spring does not
become caught or tangled.
1. Before installing the steering wheel and air bag module, turn

the vehicle’s front wheels to the straight-ahead position and
align the mating marks of the clock spring.

2. After securing the steering wheel, turn the steering wheel all

the way in both directions to confirm that the steering wheel
rotation is normal.

.

>>D<< DRIVER’S AIR BAG MODULE
CONNECTOR/HORN CONNECTOR CONNECTION

Connect the connector securely and route the harnesses not to
lie off the cover hole.

.

>>E<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-31

.

AC705283AE

Mark for
checking
neutral point

Mating marks

AC709154

SRS warning light

AB

DRIVER'S AIR BAG MODULE AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-392

INSPECTION

M1524047600064

.

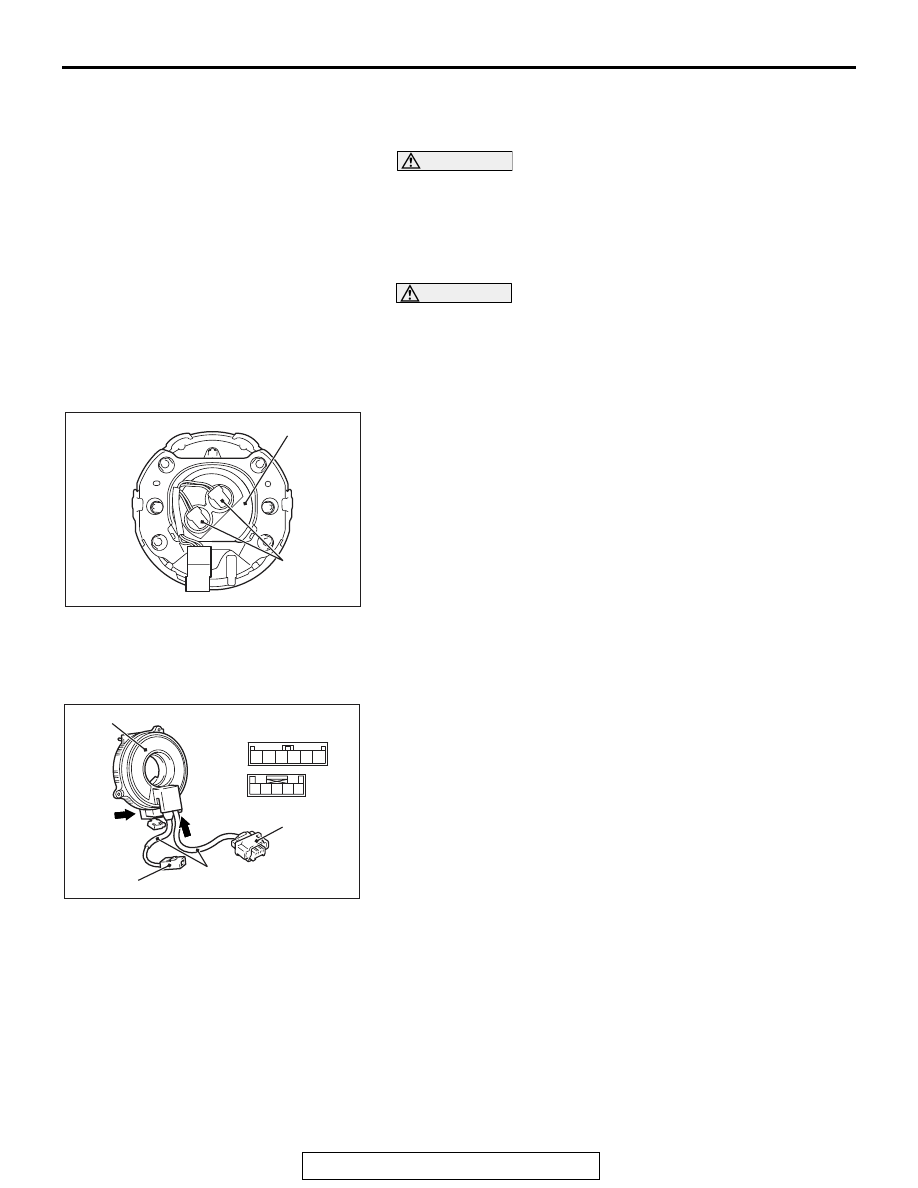

AIR BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag modules (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any component damage is found during the follow-
ing inspection, replace the air bag module with a new
one. Dispose of the old one according to the specified
procedure (Refer to

P.52B-417

).

1. Check the pad cover for dents, cracks or deformation.
2. Check the connectors for damage, the terminals for

deformation, and the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the air bag module (driver’s side) to the steering

wheel and check fit and alignment with the steering wheel.

5. Install the air bag module (front passenger’s side) to the

instrument panel and front deck crossmember and check fit
and alignment.

.

CLOCK SPRING

If any malfunction is found in the following inspections, replace
the clock spring with a new one.
1. Check the connectors and protective tubes for damage and

the terminal for deformation.

2. Check the case for damage.
3. Check that the continuity exists between the following

connector terminals.

• C-205 connector terminal 1 and horn switch connector

• C-205 connector terminal 2 and C-202 connector terminal 5

• C-205 connector terminal 3 and C-202 connector terminal 4

• C-205 connector terminal 4 and C-202 connector terminal 3

• C-205 connector terminal 5 and C-202 connector terminal 2

• C-205 connector terminal 6 and C-202 connector terminal 1

AC706212 AC

Squib
connectors

Inflator

1 2

4

3

5

1 2 3 4 5 6

AC706417

Steering wheel audio remote
control switch connector

Driver's air bag
module connector

AJ

C-205

C-205

C-202

C-202

Case

Protective tube

Horn switch

connector

PASSENGER'S (FRONT) AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-393

CAUTION

Never insert the probe directly to the terminals from the
front of the connector.

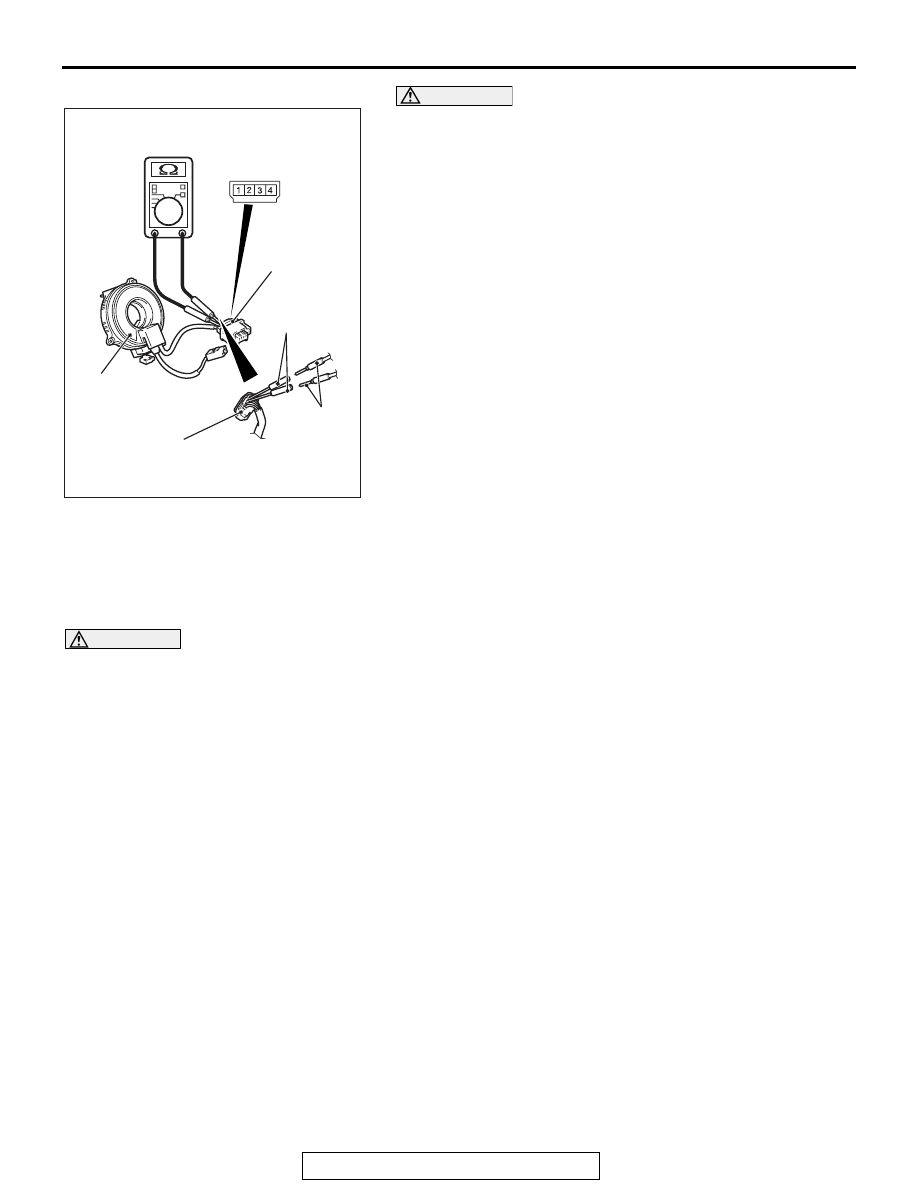

4. Check the continuity between the driver's air bag module

connectors according to the following procedures.

(1) Insert special tool extra fine probe (MB992006) from the

backside of driver's air bag module connector.

(2) Connect the circuit tester to the special tool as shown in

the figure, and check the continuity among terminal No. 1
− 2 or No. 3 − 4.

PASSENGER'S (FRONT) AIR BAG MODULE

REMOVAL AND INSTALLATION

M1524047300063

WARNING

•

Never attempt to disassemble or repair the air bag modules. If faulty, replace it.

•

Do not drop the air bag modules or allow contact with water, grease or oil. Replace it if a
dent, crack, deformation or rust is detected.

•

The air bag modules should be stored on a flat surface with the pad cover facing upward.
Do not place anything on top of it.

•

Do not expose the air bag modules to temperatures over 93

°

C (200

°

F).

•

After deployment of the air bag, replace the air bag module with a new one.

•

Wear gloves and safety glasses when handling air bags that have already deployed.

•

An undeployed air bag module should only be disposed of in accordance with the proce-
dures (Refer to

P.52B-417

).

•

When removing and installing the front passenger seat, be sure to carry out accuracy
check of the occupant classification sensor after the seat has been installed in the vehicle
(On-Vehicle Service

P.52B-378

).

AC306759AX

Clock spring

Air bag
module connector
(driver's side)

Digital
multi-meter

Extra fine probe
(MB992006)

Air bag module
connector
(driver's side)

(Rear view)

PASSENGER'S (FRONT) AIR BAG MODULE

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-394

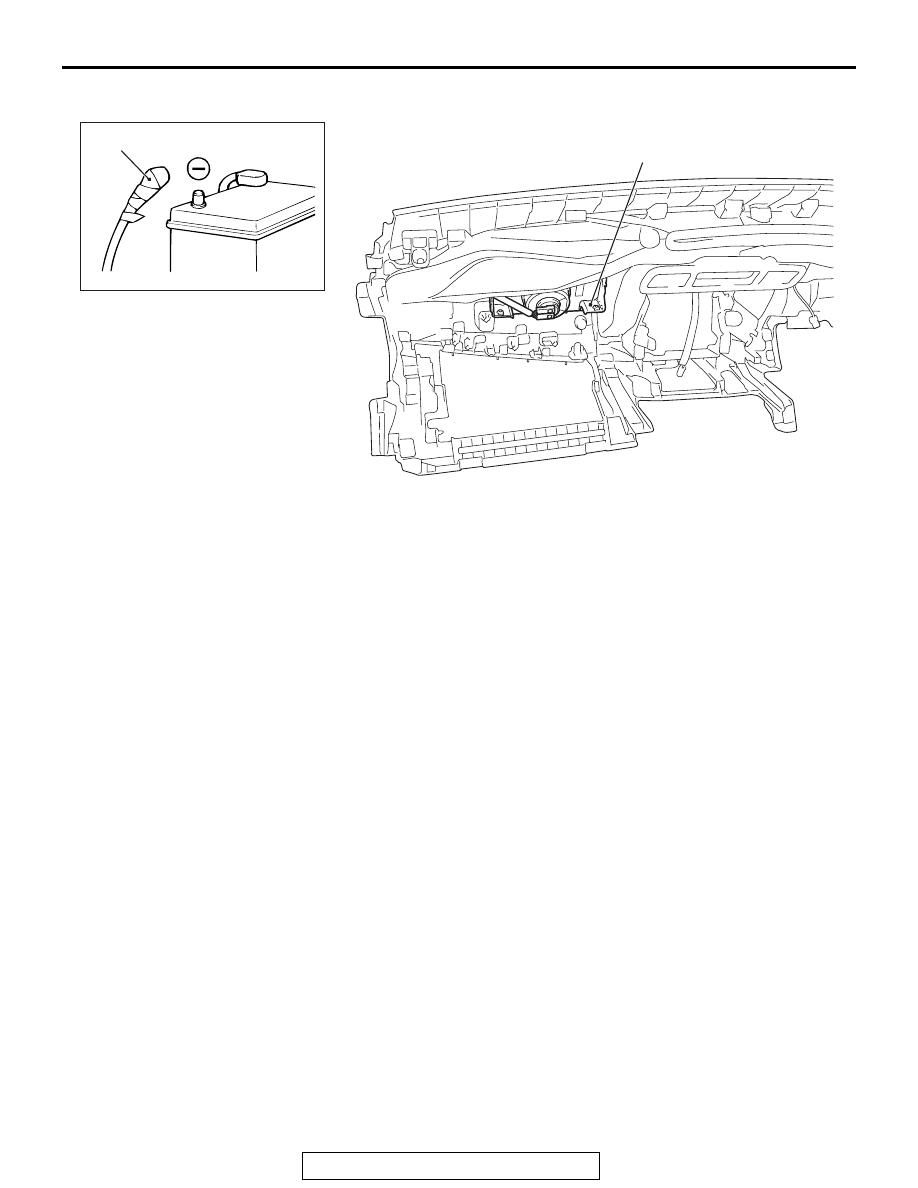

PASSENGER'S (FRONT) AIR BAG MODULE

NOTE: The illustration above shows instrument
panel back side.

Required Special Tools:

•  MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Inter-

face(V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

AC709086

2

AB

1

Passenger's (front) air bag
module removal steps

<<

A

>>

1.

Negative (

−) battery cable

•

 Instrument Panel Assembly (Refer
to GROUP 52A, Instrument Panel
Assembly

P.52A-2

)

<<

B

>>

2.

Passenger's (front) air bag module
Passenger's (front) air bag
installation steps

1.

Negative (

−) battery cable

>>

A

<<

•

Pre-installation inspection

2.

Passenger's (front) air bag module

•

 Instrument Panel Assembly (Refer
to GROUP 52A, Instrument Panel
Assembly

P.52A-2

)

1.

Negative (

−) battery cable

>>

B

<<

•

Post-installation inspection

Passenger's (front) air bag
installation steps (Continued)
