SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-135

CAUTION

If DTC B1B1B is set in the SRS-ECU, always diag-
nose the CAN main bus line.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the side impact sensors
installed on the lower side of the center pillar. If
the impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the side collision safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the curtain air bag

module (LH) to inflate the curtain air bag.

.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the curtain air bag
module (LH) (squib).

.

TROUBLESHOOTING HITS

• Improper engaged connector or defective short

spring*

• Short circuit between the curtain air bag module

(LH) (squib) circuit terminals

• Damaged connector(s)

• Malfunction of the SRS-ECU

NOTE: *: The squib circuit connectors integrate a
"short" spring (which prevents the air bag from
deploying unintentionally due to static electricity by
shorting the positive wire to the ground wire in the
squib circuit when the connectors are disconnected)
(Refer to

P.52B-3

). Therefore, if connector C-36,

D-15 or F-28 is damaged or improperly engaged, the
short spring may not be released when the connector
is connected.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN Communication System)

• MB991865: Dummy resistor

• MB991866: Resister harness

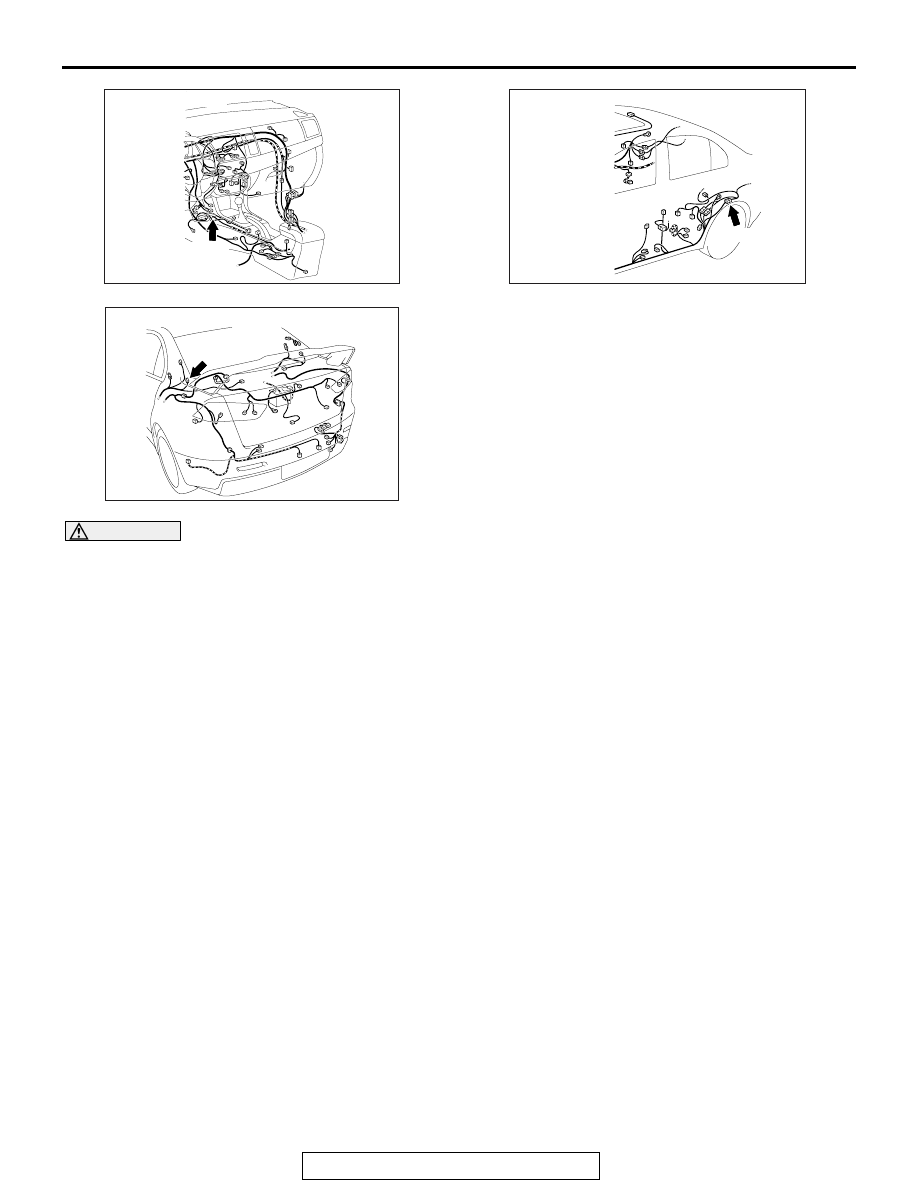

AC708951AD

Connector: C-36

C-36 (Y)

AC708955AB

Connector: D-15

D-15 (Y)

AC708970AB

Connector: F-28

F-28 (B)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-136

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

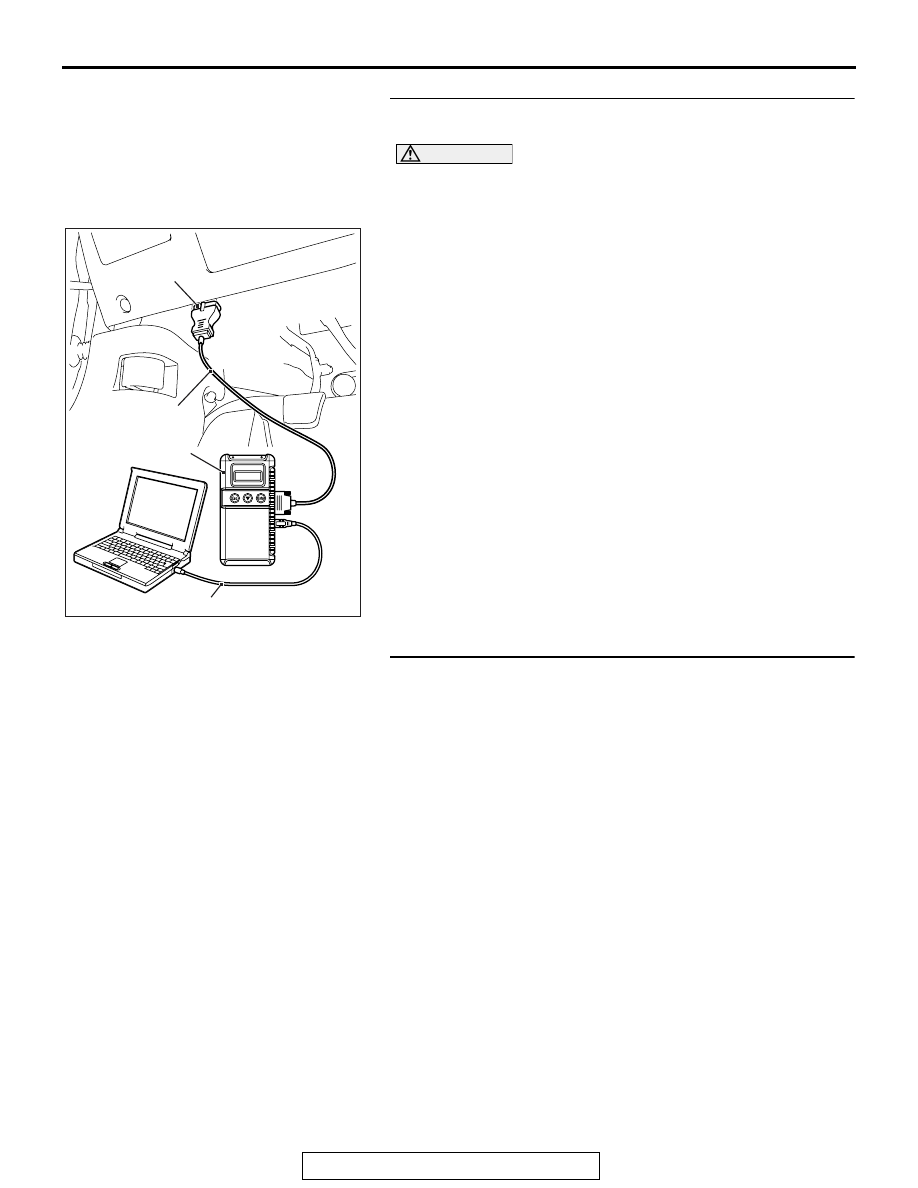

(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions

P.00-15

).

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-137

STEP 3. Check SRS-ECU connector C-36, curtain air bag
module (LH) connector F-28 and intermediate connector
D-15.
(1) Disconnect the negative battery terminal.

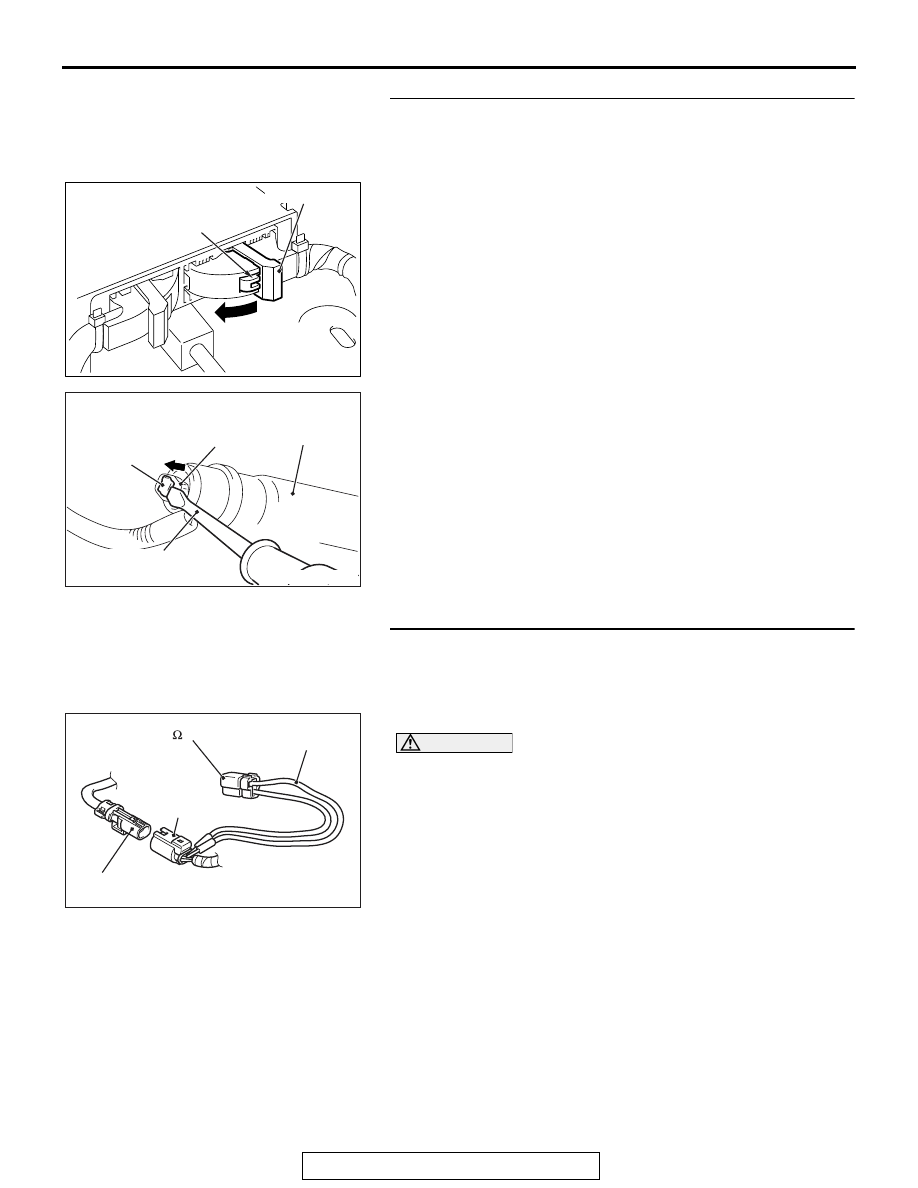

(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-36 SRS-ECU connector. Then connect the connector.

(3) After disconnecting the D-15 and F-28 harness side

connectors, connect the connectors again. For the F-28
connector disconnection, use a flat-tipped screwdriver to
unlock the locking button at the harness side connector by
withdrawing it to ward you in two stages, and then
disconnect the connector.

(4) After erasing the diagnostic trouble code memory, check the

diagnostic trouble code again.

Q: Is DTC B1B1B set?

YES : Go to Step 4.
NO :  Connector repair

STEP 4. Check by dummy resistor connection.
(1) Disconnect the negative battery terminal.
(2) Disconnect the D-15 intermediate connector (connection

between curtain air bag harness and floor harness).

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a probe into the terminal from its front side
directly, as the connector contact pressure may be weak-
ened.
(4) Insert the probe of resistor harness, to which the dummy

resistor is installed, from the back of D-15 intermediate
connector (floor harness side).

(5) Connect the negative battery terminal.
(6) After erasing the diagnostic trouble code memory, check the

diagnostic trouble code again.

Q: Is DTC B1B1B set?

YES : Go to Step 5.
NO :  Go to Step 6.

AC507645

A

AC

Lock lever

AC609928AB

Locking
button

Flat-tipped
screwdriver

Inflator

Curtain air bag wiring
harness connector

AC507310

D-15 Intermediate connector
(Curtain air bag harness side)

D-15
Intermediate
connector
(Floor harness side)

AV

MB991865
(Dummy resistor: 3    )

MB991866

(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-138

STEP 5. Resistance measurement at the C-36 SRS-ECU
connector.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-36 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the intermediate connector D-15 to short
the squib circuit.

(3) Disconnect the D-15 intermediate connector (connection

between curtain air bag harness and floor harness).

CAUTION

The short spring may not be released due to the insuffi-
cient insertion. Therefore, insert the insulator for 4 mm (0.6
inch) or more.

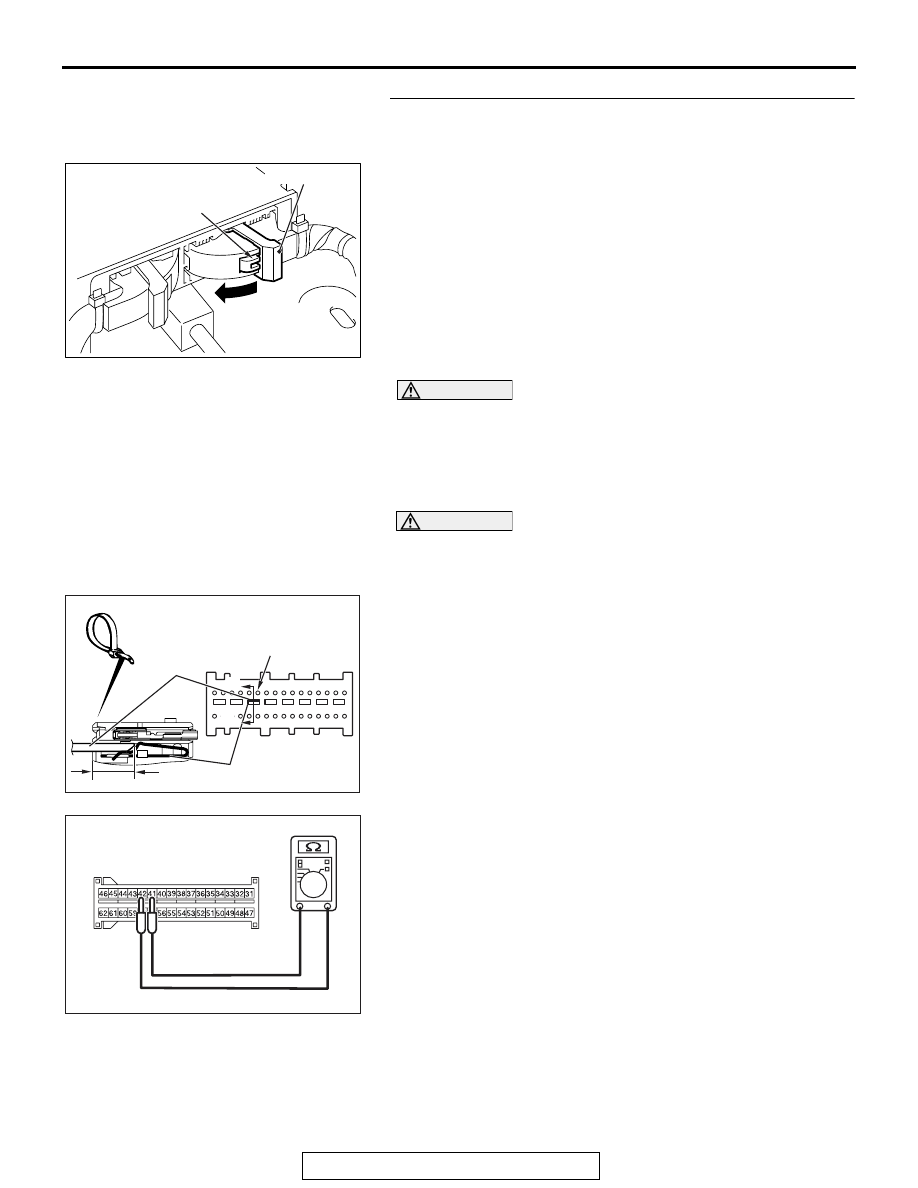

(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminal 41, 42 and the short spring to
release the short spring.

(5) Check for continuity between the C-36 wiring harness side

connector terminal No. 41 and No. 42.
It should be open circuit.

Q: Is it open circuit?

YES : Go to Step 7.
NO :  Repair the wiring harness.

AC507645

A

AC

Lock lever

AC507303 BY

A

A

C-36 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm (0.16 inch) or more

Terminal

AC608812

C-36 Harness side
connector (front view)

FL
