SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-25

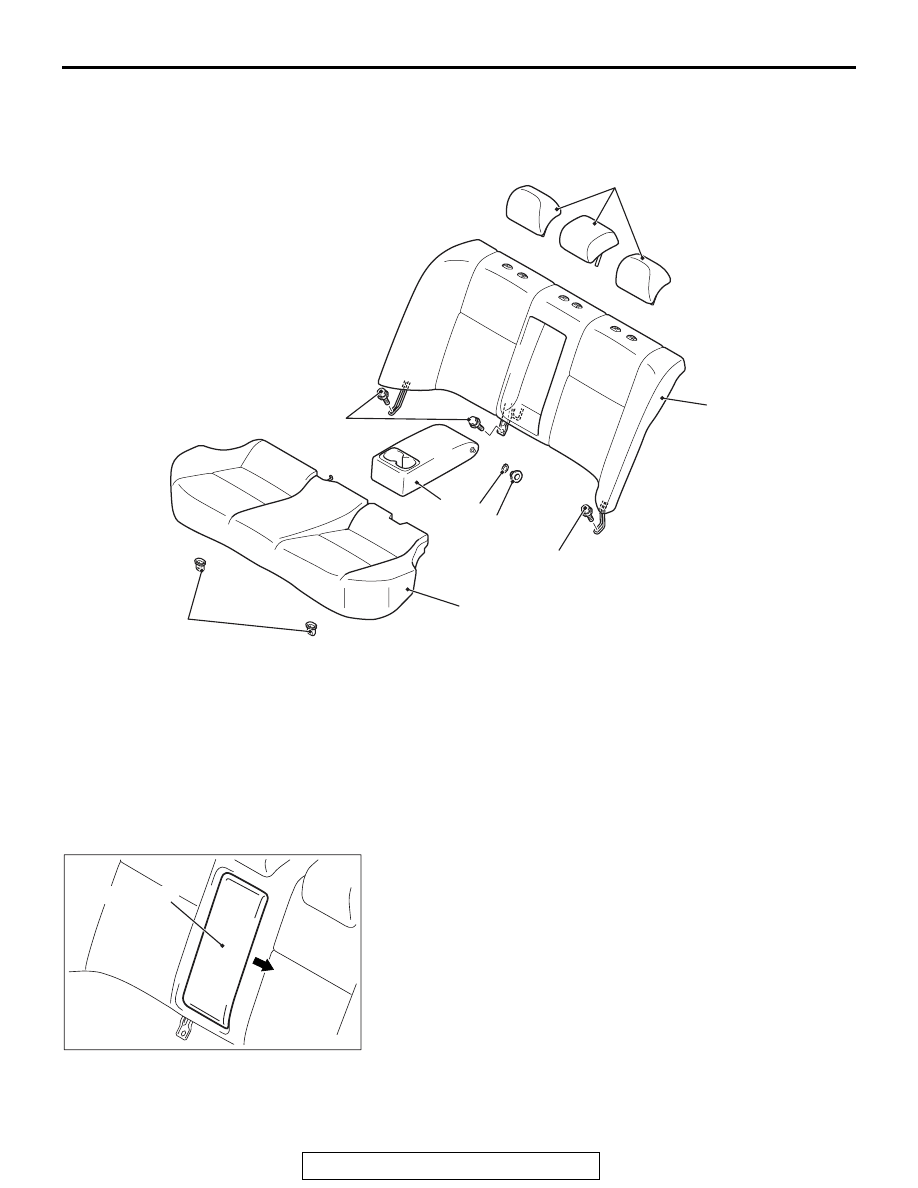

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800769

AC708403AB

43 ± 8 N·m
32 ± 6 ft-lb

1

2

3

7

43 ± 8 N·m
32 ± 6 ft-lb

5

6

4

Removal steps

1.

Rear seat headrestraint

>>

B

<<

2.

Rear seat cushion assembly

>>

A

<<

3.

Rear seatback assembly

4.

Snap ring

<<

A

>>

5.

Rear seat armrest

6.

Rear seat bushing

7.

Rear seat hook

REMOVAL SERVICE POINT

.

<<A>>REAR SEAT ARMREST REMOVAL

AC709647AB

Rear seat armrest

Slide the armrest to the left and remove it from the right side as
shown in the figure.

Removal steps (Continued)

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-26

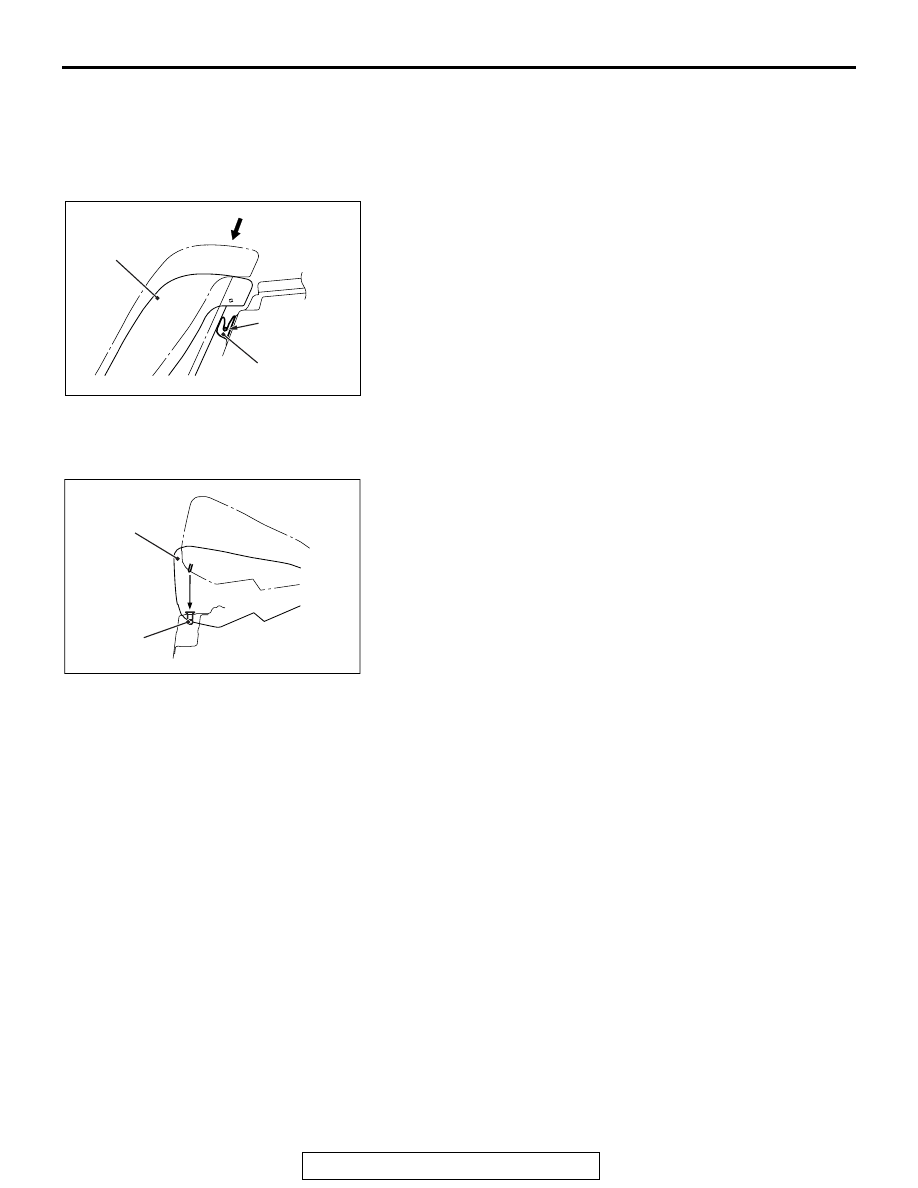

INSTALLATION SERVICE POINTS

.

>>A<< INSTALLATION OF REAR SEATBACK SIDE
ASSEMBLY (LH)/REAR SEATBACK SIDE
ASSEMBLY (RH)

AC609261

AB

Hook

Rear seatback
side assembly

Attachment
wire

Press the rear seatback side assembly in the direction shown
in the illustration and fit the attachment wire into the hook
securely to install the rear seatback side assembly.

.

>>B<< INSTALLATION OF REAR SEAT CUSHION
ASSEMBLY

AC609260

AB

Rear seat
hook

Rear seat
cushion
assembly

Fit the rear seat cushion into the rear seat hook securely.

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-27

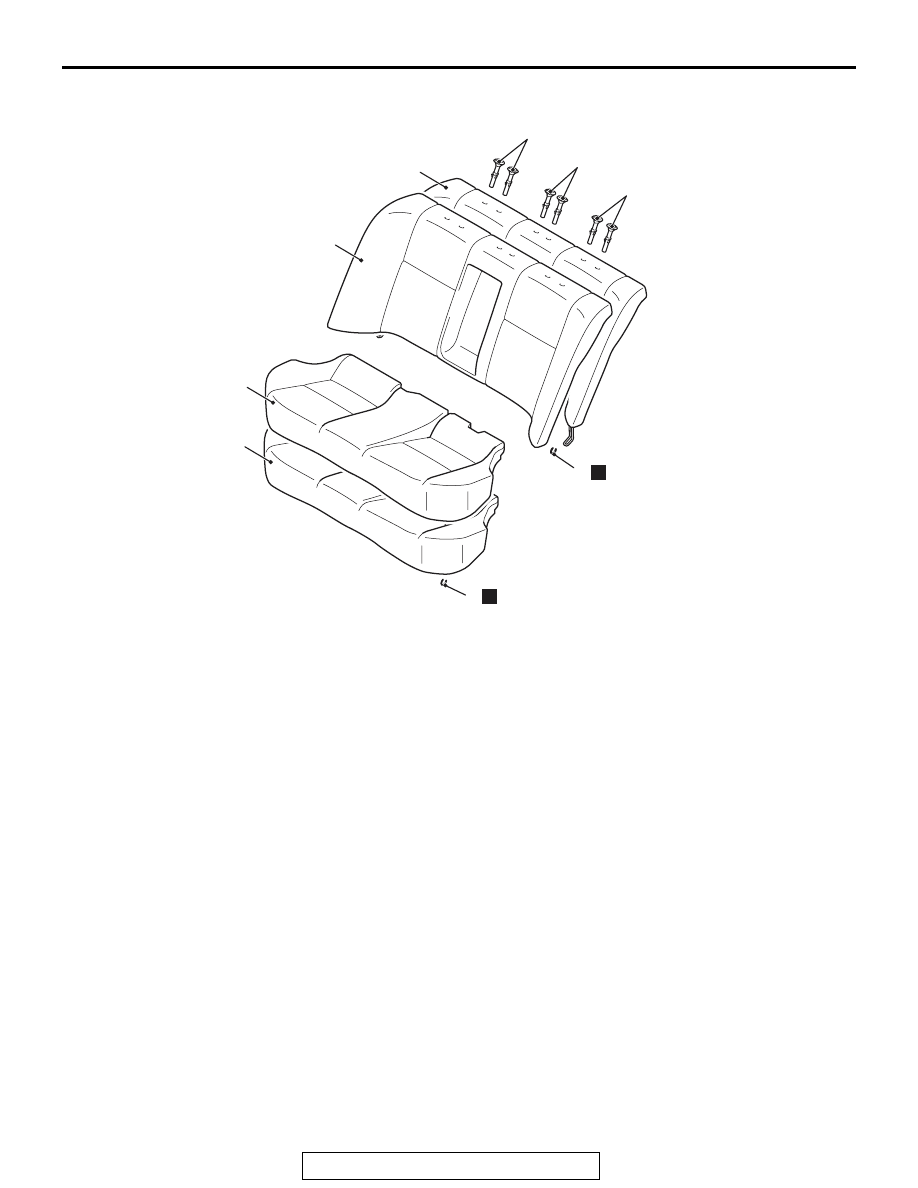

DISASSEMBLY AND ASSEMBLY

M1522002000841

AC708404AB

5

5

5

1

4

3

2

6

7

N

N

Disassembly steps

1.

Hog ring

2.

Rear seat cushion cover

3.

Rear seat cushion pad

4.

Hog ring

5.

Rear seat head restraint guide

6.

Rear seatback cover

7.

Rear seatback pad

Disassembly steps (Continued)

SEAT BELT

TSB Revision

INTERIOR

52A-28

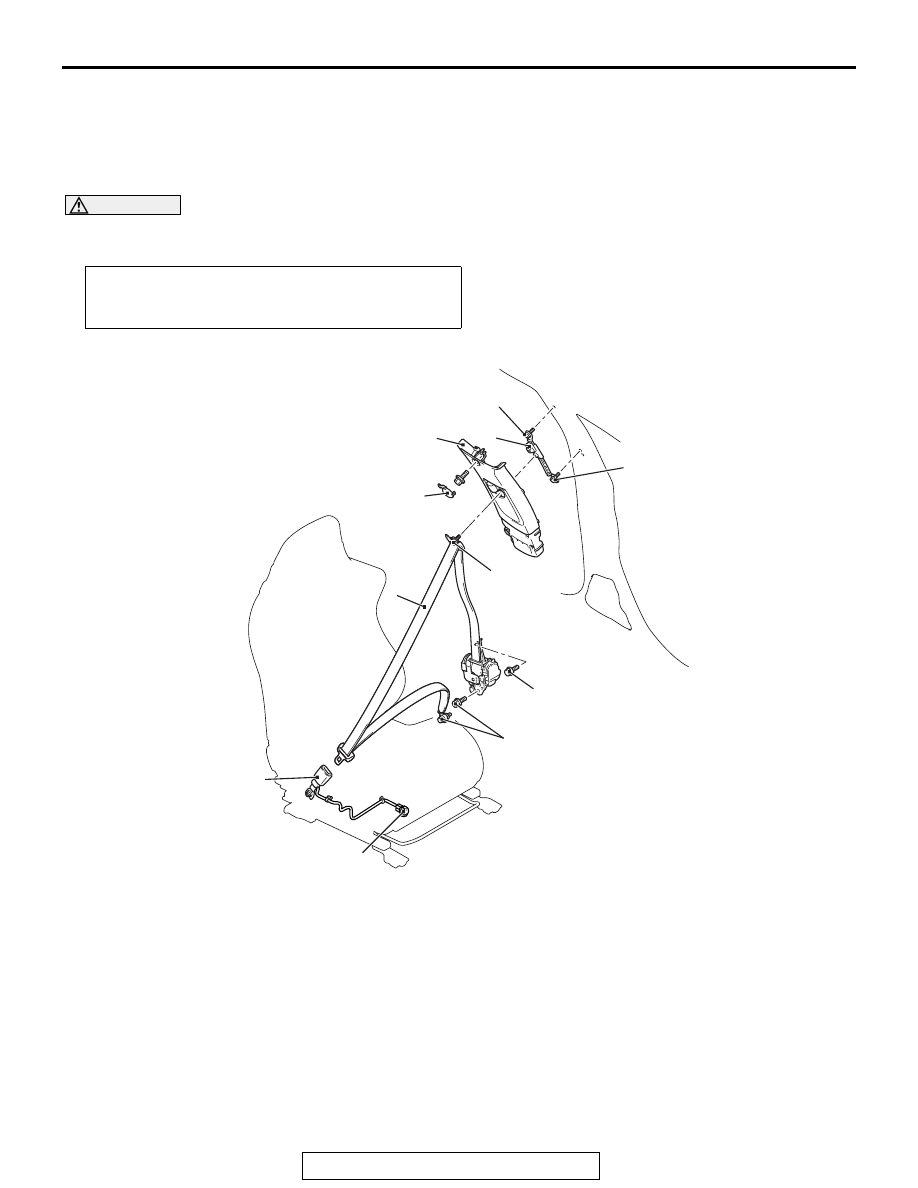

SEAT BELT

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001301072

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B

− SRS Ser-

vice Precautions

P.52B-25

 and Seat Belt with Pre-tensioner

P.52B-417

.

Pre-removal and Post-installation Operation
• Turn the ignition key to the LOOK (OFF) position.

• Disconnect the negative battery terminal.

AC608130

AC709124

AC608130

1

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

AB

3

2

4

5

43 ± 8 N·m
32 ± 6 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

43 ± 8 N·m
32 ± 6 ft-lb

6

Outer seat belt removal steps

<<

A

>>

1. Center pillar trim upper cap
• Center pillar trim lower (Refer to

P.52A-11

).

2. Center pillar trim upper (Refer to

P.52A-11

).

3. Outer seat belt (Refer to GROUP

52B, Seat Belt with Pre-tensioner

P.52B-413

).

4. Adjustable seat belt anchor

Inner seat belt removal steps

5. Harness connector
• Shield cover (Refer to

P.52A-24

).

6. Inner seat belt

Required Special Tool:

• MB990784: Ornament Remover
