HEADLINING

TSB Revision

INTERIOR

52A-17

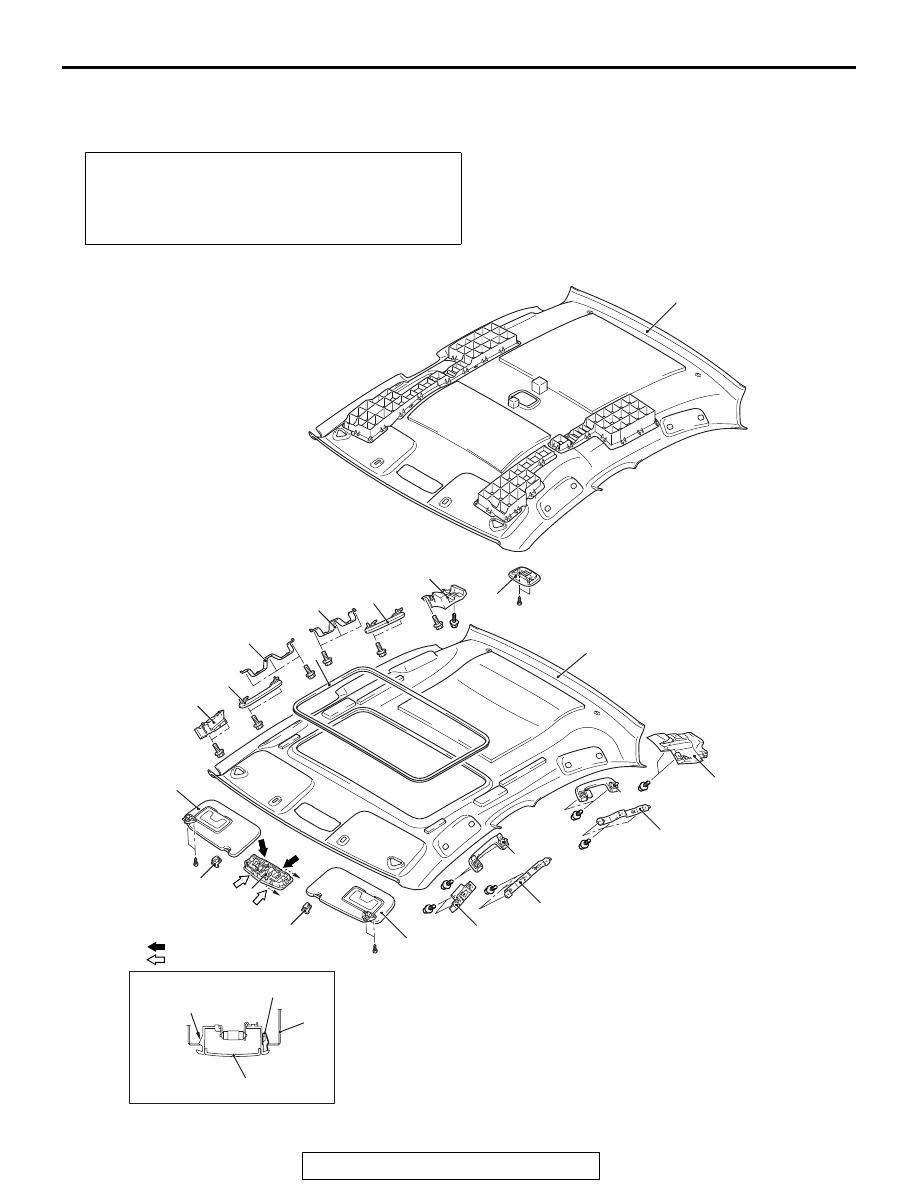

HEADLINING

REMOVAL AND INSTALLATION

M1521001401181

Pre-removal and Post-installation Operation
• Removal and Installation of Front Pillar Trim, Upper Cen-

ter Pillar Trim, Rear Pillar Trim (Refer to

P.52A-11

).

• Removal and Installation of Instrument Under Cover

(Refer to

P.52A-7

).

AC710764

2

6

1

1

1

1

3

4

4

5

5

7

7

8

8

9

8

9

10

10

8

AB

A

A

Section A – A

Clip

Claw

7

3

<Vehicles without sunroof>

<Vehicles with sunroof>

Note
(1)        : Clip positions
(2)        : Claw positions

Removal steps

1. Assist grip
2. Rear dome light assembly <Vehicles

without sunroof>

3. Front dome light
4. Sun visor assembly

<<

A

>>

5. Sun visor holder
6. Sunroof lid inner weather strip rear

<Vehicles with sunroof>

<<

B

>>

7. Headlining

8. Assist grip bracket
9. Front side roof energy absorption box

<Vehicle with sunroof>

10. Rear side roof energy absorption box

<Vehicle with sunroof>

HEADLINING

TSB Revision

INTERIOR

52A-18

Required Special Tool:

• MB990784: Ornament Remover

REMOVAL SERVICE POINTS

.

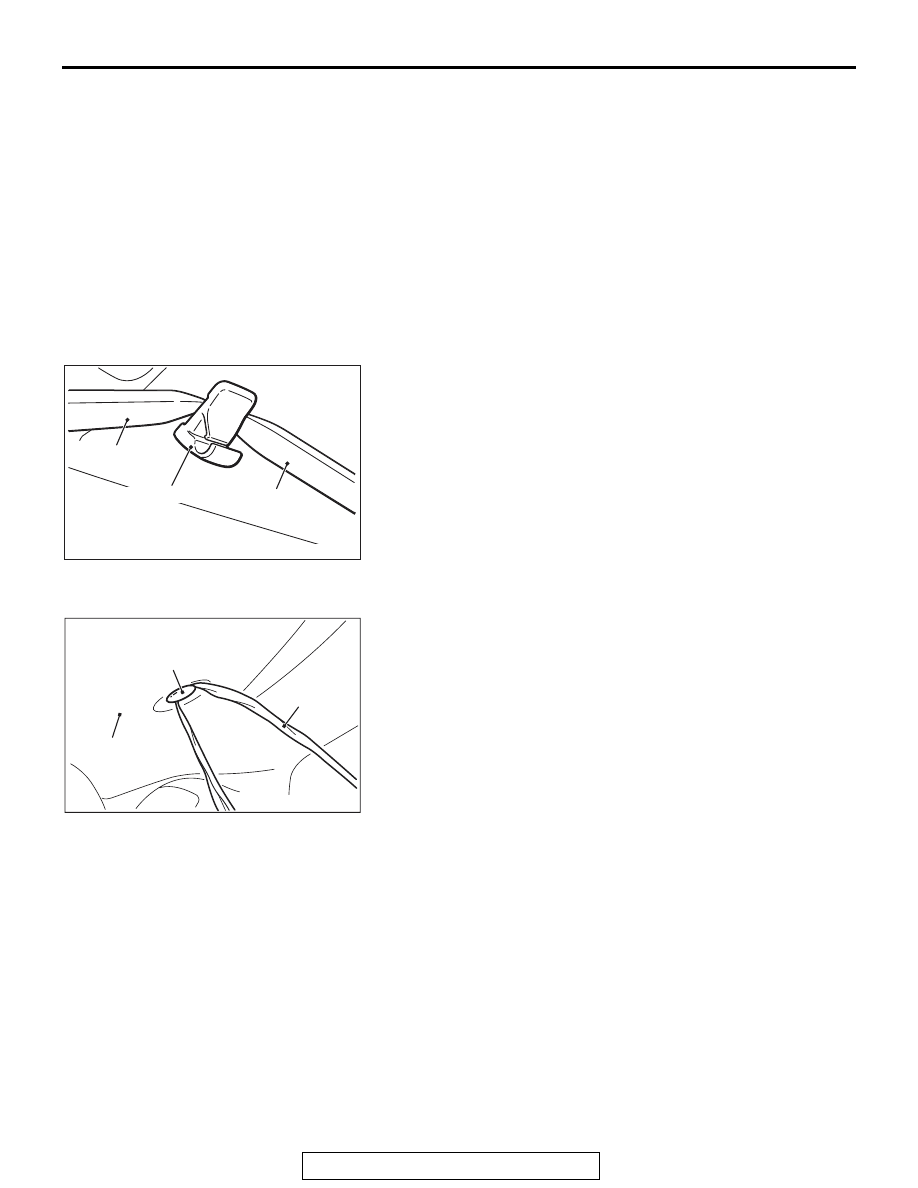

<<A>> SUN VISOR HOLDER REMOVAL

AC005512

MB990784

MB990784

Sun visor holder

AF

Insert the special tool MB990784 into side claws of the sun
visor holder through the both sides of the sun visor holder to
remove the hinges.

.

<<B>> HEADLINING ASSEMBLY REMOVAL

AC600751AD

Clip

Headlining

Vinyl cord

To remove the clip, insert a vinyl cord into a clearance between
the clip and the headlining, and pass it around the clip. Then,
pull out the clip downwards while pulling the vinyl cord.

Removal steps (Continued)

INSIDE REAR VIEW MIRROR

TSB Revision

INTERIOR

52A-19

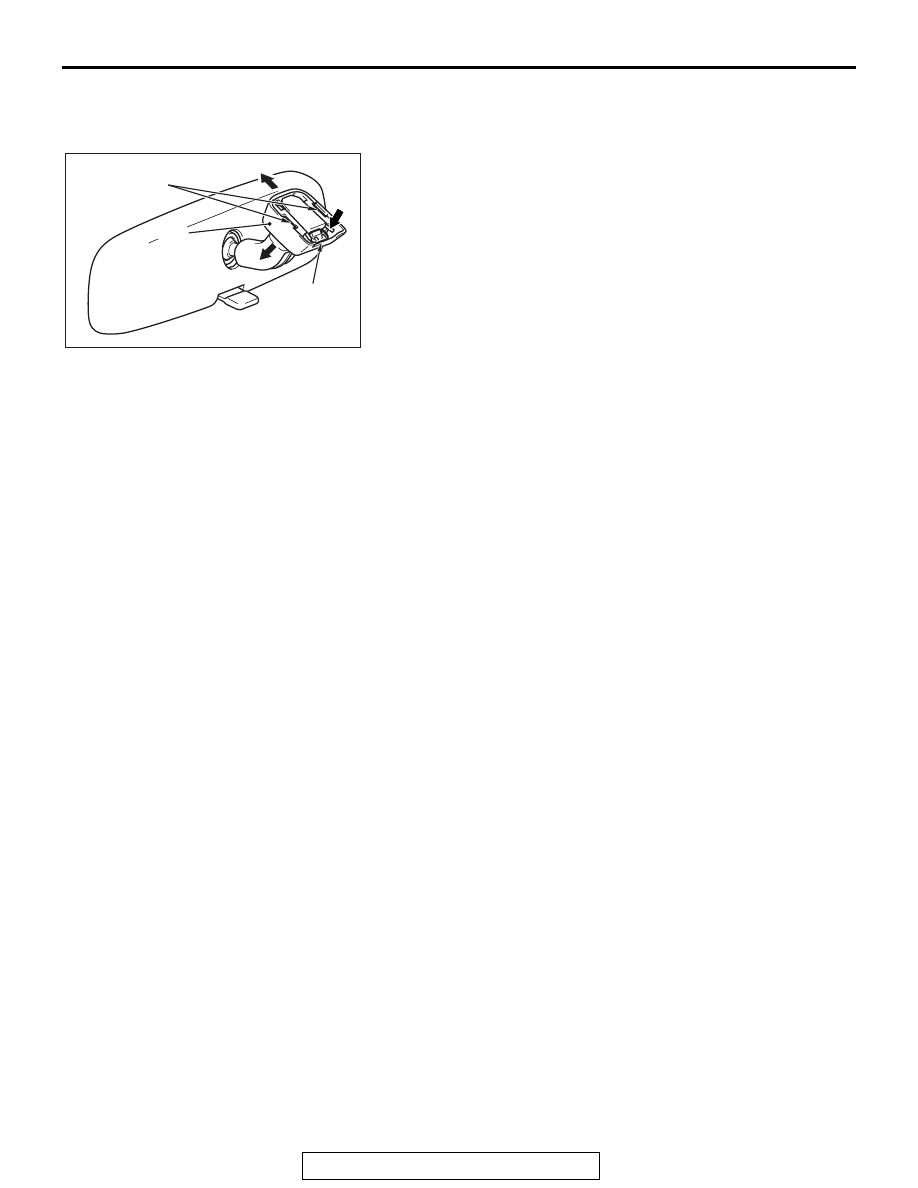

INSIDE REAR VIEW MIRROR

M1521002600594

REMOVAL SERVICE POINT

AC209066

Claw B

Claw A

Cover

1

2

3

AD

1. Disengage claw A and lower the cover in the arrow 1

direction.

2. Push claw B in the arrow 2 direction to unlock, and pull out

the mirror in the arrow 3 direction.

NOTE: For how to install the room mirror button to the wind-
shield, refer to GROUP 42A - Windshield

P.42A-19

.

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-20

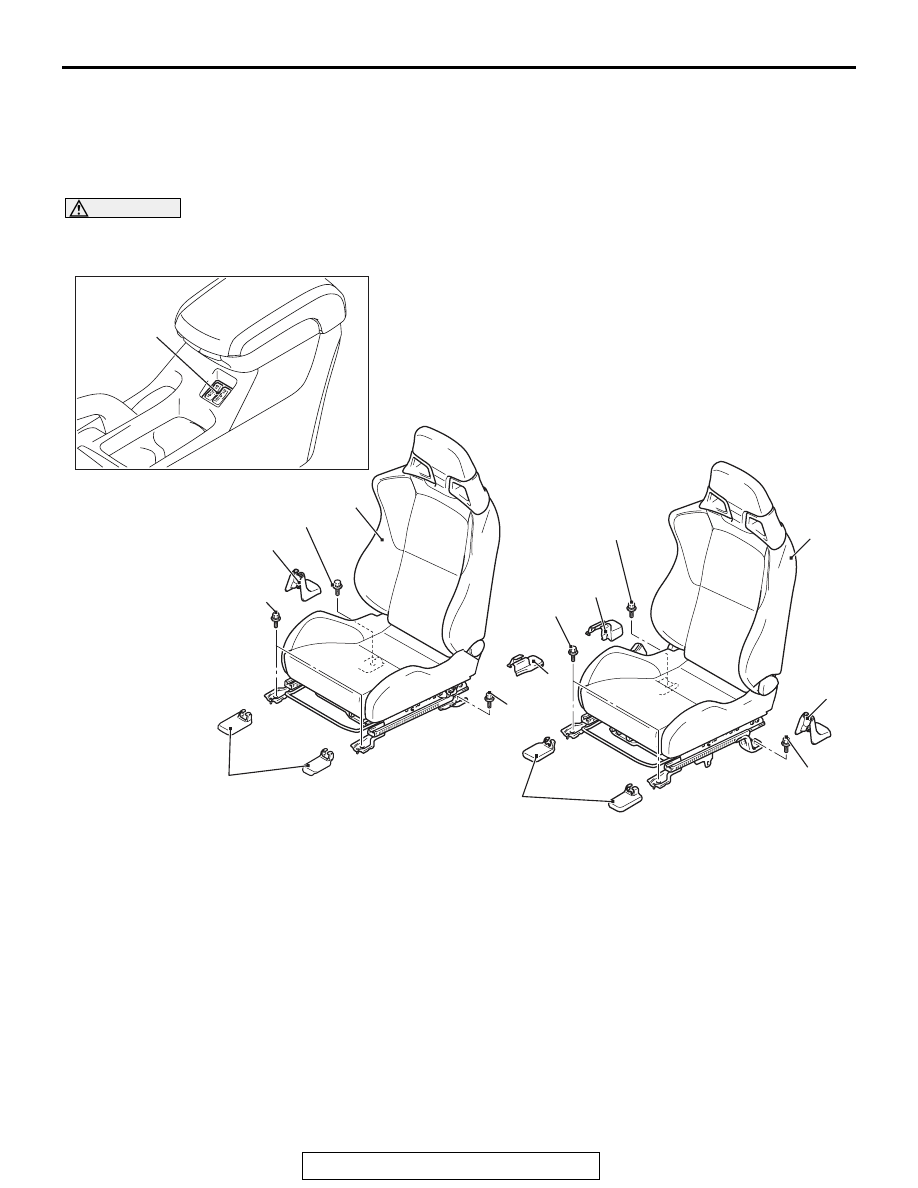

SEAT ASSEMBLY

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001301381

WARNING

Before removing the front seat assembly, refer to GROUP 52B, Service Precautions

P.52B-25



and Air Bag Module and Clock Spring

P.52B-386

.

AC708433

3

1

2

2

1

1

1

3

4

AB

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

43 ± 8 N·m
32 ± 6 ft-lb

Front seat assembly removal
steps

1. Front seat anchor cover rear
2. Front seat anchor cover front

<<

A

>>

• Harness connector

>>

A

<< 3. Front seat assembly

4. Heated seat switch <Vehicles with

heated seat> (Refer to

P.52A-9

).

Front seat assembly removal steps
(Continued)
