FLOOR CONSOLE ASSEMBLY

TSB Revision

INTERIOR

52A-9

FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

M1521005200487

AC708396AB

22

6

9

18

14

12

17

18

11

7

9

<6AMT>

1

2

3

5

4

6

B

B

9

<

M/T>

8

14

C

C

13

19

15

16

10

22

22

23

24

D

D

21

20

A

A

8

Section D – D

Note
         : Clip positions
         : Claw positions

Clip

Claw

Section A – A

Section B – B

Section C – C

Clip

Clip

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.5 ± 0.5 N·m
23 ± 4 in-lb

10 ± 3 N·m
8 ± 2 ft-lb

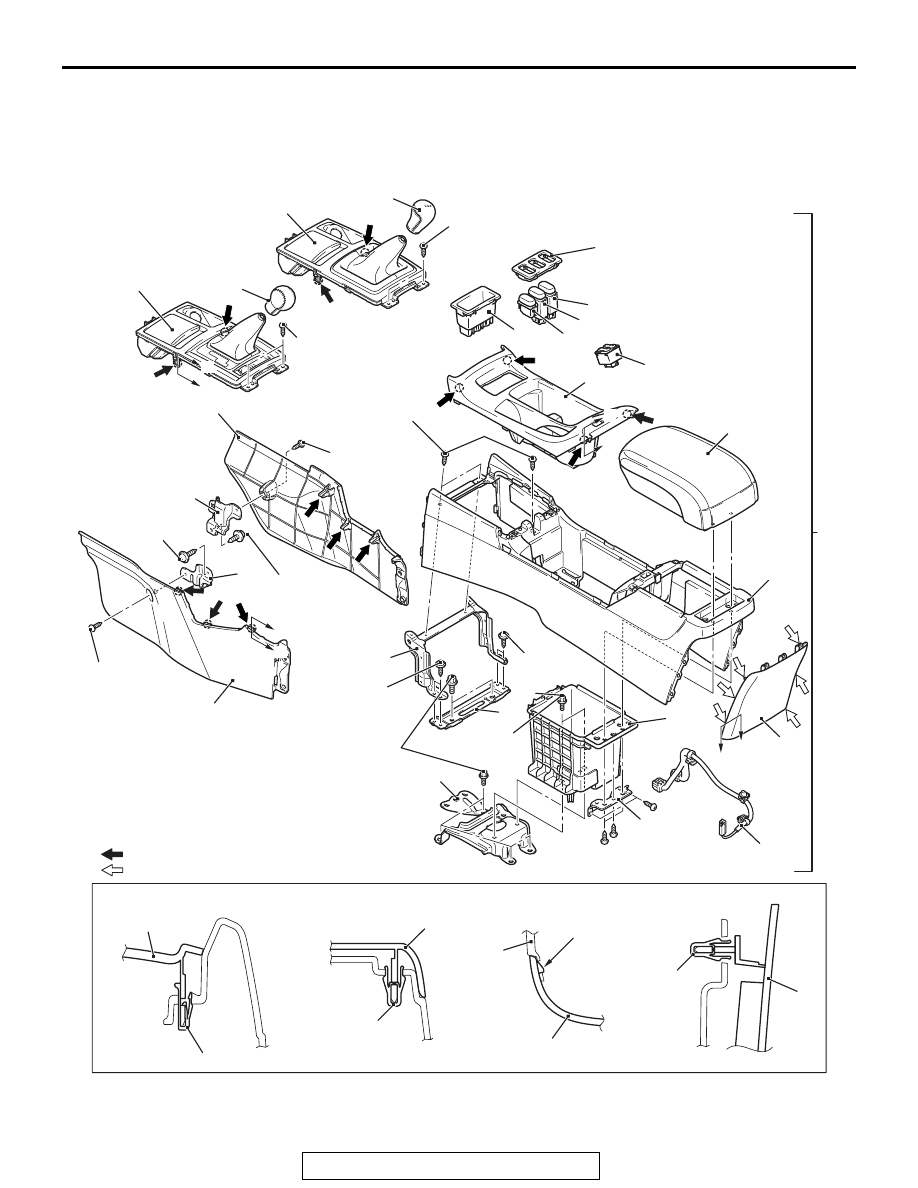

Removal steps

1.

Floor console switch panel

2.

AWC switch or Floor console plug
<Option>

3.

Floor console plug

4.

Floor console plug

5.

Floor console tray

>>

A

<<

6.

Floor console box cup holder

7.

Heated seat switch <Vehicles with
heated seat>

8.

Shift knob

9.

Floor console panel assembly

10. Floor console assembly mounting

bolt

11. Floor console assembly mounting

screw

12. Floor console assembly

13. Floor console harness

>>

B

<<

14. Floor console cover
15. Floor console bracket
16. Floor console box
17. Floor console armrest
18. Floor console rear
19. Floor console bracket rear
20. Floor console bracket (A)
21. Floor console bracket (B)
22. Floor console side cover
23. Floor console front bracket front

(LH)

24. Floor console front bracket front

(RH)

FLOOR CONSOLE ASSEMBLY

TSB Revision

INTERIOR

52A-10

REASSEMBLY SERVICE POINT

.

>>A<< FLOOR CONSOLE BOX CUP HOLDER
REASSEMBLY

AC710809

Section A – A

A

AB

A

MB990784

Remove by using special tool MB990784 (ornament remover)
as shown in the figure.

.

Removal steps (Continued)

TRIMS

TSB Revision

INTERIOR

52A-11

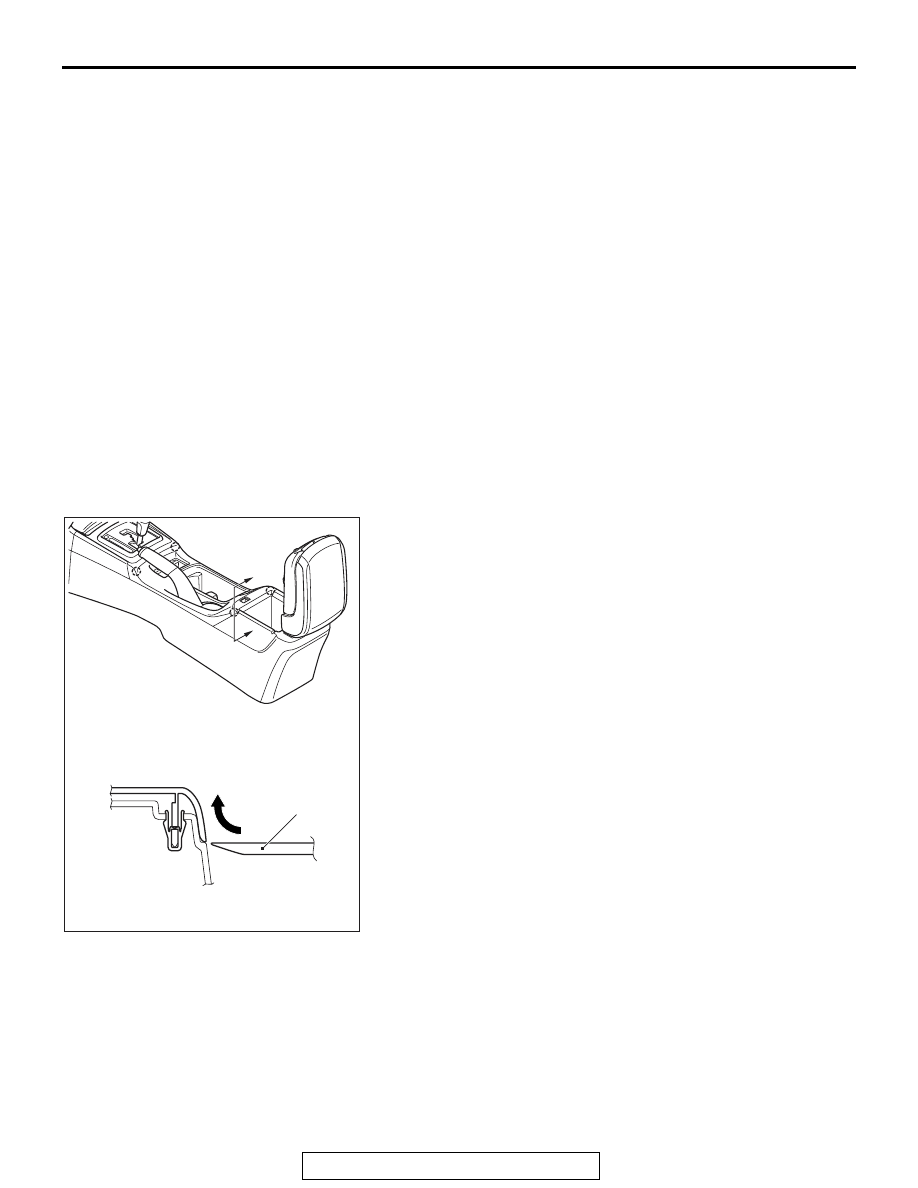

>>B<< FLOOR CONSOLE COVER REASSEMBLY

AC611409

Floor console rear

Floor console
cover

AC

Floor console rear ends (shown in the dotted lines) may dam-
age when removing the floor console cover. You can neglect
this damage and floor console rear is reusable.

TRIMS

REMOVAL AND INSTALLATION

M1521001101232

AC709234

4

5

1

3

6

2

7

10

12

11

AB

9

13

14

8

22 ± 4 N·m
16 ± 3 ft-lb

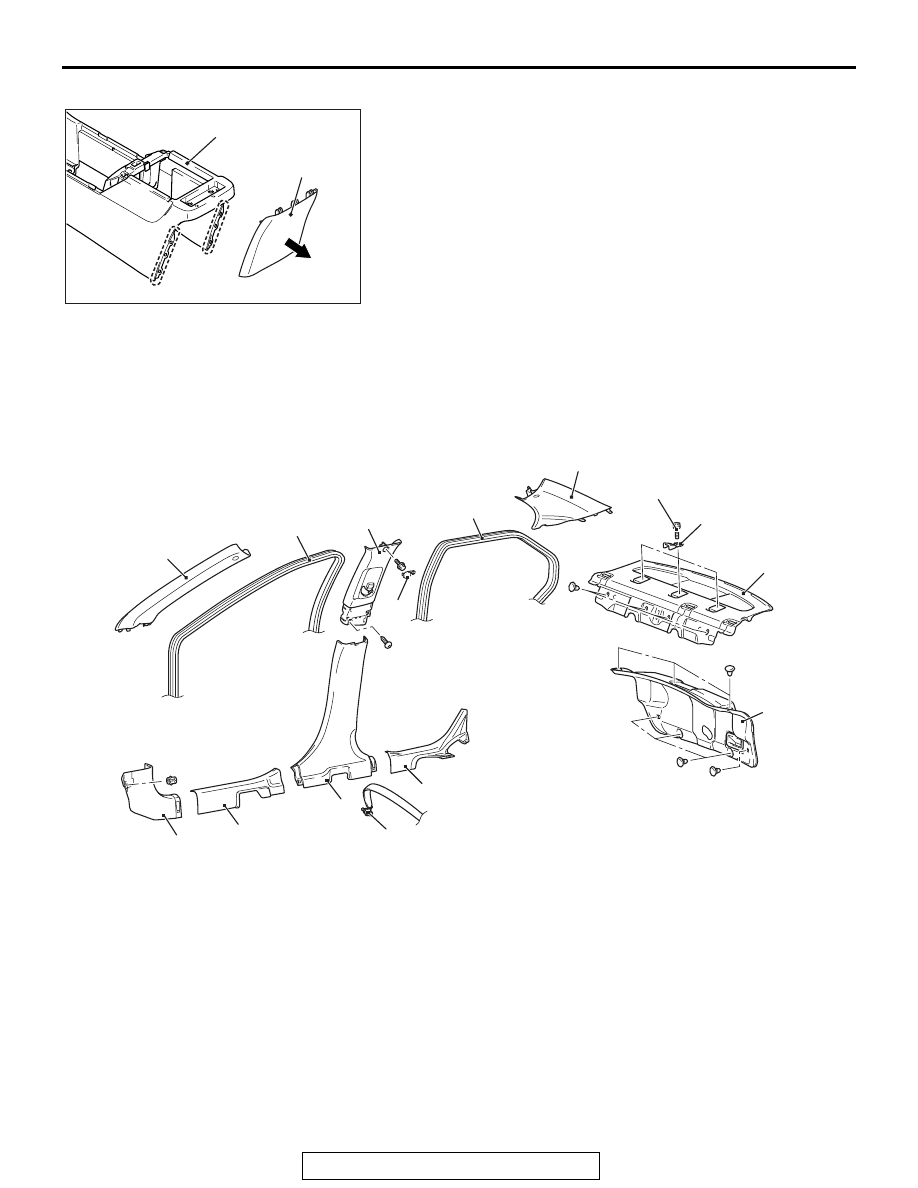

Removal steps

1. Front scuff plate
2. Cowl side trim
• Rear seat cushion (Refer to

P.52A-25

).

3. Rear scuff plate
4. Front door opening trim
5. Rear door opening trim

<<

A

>>

6. Front pillar trim
7. Center pillar trim lower
8. Outer seat belt mounting bolt

(Refer to

P.52A-28

).

9. Center pillar trim upper cap

• Outer seat belt (Refer to

P.52A-28

).

10. Center pillar trim upper
11. Rear pillar trim
• Seat side back (Refer to

P.52A-25

).

12. Rear shelf trim
13. Child restraint fitting
14. Trunk lid trim

Required Special Tool:

• MB990784: Ornament Remover

Removal steps (Continued)

TRIMS

TSB Revision

INTERIOR

52A-12

<TRUNK ROOM>

AC710471

AC710167

28

25

27

23

AD

24

26

22

15

16

18

17

19

20

21

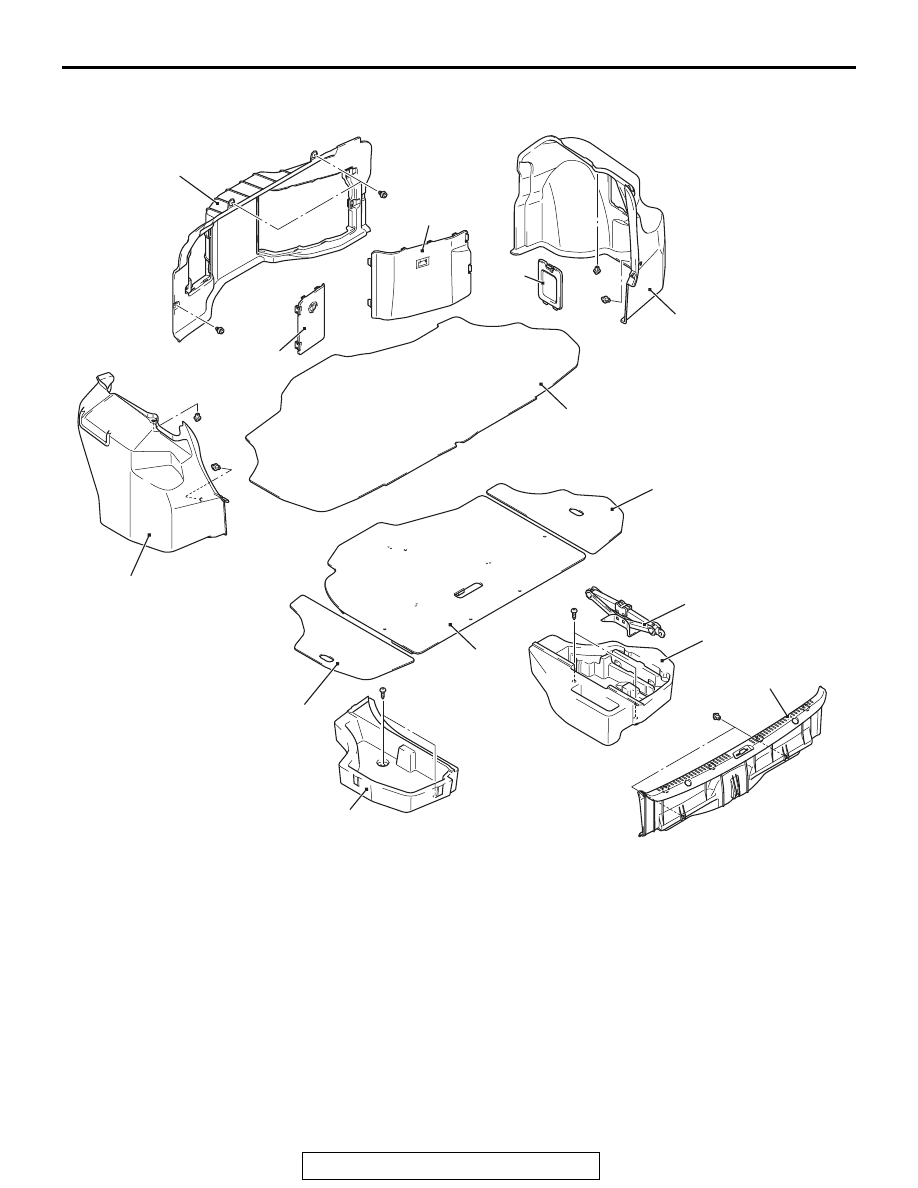

Removal steps

15. Trunk room mat
16. Trunk room floor side board (RH)
17. Trunk room floor side board (LH)
18. Trunk room floor board
19. Jack
20. Trunk room box (RH)
21. Trunk room box (LH)
•

Trunk lid weatherstrip (Refer to
GROUP 42A, Trunk lid

P.42A-147

).

22. Rear end trim

23. Trunk room trim cover (RH)
24. Trunk room trim cover (LH)
25. Trunk room trim front
261. Trunk room side trim lid
27. Trunk room side trim (RH)
•

Rear speaker box assembly (Refer
to GROUP 54A, Speaker

P.54A-575

).

28. Trunk room side trim (LH)

Removal steps (Continued)
