Mitsubishi Evolution X. Manual - part 632





INSTRUMENT PANEL ASSEMBLY

TSB Revision

INTERIOR

52A-5

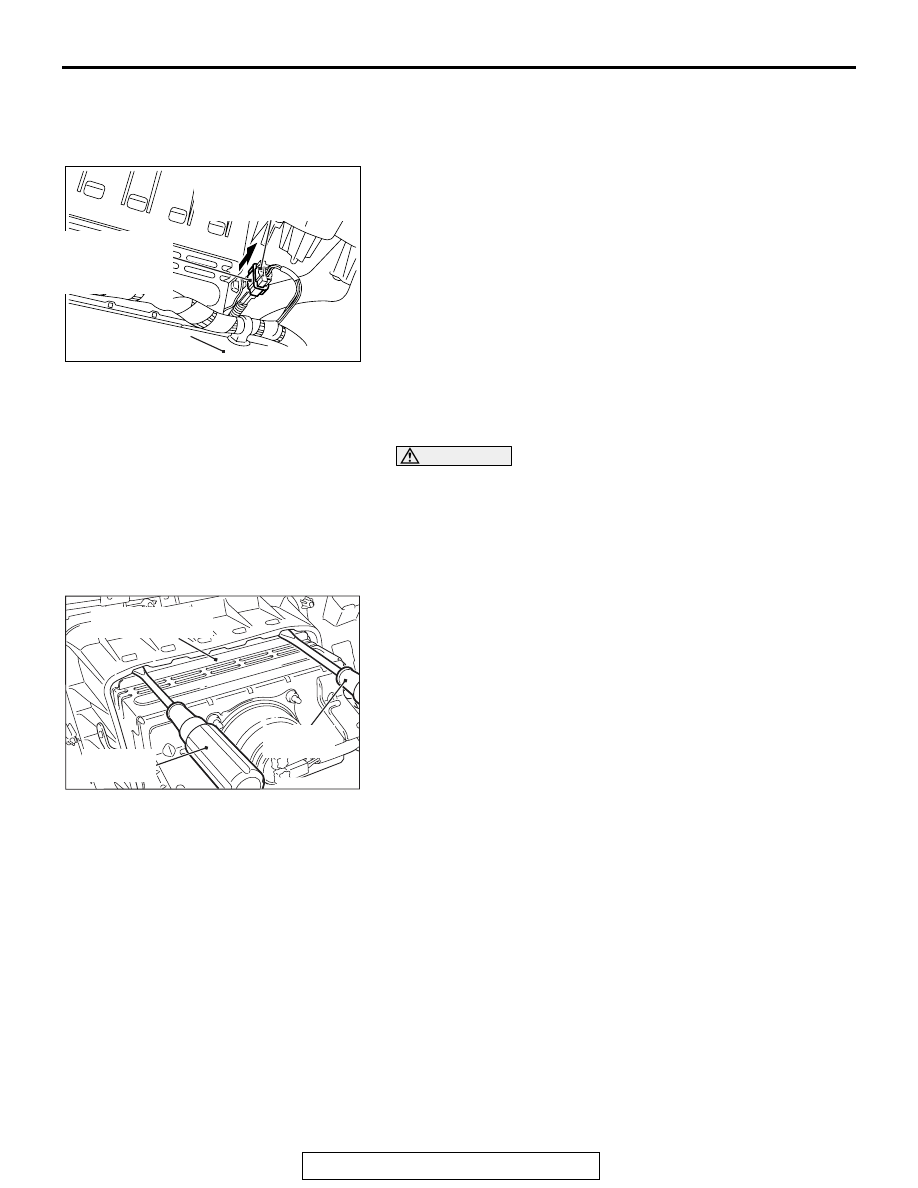

REMOVAL SERVICE POINTS

.

<<A>> PASSENGER'S (FRONT) AIR BAG MOD-
ULE CONNECTOR REMOVAL

AC609051

Instrument panel wiring
harness side connector
(4 pin, yellow)

Outer housing of
the passenger's
air bag module
connector

AB

Deck crossmember

1. Remove the grove box upper cover.(Refer to

P.52A-6

)

2. Slide the outer housing of the passenger’s (front) air bag

module connector in the arrow direction shown, and discon-
nect the connector.

.

<<B>>PASSENGER'S (FRONT) AIR BAG MODULE
REMOVAL

WARNING

The air bag module must not be measured with
such equipment as an ohmmeter.

The air bag module must not be disassembled.

The removed air bag module should be stored in a
clean, dry place with the deployment surface fac-
ing up.

AC609682AB

Flat-tipped
screwdriver

Flat-tipped
screwdriver

Passenger's (front)
air bag module

Insert a flat-tipped screwdriver or similar tool to the location
shown in the figure. After disengaging the tabs, remove the
passenger's (front) air bag module.

GLOVE BOX

TSB Revision

INTERIOR

52A-6

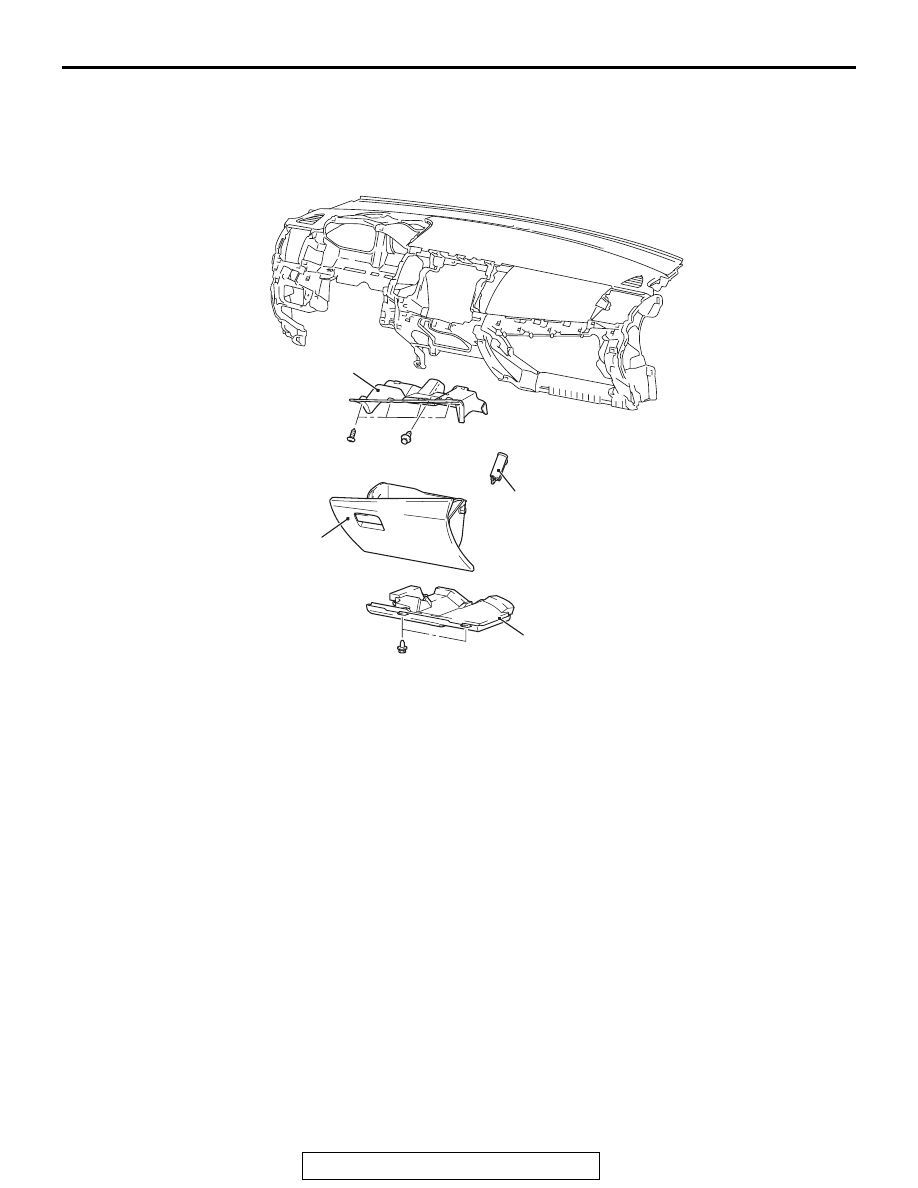

GLOVE BOX

REMOVAL AND INSTALLATION

M1521011500089

AC708412AB

4

2

1

3

Removal steps

1. Glove box
2. Glove box damper

3. Bottom cover (passenger side)
4. Glove box upper cover

Removal steps (Continued)

INSTRUMENT CENTER PANEL

TSB Revision

INTERIOR

52A-7

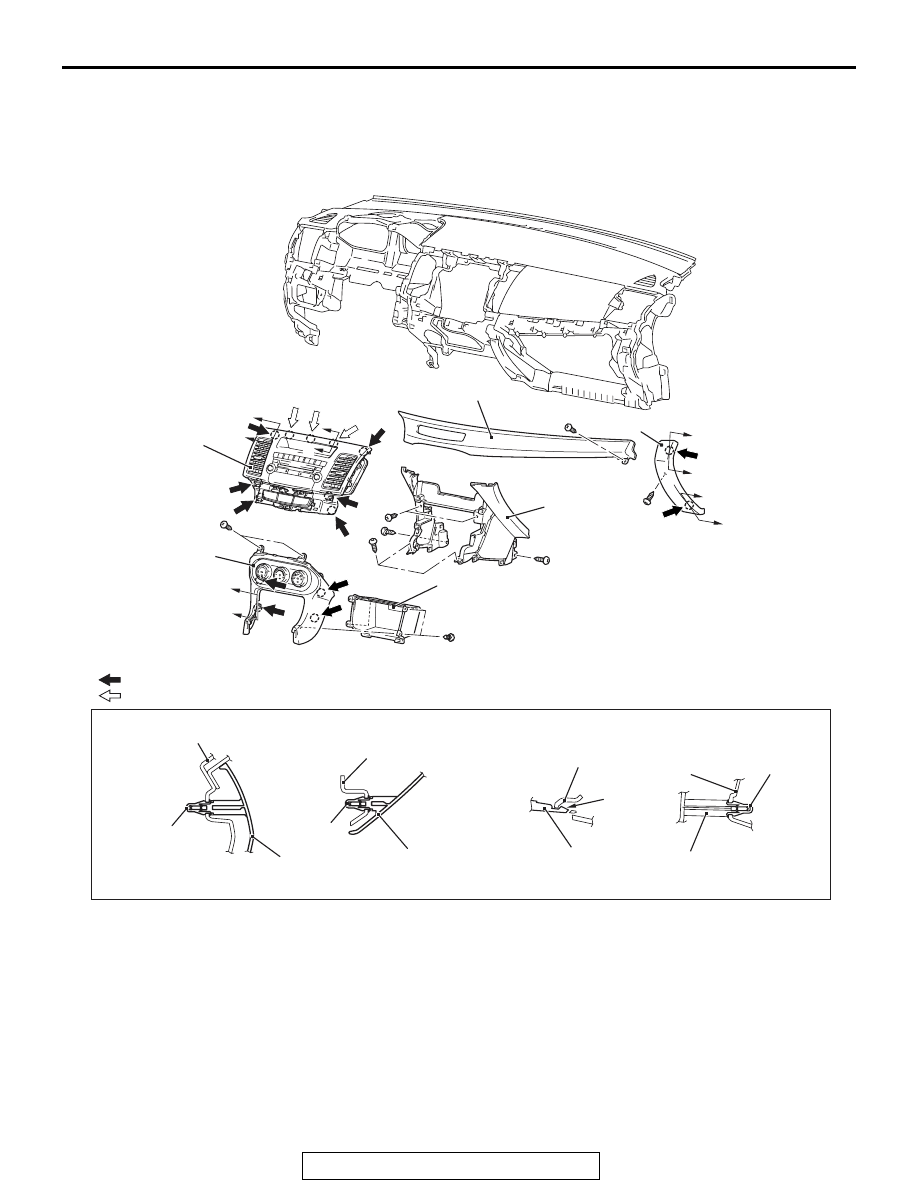

INSTRUMENT CENTER PANEL

REMOVAL AND INSTLLATION

M1521011300074

AC708413

Section B – B

Section C – C

Section D – Dt

Section A – A

D

D

AB

4

6

3

Instrument panel
under cover ,
Instrument panel

Claw

Instrument panel
console box ,
Instrument center panel

Instrument panel

Clip

Note
         : Clip positions
         : Claw positions

D

D

C

C

Instrument
center panel

2

5

A

A

B

B

1

Instrument panel

Instrument
parcel box panel

Instrument panel

Clip

Clip

Instrument
parcel box panel

Removal steps

1. Instrument panel parcel box panel
2. Instrument panel air outlet garnish

lower (RH)

3. Instrument center panel
•. Floor console side cover (Refer to

P.52A-9

).

4. Instrument panel center lower
5. Instrument panel console box
•. Instrument panel cover assembly

(Refer to

P.52A-8

).

6. Instrument panel under cover

Removal steps (Continued)

INSTRUMENT LOWER PANEL

TSB Revision

INTERIOR

52A-8

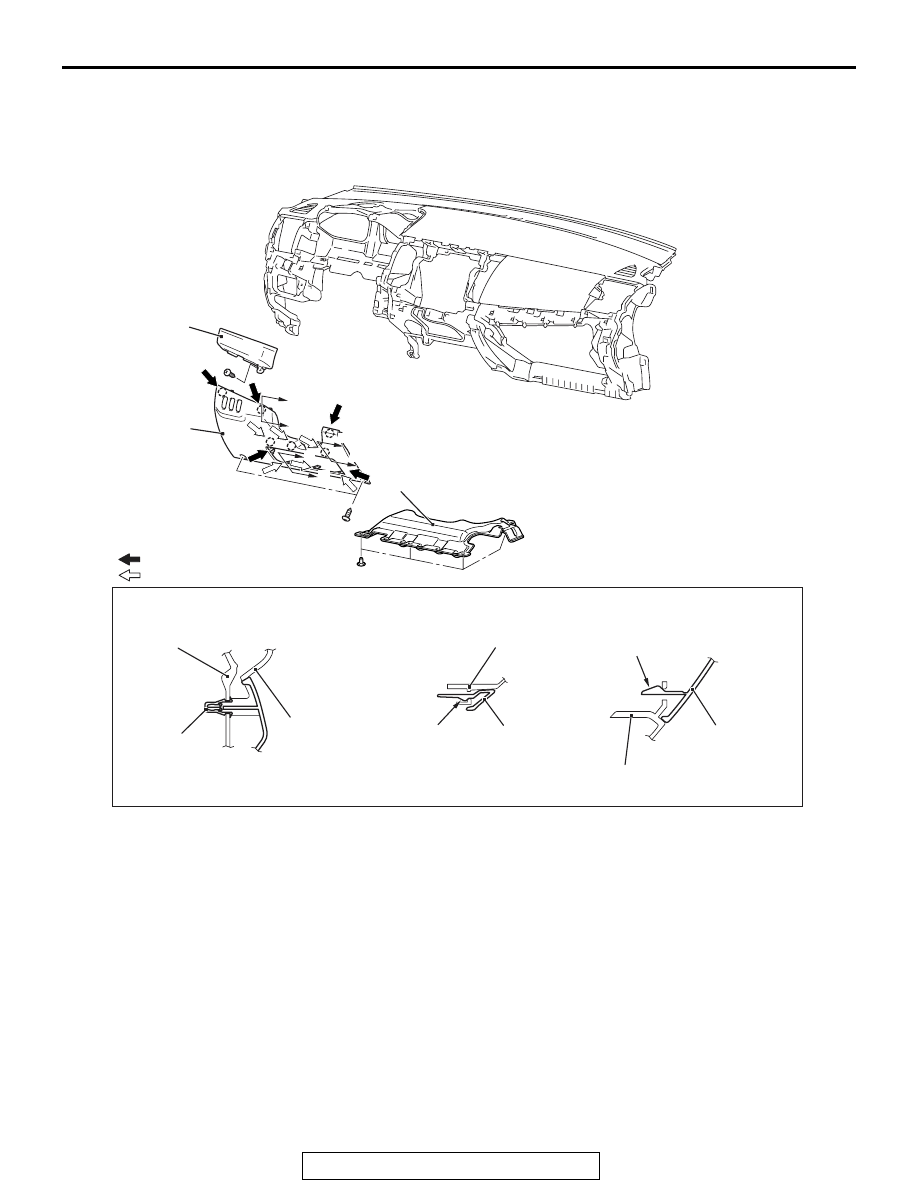

INSTRUMENT LOWER PANEL

REMOVAL AND INSTALLATION

M1521011700083

AC708415

A

A

2

B

B

C

C

3

1

Section B – B

Section C – C

Section A – A

Knee airbag

Instrument panel

Instrument panel
air outlet garnish
lower (LH)

Note
         : Clip positions
         : Claw positions

Clip

Knee airbag

Instrument panel
cover assembly

Claw

Claw

AB

Instrument panel
cover assembly

Removal steps

1. Instrument panel cover lower <MR>

2. Instrument panel cover assembly
3. Instrument panel air outlet garnish

lower (LH)

Removal steps (Continued)
