ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-117

AC611443AE

Keyless ID
Reg.*1

OK

Keyless ID
registration
Executing

Keyless ID
registration
Completed

OK

OK

Steering lock
unit Reg.*2

OK

Steering lock
unit registration
Executing

OK

Antenna select

Antenna
communication
test Executing

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.

Steering lock
unit registration
Completed

Password input

Registration
result display

Comm.
Test *2

Antenna
communication
test Completed

Password input

A

Tire Pressure
Sensor ID
Registration *1,*2

Tire Pressure
Sensor Check *1,*2

Tire Pressure
Sensor ID
Check *1,*2

ID Check

Sensor Check

Sensor Check
Executing
Check

Sensor Check
Executing

Sensor Check
Completed

Sensor Check
Result Display

Sensor Check
Cancel Check

OK

OK

OK

OK

OK

Cancel

Cancel

Can
cel

ID Registration
Menu

ID Registration
Menu

ID Registration
Executing
Check

ID Registration
Executing

ID Registration
Completed

ID Registration
Cancel Check

ID Registration
Cancel
Completed

Select &
OK

Can
cel

OK

Can
cel

OK

OK

Can
cel

OK

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-118

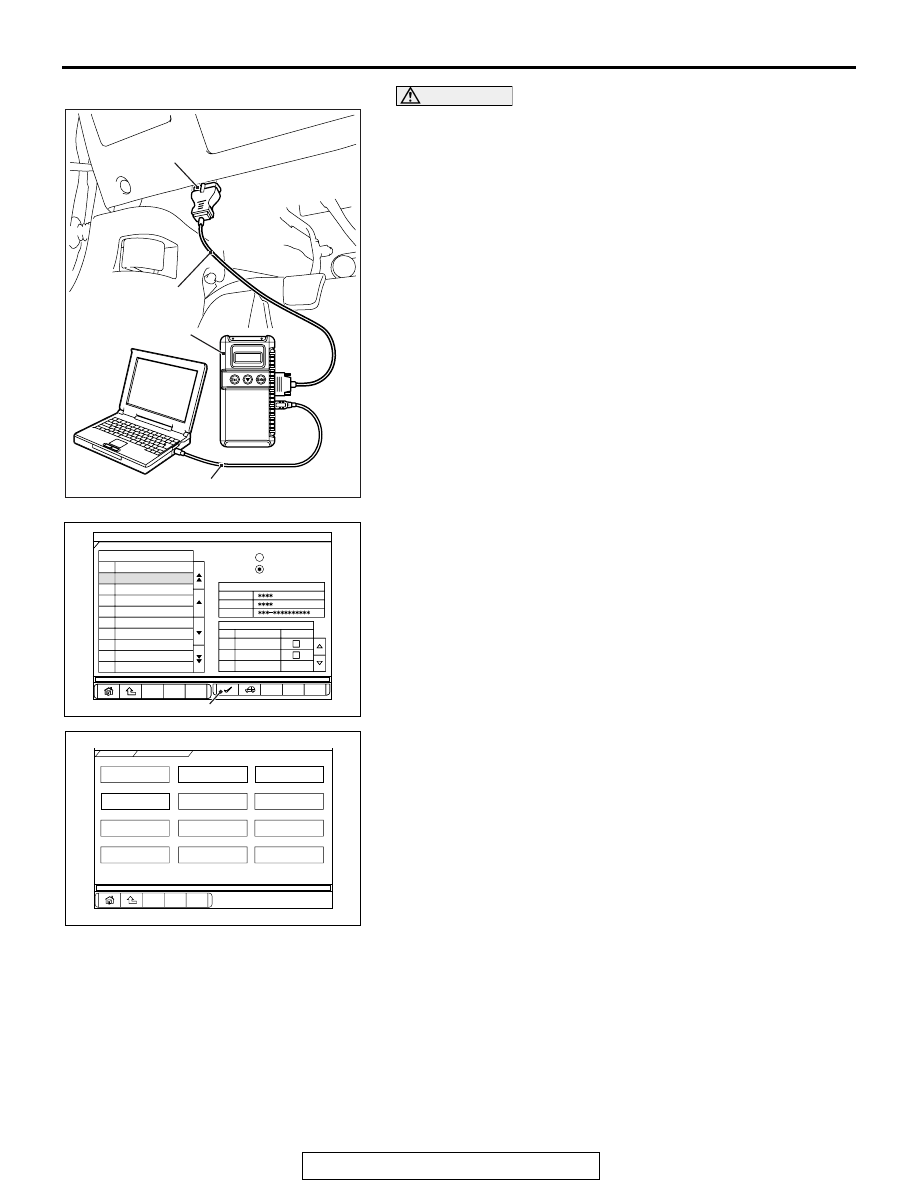

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
Connect the scan tool to the 16-pin data link connector as fol-
lows.
NOTE: For details on how to use the scan tool, refer to the
"M.U.T.-III User's Manual."
1. Start the scan tool MB991958 system on the personal

computer and turn the ignition switch to the "ON" position.

2. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the

"System Select" screen. Then, select the applicable option
code item and push the OK button.

3. Select "Special Function" on the next screen.

4. Select the button of the operation to be performed from the

"Special Function" screen.

• "Key Registration": When the ignition key is replaced or

added as a single unit and/or the WCM replaced.

• "Additional key registration": When the ignition key is added

as a single unit.

• "Key Registration (Barcode No.)":  When the ignition key is

replaced by the full service key set, the handle lock service
key set, immobi and keyless key assembly or immobilizer
key assembly is replaced by the piece.

• "Keyless ID Reg.": When the ignition key is replaced or

added as a single unit and the immobi and keyless key
assembly.

• "Tire Pressure Sensor ID Registration": When the TPMS

transmitter is replaced and/or the WCM is replaced.

• "Tire Pressure Sensor Check": When the tire pressure sen-

sor data is checked.

• "Tire Pressure Sensor ID Check": When the tire pressure

sensor ID is checked.
NOTE: For "ENG Key Code & VIN Reg," refer to GROUP
00

−

 Precautions before Service

P.00-27

.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

System Select

Select Model Year and System

System List

Model Year

Vehicle Information

Loading Option Setup

OPC

With Option

Option Name

IMMOBI & Keyless & TPMS

VF2

VF3

IMMOBI & F.A.S.T. & TPMS

Model Name

Model Year

Model Code

Up to 2005 MY

From to 2006 MY

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

F.A.S.T./IMMO/Keyless/TPMS

AT/CVT/A-MT

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

ETACS

Meter

AC609809

OK button

AB

System Select

Please select function.

Special Function

Key Registration

Key Registration (Barcode No.)

Keyless ID Reg.

ENG key code & VIN Reg.

F.A.S.T./IMMO/Keyless/TPMS

Additional key registration

Tire Pressure Sensor ID Check

Tire Pressure Sensor ID Registration

Tire Pressure Sensor Check

AC709283

AB

Option: When IMMOBI & Keyless & TPMS is selected

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-119

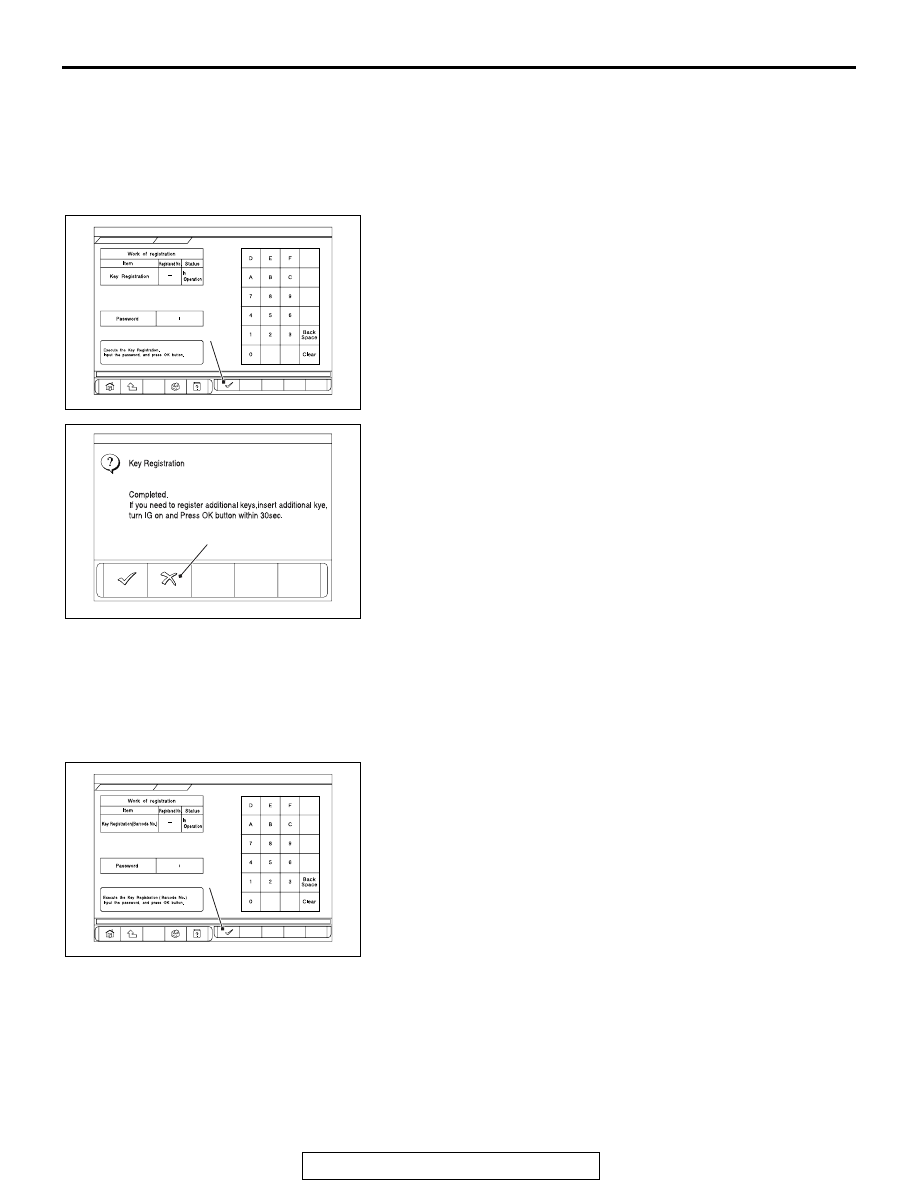

5. After operation check, turn the ignition switch to the "LOCK"

(OFF) position.

6. Remove the scan tool MB991958.

.

"KEY REGISTRATION"/"ADDITIONAL KEY
REGISTRATION" METHOD

1. When "Key registration" or "Additional key registration"

screen is displayed, enter the password for the key
registration and press the OK button. Then, "Executing!" is
displayed and the registration process starts.
NOTE:

.

•

If the wrong password is entered consecutively 5 times,
the password entry for the key registration will be dis-
abled for 16 minutes.

•

The key registration cannot be cancelled during the
operation.

2. When the key registration is completed, "Completed" is

displayed. To register the next key, follow the message on
the screen and press the OK button. Then, "Executing!" is
displayed again and the registration process for the next key
starts. To finish the key registration, press the cancel button.
NOTE:

.

•

In order to register another key consecutively after regis-
tering the first key, the ignition switch must be turned to
the ON position with the second key within 30 seconds
after turning it to the "LOCK" (OFF) position with the first
key.

•

Up to eight keys can be registered.

•

When the key cannot be registered using scan tool
MB991958, refer to Inspection Procedure 2 "The ignition
key cannot be registered using scan tool

P.42C-86

.

.

"KEY REGISTRATION (BARCODE NO.)" METHOD

1. When "Key Registration (Barcode No.)" screen is displayed,

enter the password for the key registration and press the OK
button.
NOTE: If the wrong password is entered consecutively 5
times, the password entry for the key registration will be dis-
abled for 16 minutes.

Special Function

Keyless ID Registration

F.A.S.T./IMMO/Keyless/ TPMS

AC610088

AB

OK button

AC509787

AB

Cancel button

Special Function

Key Registration (Barcode No.)

F.A.S.T./IMMO/Keyless/ TPMS

AC610089

AB

OK button

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-120

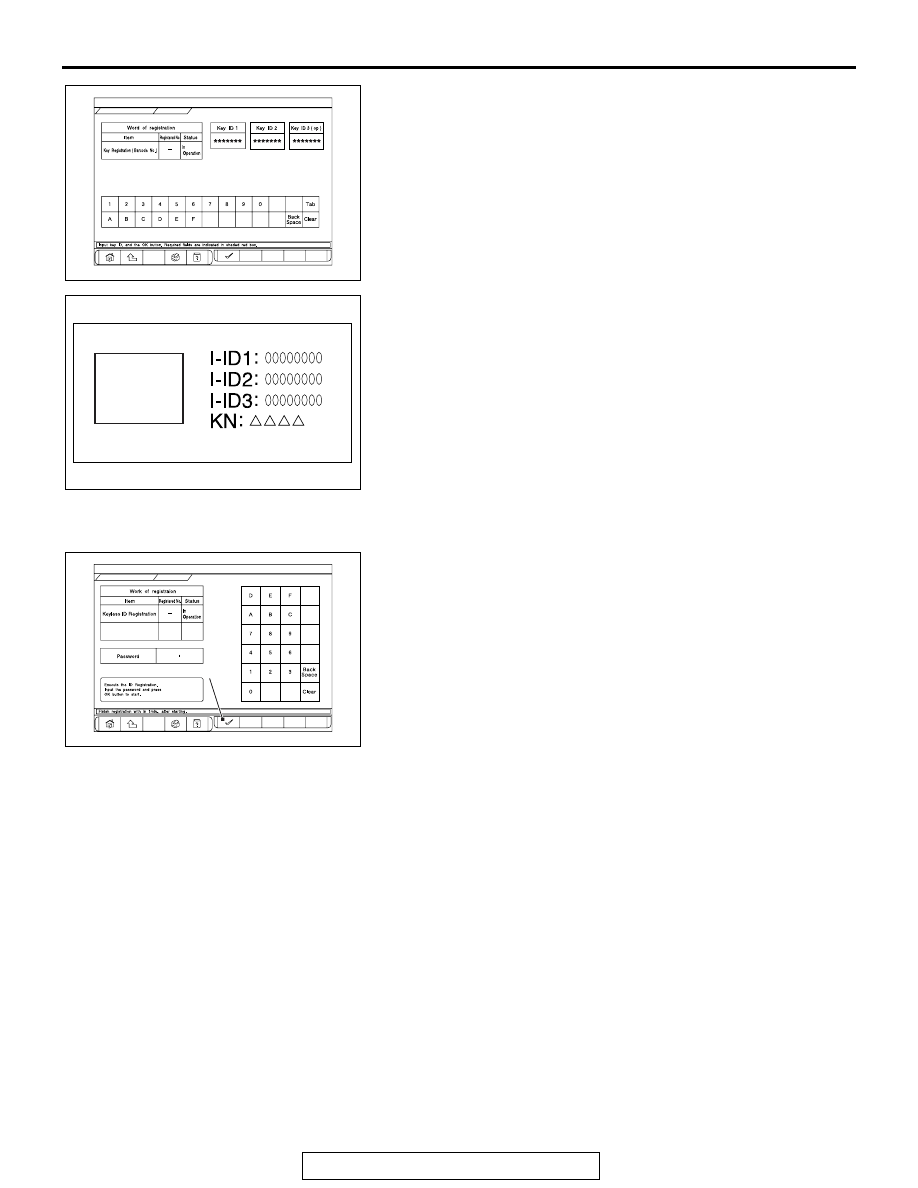

2. Follow the message on the screen to enter the bar code No.,

and then press the OK button.

3. When "Do you want to start registration?" is displayed, press

the OK button to start the registration, or press the Cancel
button to cancel the registration.

4. "Key Registration was completed" is displayed. Press the

OK button to finish the registration.
NOTE: When the key cannot be registered using scan tool
MB991958, refer to Inspection Procedure 2 "The ignition key
cannot be registered using scan tool

P.42C-86

.

.

"KEYLESS ID REG." METHOD

1. On the "Keyless ID Reg." screen, enter the password and

press the OK button.

2. Register within 1 minute and send the programming packet

*



to register the keyless ID. To register multiple keys, register
the next key within 1 minute from the registration operation
of previous key. Complete the registration of necessary
keys, then press the OK button to finish the keyless ID
registration.
NOTE:

.

•

Up to eight ignition keys can be registered.

•

*

: Programming packet sending procedure

Complete the following steps 1 to 3 within four seconds.

1. Press and hold both the lock and the unlock switch

for 1 second or longer.

2. Release both the lock and the unlock switch for 0.5

second or longer.

3. Press the unlock switch.

3. Push the OK button after "Keyless ID Registration was

finished." is displayed.

Special Function

Key Registration (Barcode No.)

F.A.S.T./IMMO/Keyless/ TPMS

AC709688

AC502858

AC

Barcode

Special Function

Keyless ID Registration

F.A.S.T./IMMO/Keyless/ TPMS

AC610066

AB

OK button
