DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-113

STEP 3. Register the keyless ID using a known-good
transmitter of the same type again, and check the trouble
symptom.
(1) Register a known-good transmitter of the same type.
(2) Check if the signals from the transmitter switches are

received.

Q: Can the transmitter be registered correctly?

YES : Replace the original transmitter with a new one.
NO :  Replace the WCM (Including when the new

transmitter cannot be registered). Replace WCM and
register the ID codes (Refer to

P.42C-114

). If the

transmitter works normally, the input signal from the
transmitter should be normal.

CHECK AT ECU TERMINALS

M1427500900120

AC507349

C-07

AH

Terminal
No.

Check item

Check condition

Normal condition

1

Receiver antenna assembly
CLOCK output

Ignition key lock button, unlock
button, and trunk lid button: ON

0 to 5 V (pulse signal)

2

3

Receiver antenna assembly DATA
output

Ignition key lock button, unlock
button, and trunk lid button: ON

0 to 5 V (pulse signal)

4

5

Receiver antenna assembly power
control

Ignition switch: OFF

0 to 5 V (pulse signal)

6

Power supply (Battery)

Always

Battery voltage

7

Ground

Always

0 V

8

Receiver antenna assembly ground Always

0 V

9

Power supply (Ignition switch: IG1) Ignition switch: ON

Battery voltage

10

CAN L

11

CAN H

12

Receiver antenna assembly power
supply

Always

5 V

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-114

ON-VEHICLE SERVICE

ID CODES REGISTRATION PROCEDURE

M1427506300234

REGISTRATION USING SCAN TOOL MB991958
(M.U.T.-III SUB ASSEMBLY)

Required Special Tools:

•  MB991958 Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827 M.U.T.-III USB Cable

• MB991910 M.U.T.-III Main Harness A

The ID codes necessary for the engine immobilizer system, the
keyless entry system and the TPMS can be registered using
the scan tool MB991958 (M.U.T.-III sub assembly). KOS and
keyless operation key are indicated as F.A.S.T and F.A.S.T.-key
respectively in the scan tool MB991958 (M.U.T.-III sub assem-
bly) screen.

CAUTION

Do not register the ignition key registered for other vehi-
cles.

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-115

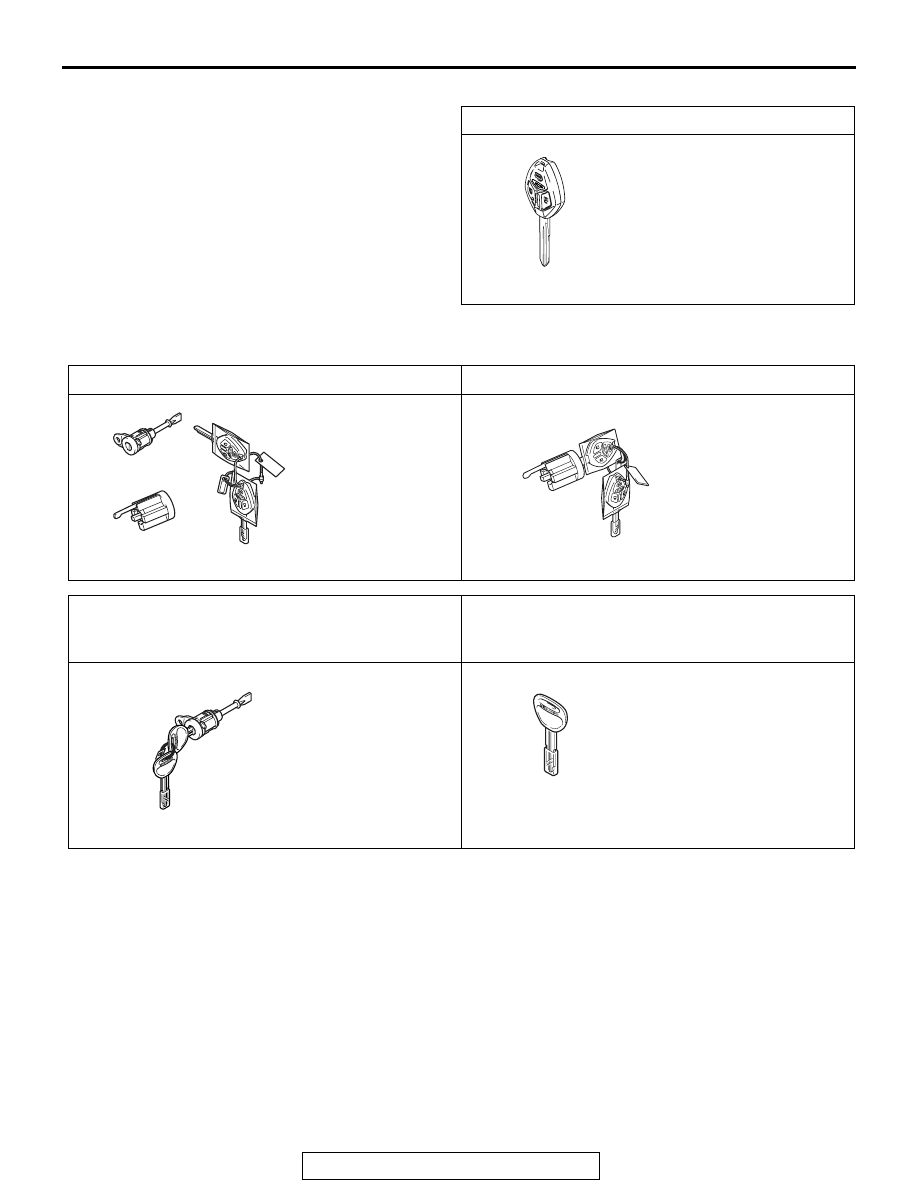

SUPPLY UNIT LIST FOR INDIVIDUAL KEY

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

NOTE:

.

When re-registering the key (key ID and keyless ID), all the
keys (key ID and keyless ID) registered before must be
re-registered because all of them will be erased.

If the registration fails, repeat from the start.

After registering the keys, make sure that the engine is
started normally with all of the keys registered.

Ignition key

AC609713

Full service key set

Handle lock service key set

Door service key set

NOTE: Key (It is the key that comes with the door
service key set. It can only be used for locking
and unlocking, and it cannot start the engine.)

AC609714

AC709684

AC610062

AC607881

ON-VEHICLE SERVICE

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-116

AC710587AB

Screen flow of scan tool MB991958 (M.U.T.-III sub assembly)

Key Registration
(Barcode No.) *1

Key
Registration *1

Key &
F.A.S.T.-key
Registration *2

OK

OK

OK

OK

OK

OK

OK

OK

Key ID input

Execution
check

Barcode No.
registration
completed

Special
Function

F.A.S.T.-key
registration
Executing

F.A.S.T.-key
registration
completed

Registration
result display

Special
Function

ENG key code
& VIN Reg. *1, *2

OK

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.

Cancel

Password input

Additional key
registration *1

Key registration

Completion and
an addition?

Password input

Password input

Go to A

Cancel

OK

Key registration

Completion and
an addition?

Special
Function

Refer to GROUP 00
How to Perform
VIN Writing
