SUNROOF

TSB Revision

BODY

42A-191

INSTALLATION SERVICE POINTS

>>A<< SUNROOF DRIP PLATE AND SUNROOF
LID SLIDE GUIDE INSTALLATION

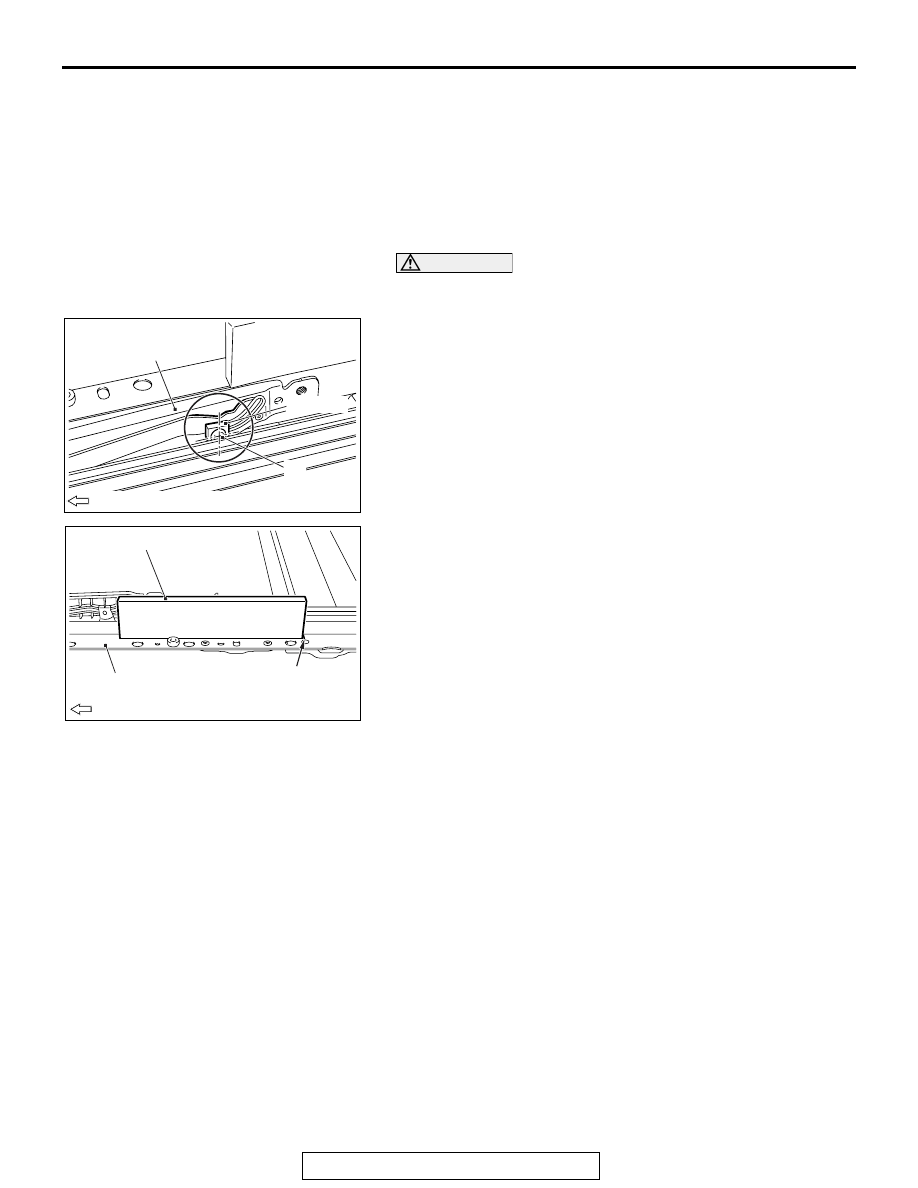

1. Install the sunroof drip plate and sunroof lid slide guide to

the sunroof housing.

2. Push the sunroof drip plate and sunroof lid slide guide

toward the front of sunroof housing until they stop.

CAUTION

If the slide part of the sunroof lid slide guide is positioned
incorrectly, the sunroof may not work normally.
3. Push the slide part of the sunroof lid slide guide forward.

Align the pin center of the slide part with the location shown
in the illustration.

>>B<< SUNROOF PAD INSTALLATION

Align the sunroof pad with the mark on the sunroof housing,
and then install it.

AC708961

: Front of sunroof housing

Slide part

Sunroof lid slide guide

AC708962

: Front of sunroof housing

Mark

Sunroof pad

Sunroof housing

LOOSE PANEL

TSB Revision

BODY

42A-192

LOOSE PANEL

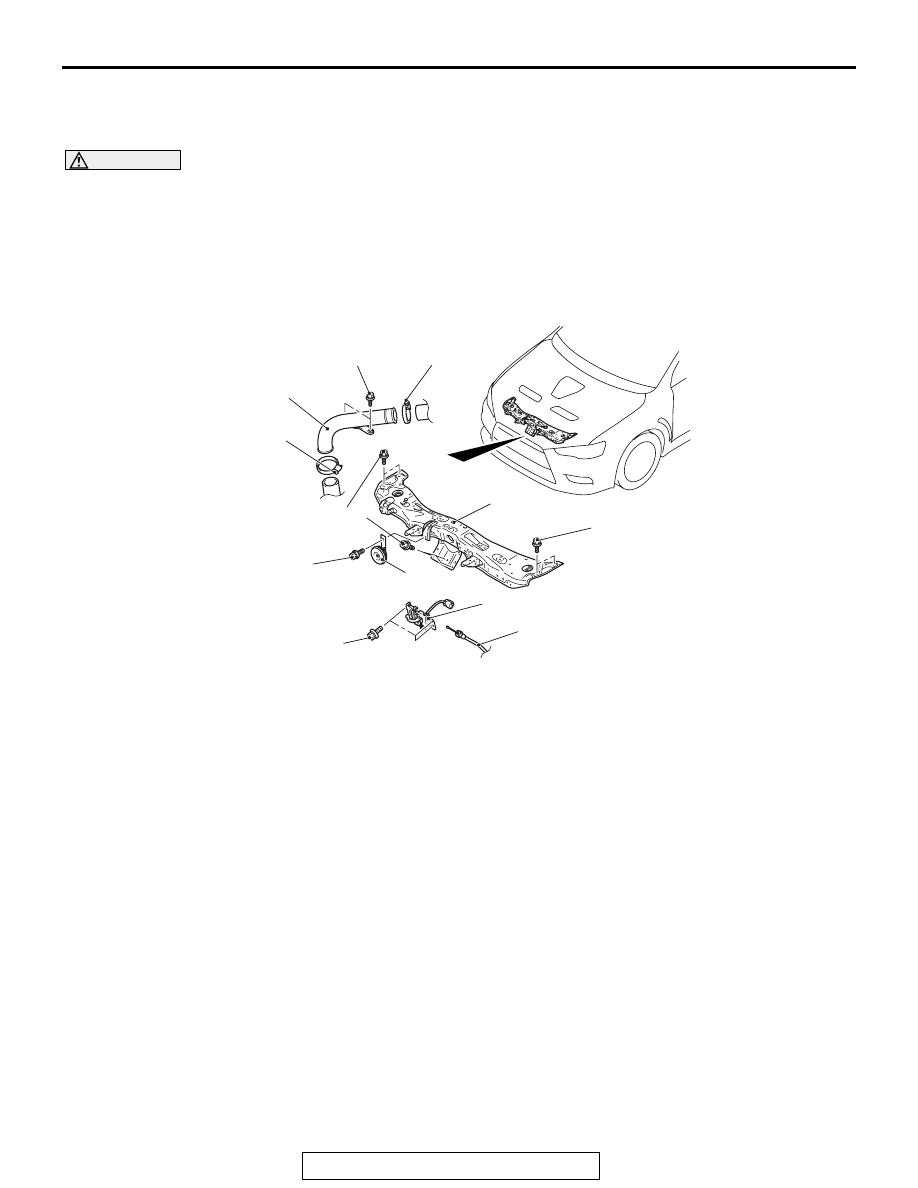

REMOVAL AND INSTALLATION

M1421003100595

CAUTION

• Disconnect the battery (−) terminal and wait for 60 seconds or more before starting work. Insulate

the disconnected (

−) terminal by wrapping the tape.(Refer to GROUP 52B − Service precautions

P.52B-25

)

• Handle the front impact sensor with sufficient caution, and do not drop the sensor or allow con-

tact with water, oil, or others. If a dent, crack, deformation, and others are discovered, replace it
with a new one.

AC70882AB

9.0 ± 3.0 N·m
80 ± 26 in-lb

6.0 ± 1.0 N·m
53 ± 9 in-lb

<Headlight support upper panel>

9.0 ± 2.0 N·m
80 ± 17 in-lb

9.0 ± 1.0 N·m
80 ± 9 in-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

18 ± 7 N·m
13 ± 4 ft-lb

Headlight support upper panel
removal steps

• Headlight support panel cover (Refer

to GROUP 51

−Front bumper

assembly and radiator grille

P.51-3

1. Hood latch
2. Hood lock release cable
3. Horn (LO)

4. Charge air cooler inlet pipe B
• Front impact sensor (Refer to

GROUP 52B

− Front impact sensor

P.52B-380

>> >>

<< 5. Headlight support upper panel

Headlight support upper panel
removal steps (Continued)

LOOSE PANEL

TSB Revision

BODY

42A-193

REMOVAL SERVICE POINT

<<A>> HEADLIGHT SUPPORT UPPER PANEL
REMOVAL

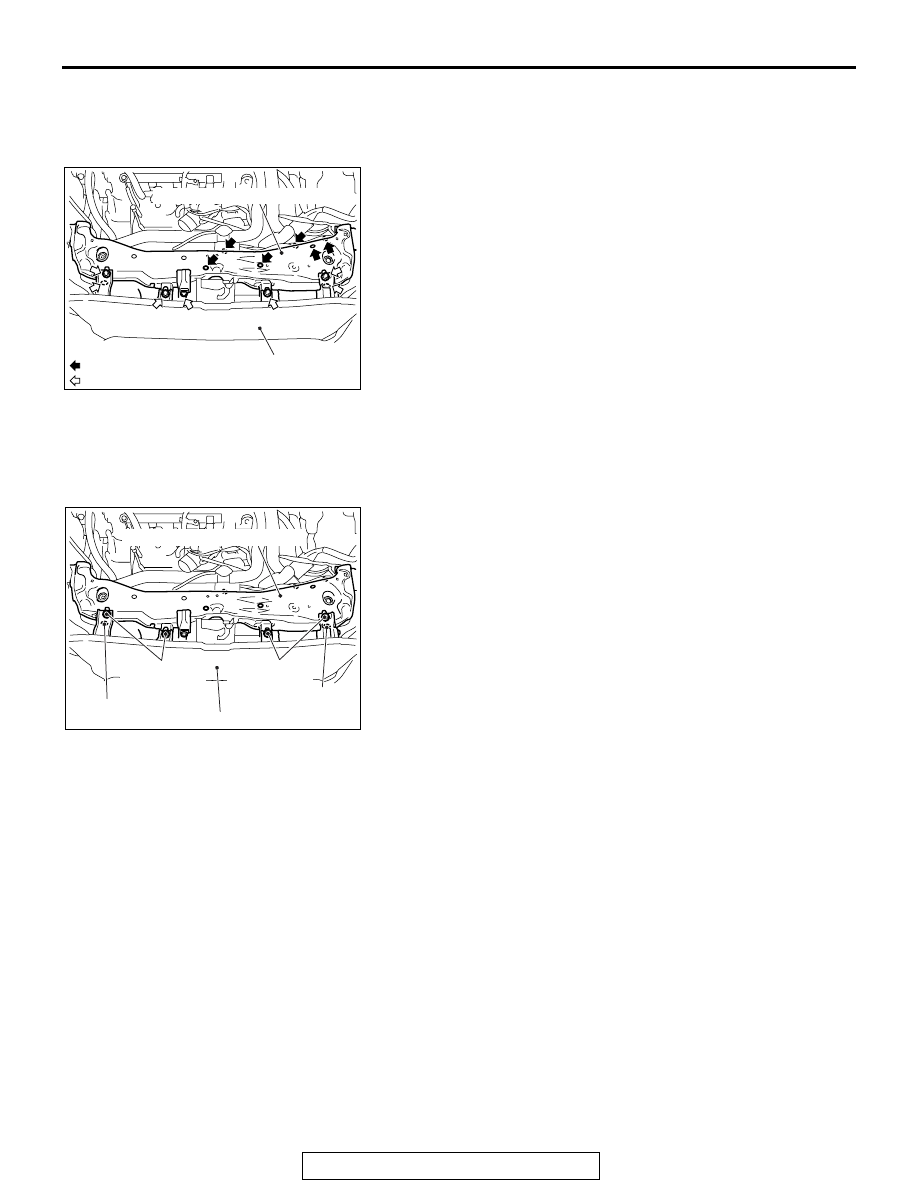

Remove the harness clamps and bolts shown in the illustration,
and then remove the headlight support upper panel.

INSTALLATION SERVICE POINT

>>A<< HEADLIGHT SUPPORT UPPER PANEL
INSTALLATION

After installing the headlight support upper panel, tighten the
bolts shown in the illustration to the specified torques.

AC707525AB

Headlight support upper panel

Front bumper

: Harness clamp positions
: Bolt positions

AC707637AB

4.5 ± 1.5 N·m
40 ± 12 in-lb

Headlight support upper panel

Front bumper

5.0 ± 2.0 N·m
45 ± 17 in-lb

LOOSE PANEL

TSB Revision

BODY

42A-194

AC709747AB

7.0 ± 3.0 N·m
56 ± 26 in-lb

42 ± 8 N·m
31 ± 6 ft-lb

5.0 ± 1.0 N·m
44 ± 9 ft-lb

47 ± 11 N·m
34 ± 8 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

13 ± 2 N·m
111 ± 22 in-lb

11 ± 2 N·m
98 ± 17 in-lb

20 ± 5 N·m
15 ± 3 ft-lb

23 ± 4 N·m
17 ± 3 ft-lb

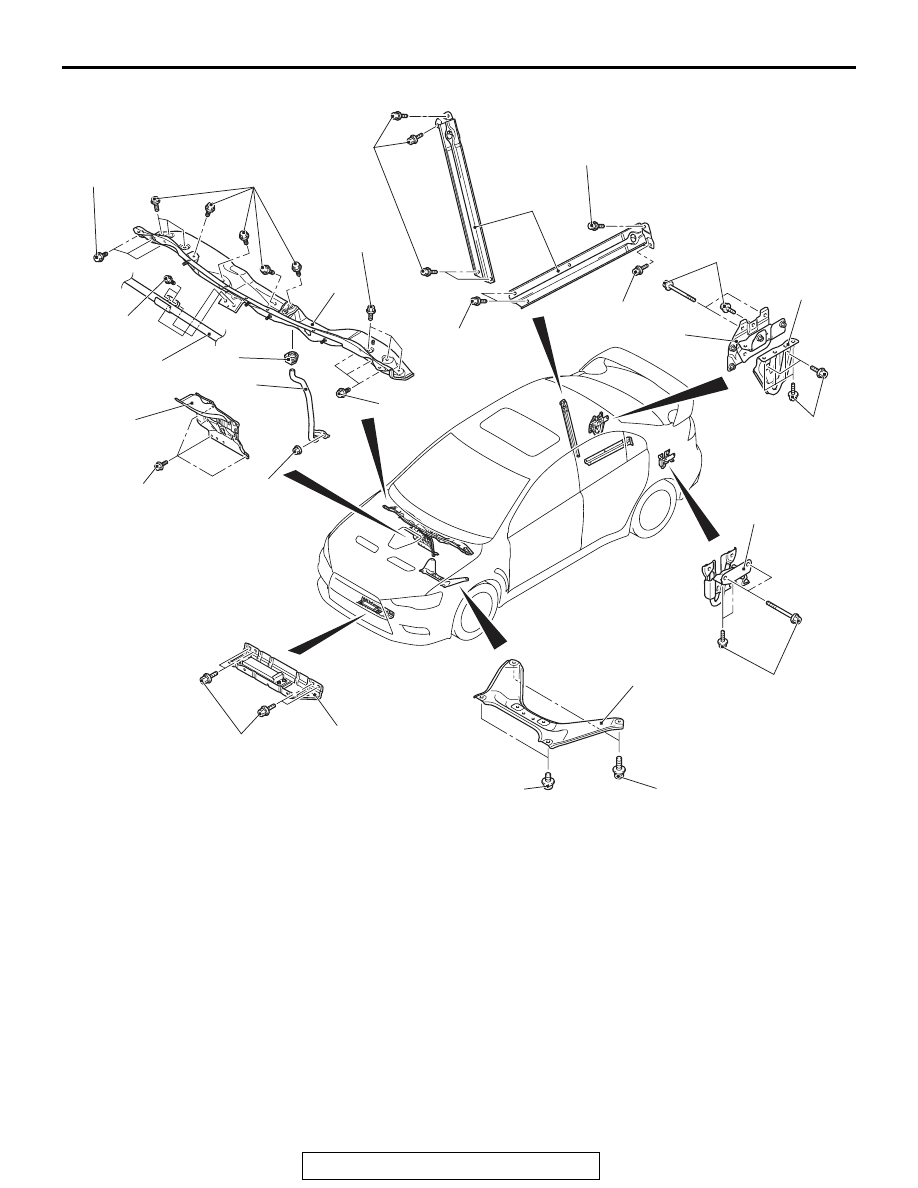

Cowl top panel removal steps

• Windshield wiper link assembly

(Refer to GROUP 51

− Windshield

wiper

P.51-66

1. Strut tower bar (Refer to

P.42A-15

2. Cowl top panel
3. Body loose panel grommet
4. Dash panel heat protector
5. Dash panel drain hose

Front end crossmember dynamic
damper removal steps

• Engine room under cover front A and

engine room under cover center
(Refer to GROUP 51

− Under cover

P.51-16

6. Front end crossmember dynamic

damper

Front floor backbone brace
removal

7. Front floor backbone brace

Rear seatback brace removal
steps

• Rear seatback assembly (Refer to

GROUP 52A

− Rear seat assembly

P.52A-27

8. Rear seatback brace

Rear tie down and rear traction
hook removal

9. Rear tie down bracket
10. Rear tie down hook
11. Rear traction hook
