Mitsubishi Evolution X. Manual - part 520





SUNROOF

TSB Revision

BODY

42A-183

SUNROOF LID GLASS OPERATION CURRENT
CHECK

M1426003200445

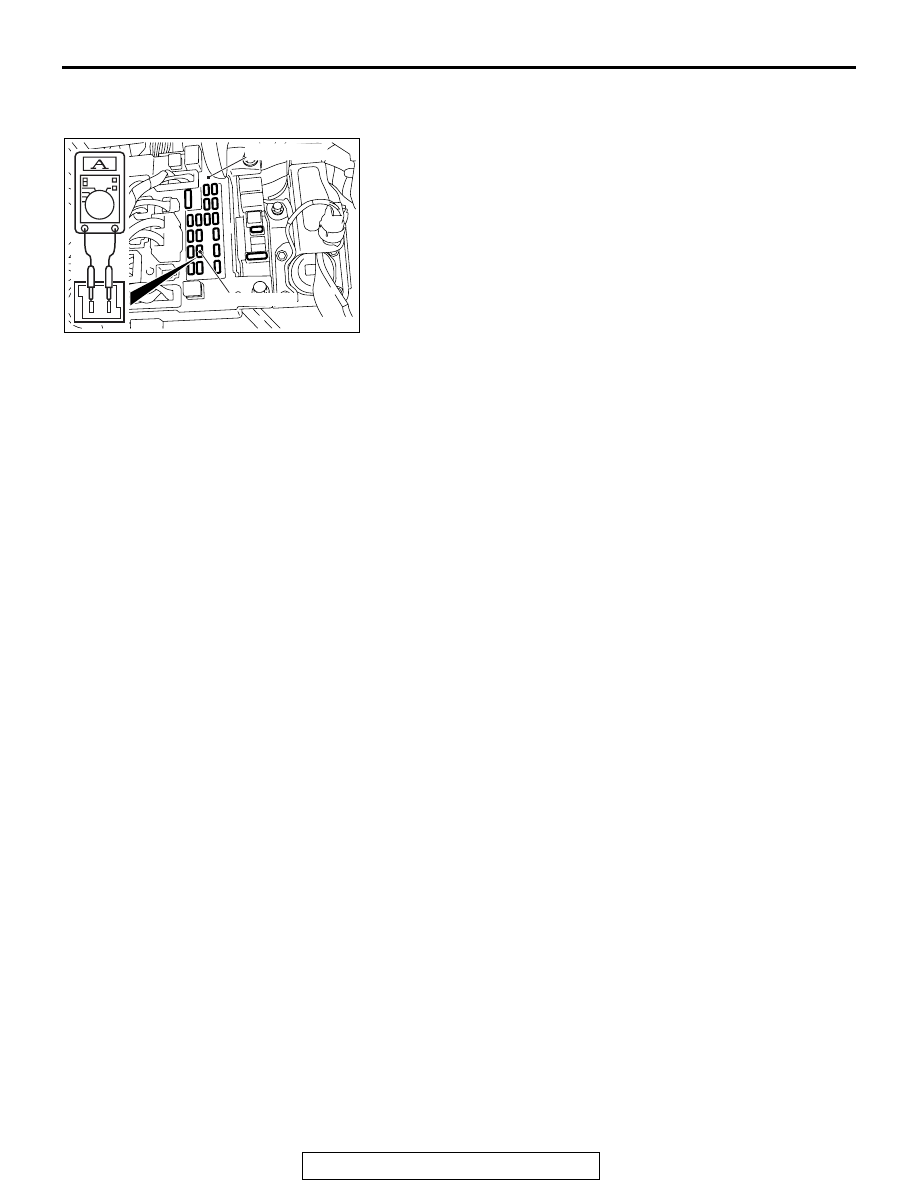

1. Remove the fuse of the sunroof, then connect the circuit

tester as shown in the Figure.

2. Turn ON the sunroof switch, then measure the operating

current when the sunroof lid glass is halfway opened.

Standard value: 7 A or less [at 20

° C (68 ° F)]

3. Check the following areas if the operating current exceeds

the standard value:

• Sunroof installation, deformation and presence of any for-

eign substances.

• Drive cable installation.

• Tilting of sunroof lid glass.

LEARNING PROCEDURES OF THE SUNROOF
FULLY CLOSED POSITION

M1426004600350

SHIFTING CONDITIONS FOR THE FULLY
CLOSED POSITION ADJUSTMENT MODE

• When shifting to the forced fully closed position adjustment

mode
How to shift to the forced fully closed position adjustment
mode

1. Turn the ignition switch to the "ON" position.
2. With the roof lid glass stopped (the position of the roof

lid glass can be any position between fully opened and
fully closed), press and hold the up switch for 10 sec-
onds.

• When the anti-trap function (safety mechanism) is activated

consecutively five times

• When the position information may be incorrect due to

abnormal power supply during the sunroof operation

NOTE: When installing the sunroof assembly, or install-
ing/replacing the sunroof motor assembly, operate the forced
fully closed position adjustment mode to adjust the fully closed
position.

AC605696

AC

Sunroof fuse

ETACS-ECU

SUNROOF

TSB Revision

BODY

42A-184

HOW TO ADJUST THE FULLY CLOSED POSITION
<FORCED FULLY CLOSED POSITION
ADJUSTMENT MODE>

1. With the roof lid glass stopped (the position of the roof lid

glass can be any position between fully opened and fully
closed), press and hold the up switch.
NOTE: If operating the up switch moves the sunroof nor-
mally, use the open switch to fully open the roof lid glass.
After the roof lid glass stops, press and hold the up switch.

2. Use the up switch to set the roof lid glass to the tilt-up

position. The roof lid glass activates for approximately 30
mm and stops automatically when the switch is pressed
once. Repeat this operation until the tilt-up position is
reached and hold there for 3 seconds so that the fully closed
position learning is completed.

HOW TO ADJUST THE FULLY CLOSED POSITION
<SUCH AS WHEN THE SAFETY FUNCTION IS
ACTIVATED CONSECUTIVELY FIVE TIMES>

Use the up switch to set the roof lid glass to the tilt-up position.
The roof lid glass activates for approximately 30 mm and stops
automatically when the switch is pressed once. Repeat this
operation until the tilt-up position is reached and hold there for
3 seconds so that the fully closed position learning is com-
pleted.

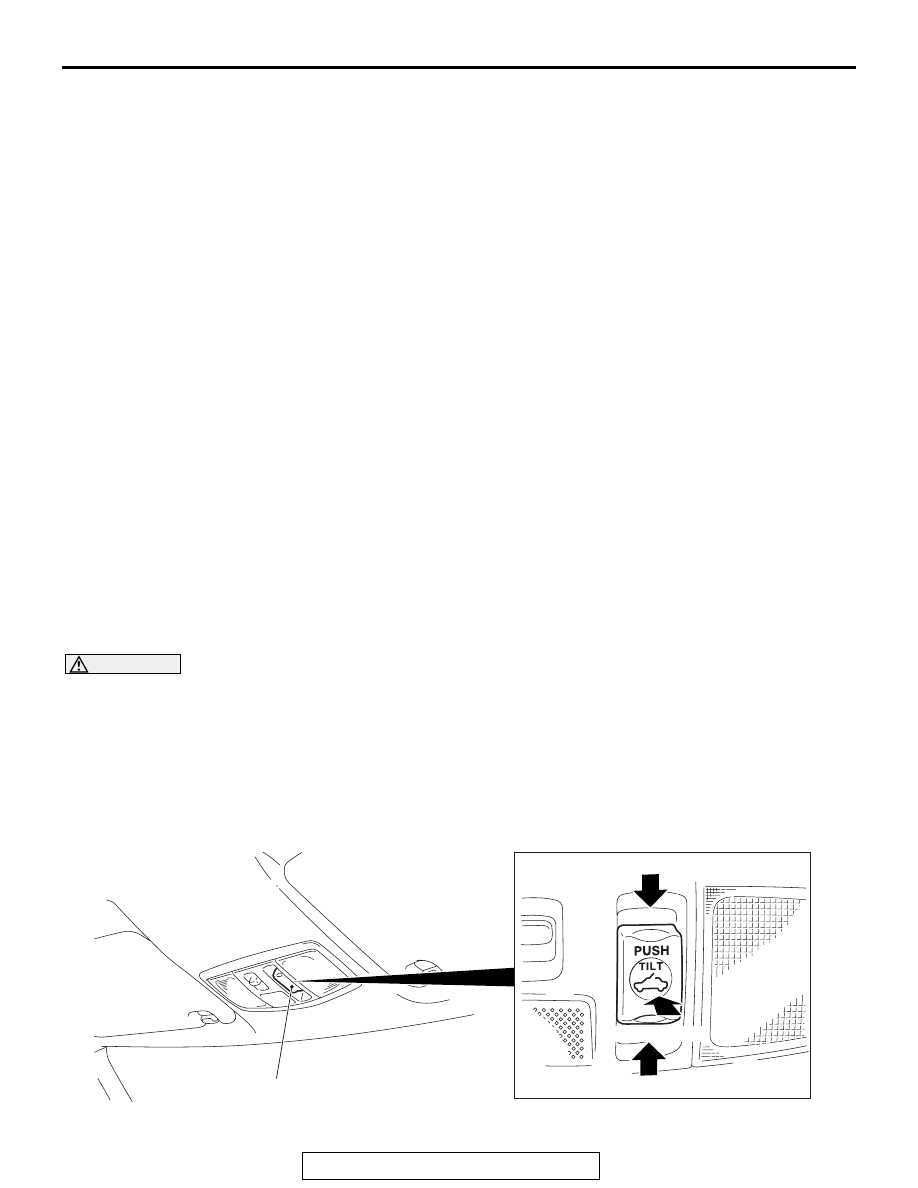

SUNROOF OPERATION CHECK

M1426002600581

CAUTION

Check that the following items are normal before carrying out this operation check.

• Installation condition of the sunroof assembly
• Installation condition, deformation and contamination of the sunroof drive cable
• Installation of sunroof lid glass
• Sunroof switch and sunroof motor assembly

Check that the following items. If faulty, replace the sunroof motor assembly.

AC505239

AC505240

AC506511AC

Sunroof switch

Open switch

Close/down switch

Tilt-up switch

SUNROOF

TSB Revision

BODY

42A-185

BASIC OPERATION

No. Sunroof function

Requirements for the sunroof to function

Normal operation

01

OPEN

1. Ignition switch: ON
2. Sunroof switch: OPEN

When the open switch is
operated, the sunroof lid
glass stops approximately
30 mm (1.2 inches) before
the fully-open position. This
position is called comfort
position. The sunroof lid
glass can be fully opened
by operating the open
switch again.

02

CLOSE

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

Automatically the sunroof
fully closes.

03

TILT-UP

1. Ignition switch: ON
2. Sunroof switch: TILT-UP

The sunroof tilts up fully and
automatically.

04

TILT-DOWN

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof tilts down fully
and automatically.

05

AUTOMATIC
OPERATION
INTERRUPTION
(OPEN OR
TILT-UP)

A

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP

The sunroof stops the
automatic opening
operation.

B

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position while the
sunroof is automatically opening and
release the switch within two seconds)

The sunroof stops the
automatic opening
operation.

C

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position more than
two seconds while the sunroof is
automatically opening)

The sunroof stops the
automatic opening
operation, and the sunroof
closes while the sunroof
switch is pushed to the
CLOSE/TILT-DOWN
position.

06

AUTOMATIC
OPERATION
INTERRUPTION
(CLOSE OR
TILT-DOWN)

A

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof stops the
automatic closing
operation.

B

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP (Push

the sunroof switch to the OPEN or TILT-UP
position while the sunroof is automatically
opening and release the switch within two
seconds)

The sunroof stops the
automatic closing
operation.

C

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP (Push

the sunroof switch to the OPEN or TILT-UP
position more than two seconds while the
sunroof is automatically opening)

The sunroof stops the
automatic closing
operation, and the sunroof
opens while the sunroof
switch is pushed to the
OPEN or TILT-UP position.

SUNROOF

TSB Revision

BODY

42A-186

SUNROOF TIMER MECHANISM

In cases except the following, the basic operation
and jam preventing mechanism will be maintained
for 30 seconds after the ignition switch is turned to
the "LOCK" (OFF) position (Sunroof timer function).

• If you open a door within that period (i.e. a door

switch is on), the sunroof timer function will be
cancelled immediately.

• If you turn the ignition switch to the "LOCK" (OFF)

position while the timer is working, the sunroof
will continue moving until it closes fully, regard-
less of the time-out period.

SAFETY MECHANISM

• If any obstacle such as a hand or a head is

detected to be pinched during a sunroof lid glass
closing operation, the sunroof lid glass is opened
by approximately 200 mm (7.9 inches) or more.
(Safety mechanism)

• During the sunroof lid glass closing operation, by

continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating
the safety mechanism even when the obstacle is
detected to be pinched.

• During the safety mechanism activation, when

the sunroof close switch is operated, the sunroof
lid glass stops. By continuing the close switch
operation, the sunroof lid glass can be forcibly
closed without activating the safety mechanism
even when the obstacle is detected to be
pinched.
