Mitsubishi Evolution X. Manual - part 521





SUNROOF

TSB Revision

BODY

42A-187

SUNROOF

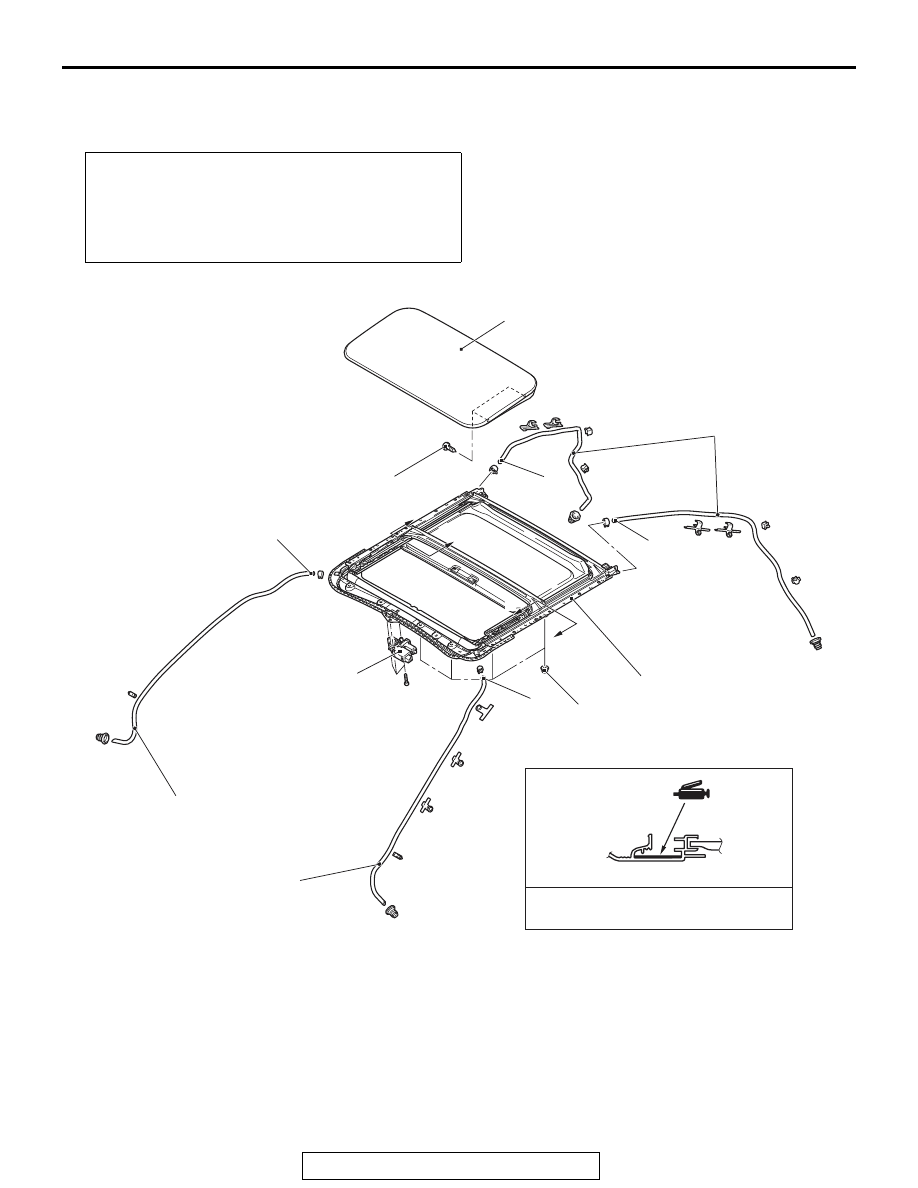

SUNROOF ASSEMBLY REMOVAL AND INSTALLATION

M1426001200773

Post-installation operation
Roof lid glass assembly and sunroof assembly
• Sunroof leakage check (Refer to

P.42A-182

.)

• Sunroof alignment (Refer to

P.42A-182

.)

• Learning procedures for sunroof fully closed position

(Refer to

P.42A-183

.)

AC607036

3

3

4

7

1

2

5

3

3

3.5 ± 0.5 N·m
31 ± 4 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

Section A – A

A

A

A

Grease: Use resin - proof silicone grease

AB

6

A

Sunroof switch removal

Front dome light assembly (Refer
to GROUP 52A, Headlining

P.52A-17

.)

Sunroof lid glass assembly
removal

1.

Sunroof lid glass assembly

Sunroof motor assembly
removal steps

Headlining (Refer to GROUP 52A,
Headlining

P.52A-17

.)

2.

Sunroof motor assembly
Sunroof assembly removal
steps

Headlining (Refer to GROUP 52A,
Headlining

P.52A-17

.)

SUNROOF

TSB Revision

BODY

42A-188

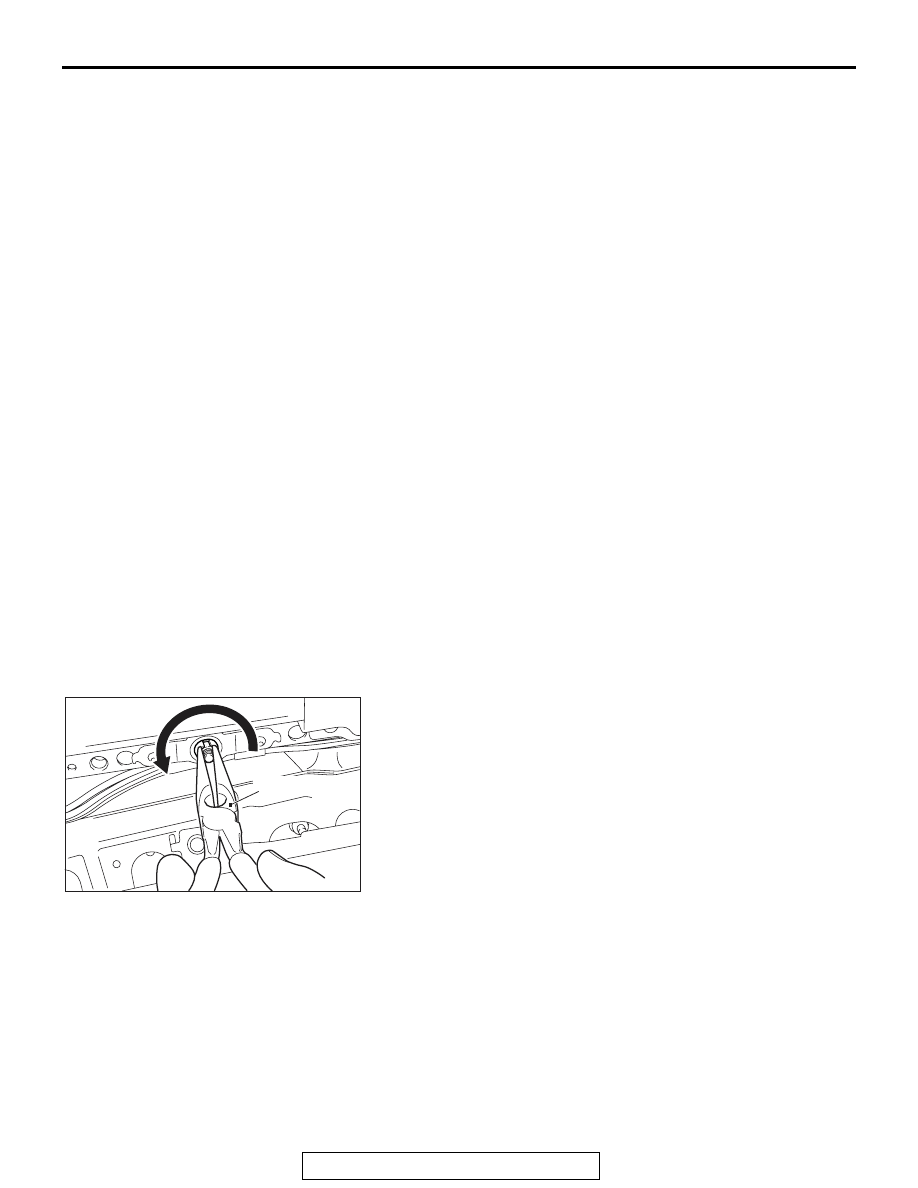

REMOVAL SERVICE POINT

.

<<A>> SUNROOF ASSEMBLY REMOVAL

Use a pair of long nose pliers or the like to remove the sunroof
assembly while turning it in the direction shown in the figure.

3.

Drain pipe connection

<<A>>

4.

Sunroof assembly
Front drain pipe <Left side>
removal steps

Headlining (Refer to GROUP 52A,
Headlining

P.52A-17

.)

Instrument panel cover lower
(Refer to GROUP 52A, Instrument
lower panel

P.52A-8

.)

>>A<<

5.

Front drain pipe (Left side)
Front drain pipe <Right side>
removal steps

Headlining (Refer to GROUP 52A,
Headlining

P.52A-17

.)

Satellite radio tuner assembly
(Refer to GROUP 54A, Satellite
radio tuner

P.54A-565

.)

>>A<<

6.

Front drain pipe (Right side)
Rear drain pipe removal steps

Side roof box, rear (Refer to
GROUP 52A, Headlining

P.52A-17

.)

Rear shelf trim and trunk side trim
(Refer to GROUP 52A, Trims

P.52A-11

.)

Rear wheelhouse splash shield
(Refer to

P.42A-13

.)

>>A<<

7.

Rear drain pipe

Sunroof assembly removal steps
(Continued)

AC506535AC

Long nose pliers

SUNROOF

TSB Revision

BODY

42A-189

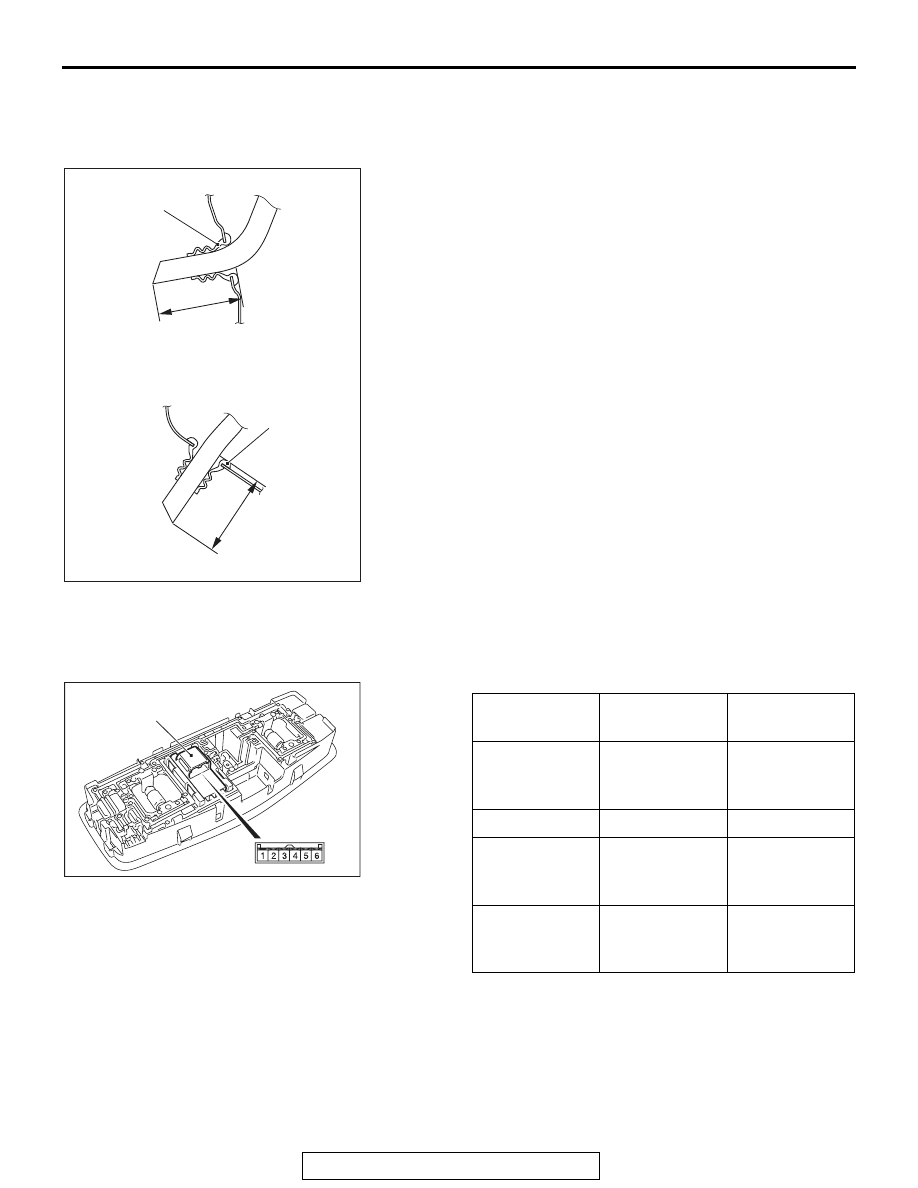

INSTALLATION SERVICE POINT

.

>>A<< FRONT DRAIN PIPE/REAR DRAIN PIPE
INSTALLATION

Install the grommet, and adjust the drain pipe projection as
shown.

INSPECTION

M1426001300220

SUNROOF SWITCH CONTINUITY CHECK

AC608797

65 ± 5
(2.56 ± 0.15)

65 ± 5
(2.56 ± 0.15)

<Front drain pipe>

<Rear drain pipe>

Units: mm (in)

Grommet

Grommet

AB

Switch
position

Terminal
number

Normal value

Tilt up

− 4

Continuity
exists (2

Ω or

less)

OFF

− 4, 4 − 5, 4 − 6 Open circuit

Open

− 5

Continuity
exists (2

Ω or

less)

Close/down

− 6

Continuity
exists (2

Ω or

less)

AC506531AC

Sunroof switch

SUNROOF

TSB Revision

BODY

42A-190

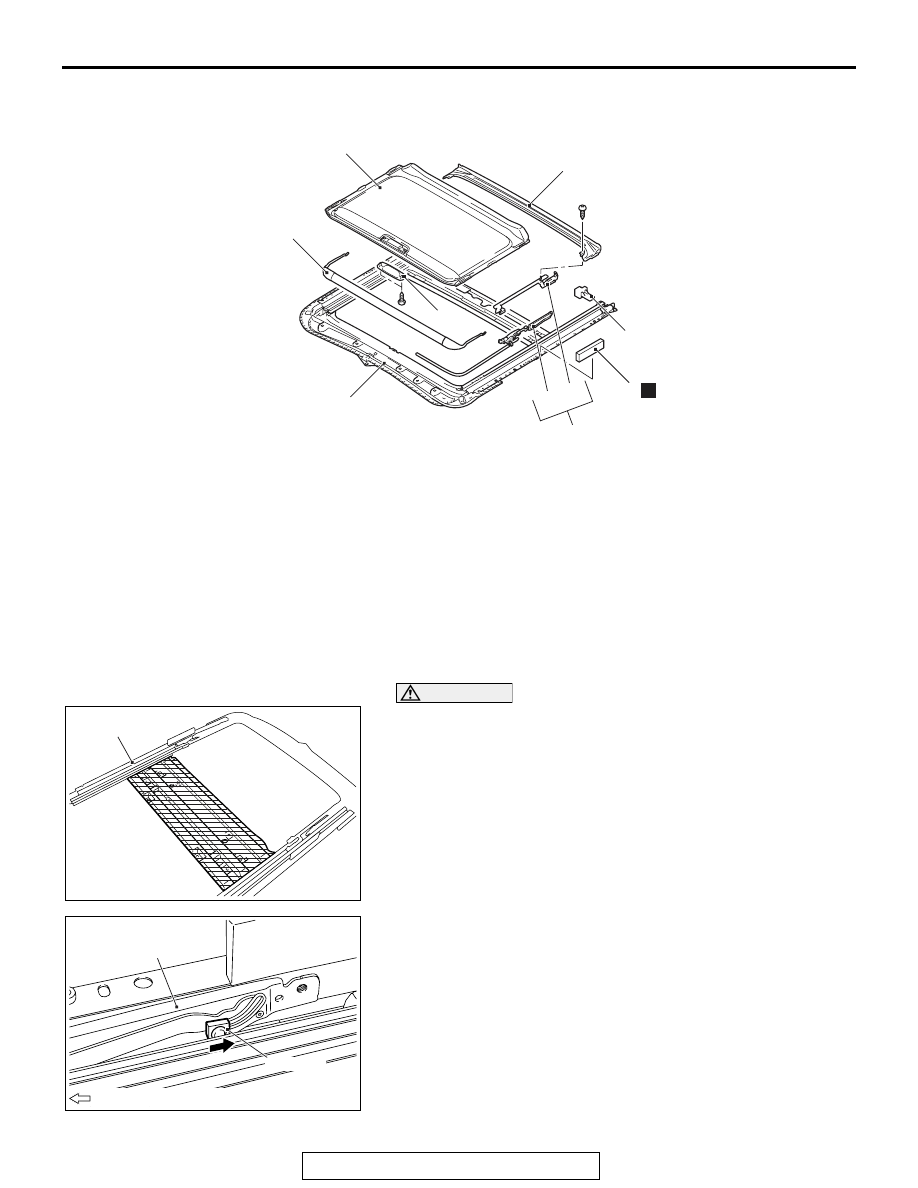

DISASSEMBLY AND ASSEMBLY

M1426001400476

REMOVAL SERVICE POINTS

.

<<A>> SUNROOF SUNSHADE REMOVAL

CAUTION

Before removing the sunroof sunshade, clean the shaded
area of the sunroof housing shown in the illustration. Oth-
erwise, the sunroof sunshade may get dirty when it is
removed.

.

<<B>> SUNROOF DRIP PLATE AND SUNROOF
LID SLIDE GUIDE REMOVAL

Slide the slide part of the sunroof lid slide guide to the rear of
the sunroof housing, and then pull out the sunroof drip plate
and sunroof lid slide guide.

AC708942

1

2

3

4

5

6

7

8

9

10

AB

N

Disassembly steps

1.

Sunroof drip rail

2.

Sunroof sunshade stopper

3.

Sunroof sunshade knob

<<

A

>>

4.

Sunroof sunshade

<<

B

>>

>>

B

<<

5.

Sunroof drip plate and sunroof lid
slide guide

6.

Sunroof drip plate

7.

Sunroof lid slide guide

8.

Sunroof deflector

>>

A

<<

9.

Sunroof pad

10. Sunroof housing

Disassembly steps (Continued)

AC708959

AB

Sunroof housing

AC708960

AB

: Front of sunroof housing

Slide part

Sunroof lid slide guide
