DOOR

TSB Revision

BODY

42A-91

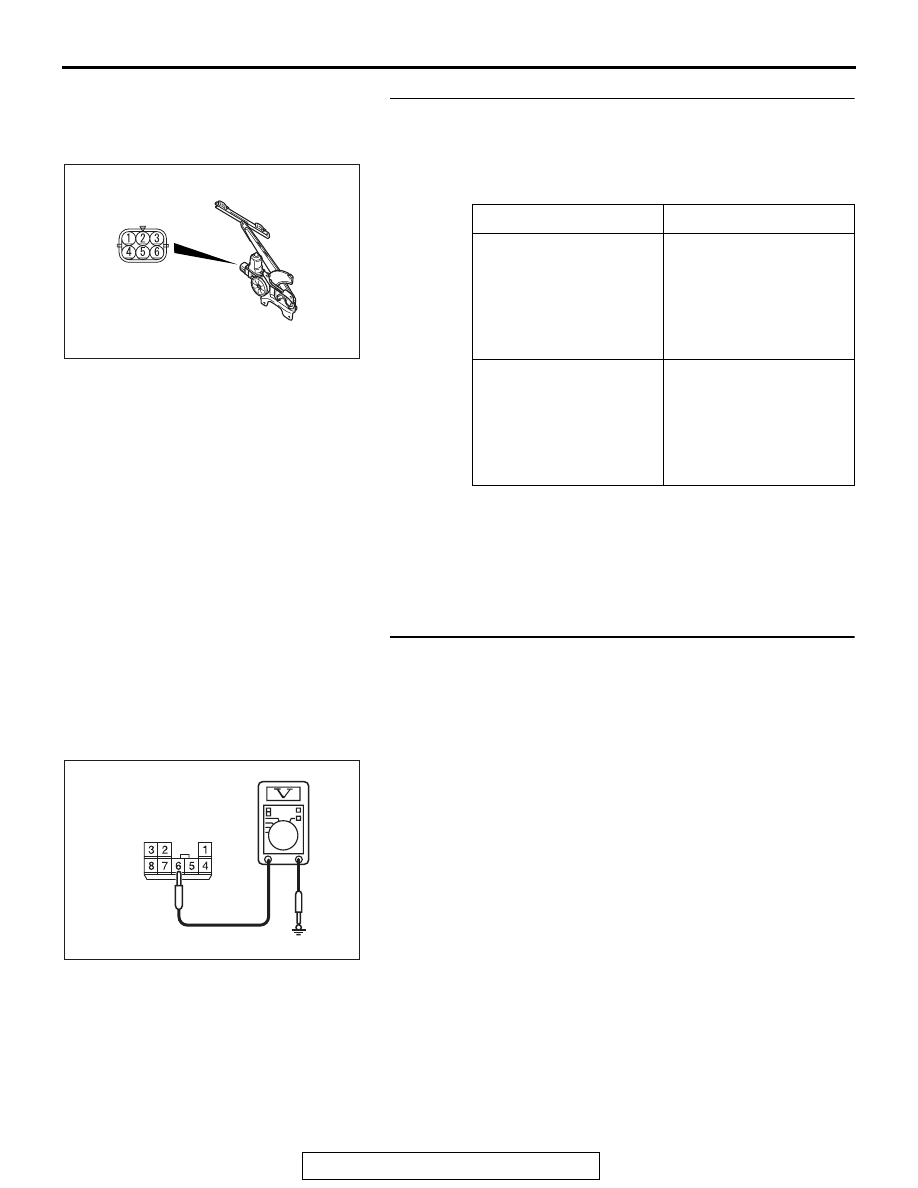

STEP 24. Check the rear power window motor (RH).
(1) Remove the rear power window regulator (RH). Refer to

Door Glass and Regulator

P.42A-124

.

(2) Connect a battery to the motor terminal, and check that the

motor runs freely.

Q: Is the rear power window motor (RH) normal?

YES : Go to Step 25.
NO :  Replace the rear power window regulator (RH). When

the rear power window sub switch (RH) is operated,
the rear power window (RH) should raise and lower
normally.

STEP 25. Check the battery power supply circuit to the rear
power window sub switch (RH). Measure the voltage at
rear power window sub switch (RH) connector E-21.
(1) Disconnect rear power window sub switch (RH) connector

E-21 and measure the voltage available at the wiring
harness side of the connector.

(2) Measure the voltage between terminal 6 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 28.
NO :  Go to Step 26.

Battery connection

Slider position

• Connect terminal 4 to

the negative battery
terminal

• Connect terminal 1 to

the positive battery
terminal

UP

• Connect terminal 1 to

the negative battery
terminal

• Connect terminal 4 to

the positive battery
terminal

DOWN

AC609373AB

AC208730BR

Connector E-21
(harness side)

DOOR

TSB Revision

BODY

42A-92

STEP 26. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-311 in good condition?

YES : Go to Step 27.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the rear power window sub switch

(RH) is operated, the rear power window (RH) should
raise and lower normally.

STEP 27. Check the wiring harness between ETACS-ECU
connector C-311 (terminal No. 12) and rear power window
sub switch (RH) connector E-21 (terminal No. 6).
NOTE: Also check joint connector (5) D-27, intermediate con-
nector D-01. If joint connector (5) D-27,  intermediate connector
D-01 is damaged, repair or replace the connector as described
in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-311 (terminal No. 12) and rear power window sub
switch (RH) connector E-21 (terminal No. 6) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

STEP 28. Check the ground circuit to the rear power
window sub switch (RH). Measure the resistance at rear
power window sub switch (RH) connector E-21.
(1) Disconnect rear power window sub switch (RH) connector

E-21 and measure the resistance available at the wiring
harness side of the connector.

(2) Measure the resistance value between terminal 5 and

ground, and also between terminal 8 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 30.
NO :  Go to Step 29.

AC209731

AC208731CC

Connector E-21
(harness side)

DOOR

TSB Revision

BODY

42A-93

STEP 29. Check the wiring harness between power
window main switch connector E-15 (terminals Nos. 15
and 17) and rear power window sub switch (RH) connector
E-21 (terminals Nos. 5 and 8).
NOTE: Also check intermediate connectors C-23, C-128 and
D-01. If intermediate connectors C-23, C-128 or D-01 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-15 (terminals 15 and 17) and rear
power window sub switch (RH) connector E-21
(terminals 5 and 8) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

STEP 30. Check the wiring harness between rear power
window sub switch (RH) connector E-21 (terminals Nos. 4
and 7) and rear power window motor (RH) connector E-20
(terminals Nos. 4 and 1).
Q: Is the wiring harness between rear power window sub

switch (RH) connector E-21 (terminals Nos. 4 and 7) and
rear power window motor (RH) connector E-20
(terminals Nos. 4 and 1) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

DOOR

TSB Revision

BODY

42A-94

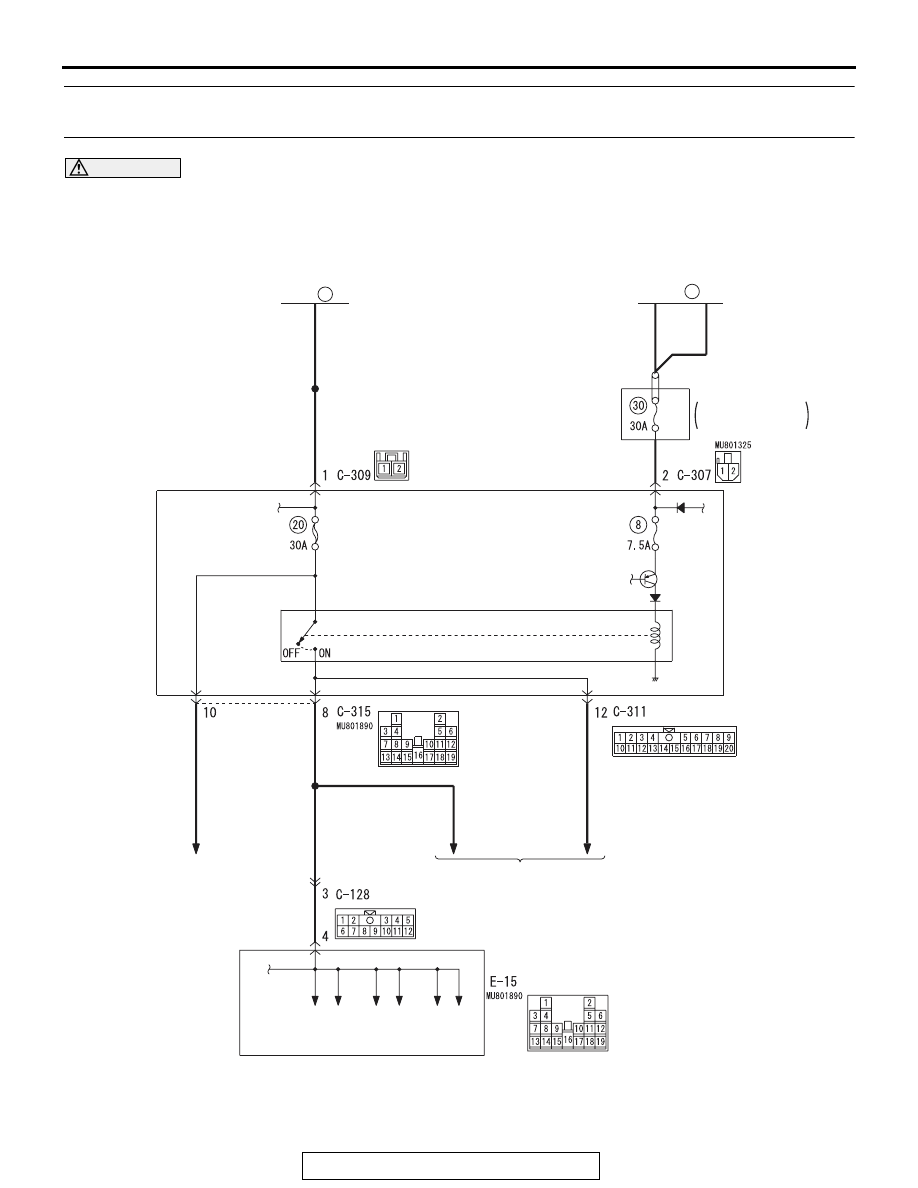

INSPECTION PROCEDURE 4: Front and/or Rear Passenger's Power Window(s) do not work by means
of The Power Window Main Switch.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the ground circuit and the com-
munication circuit are normal.

AC709212

REAR
(LH)

REAR
(RH)

FRONT
(RH)

POWER WINDOW
MAIN SWITCH

ETACS-ECU

POWER
WINDOW
RELAY

FUSIBLE
LINK

34

FUSIBLE
LINK

36

ENGINE
COMPARTMENT

RELAY BOX

WHITE

WHITE

WHITE

WHITE

WHITE

ORANGE

RED

RED

RED

BR

O

W

N

RED

FRONT POWER WINDOW
SUB SWITCH, REAR POWER
WINDOW SUB SWITCH

POWER WINDOW
MAIN SWITCH

AB

Power Window Circuit
