WINDOW GLASS

TSB Revision

BODY

42A-27

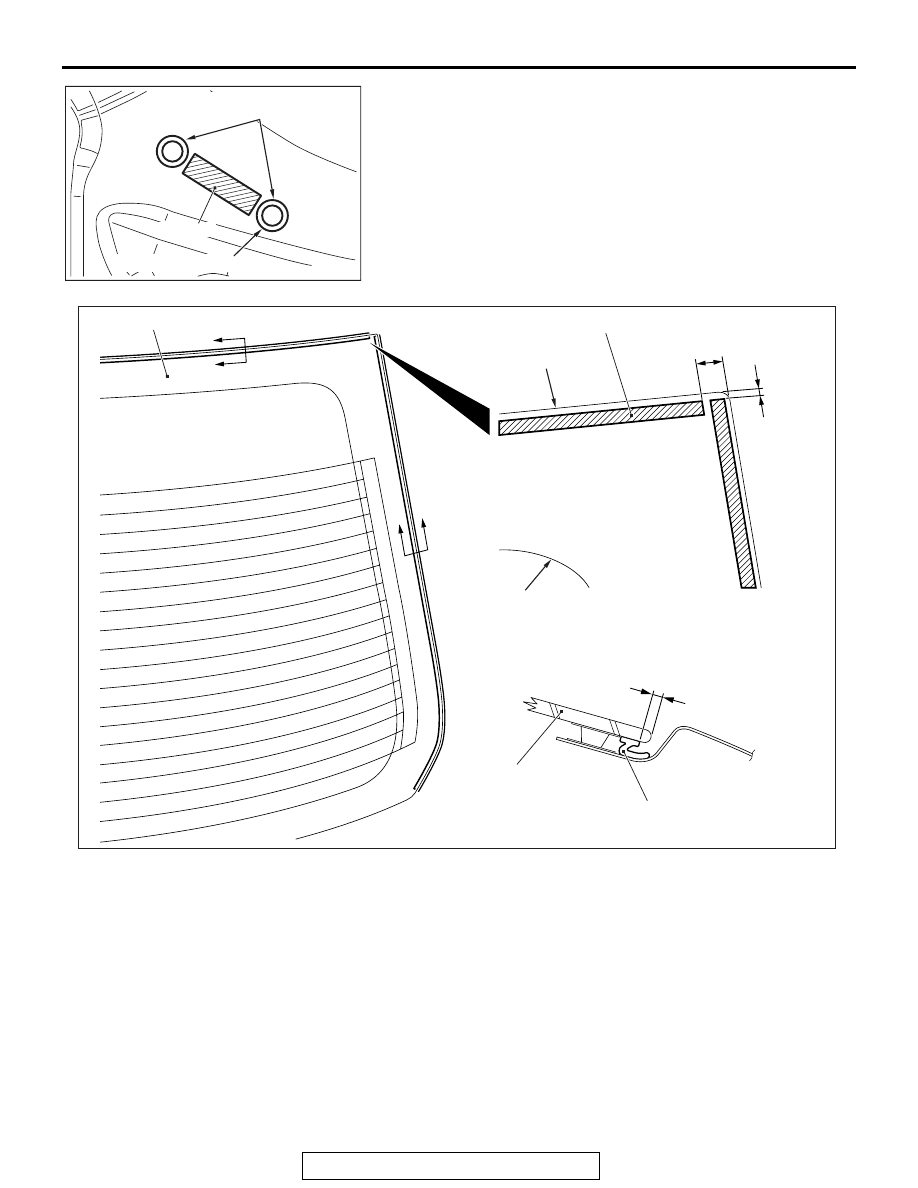

3. Install the fasteners to the specified positions on the body

flange.

4. Install the rear window upper dam and side dam to the rear

window glass.

.

>>B<< REAR WINDOW GLASS INSTALLATION

1. Apply the primer and adhesive.
2. Install the rear window glass in the same way as for the

windshield installation (Refer to

P.42A-19

).

AC705645 AB

Fastener

Convex on the body flange

Attach the fastener in
the with the convexes

AC609001

AC608862

AC608863

AC609640AB

A

A

A

A

Unit: mm (in)

Section A – A

10.4 ± 1.0
(0.41 ± 0.04)

2.6 ± 1.0
(0.1 ± 0.04)

2.5 ± 1.0
(0.1 ± 0.04)

Rear window glass

Rear window dam

Rear window dam

Ceramic line

Glass end line

Rear window glass

DOOR

TSB Revision

BODY

42A-28

DOOR

SPECIFICATION(S)

SERVICE SPECIFICATIONS

M1421000300761

SEALANT

M1421000500367

COMPONENT IDENTIFICATIONS

M1421005400321

<DOOR CHECK>

<DOOR OPENING OUTER WEATHERSTRIP>

GENERAL INFORMATION

M1423000100398

OPERATION

.

CENTRAL DOOR LOCKING SYSTEM

The central door locking system operates the door
lock actuator to lock or unlock the doors using the
operation of the door lock switch built into the front
power window (main or sub) switch. The system has
the following operations and features.

• All doors can be locked using the door lock

switch built into the front power window (main or
sub <RH>) switch.

.

CENTRAL DOOR LOCKING

• All the doors can be locked/unlocked, using the

driver’s side door lock switch or the passenger’s
side door lock switch.

• The function that allows the driver's door to be

opened by pulling the driver's door inside handle
even when the driver's door inside lock knob is in
the lock position is called "override function".

Item

Standard value

Door inside handle lock knob stroke mm (in) [Target value: mm (in)] 13.7

− 15.0 (0.54 − 0.59) [14.7 (0.58)]

Door inside handle play mm (in)
[Target value: mm (in)]

Driver’s side

10.0

− 23.7 (0.39 − 0.93) [17.0 (0.67)]

Except for driver’s side

5.0

− 18.7 (0.2 − 0.74) [12.0 (0.47)]

Door outside handle play mm (in) [Target value: mm (in)]

0.3

− 5.0 (0.01 − 0.2) [2.4 (0.09)]

Power window operation current A

7

± 1 [Power supply voltage 14.5 ±

0.5V at 25

° C (77° F)]

Item

Specified sealant

Remark

Waterproof film

3 M

™AAD Part No. 8633 or

equivalent

Ribbon sealer

Applicable location

Identification mark

Front door

Left door

55L

Right door

55R

Rear door

Left door

64L

Right door

64R

Applicable side

Identification clip color

Left door

Yellow

Right door

Purple

DOOR

TSB Revision

BODY

42A-29

•

When the door is locked by the driver’s or pas-
senger’s door lock switch, the ETACS-ECU oper-
ates its door lock relay and passes a current
through the door lock actuators of all the doors
for 0.25 second to lock all the doors.
When the door is unlocked by the driver’s or pas-
senger's door lock switch, the ETACS-ECU oper-
ates its door unlock relay and passes a current
through the door lock actuators of all the doors
for 0.25 second to unlock all the doors.
When the door is locked and unlocked by driver’s
or passenger's door lock switch consecutively,
the ETACS-ECU operates its door lock relay and
passes a current through the door lock actuators
of all the doors for 0.25 second to lock all the
doors. Then, the ETACS-ECU operates its door
unlock relay and passes a current through the
door lock actuators of all the doors for 0.25 sec-
ond to unlock all the doors. Due to this, there may
be a time lag between the driver’s or passenger's
door lock switch actuation and the time when all
the doors are unlocked.

.

SELECTOR "P" POSITION-LINKED DOOR
UNLOCKING FUNCTION

• When the selector lever is shifted to the "P" (park-

ing) position with the ignition switch turned ON,
all the doors will be unlocked automatically,
improving passengers' convenience for getting
out. Using a customization feature, the selector
"P" position-linked door unlocking function can be
switched (Refer to

P.42A-120

).

•

When the selector lever is shifted to the P posi-
tion with the ignition switch turned ON, the tran-
saxle range switch "P" turns ON, ETACS-ECU
turns the unlock relay output ON for 0.25 seconds
to unlock all the doors.

.

POWER WINDOWS

When the power window (main or sub) switch is
operated, the door windows will open or close. This
system has the following operations and features.

• There is a power window lock switch featured on

the power window main switch to prevent the
door window glass from opening/closing with the
front passenger's and rear power window sub
switch.

• The power window of the door window glass can

be opened/closed for 30 seconds with the timer
function after the ignition switch is turned OFF
(The timer expires if the front door <LH or RH> is
opened when the timer is in operation).

• The power window main switch contains a

one-touch down/up switch that will automatically
open/close driver's side door window only.

.

SAFETY MECHANISM (DRIVER'S DOOR
ONLY)

• The power window with the safety mechanism

has been adopted to enhance safety. If any
obstacle such as a hand or a head is detected to
be pinched during a door window glass closing
operation, the door window glass is opened by
approximately 150 mm (6.0 inches). The safety
mechanism is activated when the power window
switch is operated by one-touch closing operation
(the status when the hand is released from the
switch knob after one-touch closing operation).

AC607040

ZC600257

t

ON

(LOCK)

ON

(UNLOCK)

ON

OFF

ON

OFF

Driver's or
passenger's
door lock
switch

Unlock relay
output

Lock relay
output

t: 0.25 Second

t

t

Time lag

t

t

OFF

LOCK

UNLOCK

All doors
lock
actuator

AB

AC208135AF

t

T

ON

OFF

ON

OFF

Inhibitor switch "P"

Unlock relay output

t: 0.25 second
T: 0.3 second

DOOR

TSB Revision

BODY

42A-30

• To prevent anyone from intruding into the vehicle,

by performing the manual-closing operation of
the power window switch, or by continuing the
one-touch closing operation (keep pulling up the
switch knob), the door window glass can be forc-
ibly closed without safety mechanism activation
even when the obstacle is detected to be
pinched.

• When the power window switch manual-closing

or one-touch closing operation is performed acci-
dentally, and an obstacle is detected, the power
window switch manual-closing and one-touch
closing operations are prohibited for 3 seconds
after the obstacle has been detected to be
pinched, and activates the safety mechanism.

.

POWER WINDOW TIMER FUNCTION

Even after the ignition is switched off, the
ETACS-ECU keeps the power window relay acti-
vated for approximately 30 seconds, enabling raising
or lowering of the power windows by using the power
window switches. After approximately 30 seconds,
the power window relay is deactivated.
During this timed operation, if the driver’s or passen-
ger’s doors are opened, the power window relay is
deactivated from that moment.

CENTRAL DOOR LOCKING SYSTEM
DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1427002100073

Refer to GROUP 00

− How to Use Troubleshooting/Inspection

Service Points, Contents of Troubleshooting

P.00-7

.

TROUBLE SYMPTOM CHART

M1427001800400

CAUTION

During diagnosis, a diagnostic trouble code associated with other system may be set when the igni-
tion switch is turned on with connector(s) disconnected. On completion, check all systems for diag-
nostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

ZC600258

AC607043

ON

OFF

ON

OFF

ON

(Open)

OFF

(Closed)

Ignition switch (IG1)

s

Power window relay

t

t: 30 seconds

AB

Driver's or
passenger's
door switch

Trouble symptom

Inspection
procedure
number

Reference
page

Central door locking system does not work at all.

1

P.42A-31

Central door locking system does not operate even when door lock switch of
power window main switch operated (door lock switch of front power window
sub switch operate normally).

2

P.42A-36

Central door locking system does not operate even when door lock switch of
front power window sub switch operated (door lock switch of power window
main switch operate normally).

3

P.42A-40

A door cannot be locked or unlocked by the central door locking system.

4

P.42A-44

Selector "P" Position-linked Door Unlock Function does not Operate
Normally. <Vehicles with TC-SST>

5

P.42A-55
