MANUAL TRANSAXLE OVERHAUL

22B-21

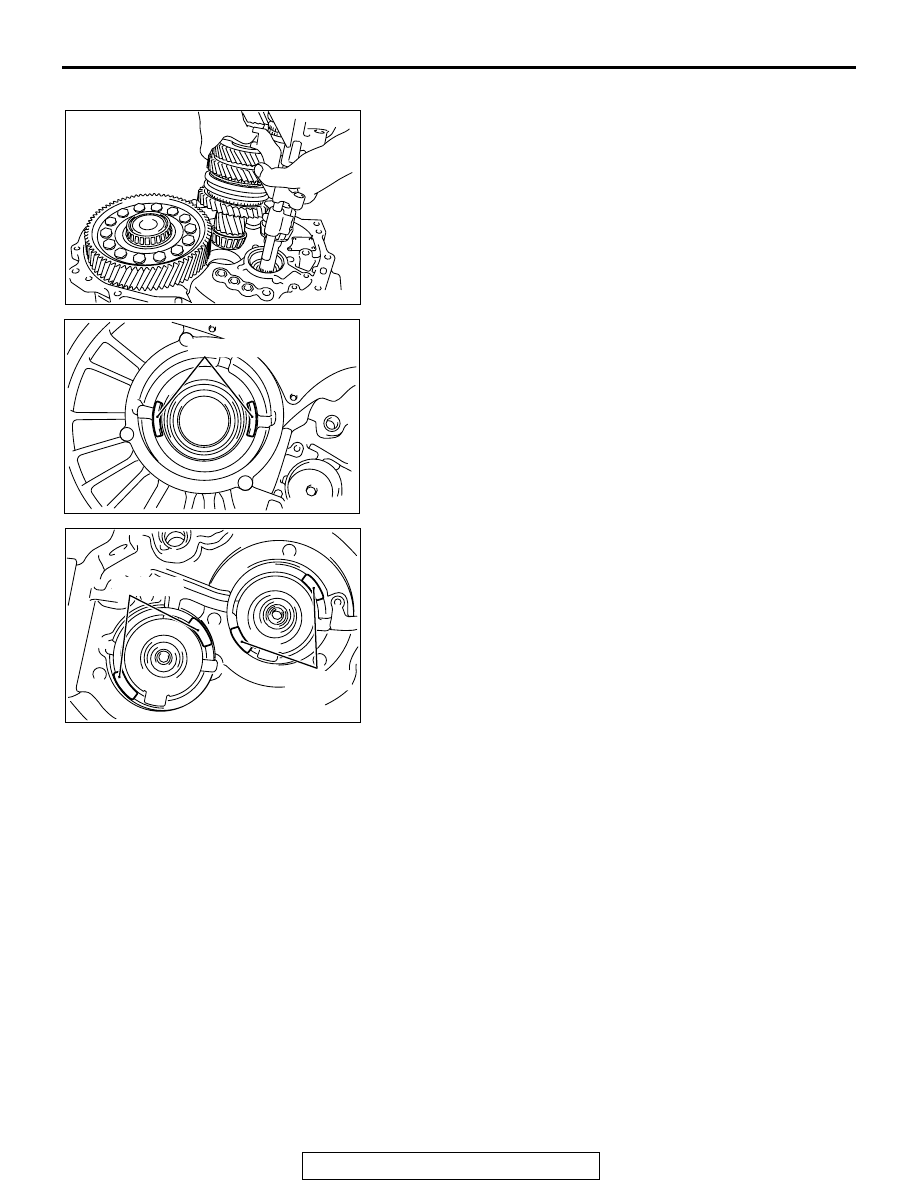

<Measurement using plastigage>

AK703323

1. Install the input shaft, output shaft and center differential as

a set to the clutch housing.

AK703327

AD

Plastigage

AK703329

AD

Plastigage

Plastigage

2. Install the thinnest spacers in position for measurement.
3. Put a piece of Plastigage [about 10 mm (0.39 in) long] on the

transaxle case at the positions shown in the illustration.

4. Install the bearing outer races.
5. Install the clutch housing to the transaxle case and tighten

the bolts to the specified torque.

6. Remove the clutch housing, then remove the bearing outer

races and take out crushed pieces of Plastigage.

7. If the pieces of Plastigage have not crushed and clearance

measurement is impossible, replace them with thicker ones
and repeat steps 3 to 5.

8. Using the scale printed on the Plastigage package, measure

the width of crushed pieces of Plastigage at their widest
part, select the spacers that provide the standard preload
values and install them.

• Input shaft

Input shaft preload

Spacer thickness: [T1 + T2 + 0.10 mm (0.0039 inch)]



[T1 + T2 + 0.17 mm (0.0067 inch)]
T1: Thickness of crushed Plastigage mm (inch)
T2: Thickness of spacer used for measurement mm
(inch)

Standard value: 0.10

 0.17 mm (0.0039  0.0067 inch)

• Output shaft

Output shaft preload

Spacer thickness: [T1 + T2 + 0.15 mm (0.0059 inch)]



[T1 + T2 + 0.21 mm (0.0083 inch)]
T1: Thickness of crushed Plastigage mm (inch)
T2: Thickness of spacer used for measurement mm
(inch)

Standard value: 0.15

 0.21 mm (0.0059  0.0083 inch)

• Center differential

Center differential preload

Spacer thickness: [T1 + T2 + 0.06 mm (0.0024 inch)]



[T1 + T2 + 0.12 mm (0.0047 inch)]
T1: Thickness of crushed Plastigage mm (inch)
T2: Thickness of spacer used for measurement mm
(inch)

Standard value: 0.06

 0.12 mm (0.0024  0.0047 inch)

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-22

INPUT SHAFT

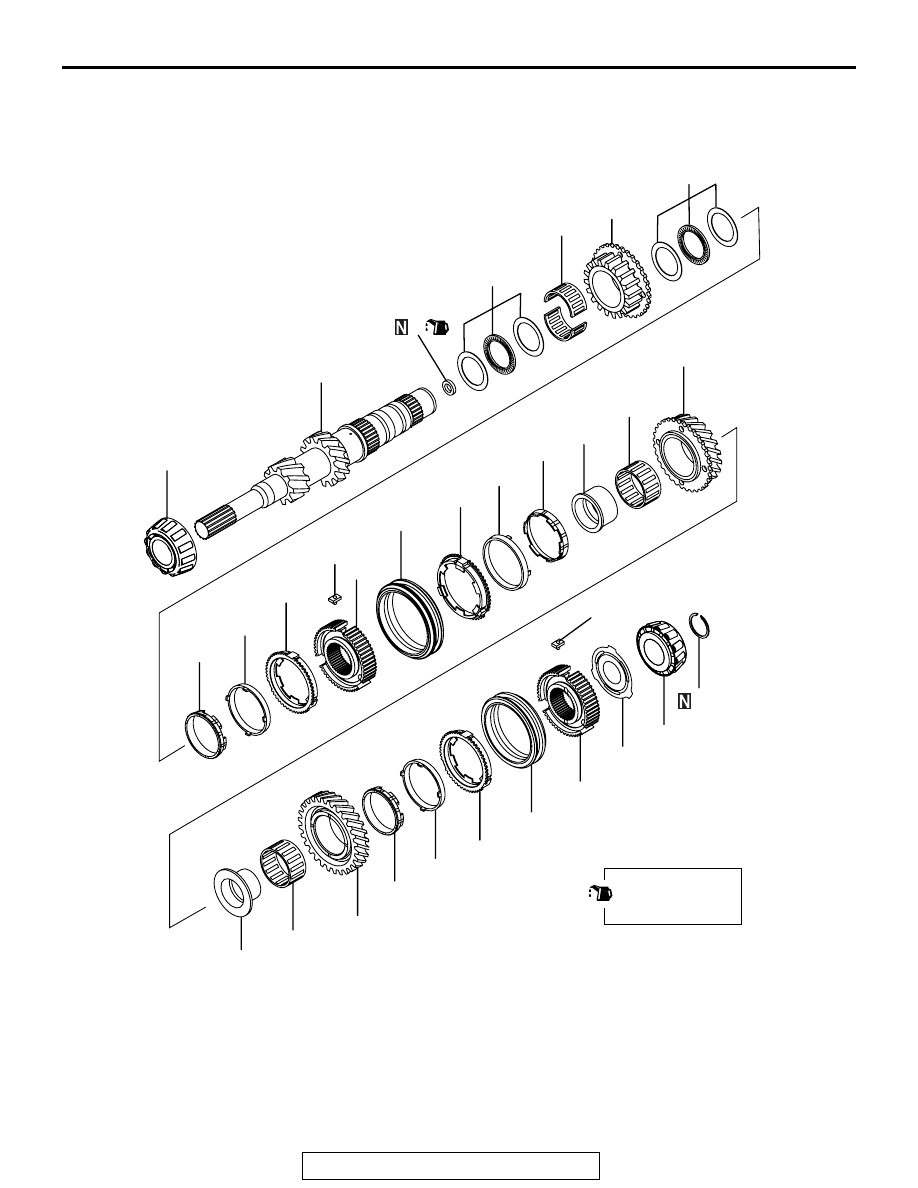

DISASSEMBLY AND ASSEMBLY

M1222001600667

AK702340

30

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

1

31

AD

Apply gear oil to
all moving parts
before installation.

Removal steps

>>I<<

1. Oil seal

>>H<<

2. Snap ring

<<A>> >>G<<

3. Taper roller bearing

<<A>>

4. Synchronizer key stopper plate

<<A>> >>F<<

5. 5th speed synchronizer sleeve

<<A>> >>F<<

6. 5th speed synchronizer hub

<<A>>

7. Synchronizer key

<<A>>

8. Synchronizer outer ring

<<A>>

9. Synchronizer cone

<<A>>

10. Synchronizer inner ring

<<A>>

11. 5th speed gear
12. Needle roller bearing

<<B>> >>E<<

13. 5th speed gear sleeve

<<B>>

14. 4th speed gear

Removal steps (Continued)

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-23

Required Special Tools:

• MD998917: Bearing remover

• MB990842: Drag link bushing remover and

installer B

• MD998812: Installer cap

• MD998813: Installer-100

• MD998819: Installer adapter (40)

• MD998822: Installer adapter (46)

• MD999601: Valve stem seal installer

DISASSEMBLY SERVICE POINTS

.

<<A>> 5TH SPEED GEAR / SYNCHRONIZER
INNER RING / SYNCHRONIZER CONE / SYN-
CHRONIZER OUTER RING / 5TH SPEED SYN-
CHRONIZER HUB / TAPER ROLLER BEARING /
SYNCHRONIZER KEY STOPPER PLATE / 5TH
SPEED SYNCHRONIZER SLEEVE REMOVAL

AK703165

MB990842

MD998917

AC

Using the special tools, MD998917 and MB990842, indicated
below, remove the 5th speed gear, 5th speed synchronizer
sleeve, 5th speed synchronizer hub, synchronizer inner ring,
synchronizer outer ring, synchronizer cone, synchronizer key
stopper plate and taper roller bearing.

.

<<B>>

15. Needle roller bearing

<<B>> >>D<<

16. 4th speed gear sleeve

<<B>>

17. Synchronizer outer ring

<<B>>

18. Synchronizer cone

<<B>>

19. Synchronizer inner ring

<<B>> >>C<<

20. 3rd-4th speed synchronizer sleeve

<<B>> >>C<<

21. 3rd-4th speed synchronizer hub

<<B>>

22. Synchronizer key

<<B>>

23. Synchronizer outer ring

<<B>>

24. Synchronizer cone

<<B>>

25. Synchronizer inner ring

<<B>> >>B<<

26. Thrust bearing

<<B>>

27. 3rd speed gear
28. Needle roller bearing

>>B<<

29. Thrust bearing

<<C>> >>A<<

30. Taper roller bearing
31. Input shaft

Removal steps (Continued)

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-24

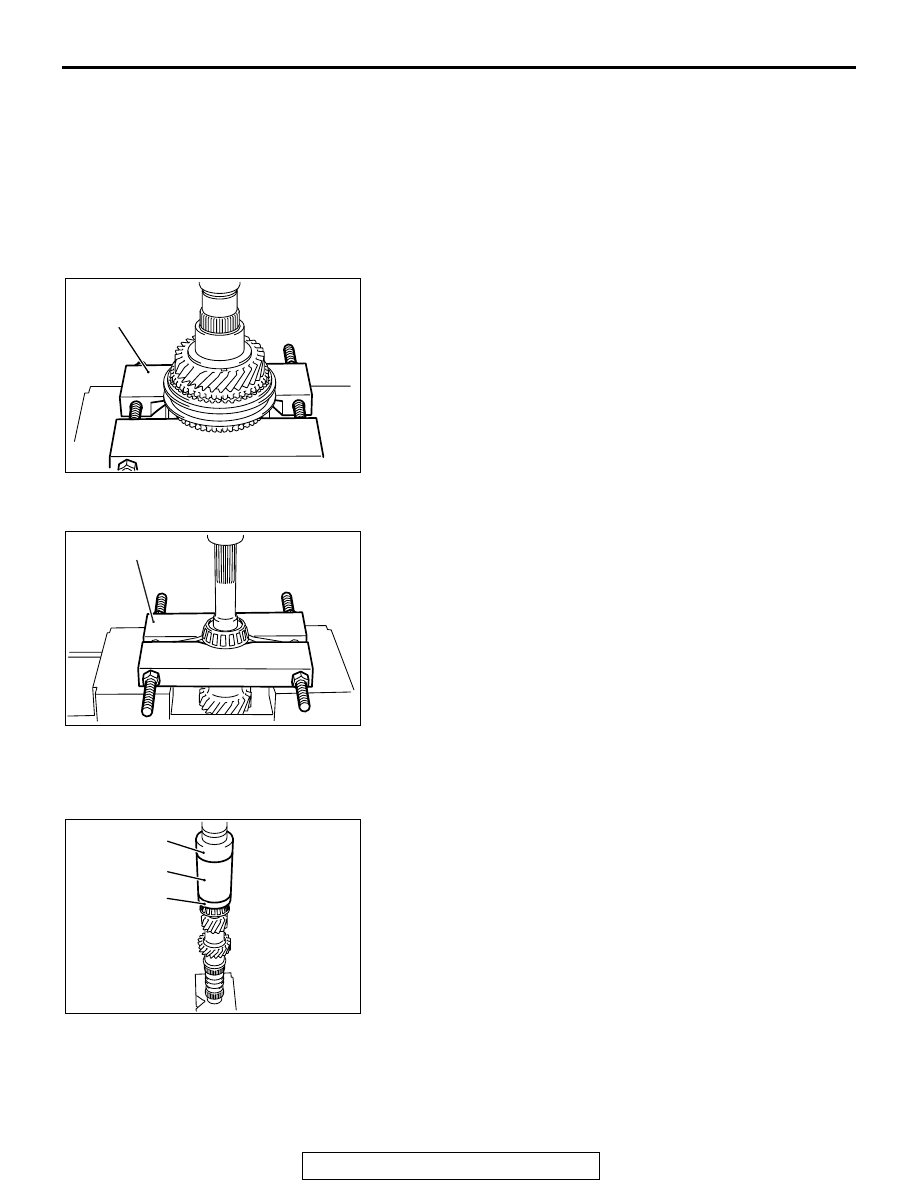

<<B>> 3RD SPEED GEAR / 5TH SPEED GEAR
SLEEVE / 4TH SPEED GEAR / NEEDLE ROLLER
BEARING / 4TH SPEED GEAR SLEEVE /
SYNCHRONIZER OUTER RING / SYNCHRONIZER
CONE / SYNCHRONIZER INNER RING / 3RD-4TH
SPEED SYNCHRONIZER SLEEVE / 3RD-4TH
SPEED SYNCHRONIZER HUB / THRUST
BEARING / 3RD SPEED GEAR REMOVAL

AK703166

MD998917

AC

Using special tool, MD998917, support the 3rd speed gear, and
then remove the 3rd seed gear, thrust bearings, 3rd-4th speed
synchronizer sleeve, 3rd-4th speed synchronizer hub, synchro-
nizer outer ring, synchronizer inner ring, synchronizer cone, 4th
speed gear, needle roller bearing, 4th speed gear sleeve and
5th speed gear sleeve.

.

<<C>> TAPER ROLLER BEARING REMOVAL

AK703167

MD998917

AD

Using special tool, MD998917, remove the taper roller bearing.

ASSEMBLY SERVICE POINTS

.

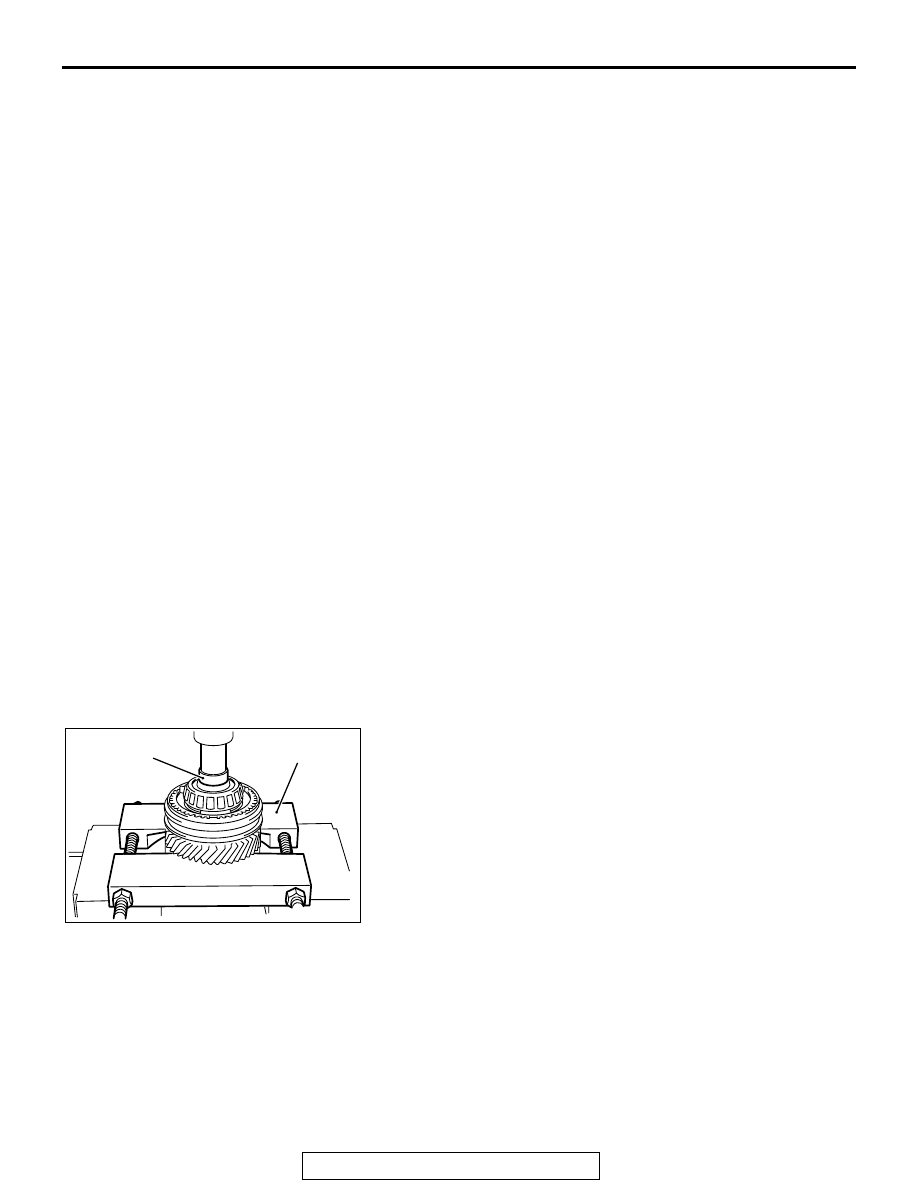

>>A<< TAPER ROLLER BEARING INSTALLATION

AK703168

MD998819

AC

MD998812

MD998813

Using the special tools, MD998812, MD998813 and
MD998819, indicated below, install the taper roller bearing.

.
