TRANSAXLE CONTROL

TSB Revision

MANUAL TRANSAXLE

22A-121

TRANSAXLE CONTROL

REMOVAL AND INSTALLATION

M1221003801106

AC705547

N

1

2

12

11

10

3

4

5

9

6

AC

8

7

7.0 ± 3.0 N·m
62 ± 26 in-lb

9.5 ± 3.5 N·m
85 ± 30 in-lb

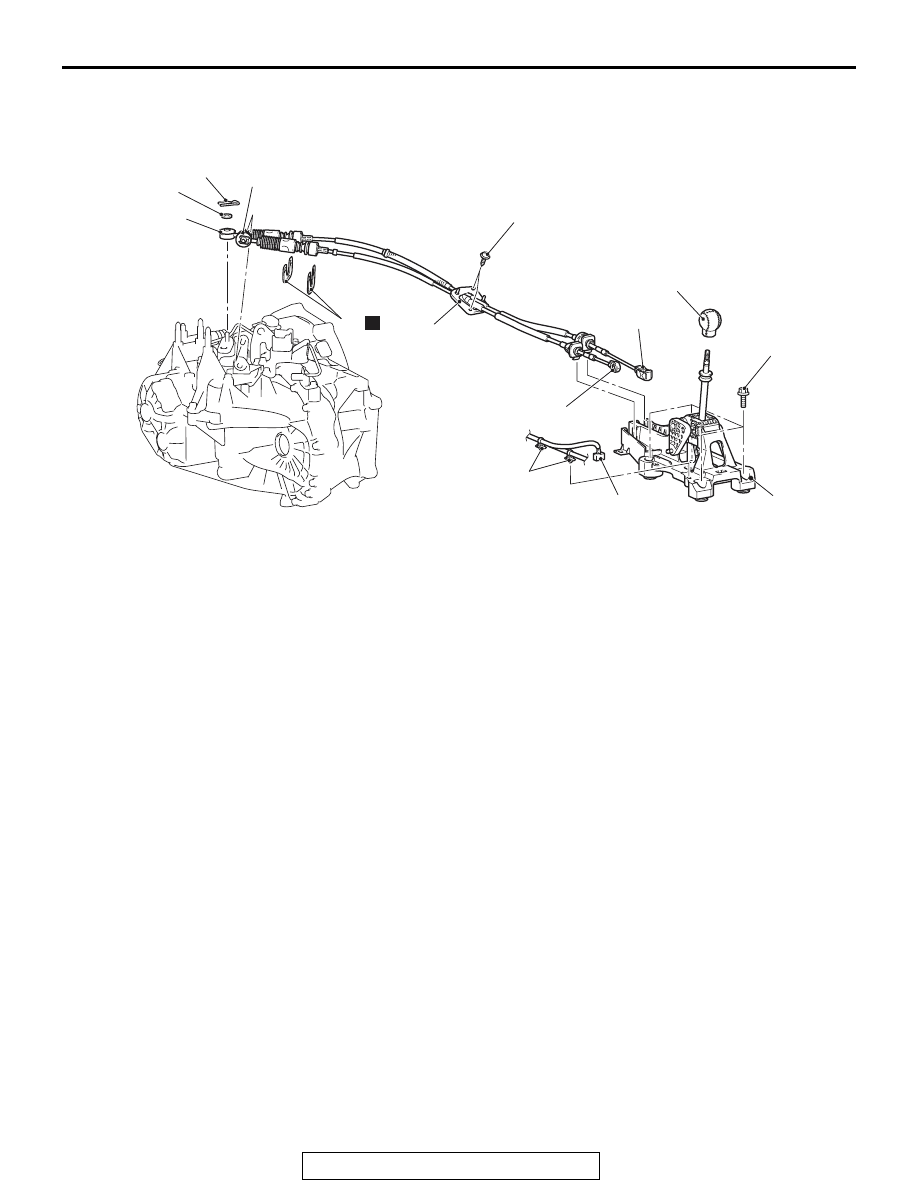

Shift lever assembly
removal steps

1. Shift knob
• Floor console bracket (A)

(Refer to GROUP 52A, Floor
console assembly

P.52A-9

.)

2. Select cable connection (shift

lever side)

>>

B

<<

3. Shift cable connection (shift

lever side)

4. Harness clip connection
5. Connector connection
6. Shift lever assembly

Shift cable and select cable
assembly removal steps

1. Shift knob
• SRS-ECU (Refer to GROUP

52B, SRS-ECU

P.52B-383

.)

• G and yaw rate sensor and G

and yaw rate sensor bracket
(Refer to GROUP 35C

− G and

Yaw Rate Sensor

P.35C-278

.)

2. Select cable connection (shift

lever side)

>>

B

<<

3. Shift cable connection (shift

lever side)

• Air cleaner assembly (Refer to

GROUP 15, Air cleaner

P.15-10

.)

• Engine control harness

connector bracket (Refer to
GROUP 54A, Battery

P.54A-10

.)

7. Snap pin
8. Washer
9. Shift cable connection

(transaxle side)

<<

A

>>

>>

A

<<

10. Select cable connection

(transaxle side)

<<

A

>>

>>

A

<<

11. Clip
12. Shift cable and select cable

assembly

Shift cable and select cable
assembly removal steps

TRANSAXLE CONTROL

TSB Revision

MANUAL TRANSAXLE

22A-122

REMOVAL SERVICE POINT

.

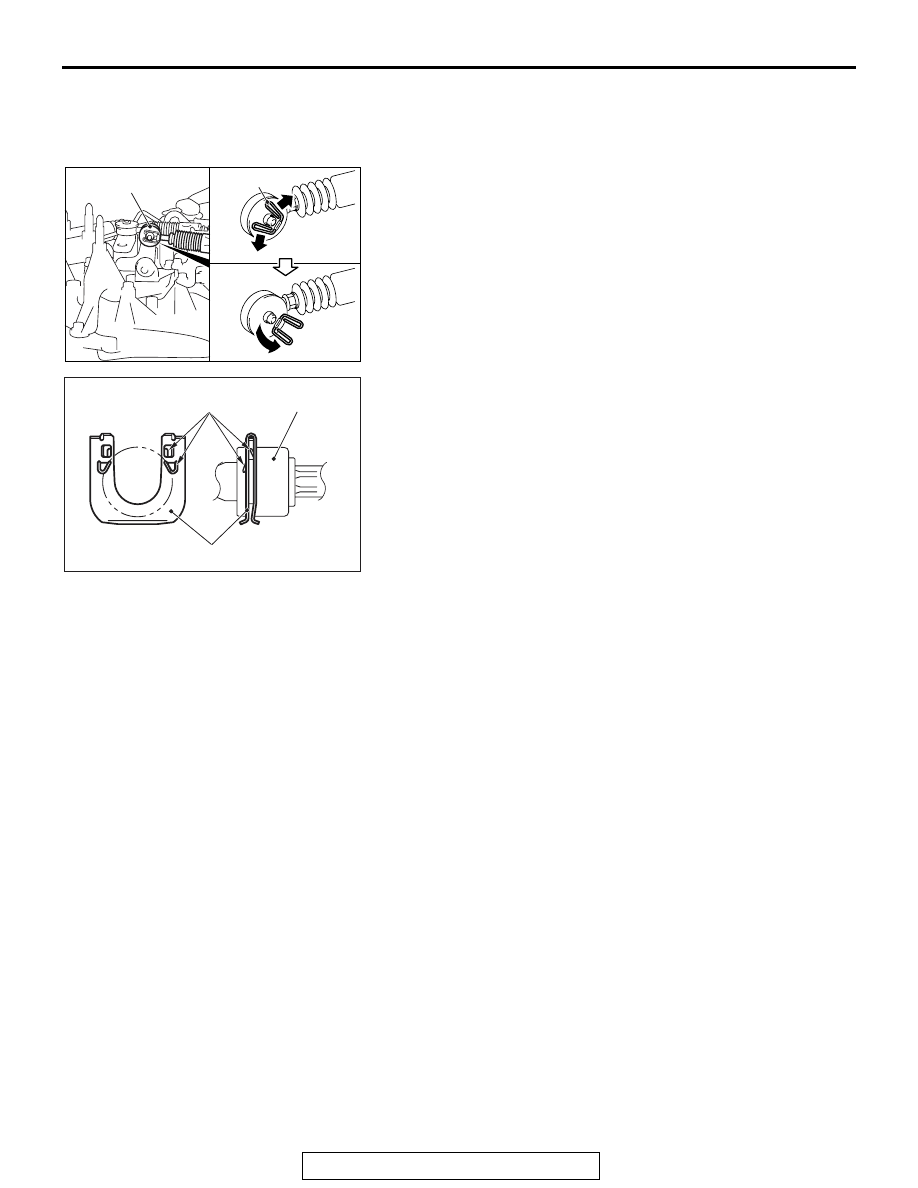

<<A>> SELECT CABLE CONNECTION (TRAN-
SAXLE SIDE) / CLIP REMOVAL

AC707727

Clip

Select cable

AC

1. Set the select cable clips to a status shown in the figure,

then disconnect the cable.

AC210556

Clip

Shift cable,
select cable

Claws

AE

2. Push down the clip claw using a screwdriver or others.

Then, remove the clip together with the cable from the
bracket.

TRANSAXLE CONTROL

TSB Revision

MANUAL TRANSAXLE

22A-123

INSTALLATION SERVICE POINTS

.

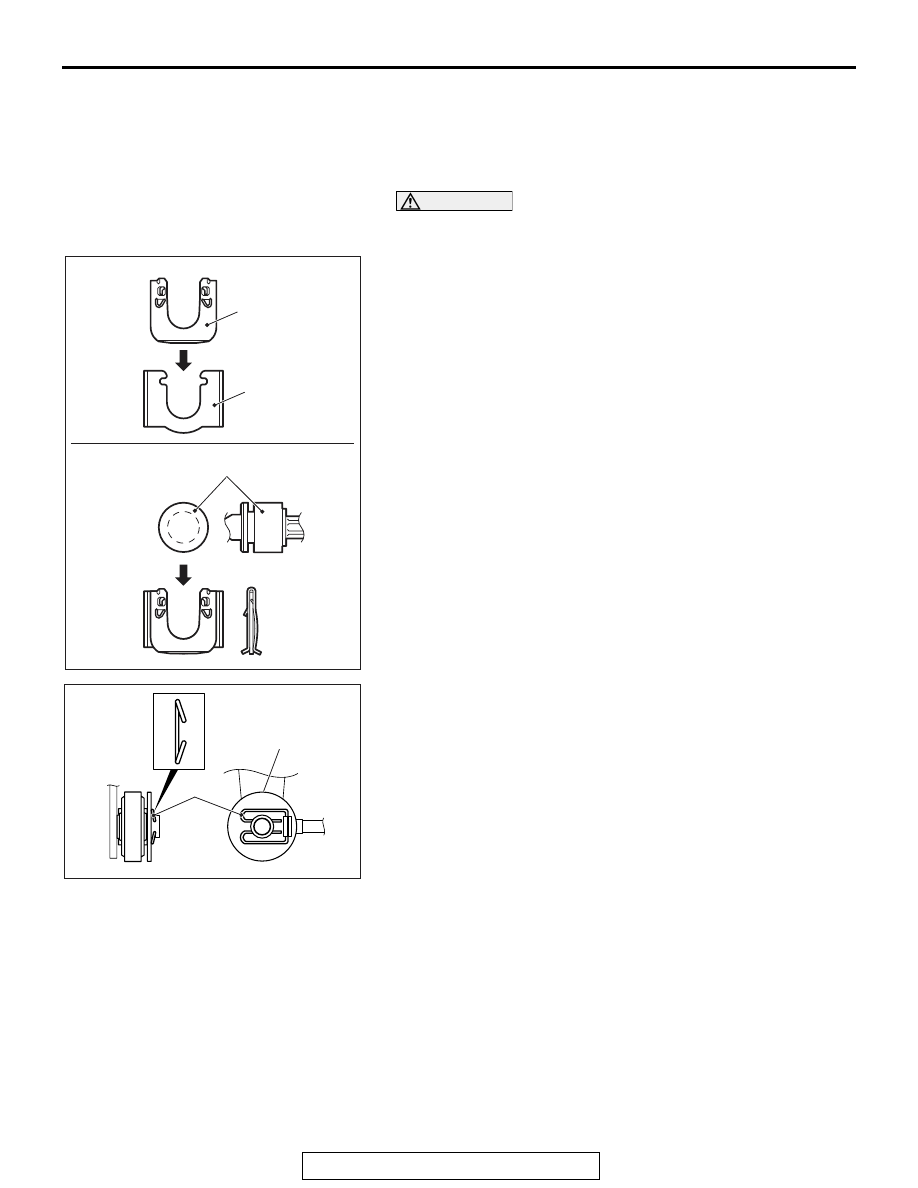

>>A<< CLIP/SHIFT CABLE CONNECTION (TRAN-
SAXLE SIDE)/SELECT CABLE CONNECTION
(TRANSAXLE SIDE) INSTALLATION

CAUTION

Securely insert the clip, shift cable, and select cable until
they click into place.

AC210558

Shift cable, select cable

New clip

Cable bracket

AG

1. After inserting the new clip into the cable bracket, insert the

shift cable or select cable into the cable bracket.

NOTE: The clip can be installed either with its face side down
or under side down.

AC402309

Clip

AE

Select cable

2. After assembling the clip of select cable as shown in the

figure, connect the cables to the levers.

.

TRANSAXLE CONTROL

TSB Revision

MANUAL TRANSAXLE

22A-124

>>B<< SHIFT CABKE CONNECTION (SHIFT
LEVER SIDE)

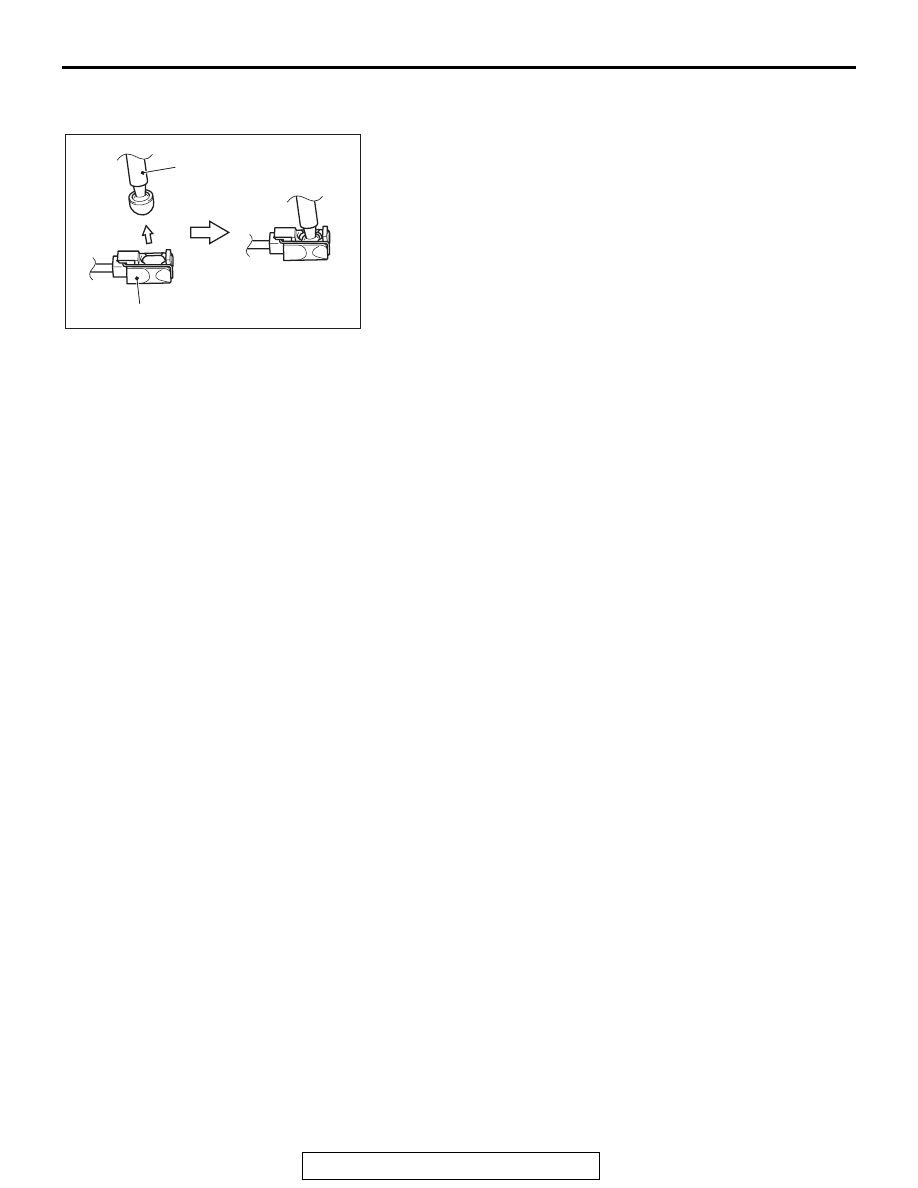

AC607793

Shift cable

Shift lever assembly

AD

To the area of shift lever assembly shown in the figure, securely
insert the shift cable tip until it clicks into place.
