Mitsubishi Evolution X. Manual - part 367





ON-VEHICLE SERVICE

TSB Revision

MANUAL TRANSAXLE

22A-117

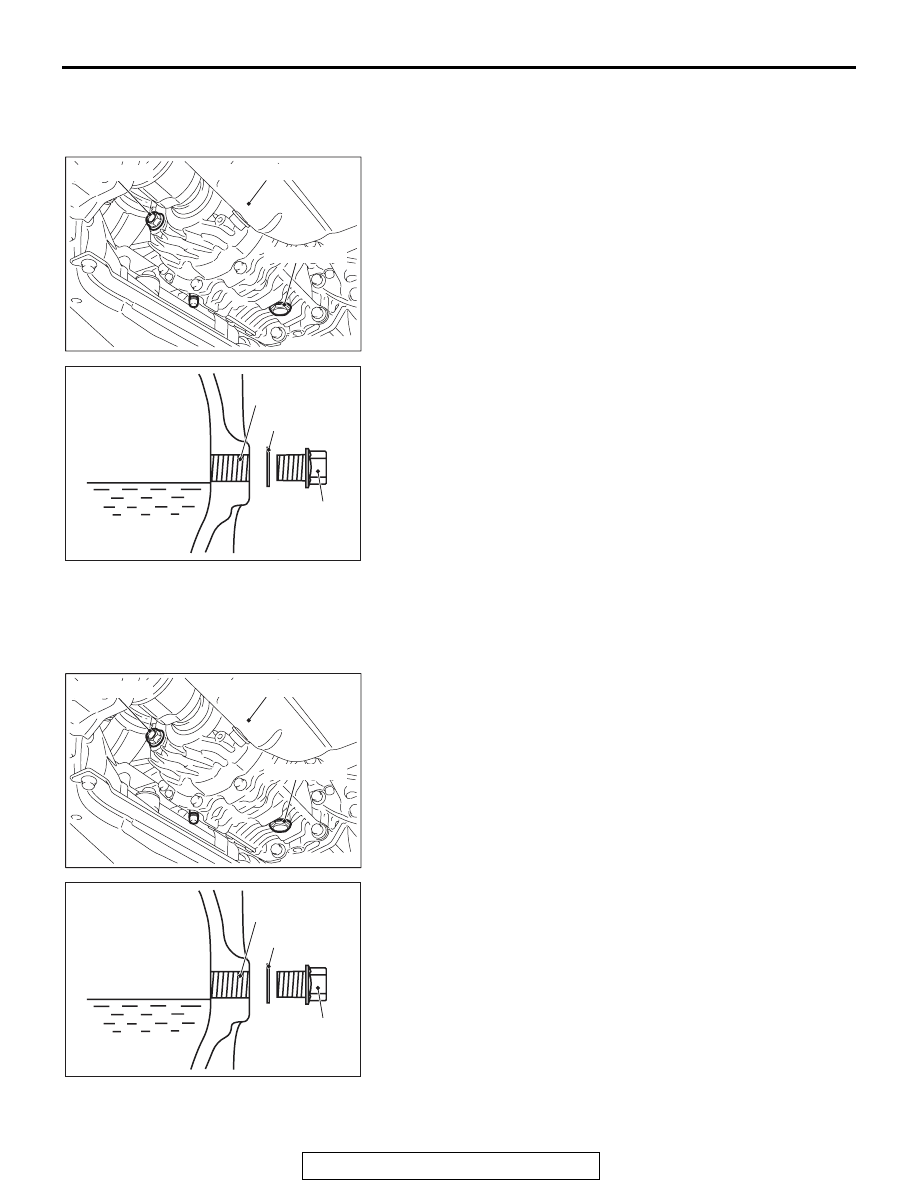

TRANSFER OIL CHECK

M1221001100238

1. Remove the engine room under cover front B assembly.

(Refer to GROUP 51, Under cover

P.51-16

.)

AC704516AE

Oil filler plug

Oil drain plug

Engine oil pan

2. Remove the oil filler plug and gasket.

AC700330 AF

Gasket

Transfer oil

Filler plug hole

Oil filler plug

3. Check that the oil level is just below the lower edge of the oil

filler plug hole.

4. Check that the oil is not excessively foul and has moderate

viscosity.

5. Install the oil filler plug and new gasket, then tighten them to

the specified torque.

Tightening torque: 32

± 2 N⋅ m (24 ± 1 ft-lb)

6. Install the engine room under cover front B assembly. (Refer

to GROUP 51, Under cover

P.51-16

.)

TRANSFER OIL CHANGE

M1221001200235

1. Remove the engine room under cover front B assembly.

(Refer to GROUP 51, Under cover

P.51-16

.)

AC704516AE

Oil filler plug

Oil drain plug

Engine oil pan

2. Remove the oil drain plug and gasket to drain the oil.
3. Install the oil drain plug and new gasket, then tighten them

to the specified torque.

Tightening torque: 32

± 2 N⋅ m (24 ± 1 ft-lb)

AC700330 AF

Gasket

Transfer oil

Filler plug hole

Oil filler plug

4. Remove the oil filler plug and gasket, then fill the oil up to

the lower edge of the oil filler plug hole.

Brand name: Mitsubishi genuine Dia-Queen LSD

Gear Oil

Quantity: 0.8 dm

3

 (0.9 quarts)

5. Install the oil filler plug and new gasket, then tighten them to

the specified torque.

Tightening torque: 32

± 2 N⋅ m (24 ± 1 ft-lb)

6. Install the engine room under cover front B assembly. (Refer

to GROUP 51, Under cover

P.51-16

.)

ON-VEHICLE SERVICE

TSB Revision

MANUAL TRANSAXLE

22A-118

FLUID CHECK

M1221011500066

Refer to GROUP 27, On-vehicle service

P.27-29

.

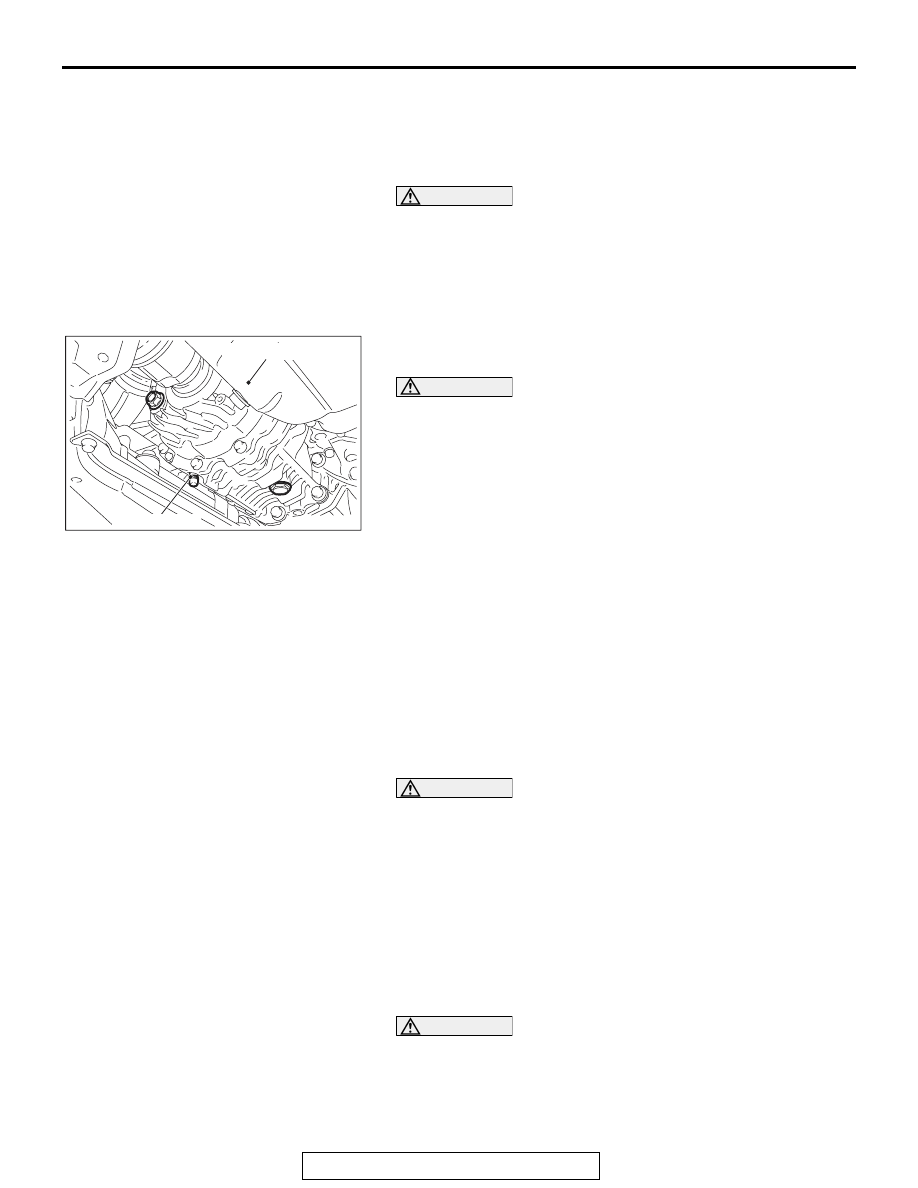

BLEEDING

M1221011600052

CAUTION

At low temperature the fluid viscosity is so high that air
bleeding becomes degenerated. Air bleeding should be
done at normal temperatures {10 to 30

° C (50 to 86° F)}.

1. Raise the vehicle.
2. Remove the engine room under cover front B assembly.

(Refer to GROUP 51, Under cover

P.51-16

.)

AC704516

Engine oil pan

AF

Bleeder screw

3. Remove the bleeder screw cap of the transfer, then connect

the vinyl hose.

CAUTION

Before connecting or disconnecting scan tool, always turn
the ignition switch to the LOCK (OFF) position.
4. Connect scan tool to the data link connector.(Refer to

P.22A-9

.)

5. Position the steering wheel in a straight ahead direction.
6. Turn the ignition switch to the "ON" position.
7. Perform the actuator test (item No. 01) of scan tool to

forcibly activate the hydraulic unit.
NOTE:

.

The forced activation (item No. 01: Air bleeding mode) is
continued for 5 minutes, then it will be canceled automat-
ically. Also, using the clear key on the scan tool, the acti-
vation can be forcibly canceled.

When the hydraulic unit functions are stopped due to the
fail-safe, the forced activation cannot be performed.

8. From the straight-ahead position, gradually rotate the

steering wheel to the right or left. Loosen the bleeder screw,
and check that the air is bled with fluid.

CAUTION

• During the air bleeding, fill the fluid so that the fluid

constantly remains in the oil reservoir.

• When the oil is filled into the empty oil reservoir, check

that the oil is filled up under the filter inside the oil res-
ervoir.

9. After bleeding the air, tighten the bleeder screw.
10.Repeat Steps 7 and 8 for two to three times. After checking

that air mixing is eliminated, tighten the bleeder screw to the
specified torque.

Tightening torque: 5.0

± 1.0 N⋅ m (44 ± 9 in-lb)

CAUTION

If the air bleeding is insufficient, the noise from the
hydraulic unit occurs, which may deteriorate the pump
durability.
11.After the air bleeding is complete, check the fluid

level.(Refer to GROUP 27, On-vehicle service

P.27-29

.)

ON-VEHICLE SERVICE

TSB Revision

MANUAL TRANSAXLE

22A-119

12.Install the engine room under cover front B assembly. (Refer

to GROUP 51, Under cover

P.51-16

.)

ACD OPERATION CHECK

M1221011700060

CAUTION

Before connecting or disconnecting scan tool, always turn
the ignition switch to the LOCK (OFF) position.
1. Connect scan tool to the data link connector.(Refer to

P.22A-9

.)

2. Start the engine.
3. Position the steering wheel in a straight ahead direction.
4. Perform the actuator test (item No. 05) of scan tool to

forcibly activate ACD.
NOTE:

.

The forced activation (item No. 05: ACD operation check
mode) is continued for 1 minute, then it will be canceled
automatically. Also, using the clear key on the scan tool,
the activation can be forcibly canceled.

When the ACD functions are stopped due to the
fail-safe, the forced activation cannot be performed.

5. Rotate the steering wheel 180

°  or more to the right or left,

and drive the vehicle at 20 km/h or less to check that the
tight corner braking phenomenon occurs.
NOTE:

.

The occurrence levels of body vibration and noise
caused by the tight corner braking phenomenon will dif-
fer depending on the conditions of tire and road surface.

If the tight corner braking phenomenon does not occur,
the system may have an abnormality. Therefore, check
the hydraulic pressure.

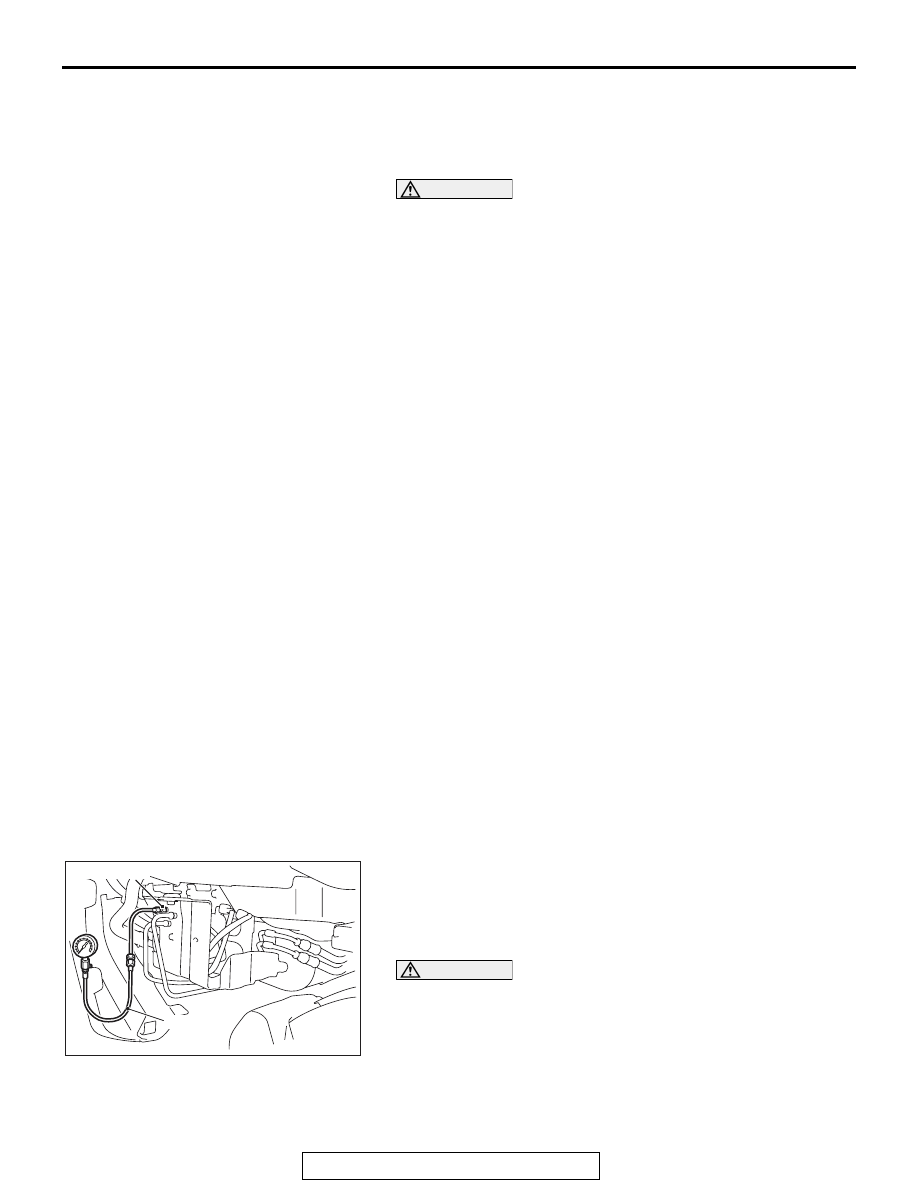

HYDRAULIC PRESSURE CHECK

M1221011800089

1. Remove the rear wheel (RH), then remove the rear wheel

splash shield.(Refer to GROUP 42A, Splash shield

P.42A-13

.)

2. Raise the vehicle.

AC707692AC

MB991705

MD998330

3. Disconnect the hydraulic unit from the ACD pressure tube

assembly. Then, connect the special tool below to the
hydraulic unit side.

• Hose adapter (MB991705)

• Oil pressure gauge (MD998330)

CAUTION

Before connecting or disconnecting scan tool, always turn
the ignition switch to the LOCK (OFF) position.
4. Connect scan tool to the data link connector.(Refer to

P.22A-9

.)

5. Turn the ignition switch to the "ON" position.
6. Perform the actuator test (item No. 05) of scan tool to

forcibly activate ACD.

ON-VEHICLE SERVICE

TSB Revision

MANUAL TRANSAXLE

22A-120

NOTE:

.

The forced activation (item No. 05: ACD operation check
mode) is continued for 1 minute, then it will be canceled
automatically. Also, using the clear key on the scan tool,
the activation can be forcibly canceled.

When the ACD functions are stopped due to the
fail-safe, the forced activation cannot be performed.

CAUTION

During the hydraulic pressure check, fill the fluid so that
the fluid constantly remains in the oil reservoir.
7. Check that the generated hydraulic pressure of the hydraulic

unit is within the standard value.

Standard valve: 0.9

 1.1 MPa (130  159 psi)

8. If the measured value exceeds the standard value, replace

the hydraulic unit.

9. After applying oil to the flare nut thread of ACD pressure

tube assembly, connect the assembly to the hydraulic unit,
then tighten to the specified torque.

Tightening torque: 26

± 4 N⋅ m (19 ± 3 ft-lb)

10.Perform the air bleeding. (Refer to

P.22A-118

.)
