PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-27

HOW TO PERFORM VEHICLE IDENTIFICATION NUMBER (VIN) WRITING

M1001011400483

CAUTION

The F.A.S.T-Key (Free-hand Advanced Security
Transmitter) is described as the Keyless Opera-
tion System (KOS) in this manual. (KOS is indi-
cated as F.A.S.T. in the scan tool display.)
Follow the procedure below to register the VIN of the
Wireless Control Module (WCM) and the Keyless
Operation System (KOS).

The VIN is stored in the engine control module
(ECM), WCM, and the KOS-ECU. If the VIN is
improperly erased, the engine warning light or the
keyless operation system warning indicator illumi-
nate, and the diagnostic trouble code is displayed.
When the ECM, WCM, and the KOS-ECU are
replaced, follow the procedure below to write the
VIN.

AC700593

AE

Engine VIN Registration

Engine VIN Registration
Confirmation

OK

OK

OK

Engine VIN Registration
Completed

Result of Engine
VIN Registration

OK

F.A.S.T./IMMO/Keyless/TPMS

F.A.S.T./IMMO/Keyless/TPMS

VIN Registration

VIN Registration
Confirmation

VIN Registration
completed

Result of VIN
Registration

Screen frow of scan tool (M.U.T.- III)

<When ECM is replaced>

System Select

Special Function

Key Code Registration

OK

Key Code Registration
Completed

<When WCM or KOS-ECU are replaced>

System Select

Coding

OK

OK

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-28

WRITING PROCEDURE

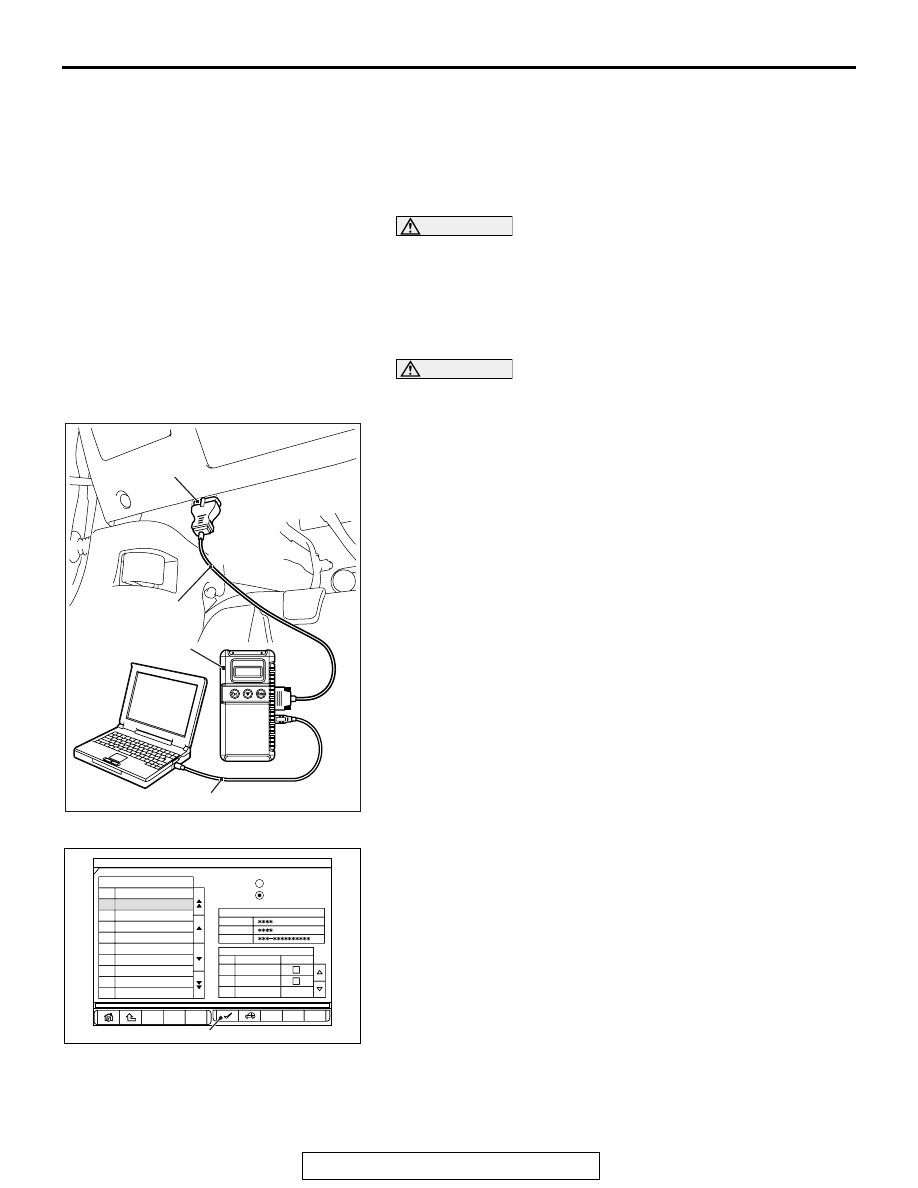

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

Check that diagnostic trouble code P0603 "EEPROM fail"
is not set. When diagnostic trouble code P0603 "EEPROM
fail" is set, the ECM cannot store the key code even if the
key code is registered. If this diagnostic trouble code is
set, troubleshoot the ECM and repair. Then register the key
code to the ECM.

CAUTION

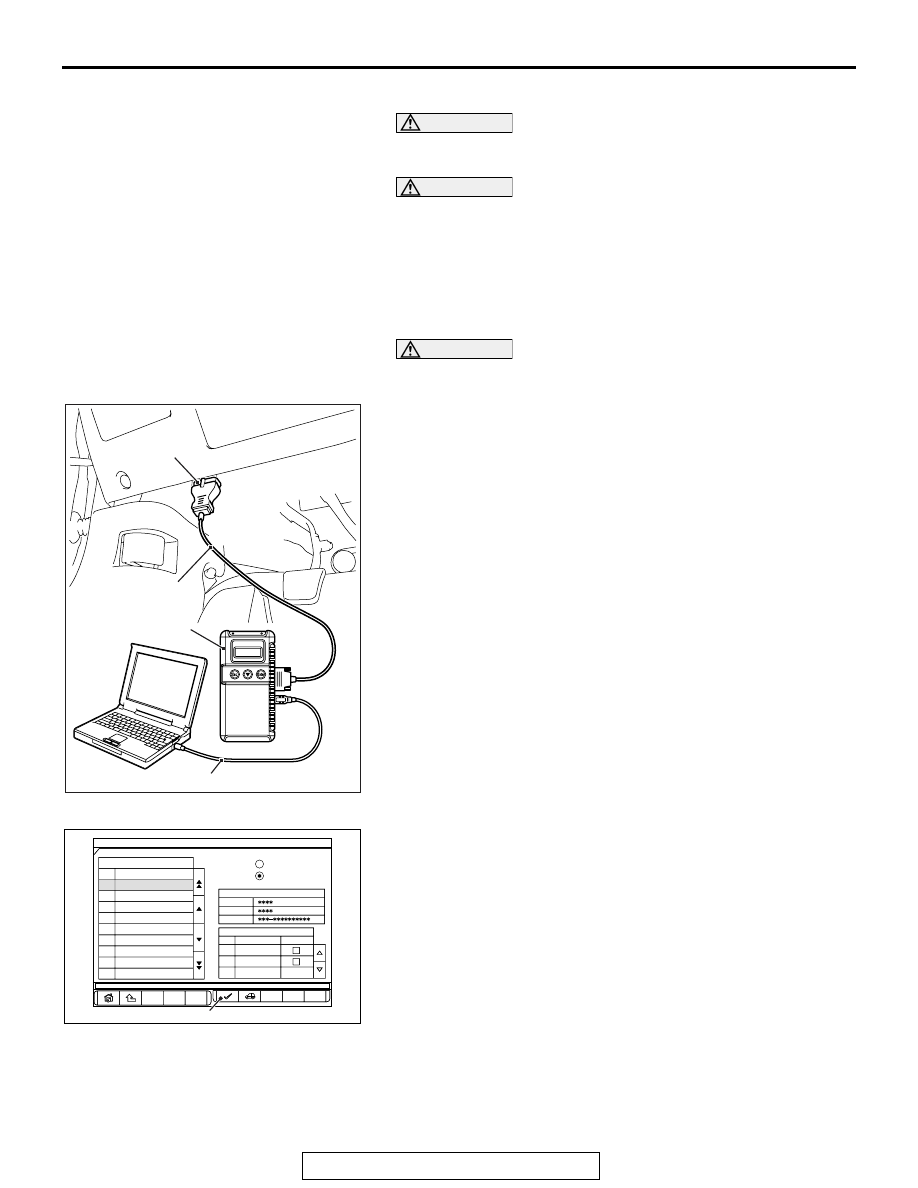

Before connecting or disconnecting the MB991958: Scan
Tool, turn the ignition switch to the "LOCK" (OFF) position.
Connect scan tool MB991958 to the 16-pin data link connector
as follows.
NOTE: For details on how to use scan tool MB991958, refer to
the "M.U.T.-III Owner's Manual."
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to the special tool

MB991824.

5. Connect special tool MB991910 to the data link connector of

the vehicle.

6. Turn the special tool MB991824 power switch to the "ON"

position.
NOTE: When the special tool MB991824 is energized, the
special tool MB991824 indicator light will be illuminated in a
green color.

7. Start the "M.U.T.-III system" on the personal computer and

turn the ignition switch to the "ON" position.

8. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the

"System Select" screen. Then, select the applicable option
code item and push the OK button.

9. Select "Special Function" on the next screen.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

System Select

Select Model Year and System

System List

Model Year

Vehicle Information

Loading Option Setup

OPC

With Option

Option Name

IMMOBI & Keyless & TPMS

VF2

VF3

IMMOBI & F.A.S.T. & TPMS

Model Name

Model Year

Model Code

Up to 2005 MY

From to 2006 MY

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

F.A.S.T./IMMO/Keyless/TPMS

AT/CVT/A-MT

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

ETACS

Meter

AC609809

OK button

AB

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-29

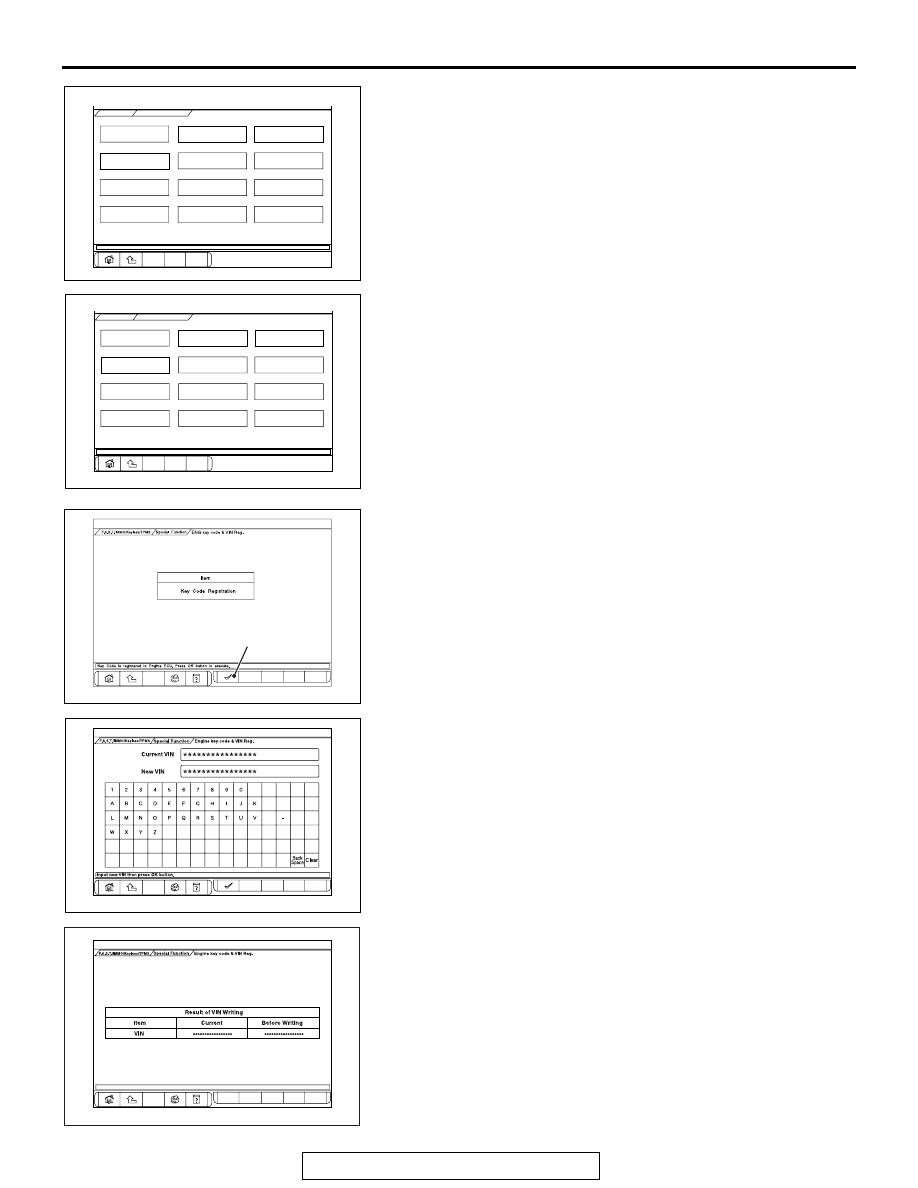

10.Select "ENG key code & VIN Reg." from the "Special

Function" screen.

11.Push the OK button after "ENG key code & VIN Reg." is

displayed.

12.Push the OK button after "Completed. Press the OK button

and move to VIN writing function." is displayed.

13.Enter the VIN of registering vehicle and push the OK button.
14.Push the OK button after "VIN Writing will start. Are you

sure?" is displayed.

15.Return to the previous screen and "In Progress" is displayed

at the lower-left corner on the screen.

16.Push the OK button after "Completed." is displayed.

17.VIN writing result is displayed.
18.Complete the scan tool MB991958.
19.Disconnecting the scan tool MB991958 is the reverse of the

connecting sequence, making sure that the ignition switch is
at the "LOCK" (OFF).

20.Push the OK button after "Completed." is displayed.
21.Terminate the scan tool MB991958.
22.Turn the ignition switch to the "LOCK" (OFF) position and

then disconnect scan tool MB991958.

System Select

Please select function.

Special Function

Key & F.A.S.T.- Key Reg.

Steering lock unit Reg.

Comm. Test

ENG key code & VIN Reg.

F.A.S.T./IMMO/Keyless/TPMS

Tire Pressure Sensor ID Check

Tire Pressure Sensor ID Registration

Tire Pressure Sensor Check

AC709284

AB

Option: When IMMOBI & F.A.S.T. & TPMS is selected

System Select

Please select function.

Special Function

Key Registration

Key Registration (Barcode No.)

Keyless ID Reg.

ENG key code & VIN Reg.

F.A.S.T./IMMO/Keyless/TPMS

Additional key registration

Tire Pressure Sensor ID Check

Tire Pressure Sensor ID Registration

Tire Pressure Sensor Check

AC709283

AB

Option: When IMMOBI & Keyless & TPMS is selected

AC709286

OK button

AB

AC709287

AC709285

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-30

VIN WRITING STEPS FOR WCM AND KOS-ECU

CAUTION

Before the VIN registration to WCM and KOS-ECU, check
that the VIN of ECM and vehicle are matched.

CAUTION

Check that diagnostic trouble code B2416 "ECU internal
error" is not set. When diagnostic trouble code B2416
"ECU internal error" is set, the WCM and the KOS-ECU
cannot store the VIN even if the VIN is written. If this diag-
nostic trouble code is set, troubleshoot the WCM or the
KOS-ECU and repair. Then write the VIN to the WCM or the
KOS-ECU.

CAUTION

Before connecting or disconnecting the MB991958: Scan
Tool, turn the ignition switch to the "LOCK" (OFF) position.
Connect scan tool MB991958 to the 16-pin data link connector
as follows.
NOTE: For details on how to use scan tool MB991958, refer to
the "M.U.T.-III Owner's Manual."
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to the special tool

MB991824.

5. Connect special tool MB991910 to the data link connector of

the vehicle.

6. Turn the special tool MB991824 power switch to the "ON"

position.
NOTE: When the special tool MB991824 is energized, the
special tool MB991824 indicator light will be illuminated in a
green color.

7. Start the "M.U.T.-III system" on the personal computer and

turn the ignition switch to the "ON" position.

8. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the

"System Select" screen. Then, select the applicable option
code item and push the OK button.

9. Select "Coding" on the next screen.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

System Select

Select Model Year and System

System List

Model Year

Vehicle Information

Loading Option Setup

OPC

With Option

Option Name

IMMOBI & Keyless & TPMS

VF2

VF3

IMMOBI & F.A.S.T. & TPMS

Model Name

Model Year

Model Code

Up to 2005 MY

From to 2006 MY

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

F.A.S.T./IMMO/Keyless/TPMS

AT/CVT/A-MT

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

ETACS

Meter

AC609809

OK button

AB
