MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-73

DTC P0032: Heated Oxygen Sensor (front) Heater Circuit High

AK704225

1

3

2

4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2
3 4

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

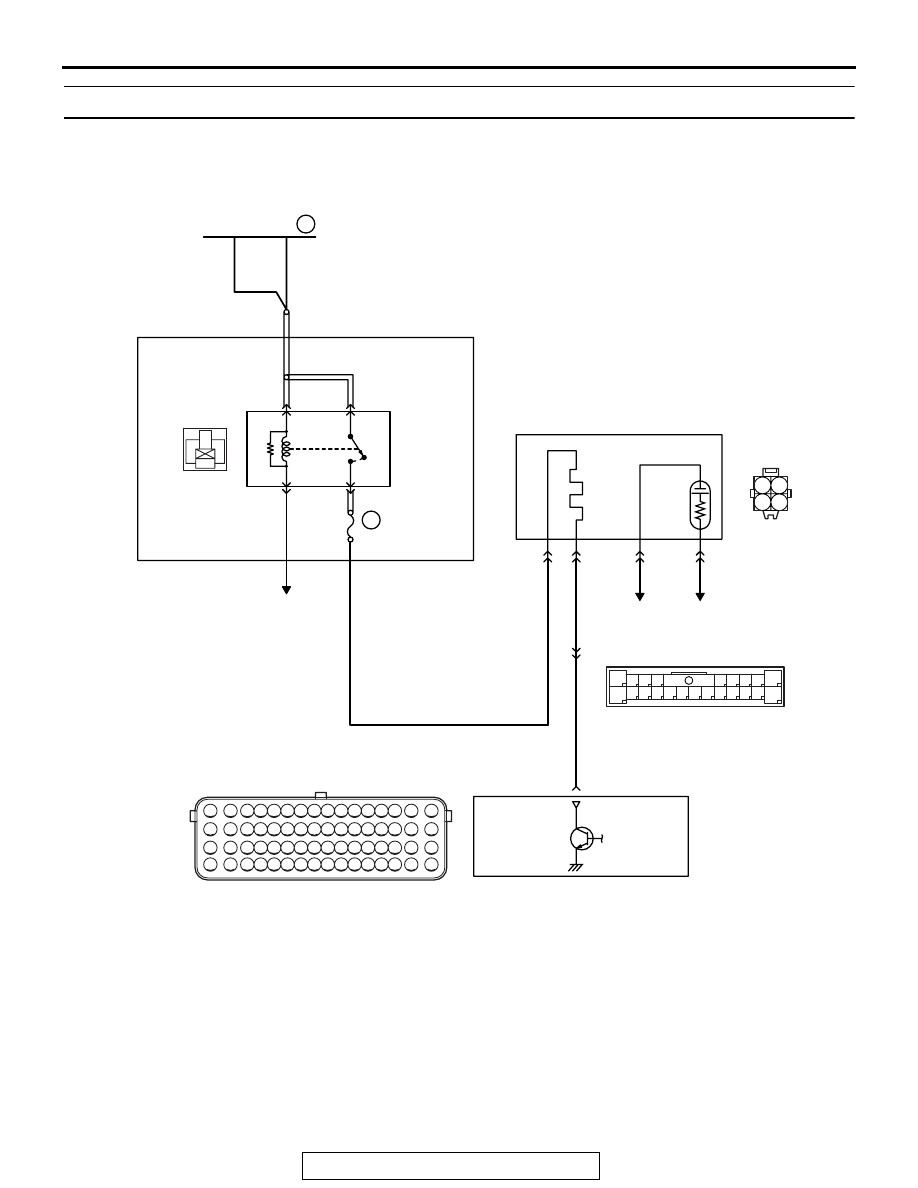

HEATED OXYGEN SENSOR (FRONT) HEATER CIRCUIT

20A

WHITE

BLUE-BLA

CK

WHITE

WHITE

A-34X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

HEATED OXYGEN SENSOR
(FRONT)

1

4

2

3

TO ECM

TO ECM

ENGINE
CONTROL
MODULE

34

C-34

B-09

A-13

36

FUSIBLE LINK

BLUE

8

OFF

ON

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-74

.

CIRCUIT OPERATION

• Power is supplied from the MFI relay (terminal

No. 2) to the heated oxygen sensor (front) heater.

• The ECM (terminal No. 34) controls continuity to

the heated oxygen sensor (front) heater by turn-
ing the power transistor in the ECM "ON" and
"OFF".

.

TECHNICAL DESCRIPTION

• The ECM checks whether the heater current is

within a specified range when the heater is ener-
gized.

.

DESCRIPTIONS OF MONITOR METHODS

Heated oxygen sensor heater (front) current is out of

specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

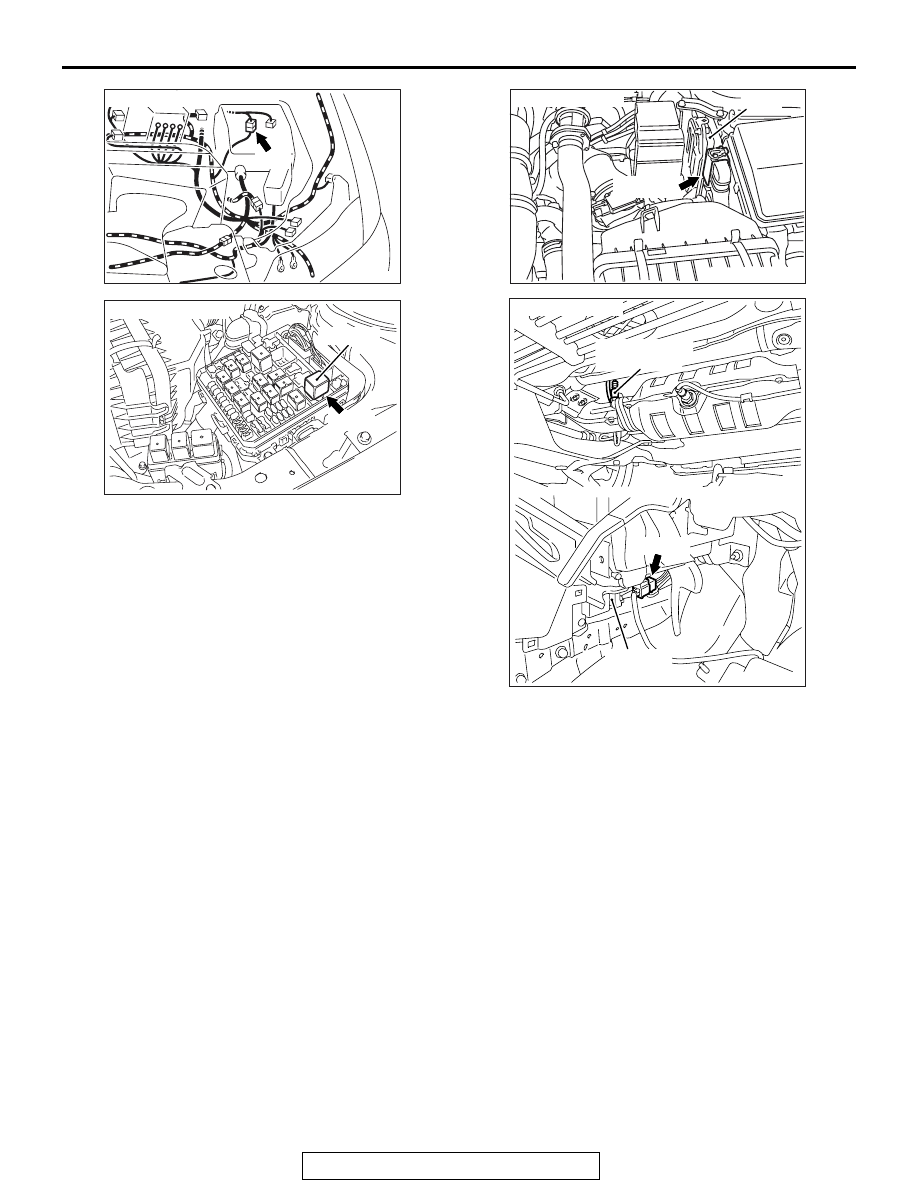

AK704229AB

Connector: A-13

A-13

AK704226

Connector: A-34X

MFI relay

A-34X

AB

AK704227

Connector: B-09

ECM

B-09 (GR)

AB

AK704228

AB

Heated oxygen
sensor (front)

Connector: C-34

C-34 (B)

SRS-ECU

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-75

DTC SET CONDITIONS

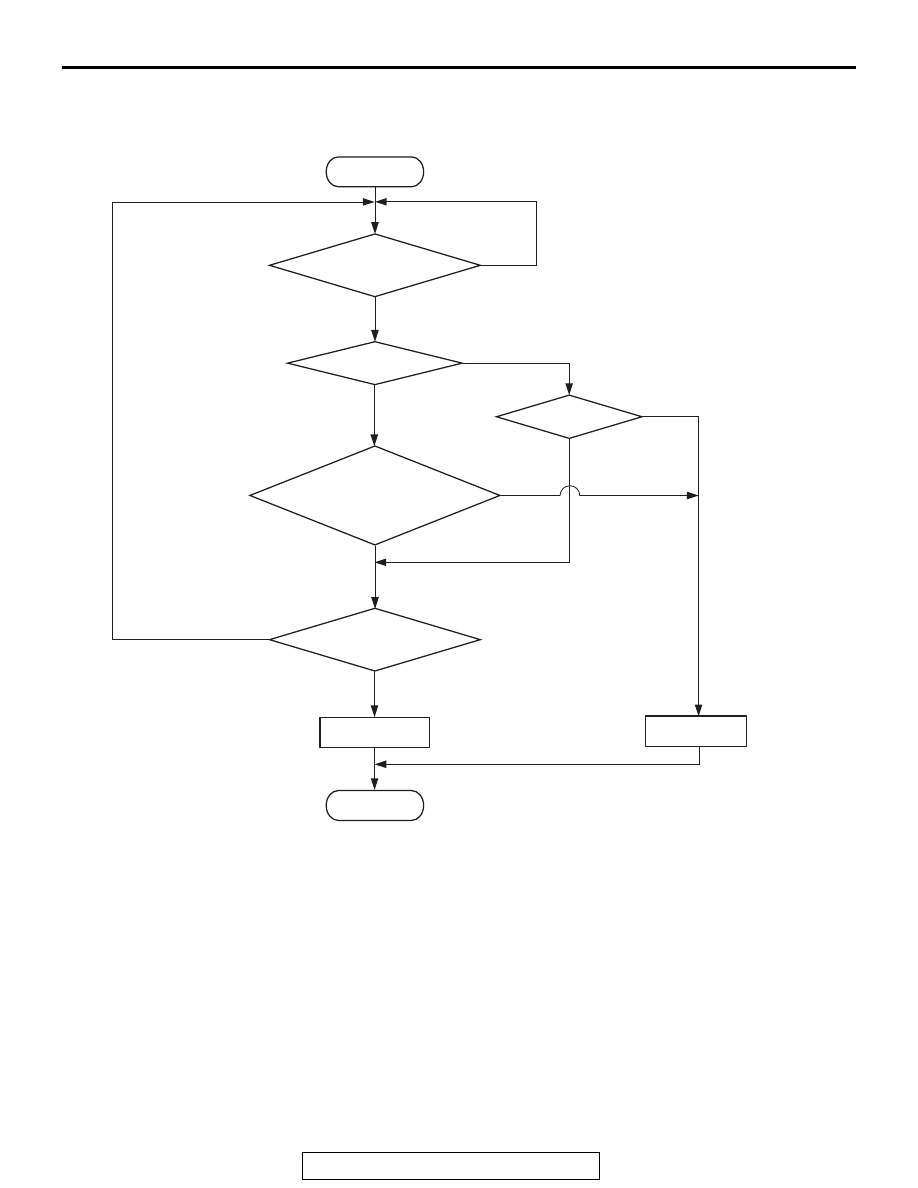

Logic Flow Chart

.

Check Conditions

• More than 2 seconds have passed since the

engine starting sequence was completed.

• While the heated oxygen sensor (front) heater is

on.

• Battery positive voltage is between 11 and 16.5

volts.

Judgement Criterion

• The heated oxygen sensor (front) heater current

has continued to be higher than 10.5 ampere for
2 seconds.

.

FAIL-SAFE AND BACKUP FUNCTION

• None

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 2

P.13A-9

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Heated oxygen sensor (front) heater failed.

• ECM failed.

End

No

No

Malfunction

Good

Current < 0.17A

or

Current > 10.5A

Voltage < 2.0V

AK604306

Heater ON

No

No

Start

Yes

Yes

Yes

Yes

Yes

No

Continuous
failure for 2secs

Monitoring
conditions

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-76

DIAGNOSIS

Required Special Tool:

• MB991658: Test Harness

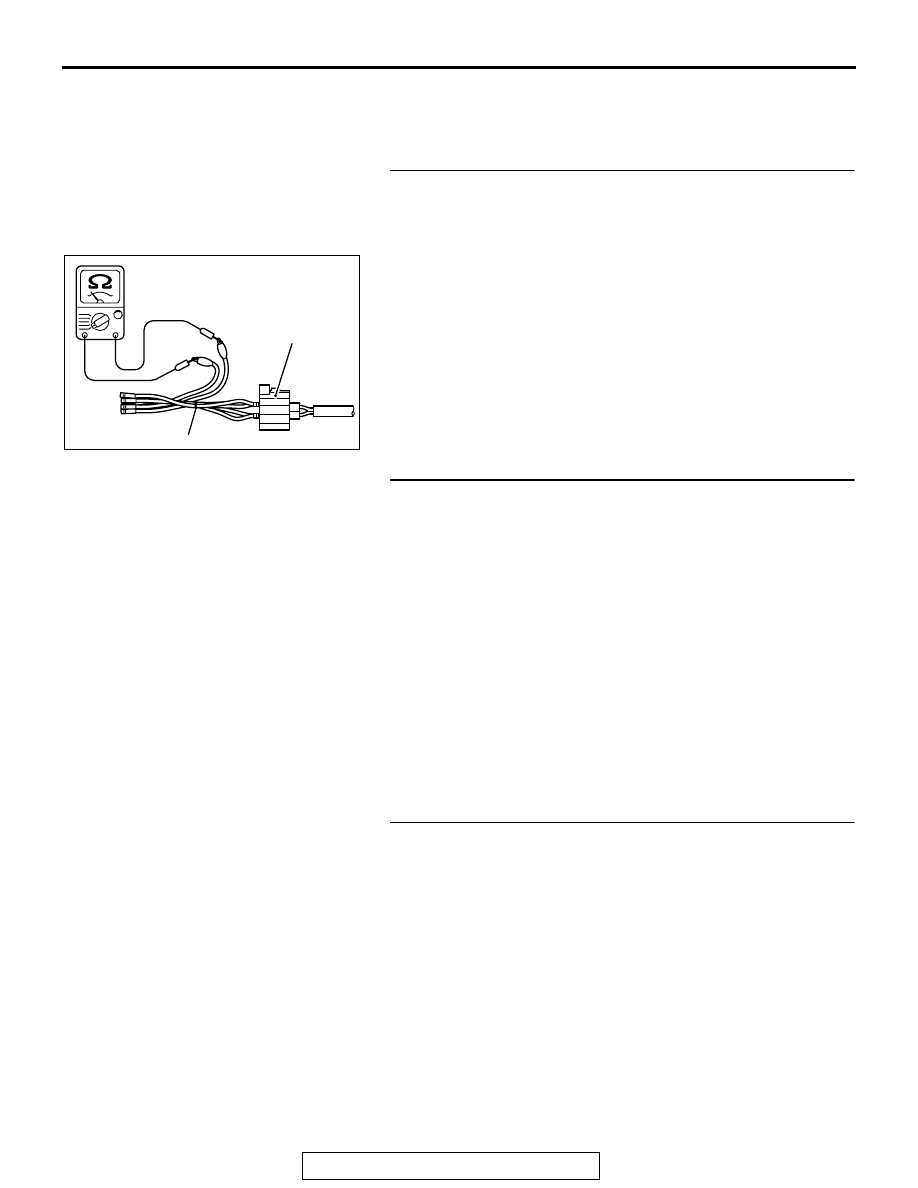

STEP 1. Check the heated oxygen sensor (front).
(1) Disconnect heated oxygen sensor (front) connector C-34

and connect test harness special tool, MB991658, to the
connector on the heated oxygen sensor (front) side.

(2) Measure the resistance between heated oxygen sensor

connector terminal No. 1 and terminal No. 2.

Standard value: 4.5

− 8.0 Ω [at 20° C (68° F)]

Q: Is the measured resistance between 4.5 and 8.0

Ω [at

20

° C (68° F)]?

YES : Go to Step 2.
NO :  Replace the heated oxygen sensor (front). Then go to

Step 3.

STEP 2. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 2

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0032 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, ID Code
Registration Necessity Judgment Table <Vehicles
with KOS>

P.42B-12

 or GROUP 42C, ID Codes

Registration Judgment Table <Vehicles with WCM>

P.42C-9

. Then go to Step 3.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 3. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 2

P.13A-9

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0032 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK604492AB

MB991658

Heated oxygen
sensor component
side connector
