>>G<< FUEL PRESSURE REGULATOR
INSTALLATION

1. Apply gasoline to the new O-ring.

CAUTION

Do not allow gasoline to enter the fuel rail.
2. Insert the fuel pressure regulator into the fuel rail while

rotating the injector from side to side, taking care not to
damage the O-ring.

3. Check that the fuel pressure regulator rotates smoothly. If it

does not rotate smoothly, the O-ring may be caught.
Remove the fuel pressure regulator and check the O-ring for
damage. Then, insert it again into the fuel rail and check.

EXHAUST MANIFOLD

TSB Revision

ENGINE OVERHAUL

11B-20

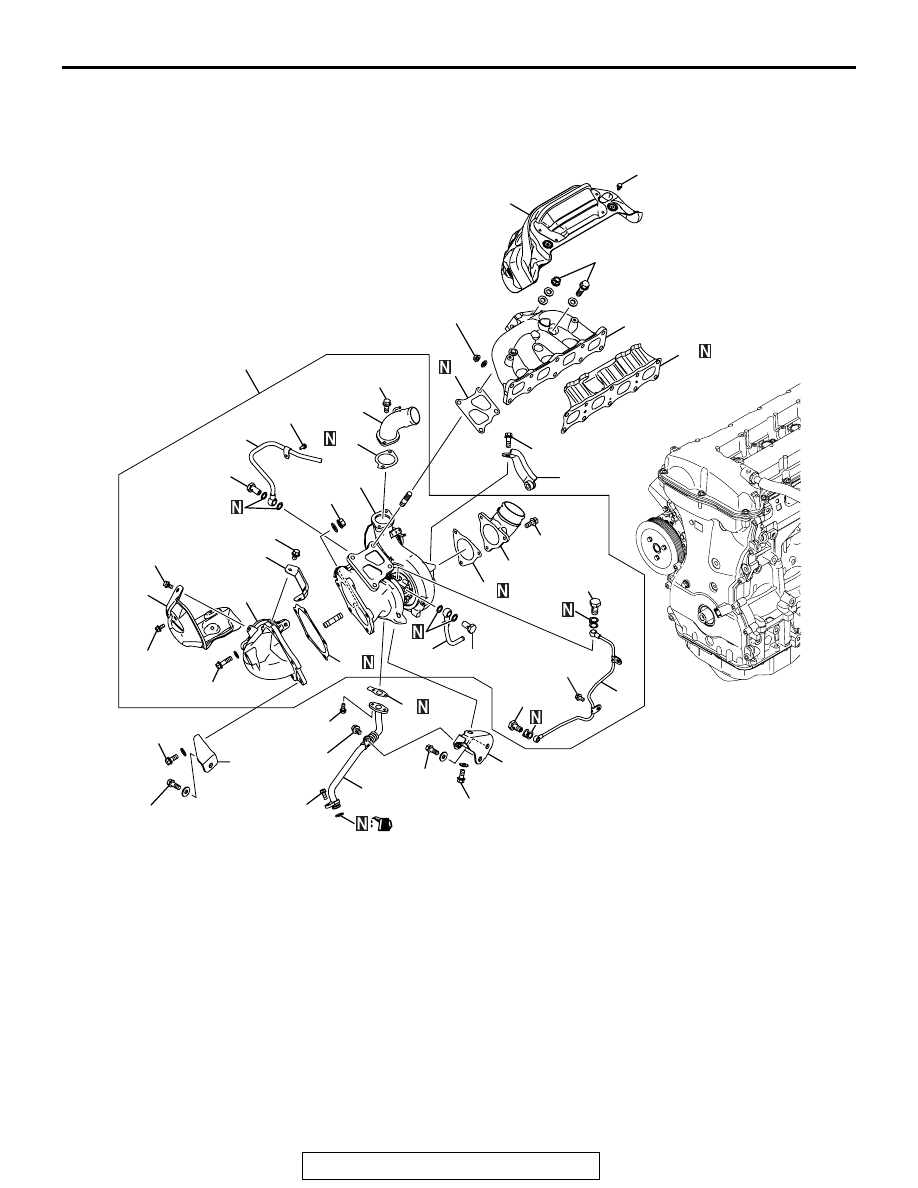

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

M1113004901591

AK702231

1

9

8

10

15

11

13

4

5

3

6

20

21

17 ± 2 N·m
13 ± 1 ft-lb

14

16

17

18

19

12

22

9.5 ± 2.5 N·m
84 ± 22 in-lb

51 ± 7 N·m
38 ± 4 ft-lb

51 ± 7 N·m
38 ± 4 ft-lb

9.0 ± 1.0 N·m
80 ± 8 in-lb

9.0 ± 1.0 N·m
80 ± 8 in-lb

42 ± 7 N·m
31 ± 5 ft-lb

9.5 ± 1.5 N·m
84 ± 13 in-lb

28 ± 1 N·m
21 ± 1 ft-lb

49 ± 5 N·m
36 ± 3 ft-lb

29 ± 2 N·m
21 ± 1 ft-lb

AC

64 ± 5 N·m
47 ± 3 ft-lb

25 ± 4 N·m
19 ± 2 ft-lb

64 ± 5 N·m
47 ± 3 ft-lb

2

7

64 ± 5 N·m
47 ± 3 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

25 ± 4 N·m
19 ± 2 ft-lb

64 ± 5 N·m
47 ± 3 ft-lb

25 ± 4 N·m
19 ± 2 ft-lb

25 ± 4 N·m
19 ± 2 ft-lb

51 ± 7 N·m
38 ± 4 ft-lb

25 ± 4 N·m
19 ± 2 ft-lb

42 ± 7 N·m
31 ± 5 ft-lb

31 ± 2 N·m
23 ± 1 ft-lb

→ +65˚ ± 5˚

Removal steps

1. Exhaust manifold cover

>>H<<

2. Turbocharger compressor bracket

>>G<<

3. Exhaust fitting bracket
4. Oil return pipe

>>F<<

5. Oil return pipe gasket

>>E<<

6. Turbocharger bracket

>>D<<

7. Turbocharger and pipe assembly
8. Turbocharger gasket
9. Exhaust manifold
10. Exhaust manifold gasket
11. Water pipe A

>>C<<

12. Water pipe B
13. Oil pipe
14. Exhaust fitting heat protector A
15. Exhaust fitting heat protector B
16. Exhaust fitting
17. Exhaust fitting gasket
18. Air outlet fitting

>>B<<

19. Air outlet fitting gasket
20. Air inlet fitting

>>A<<

21. Air inlet fitting gasket
22. Turbocharger

Required Special Tool:

• MB991614: Angle Sensor

Removal steps (Continued)

EXHAUST MANIFOLD

TSB Revision

ENGINE OVERHAUL

11B-21

INSTALLATION SERVICE POINTS

.

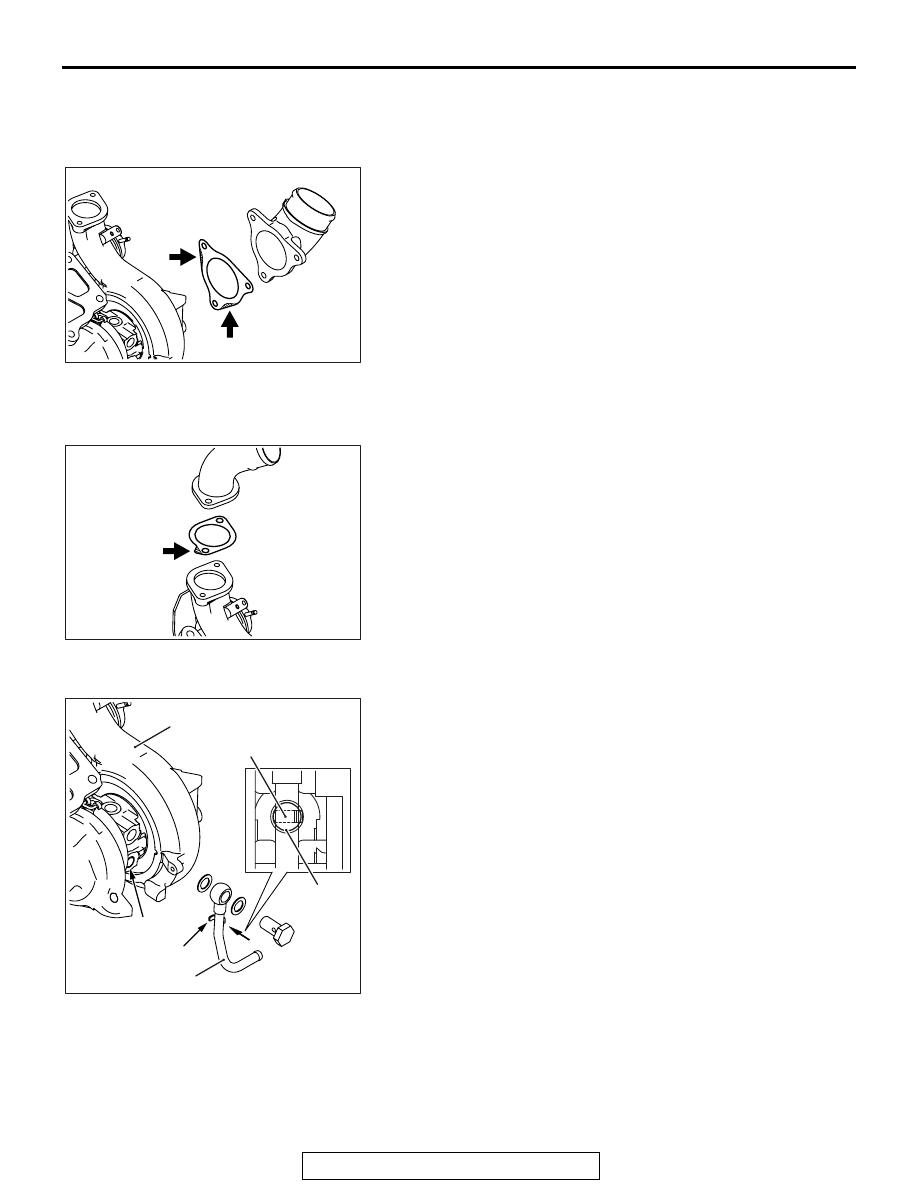

>>A<< AIR INLET FITTING GASKET INSTALLA-
TION

AK703235AC

Tab

Tab

Install a new gasket so that the tab is positioned as shown in
the illustration.

.

>>B<< AIR OUTLET FITTING GASKET
INSTALLATION

AK703234AC

Tab

Install a new gasket so that the tab is positioned as shown in
the illustration.

.

>>C<< WATER PIPE B INSTALLATION

AK703725AC

Bracket

Hole

Bracket

Water pipe B

Turbocharger

Hole

Make sure the bracket of water pipe "B" is inserted into the hole
of turbocharger as shown in the illustration, and then install the
eye bolt.
NOTE: Be sure to install the gasket.

.

EXHAUST MANIFOLD

TSB Revision

ENGINE OVERHAUL

11B-22

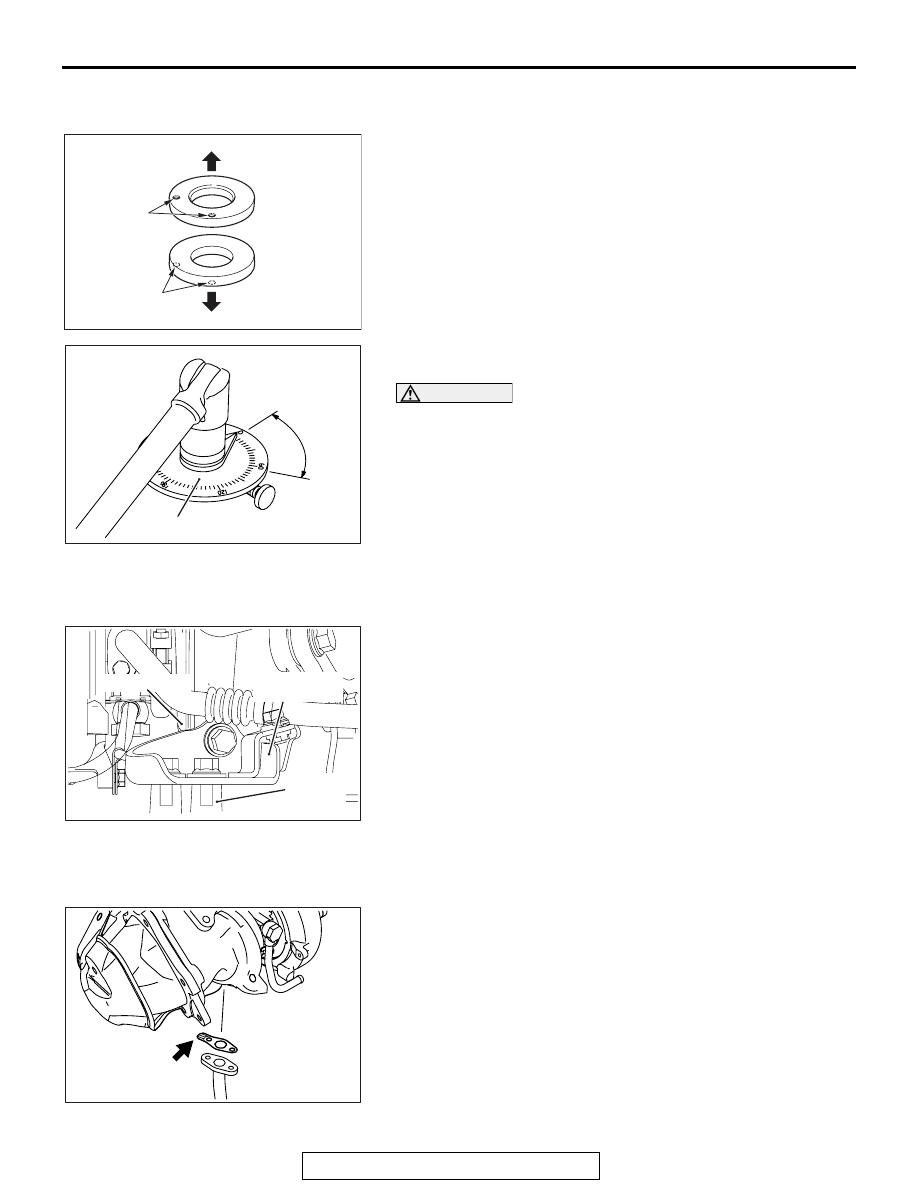

>>D<< TURBOCHARGER AND PIPE ASSEMBLY
INSTALLATION

AK704038AB

Identification
hole

Identification hole

Turbocharger side

Bolt and nut side

1. Make sure the identification hole is properly in position as

shown in the illustration, and then install the coned disc
spring in the appropriate installation direction.

2. Tighten the bolts and nuts to the specified torque.

Specified torque: 29

± 2 N⋅ m (21 ± 1 ft-lb)

AK703730

65˚ ± 5˚

AC

MB991614

3. Use special tool MB991614 to tighten bolts and nuts 65

°  ±

5

° .

CAUTION

• When the tightening angle is smaller than the specified

tightening angle, the appropriate tightening capacity
cannot be secured.

• When the tightening angle is larger than the specified

tightening angle, remove the bolt and nut to start from
the beginning again according to the procedure.

.

>>E<< TURBOCHARGER BRACKET
INSTALLATION

AK703143AC

Cylinder
block

Turbocharger

Turbocharger
bracket

1. After temporarily tightening the turbocharger bracket with

the installation bolts, check the exhaust manifold fastens
securely to the cylinder block and the turbocharger.

2. Tighten the cylinder block side bolt to the specified

tightening torque.

Specified torque: 51

± 7 N⋅ m (38 ± 4 ft-lb)

3. Tighten the turbocharger side bolt to the specified tightening

torque.

Specified torque: 64

± 5 N⋅ m (47 ± 3 ft-lb)

.

>>F<< OIL RETURN PIPE GASKET
INSTALLATION

AK703233AC

Tab

Install a new gasket so that the tab is positioned as shown in
the illustration.

.
