THROTTLE BODY

TSB Revision

ENGINE OVERHAUL

11B-15

INSTALLATION SERVICE POINTS

.

>>A<< MANIFOLD ABSOLUTE PRESSURE (MAP)
SENSOR INSTALLATION

CAUTION

• Install the manifold absolute pressure (MAP) sensor,

taking care not to give a shock to it.

• Do not use a manifold absolute pressure (MAP) sensor

that has been dropped.

.

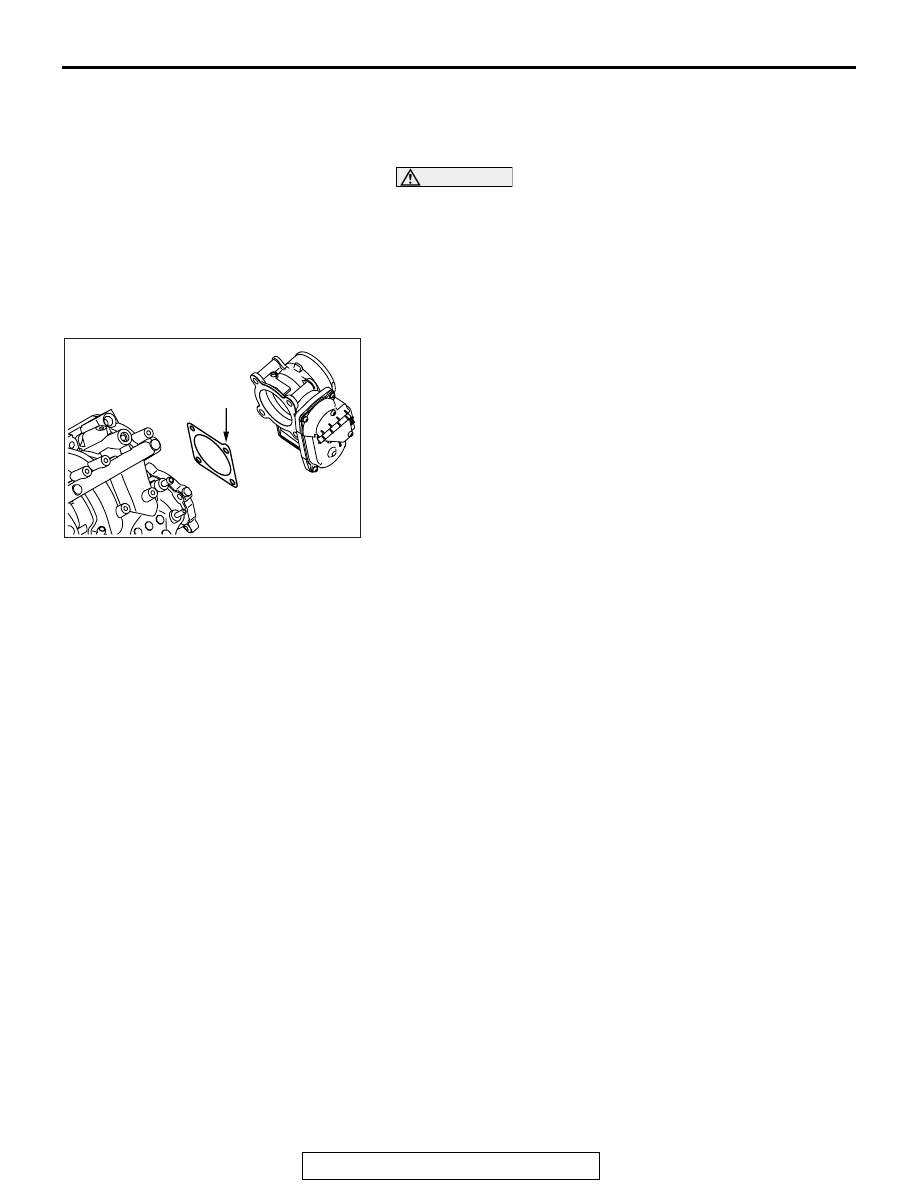

>>B<< THROTTLE BODY GASKET
INSTALLATION

AK702206AC

Tab

Install a new gasket so that the tab is positioned as shown in
the illustration.

INTAKE MANIFOLD AND FUEL SYSTEM

TSB Revision

ENGINE OVERHAUL

11B-16

INTAKE MANIFOLD AND FUEL SYSTEM

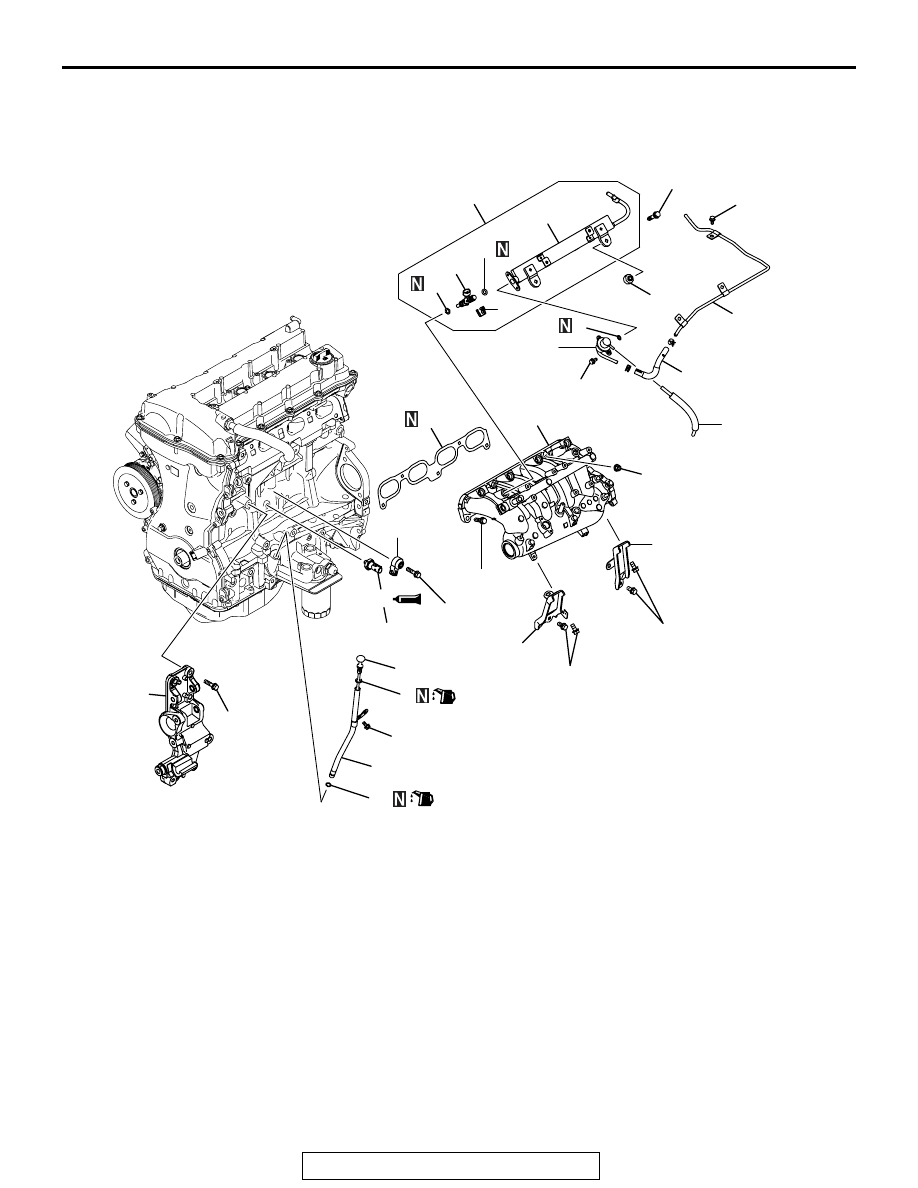

REMOVAL AND INSTALLATION

M1113032500423

AK702232

4

8

3

1

2

19

20

21

44 ± 8 N·m
33 ± 5 ft-lb

22

20 ± 2 N·m
15 ± 1 ft-lb

23

15

16

18

23 ± 6 N·m
17 ± 4 ft-lb

5.5 ± 1.5 N·m
49 ± 12 in-lb

12 ± 3 N·m
106 ± 26 in-lb

6

7

9

17

9.0 ± 3.0 N·m
80 ± 26 in-lb

11

12

13

14

10

AC

5

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

Removal steps

1. Oil dipstick rod
2. O-ring
3. Fuel return pipe
4. Fuel hose
5. Vacuum hose

>>G<<

6. Fuel pressure regulator
7. O-ring

>>F<<

8. Fuel rail assembly
9. Insulator

>>E<<

10.Injection support

>>E<<

11. O-ring

>>E<<

12.Injector

>>D<<

13.O-ring
14.Fuel rail

>>C<<

15.Intake manifold stay front

>>C<<

16.Intake manifold stay rear
17.Intake manifold
18.Intake manifold gasket
19.Oil dipstick guide
20.O-ring
21.Generator bracket

>>B<<

22.Knock sensor

>>A<<

23.Engine oil pressure switch

Required Special Tool:

• MB992106: O-ring Installer

Removal steps (Continued)

INTAKE MANIFOLD AND FUEL SYSTEM

TSB Revision

ENGINE OVERHAUL

11B-17

INSTALLATION SERVICE POINTS

.

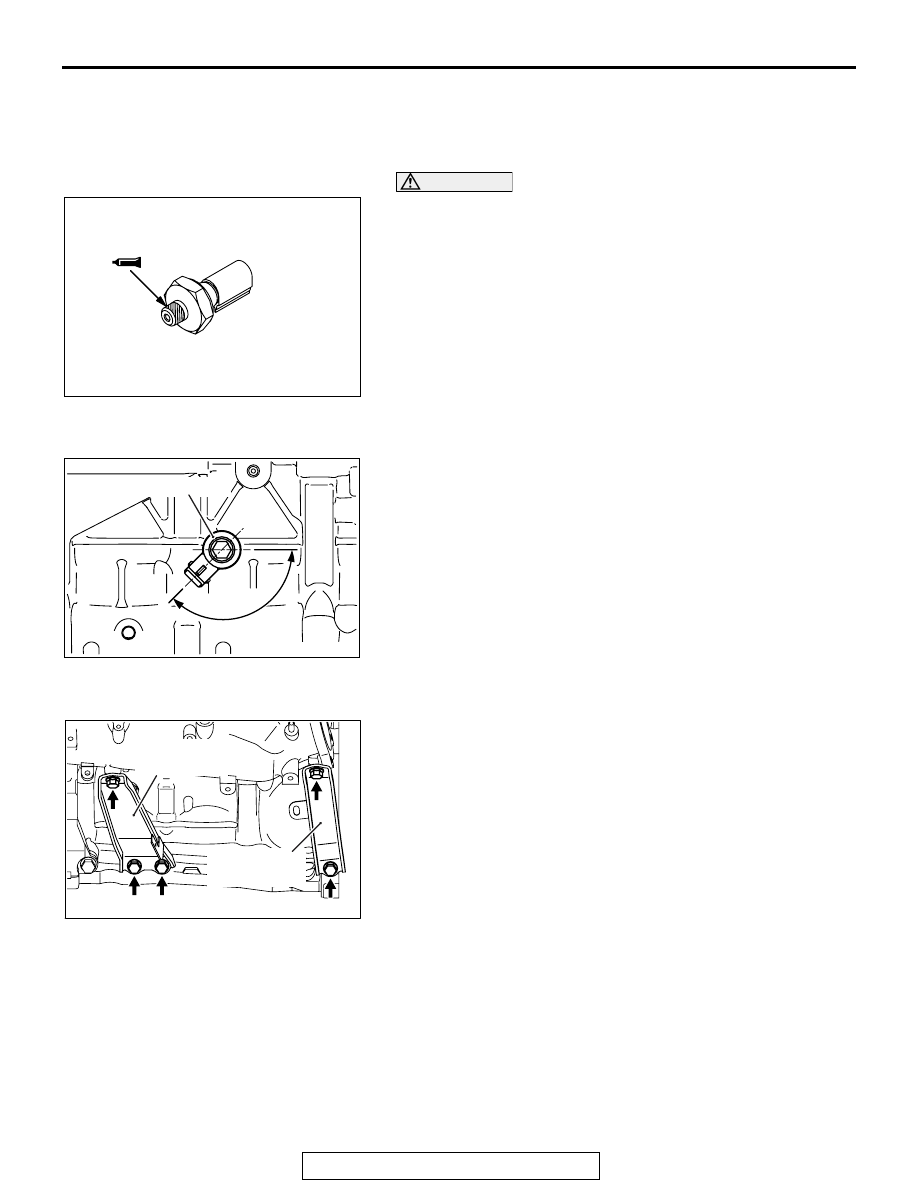

>>A<< ENGINE OIL PRESSURE SWITCH INSTAL-
LATION

AK502866AD

CAUTION

• Do not allow sealant to squeeze out to the screw tip.
• Do not exceed the specified torque.

1. Completely remove sealant adhering to the engine oil

pressure switch and cylinder block threaded holes.

2. Apply sealant (Three bond 1215, Three bond 1212D or

equivalent) of 5 mm (0.2 inch) to the threaded portion of the
engine oil pressure switch shown in the illustration.

3. Tighten the engine oil pressure switch to the cylinder block

to the specified torque.

Specified torque: 10

± 2 N⋅ m (89 ± 17 in-lb)

.

>>B<< KNOCK SENSOR INSTALLATION

AK702207AC

135˚

Knock sensor

Align the knock sensor connector with the position shown in the
illustration, and then tighten it to the specified torque.

Specified torque: 20

± 2 N⋅ m (15 ± 1 ft-lb)

.

>>C<< INTAKE MANIFOLD STAY INSTALLATION

AK702208AC

Intake manifold
stay front

Intake manifold
stay rear

Make sure that the intake manifold stay is in intimate contact
with the intake manifold and cylinder block boss before tighten-
ing it to the specified torque.

Specified torque: 23

± 6 N⋅ m (17 ± 4 ft-lb)

.

INTAKE MANIFOLD AND FUEL SYSTEM

TSB Revision

ENGINE OVERHAUL

11B-18

>>D<< O-RING INSTALLATION

AK502784AD

MB992106

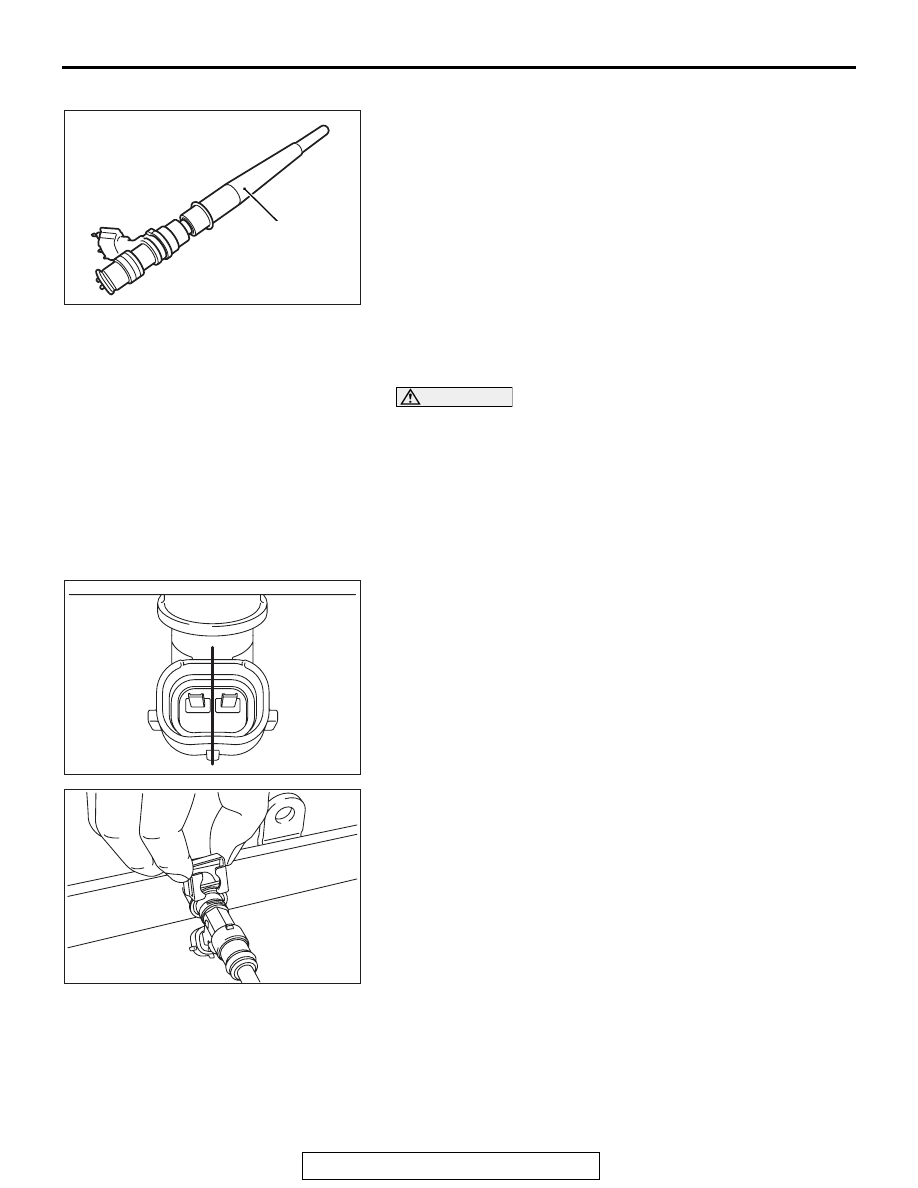

When inserting an O-ring into the injector on the injection noz-
zle side, use special tool MB992106 to gradually expand the
O-ring, and fit it in place.

.

>>E<< INJECTOR / O-RING / INJECTOR
SUPPORT INSTALLATION

CAUTION

Do not allow gasoline to enter the fuel rail.
1. Apply gasoline to the O-ring of the injector.
2. Insert the injector into the fuel rail while rotating the injector

from side to side, taking care not to damage the O-ring.

3. Check that the injector rotates smoothly. If it does not rotate

smoothly, the O-ring may be caught. Remove the injector
and check the O-ring for damage. Then, insert it again into
the fuel rail and check.

AK502744

4. Make sure that the protrusion of the injector is at the center

as shown in the illustration.

AK502745

5. Securely assemble the injector to the injector groove and

fuel rail collar.

.

>>F<< FUEL RAIL ASSEMBLY INSTALLATION

1. Apply gasoline to the pressure side O-ring of the injector.
2. Tighten the fuel rail assembly to the intake manifold to the

specified torque.

Specified torque: 12

± 3 N⋅ m (106 ± 26 in-lb)

.
