>>D<< THRUST CAMSHAFT BEARING
CAP/CAMSHAFT BEARING CAP/OIL FEEDING
CAMSHAFT BEARING CAP INSTALLATION

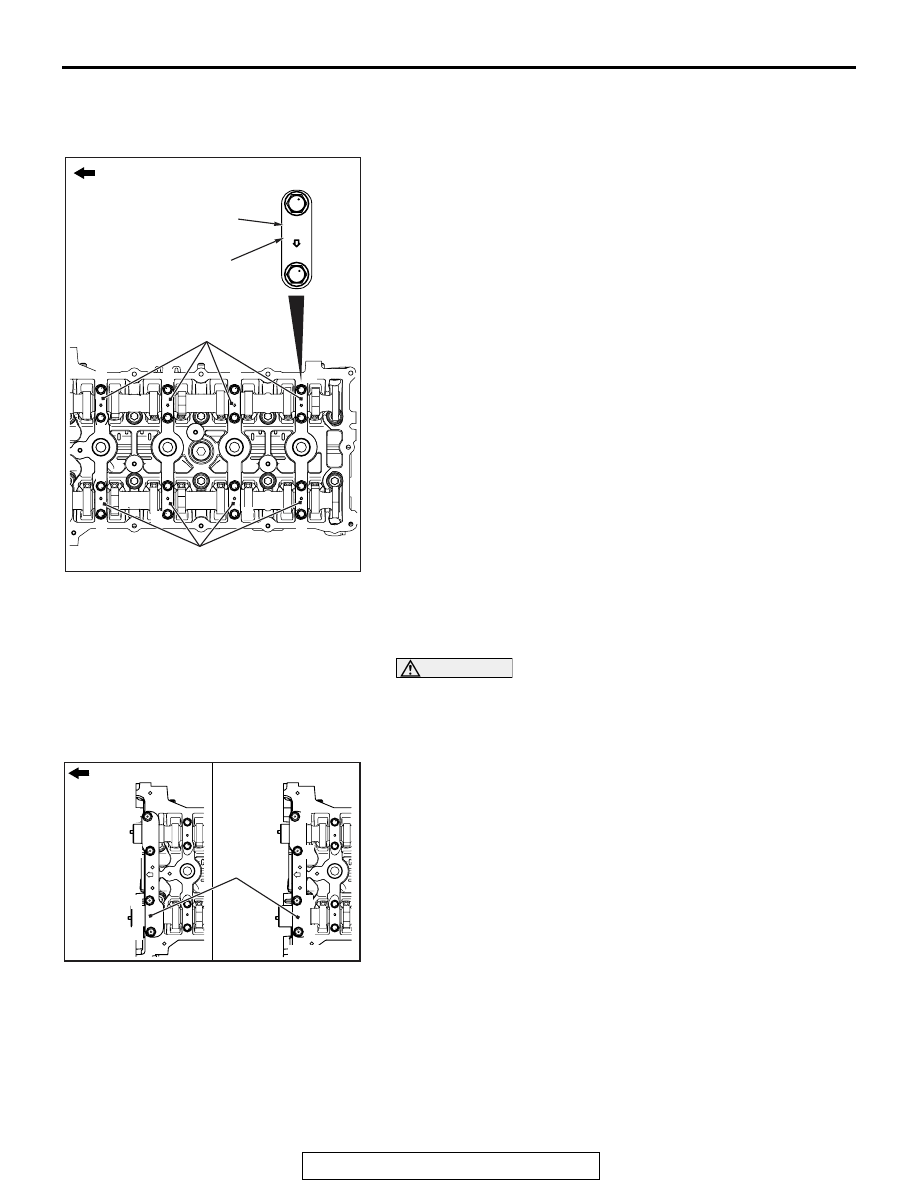

1. Install the camshaft bearing caps to the cylinder heads.

NOTE: Because the thrust camshaft bearing cap and cam-
shaft bearing cap are the same in shape, check the bearing
cap number and additionally its symbol to identify the intake
and exhaust sides for correct installation.

2. Tighten each camshaft bearing cap mounting bolt to the

specified torque in the order of number shown in the figure
in two or three steps.

Tightening torque: 12

± 1 N⋅ m (107 ± 8 in-lb)

.

>>E<< FRONT CAMSHAFT BEARING CAP
ASSEMBLY INSTALLATION

CAUTION

When the mounting bolts are tightened with the front cam-
shaft bearing cap tilted, the front camshaft bearing cap is
damaged. Install the front camshaft bearing cap properly
to the cylinder head and camshaft.
1. Install the front camshaft bearing cap to the cylinder head,

and temporarily tighten the front camshaft bearing cap to the
specified torque in the order of the figure (1).

Tightening torque: 17

± 3 N⋅ m (13 ± 2 ft-lb)

2. Tighten the front camshaft bearing cap again to the specified

torque in the order of the figure (2).

Tightening torque: 30

± 2 N⋅ m (23 ± 1 ft-lb)

.

AC506778

AC

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

E  5

Engine front

Camshaft bearing cap

Camshaft bearing cap

Bearing cap No.

Identification of intake side
and exhaust side

AC511062

AC

4

3

2

1

4

3

2

1

(1)

(2)

Engine front

Front
camshaft
bearing
cap
assembly

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-68

>>F<< FUEL HIGH-PRESSURE HOSE
CONNECTION

CAUTION

• When pushing in the retainer of the fuel high-pressure

hose connector, pay attention to avoid damage to the
retainer.

• After the installation of the fuel high-pressure hose,

slightly pull the fuel high-pressure hose to check that it
is connected securely. At this time, also check that
there is approximately 1 mm (0.04inch) play.

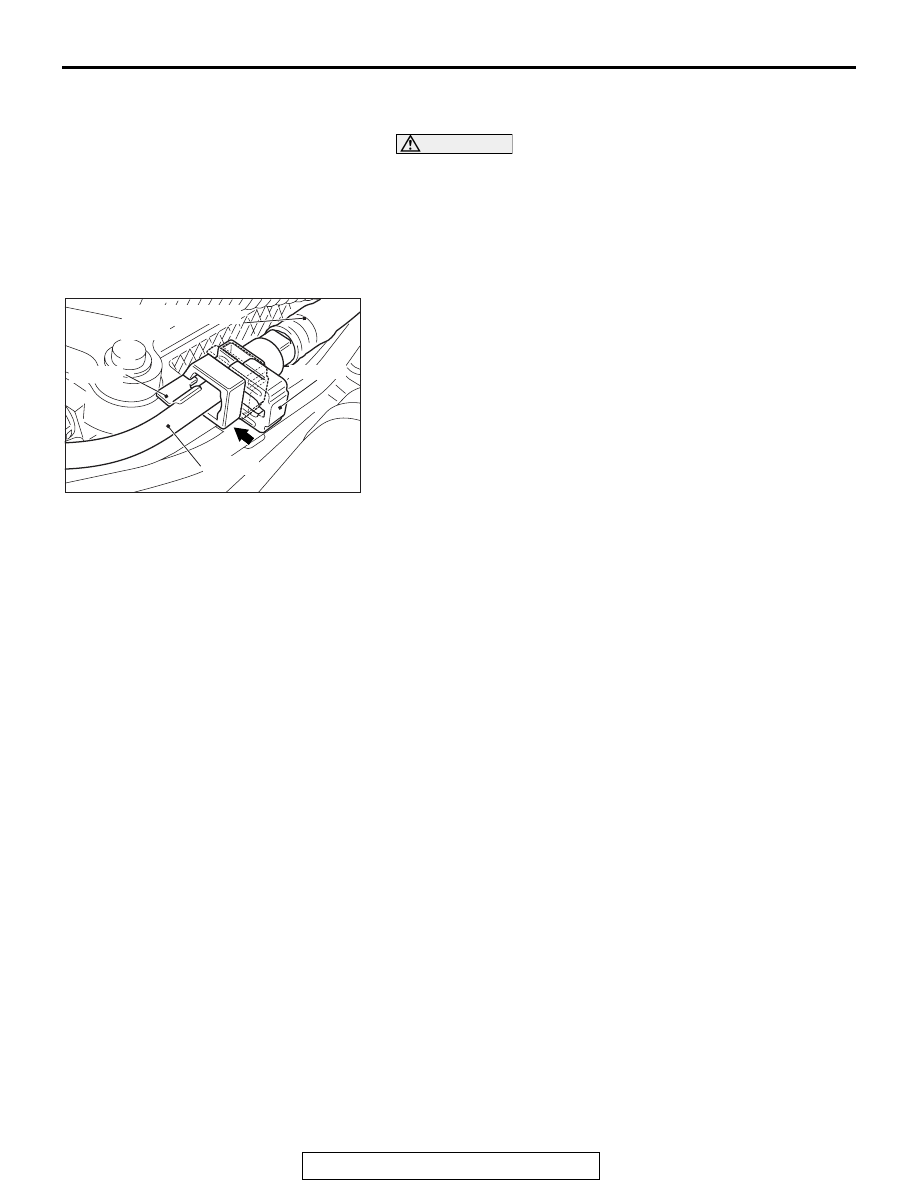

1. Securely insert the fuel rail stopper into the fuel

high-pressure hose connector groove to install the fuel
high-pressure hose to the fuel rail.

2. Push in the retainer of the fuel high-pressure hose

connector to lock the fuel high-pressure hose and fuel rail.

AC506794 AB

Fuel high-pressure
hose

Fuel rail

Retainer

Stopper

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL

11A-69

TIMING CHAIN

REMOVAL AND INSTALLATION

M1112007200454

Pre-removal operation
• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Removal (Refer to GROUP 51, Under Cover

P.51-16

).

• Strut Tower Bar Removal (Refer to GROUP 42A, Strut

Tower Bar

P.42A-15

).

• Rocker Cover Assembly Removal (Refer to

P.11A-25

).

• Engine Oil Pan Removal (Refer to

P.11A-51

).

Post-installation operation
• Engine Oil Pan Installation (Refer to

P.11A-51

).

• Rocker Cover Assembly Installation (Refer to

P.11A-25

).

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-5

).

• Strut Tower Bar Installation (Refer to GROUP 42A, Strut

Tower Bar

P.42A-15

).

• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Installation (Refer to GROUP 51, Under Cover

P.51-16

).

AC708523AC

1

2

3

4

6

8

9

10

11

12

5

N

7

N

24 ± 4 N·m
18 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

48 ± 7 N·m
36 ± 5 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

9.0 ± 1.0 N·m
80 ± 9 in-lb

23 ± 2 N·m
17 ± 1 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

Apply engine oil to all
moving parts before
installation.

48 ± 7 N·m
36 ± 5 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

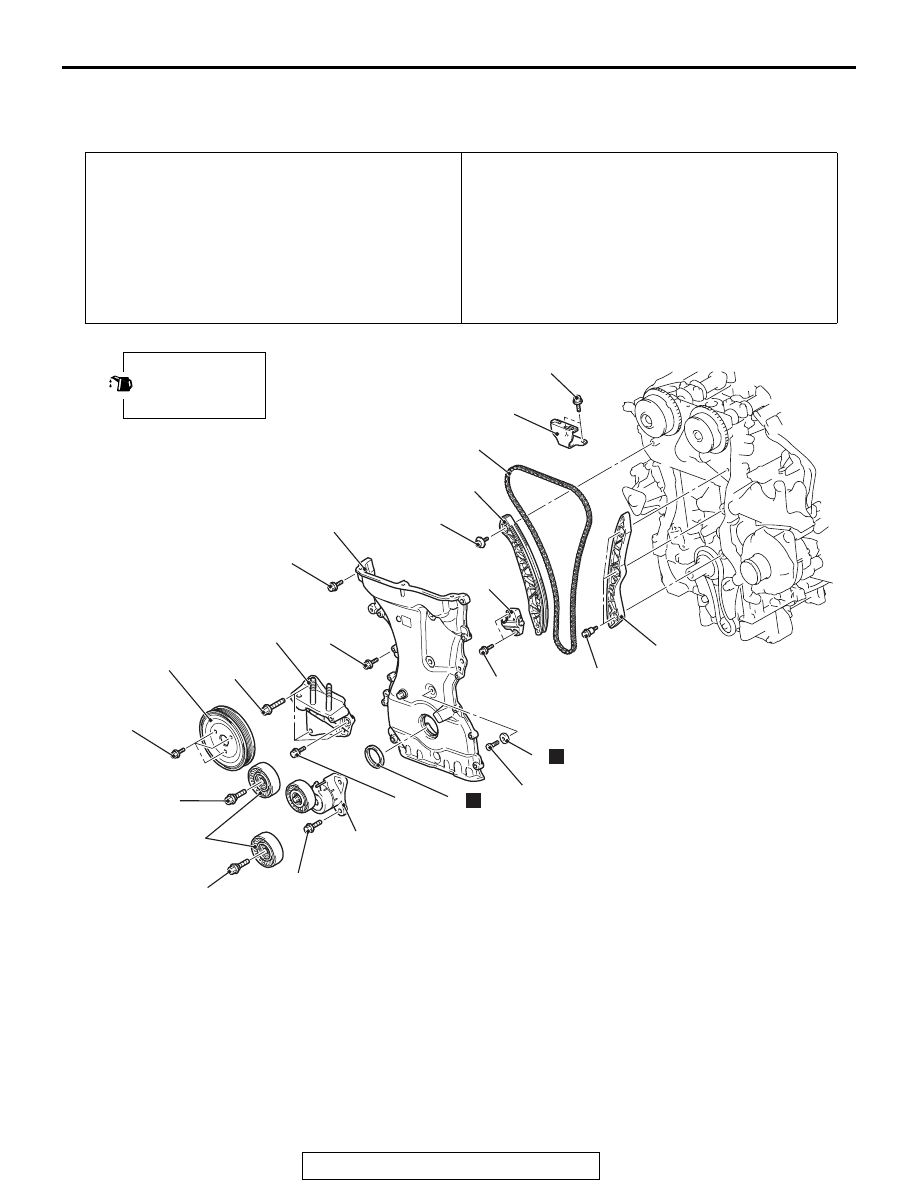

Removal steps

<<

A

>>

•

Power steering oil pump assembly
(Refer to GROUP 37, Power
Steering Oil Pump

P.37-38

)

•

Headlight support panel cover
(Refer to GROUP 51, Front
Bumper Assembly and Radiator
Grille

P.51-3

)

<<

B

>>

•

Engine and transaxle assembly
holding

•

Engine mounting bracket (Refer to
GROUP 32, Engine Mounting

P.32-4

)

<<

C

>>

•

Crankshaft pulley (Refer to

P.11A-21

)

>>

E

<<

1.

Water pump pulley

2.

Idler pulley

<<

D

>>

3.

Auto-tensioner

4.

Cylinder block engine front
mounting bracket

Removal steps (Continued)

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL

11A-70

Required Special Tools:

• MB991454: Engine Hanger Balancer

• MB991895: Engine Hanger

• MB991928: Engine Hanger

• MB991448: Bush Remover And Installer Base

REMOVAL SERVICE POINTS

.

<<A>> POWER STEERING OIL PUMP ASSEMBLY
REMOVAL

1. Remove the power steering oil pump assembly with hose on

it.

2. Tie the removed power steering oil pump with a string at a

position where it will not interfere with the removal and
installation of timing chain.

.

<<B>> ENGINE AND TRANSAXLE ASSEMBLY
HOLDING

Install a special tool for holding the engine and transaxle
assembly.
1. <Engine hanger MB991928 is used>

(1) Assemble the engine hanger (special tool MB991928).

Set the following parts on the base hanger.

• Slide bracket (HI)

• Foot x 4 (standard) (MB991932)

• Joint x 2 (140) (MB991931)

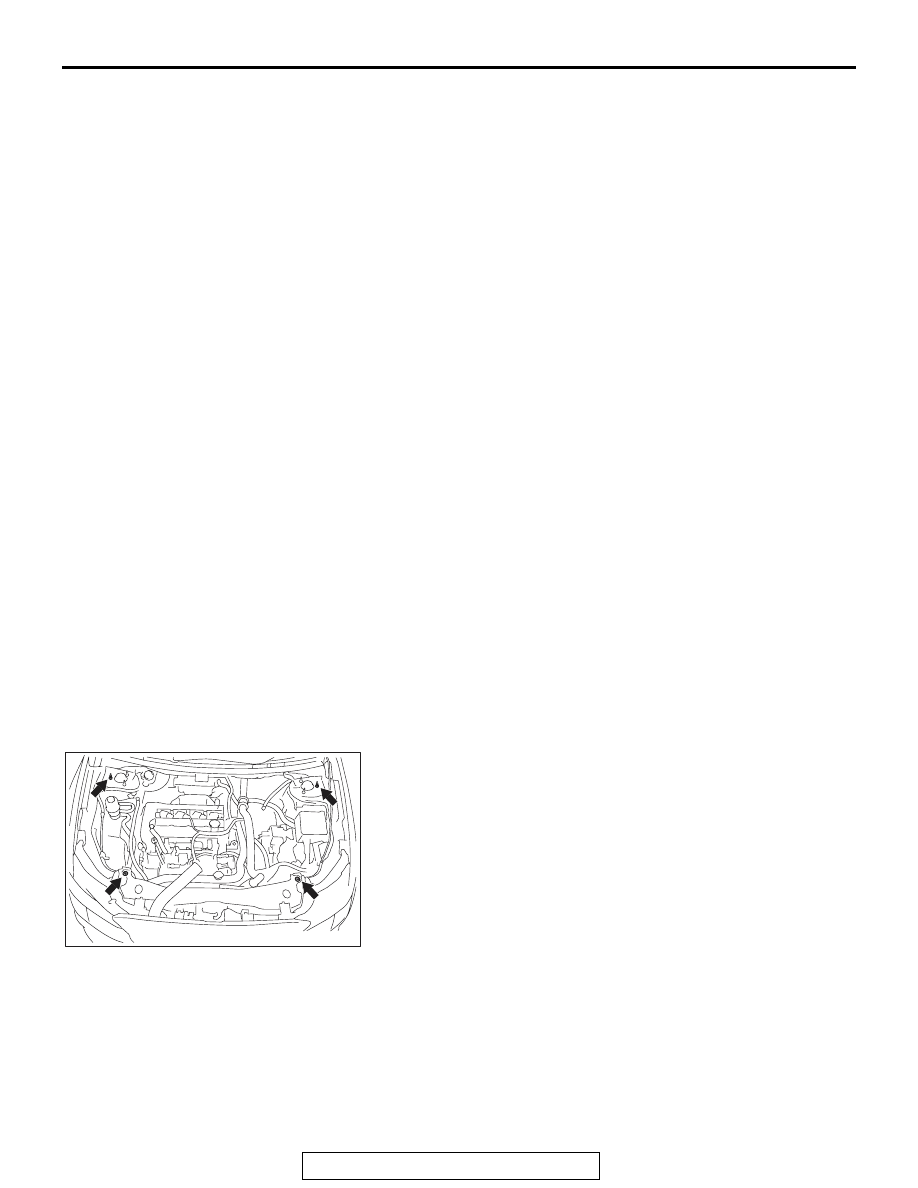

(2) Set the foot of the special tool as shown in the figure.

NOTE: Slide the slide bracket (HI) to adjust the engine
hanger balance.

5.

Gasket

<<

E

>>

>>

D

<<

6.

Timing chain case assembly

>>

C

<<

7.

Crankshaft front oil seal

8.

Timing chain upper guide

<<

F

>>

>>

B

<<

9.

Timing chain tensioner

10. Timing chain tension side guide

>>

A

<<

11. Timing chain
12. Timing chain loose side guide

Removal steps (Continued)
