Blower relay

Heated seat relay

Rear window defogger relay

ETACS-ECU

OTHER DEVICES

TSB Revision

COMPONENT LOCATIONS

70-3

OTHER DEVICES

M1701005600517

Name

Symbol

Name

Symbol

A/C compressor clutch assembly
(incorporating A/C refrigerant
temperature switch)

B

Power steering pressure switch

A

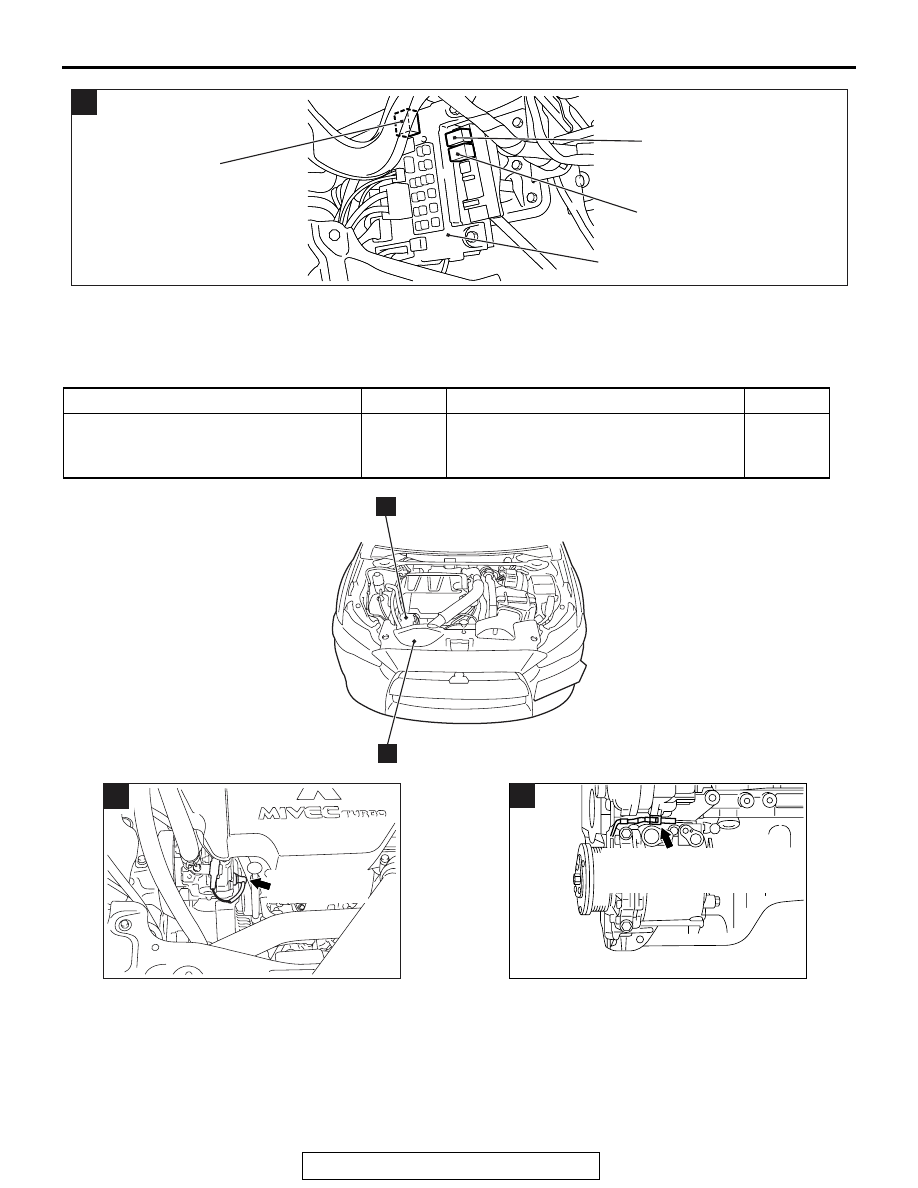

AC708727AB

A

B

AC708729AB

Power steering
pressure switch

A

AC708730

AB

A/C compressor clutch assembly
(incorporating A/C refrigerant
temperature switch)

B

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-4

CONTROL UNIT

M1701000700724

Name

Symbol

Name

Symbol

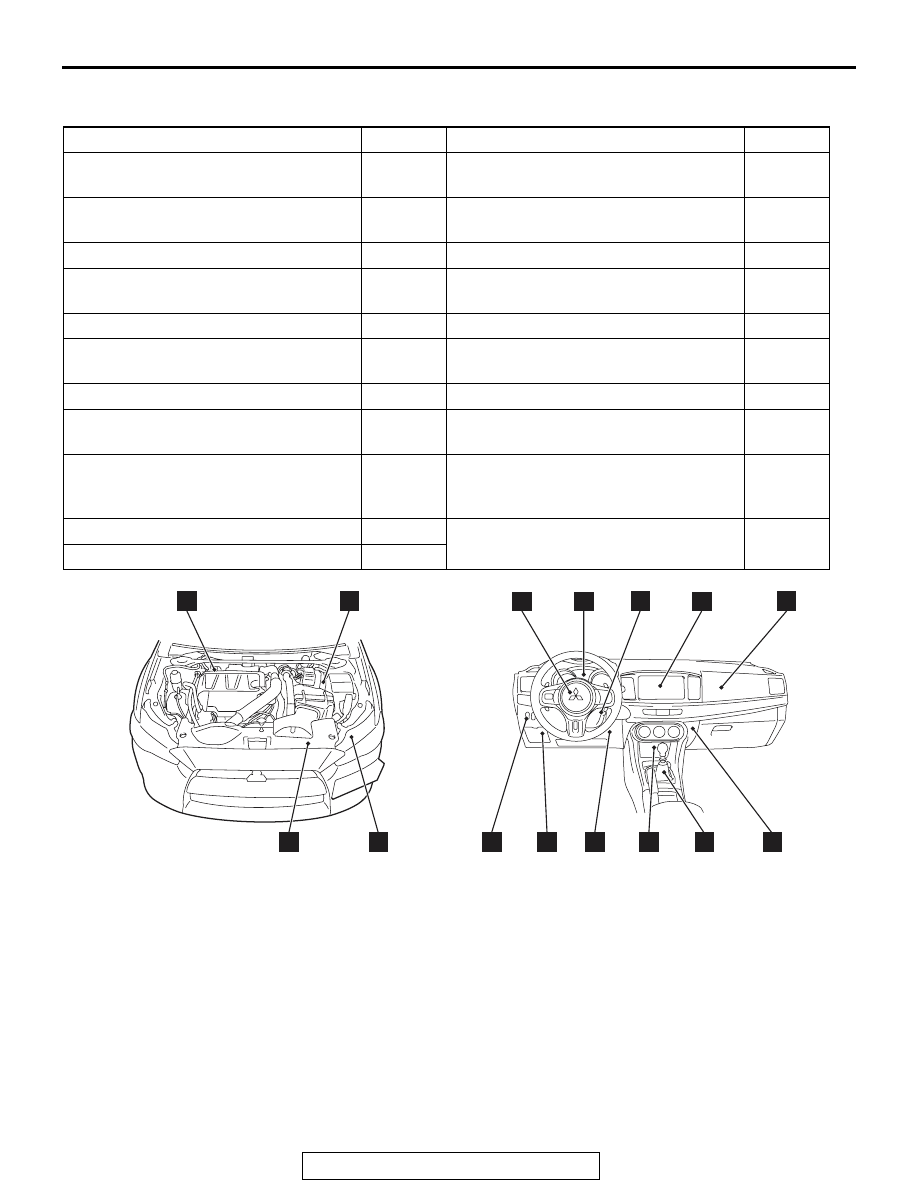

A/C-ECU

O

Multivision display <Vehicles with
MMCS>

H

ASC-ECU

A

Power window main switch
(incorporating CPU)

R

CAN box unit <Vehicles with MMCS>

H

Receiver antenna assembly

S

Column switch (incorporating
column-ECU)

E

Receiver antenna module <Vehicles
with KOS>

G

Combination meter (incorporating CPU) F

S-AWC-ECU

J

Headlight assembly (incorporating
discharge-ECU)

D

Shift lever (incorporating CPU)
<TC-SST>

N

Engine control module

B

SRS-ECU

M

ETACS-ECU

K

Sunroof motor assembly (incorporating
CPU)

Q

Front seat assembly (RH)
(incorporating occupant
classification-ECU)

P

Transaxle assembly (incorporating
ECU) <TC-SST>

C

Hands free module

I

Wireless control module <Vehicles
without KOS>

G

KOS-ECU

L

AC708720

K

C

L

N

O

M

AC

B

A

D

*

E

F

G

I

H

J

AC705160

P

Q

AE

S

R

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-5

NOTE: The * symbols indicate equipped at both side.

AC605629

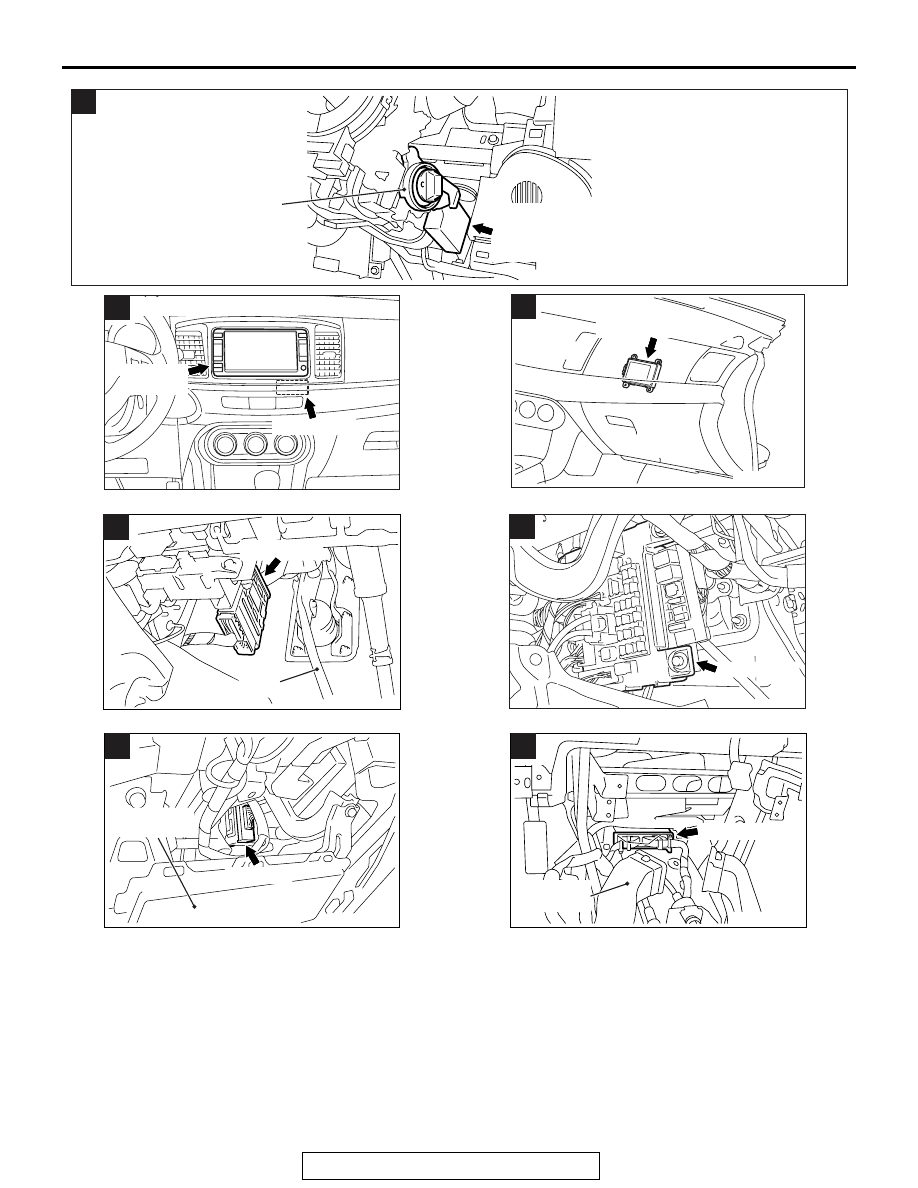

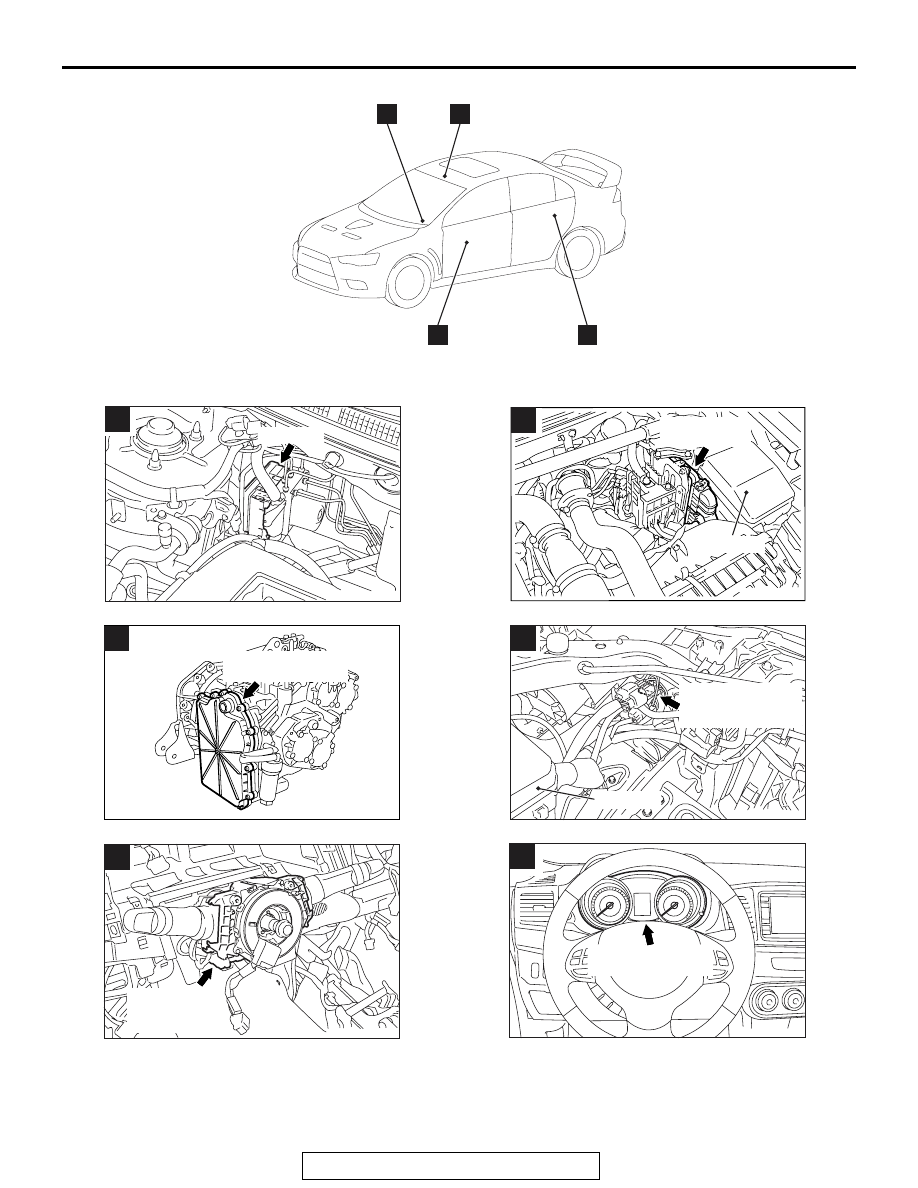

A

AE

ASC-ECU

AC708721AB

Engine control
module

B

Relay box

AC705481

AD

Transaxle assembly
(incorporating ECU)

C

<TC-SST>

AC612171AE

Headlight assembly
(incorporating
discharge-ECU)

D

Relay box

AC605634

Column switch
(incorporating
column-ECU)

E

AD

AC605635AD

Combination meter
(incorporating CPU)

F

AC605640

AE

Wireless control module
<Vehicles without KOS>
Receiver antenna module
<Vehicles with KOS>

G

Ignition switch

AC605631AE

CAN box unit

H

Multivision
display

<Vehicles with MMCS>

AC701683AC

Hands free module

I

AC708724

AB

J

S-AWC-ECU

Brake
pedal

AC605637AF

K

ETACS-ECU

AC605632

AD

L

KOS-ECU

Knee air bag
module

AC605641

AG

M

SRS-ECU

Rear heater
duct (LH)

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS
