ABS, ASC, ACD, AYC AND S-AWC <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-253

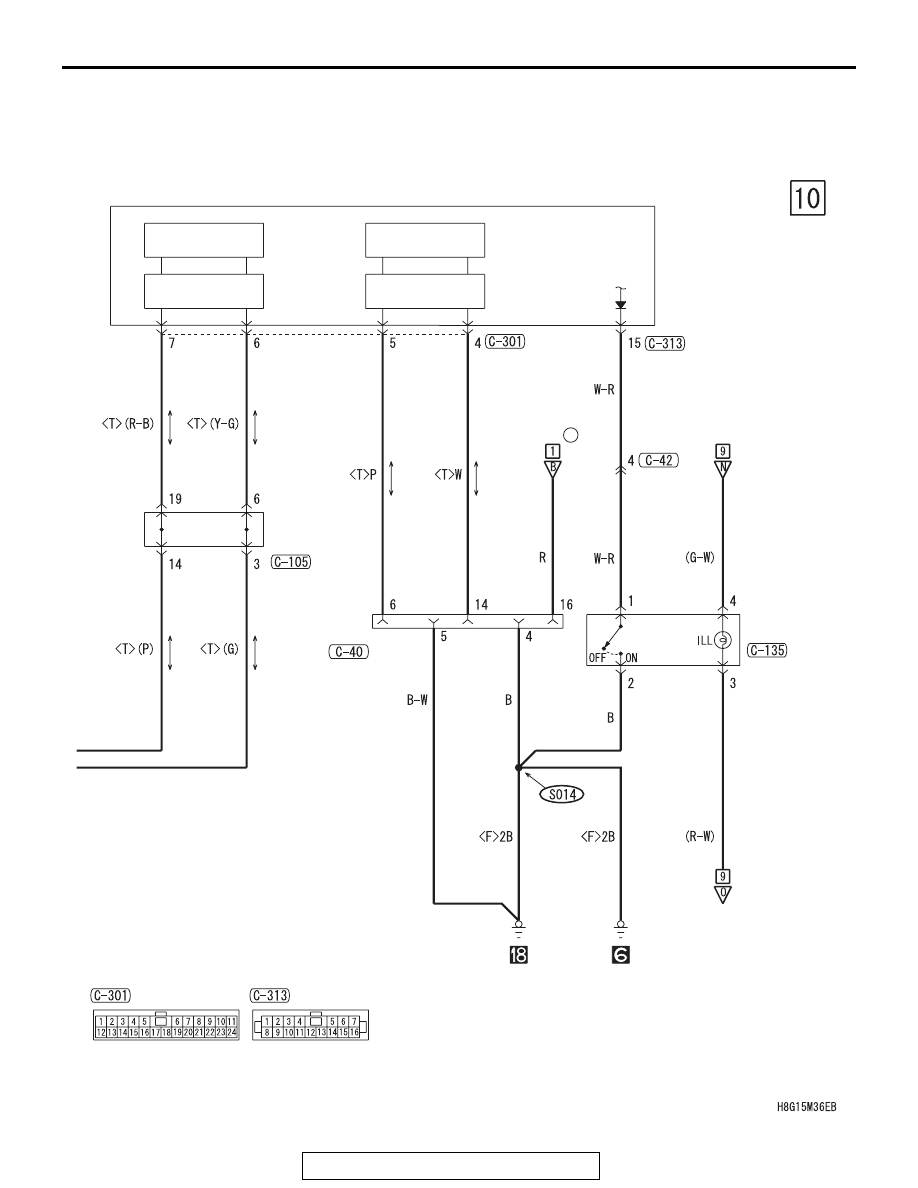

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

DATA LINK
CONNECTOR

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ETACS-ECU

(FUSE    )

5

JOINT
CONNECTOR
(CAN1)

COMBINATION
METER

ASC OFF
SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

ABS, ASC, ACD, AYC AND S-AWC <TC-SST>

TSB Revision

CIRCUIT DIAGRAMS

90-254

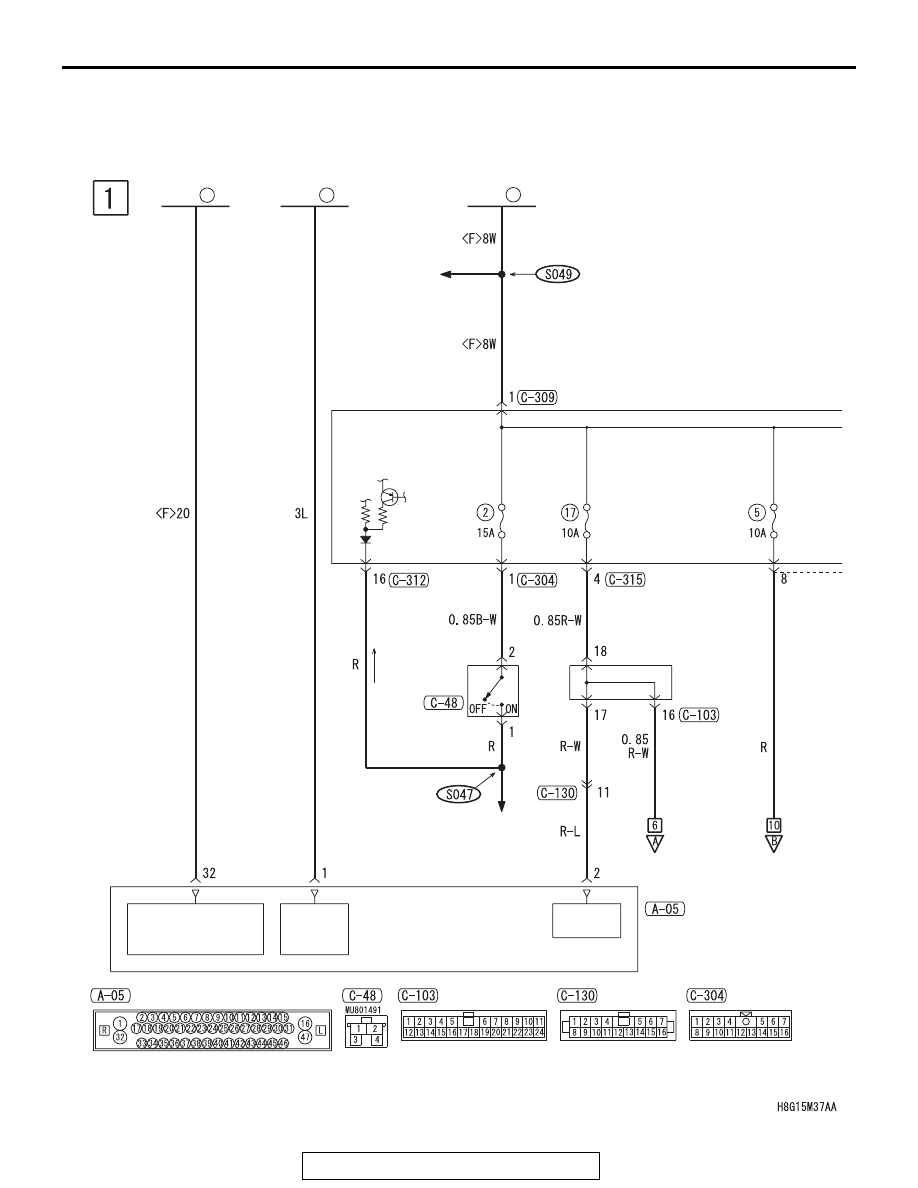

ABS, ASC, ACD, AYC AND S-AWC <TC-SST>

M1901032500068

HEATED
SEAT

FUSIBLE
LINK

27

FUSIBLE
LINK

26

ETACS-ECU

STOPLIGHT
SWITCH

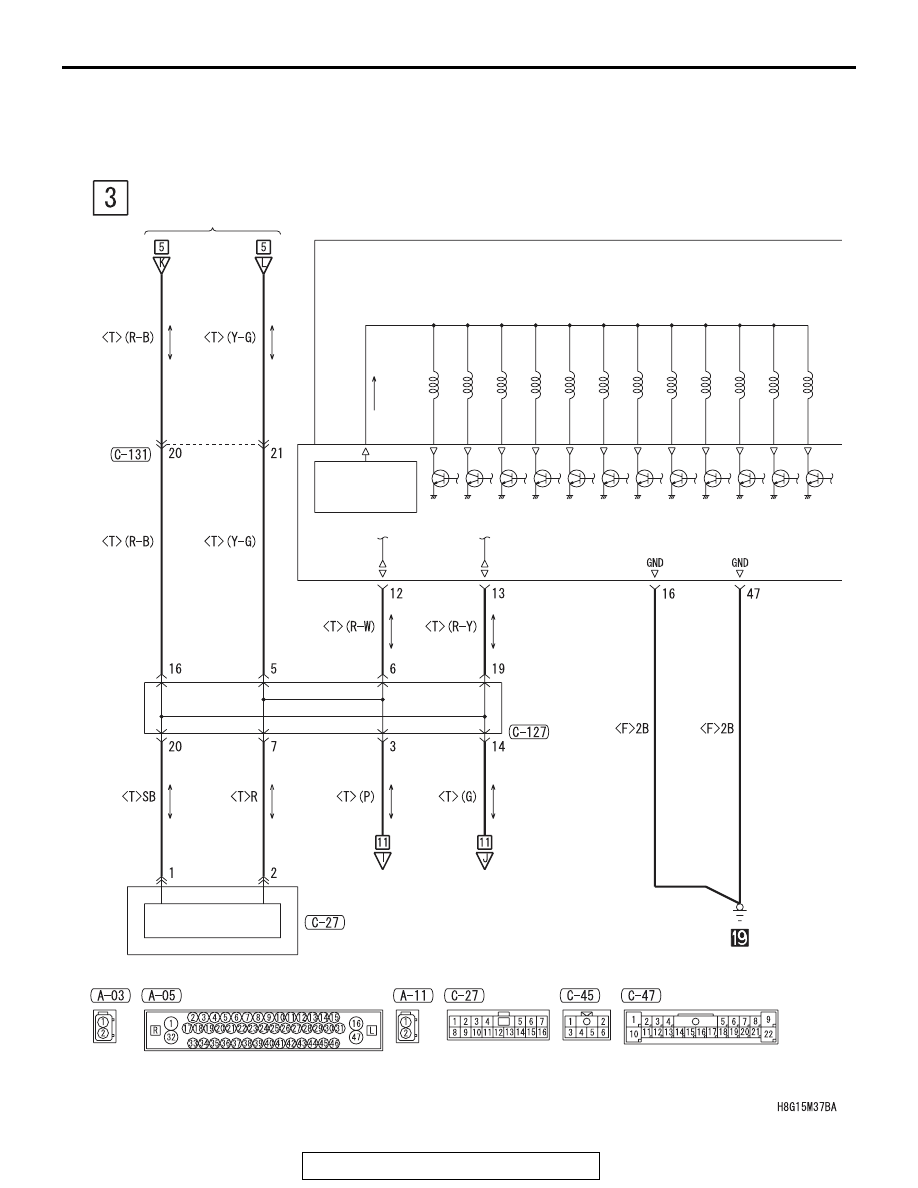

ASC-ECU

SOLENOID
VALVE POWER
SUPPLY

MOTOR
POWER
SUPPLY

POWER
SUPPLY

FUSIBLE
LINK

34

·SHIFT LOCK
 MECHANISM
·STOPLIGHT

JOINT
CONNECTOR
(3)

ABS, ASC, ACD, AYC AND S-AWC <TC-SST>

TSB Revision

CIRCUIT DIAGRAMS

90-255

·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT
 AND IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE ALARM
·TC-SST
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

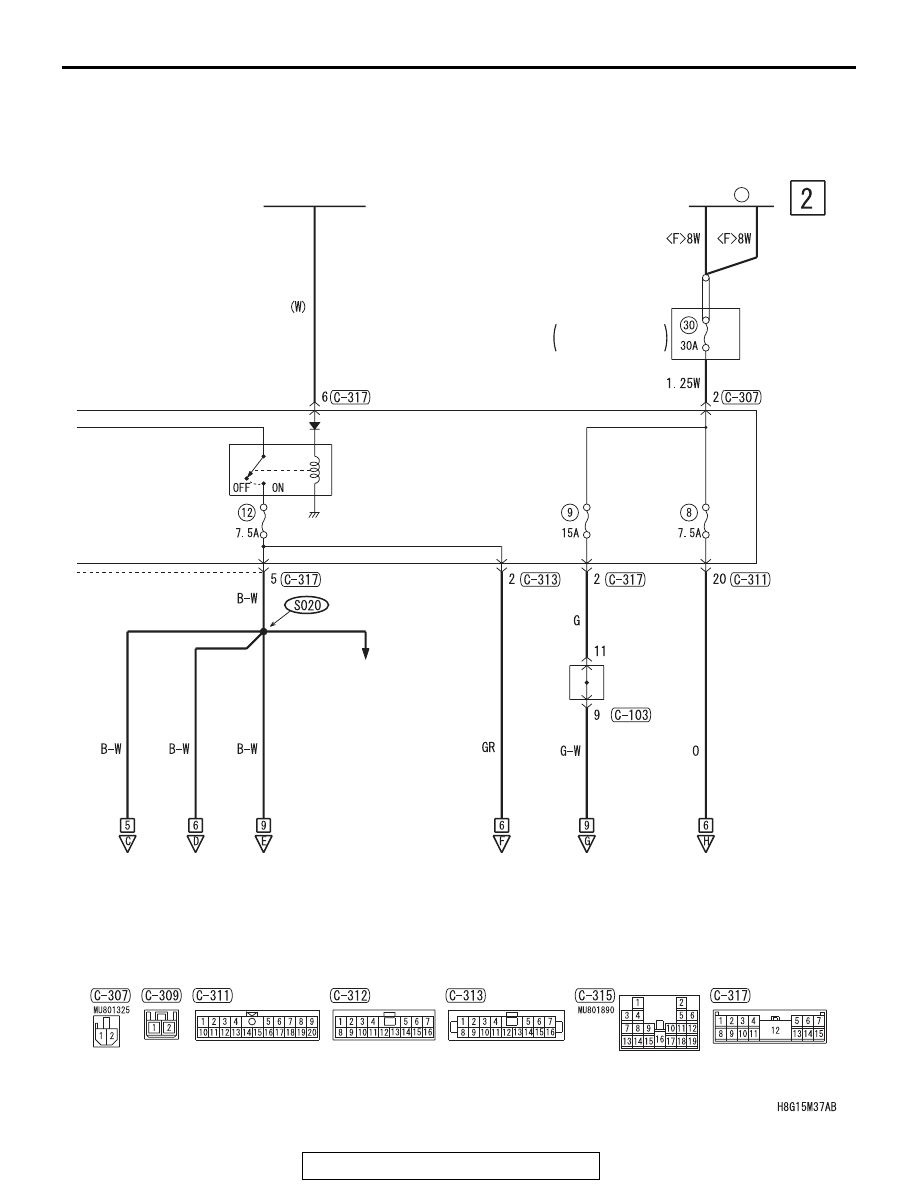

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

36

IG1
RELAY

RELAY BOX

ENGINE
COMPARTMENT

JOINT
CONNECTOR
(3)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

ABS, ASC, ACD, AYC AND S-AWC <TC-SST>

TSB Revision

CIRCUIT DIAGRAMS

90-256

ABS, ASC, ACD, AYC AND S-AWC <TC-SST> (CONTINUED)

SOLENOID
VALVE POWER
SUPPLY

SOLENOID VALVE

HYDRAULIC UNIT

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

CPU

SHIFT
LEVER
