Mitsubishi Evolution X. Manual - part 1227
ABS, ASC, ACD, AYC AND S-AWC <M/T>
TSB Revision

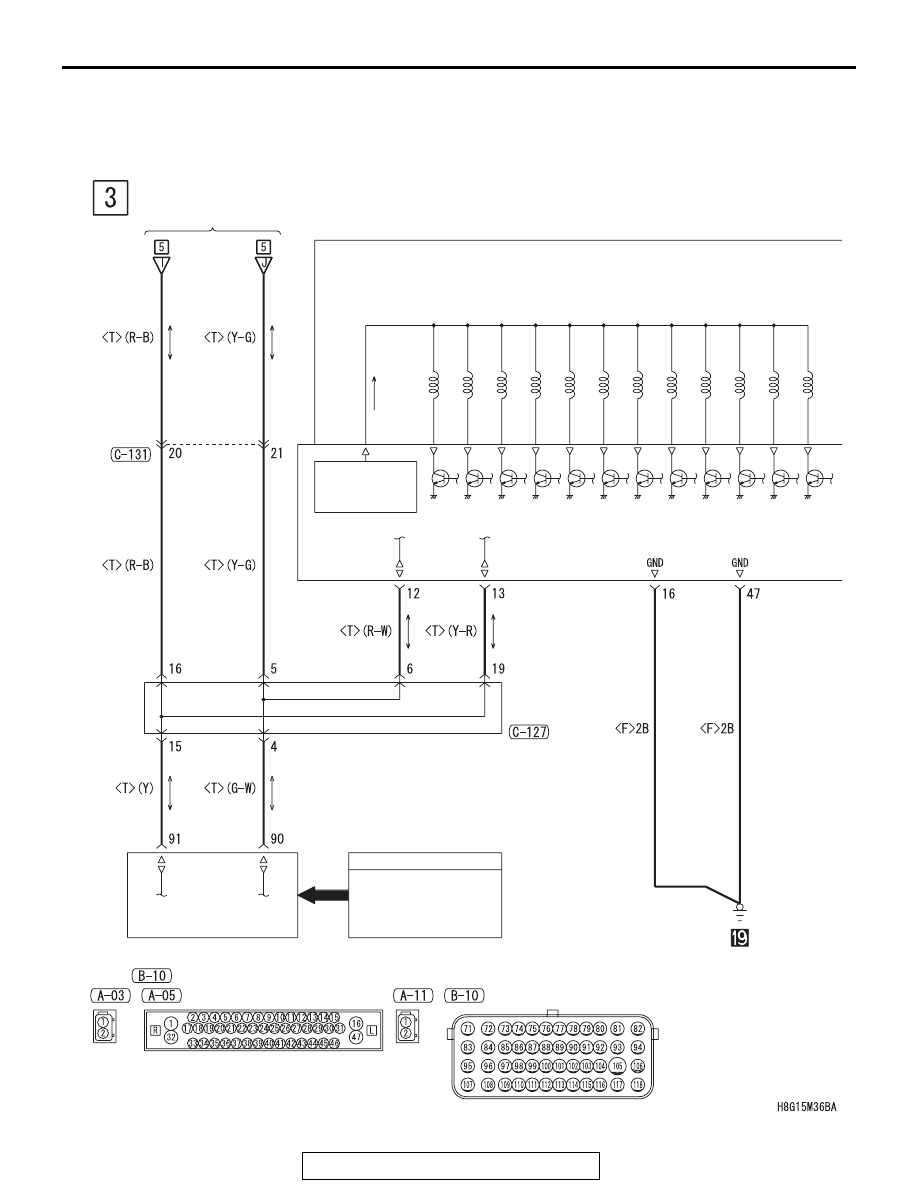

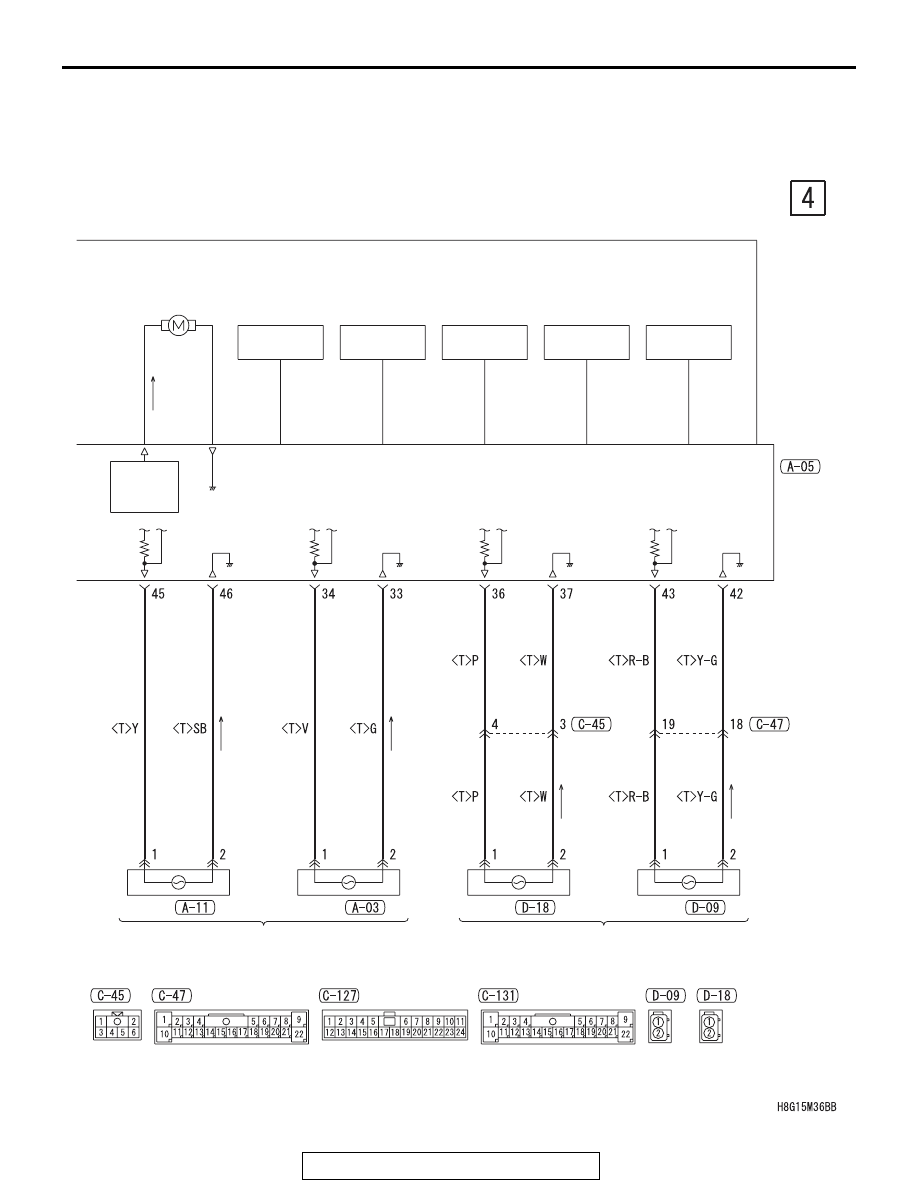

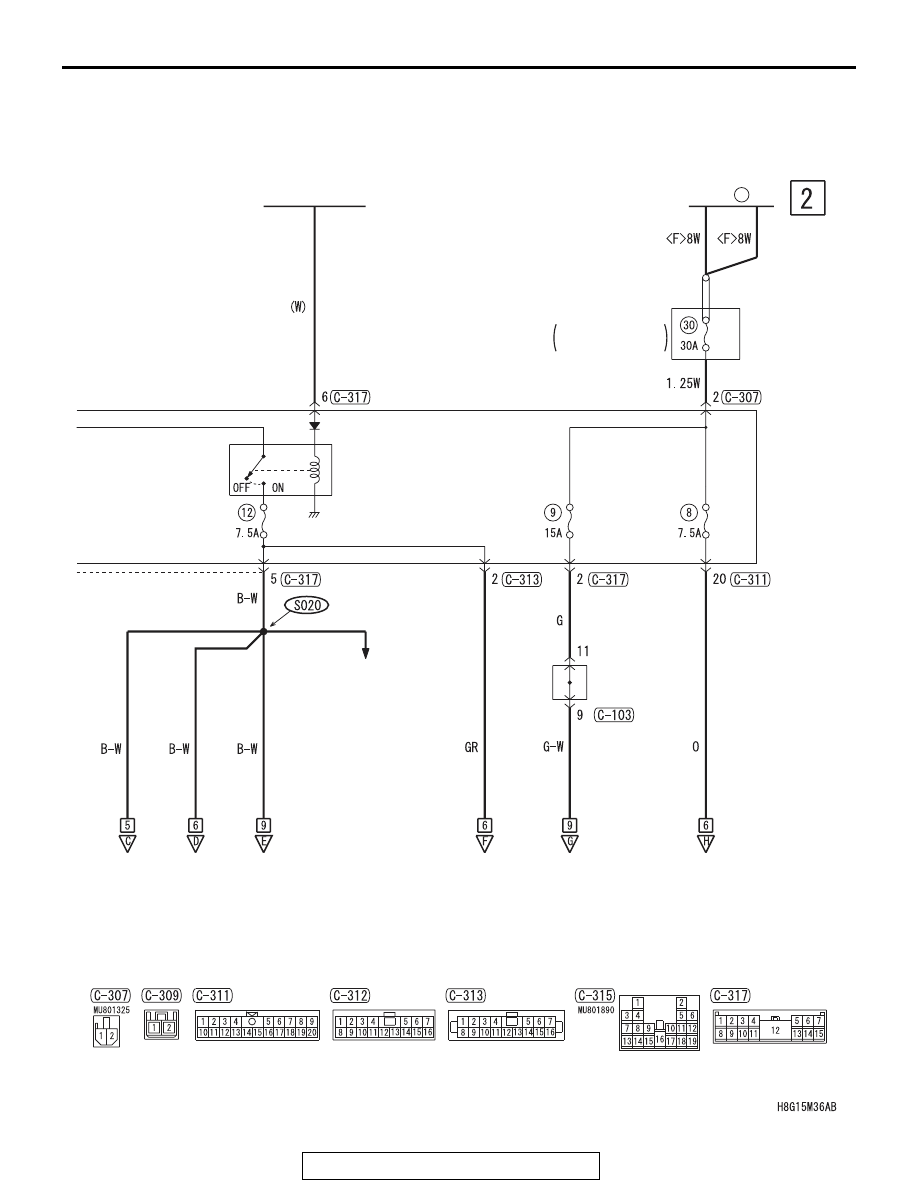

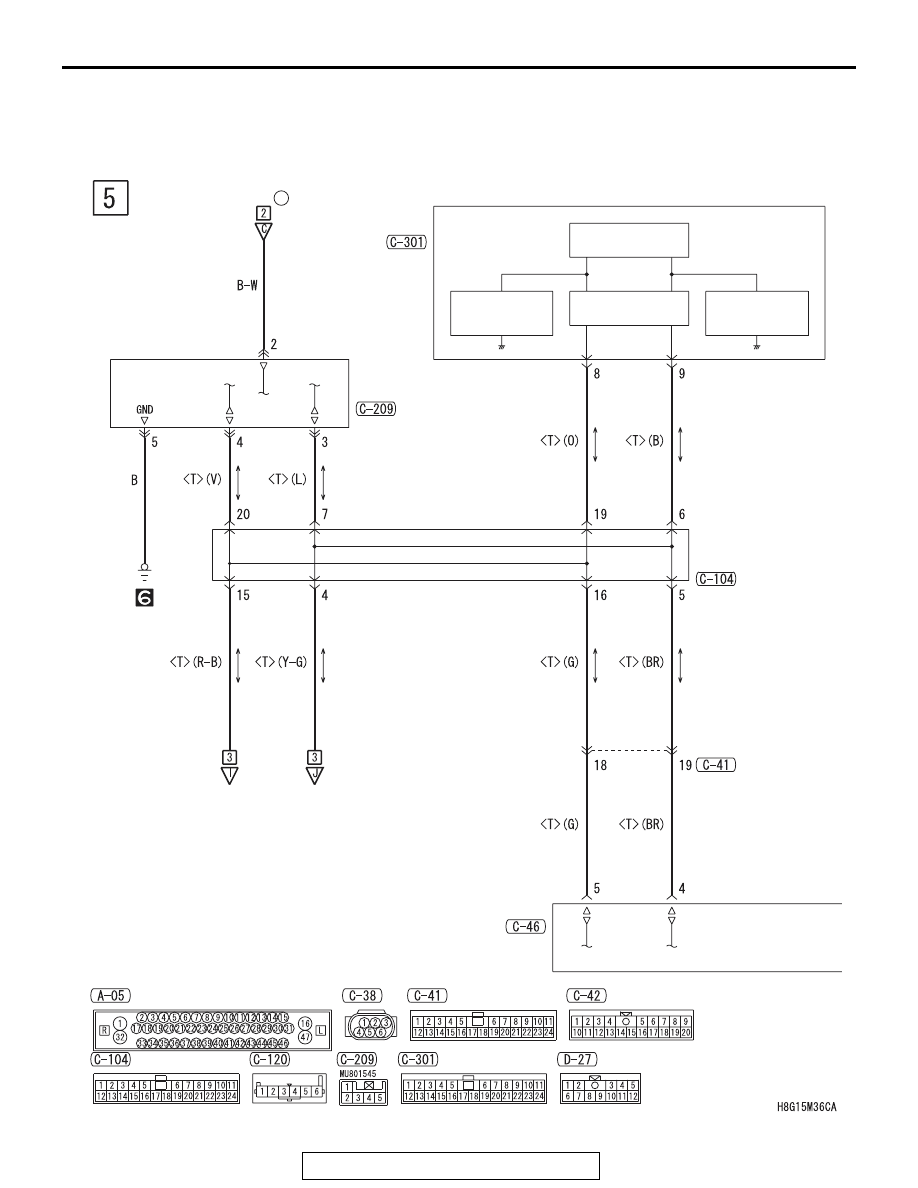

CIRCUIT DIAGRAMS
90-245
IGNITION
SWITCH (IG1)
FUSIBLE
LINK
36
IG1
RELAY
RELAY BOX
ENGINE
COMPARTMENT
JOINT
CONNECTOR
(3)
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT
AND IGNITION KEY HOLE
ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER TONE
ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM
(KOS)
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING TONE ALARM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
