Mitsubishi Evolution X. Manual - part 1208
CENTRAL DOOR LOCKING SYSTEM
TSB Revision

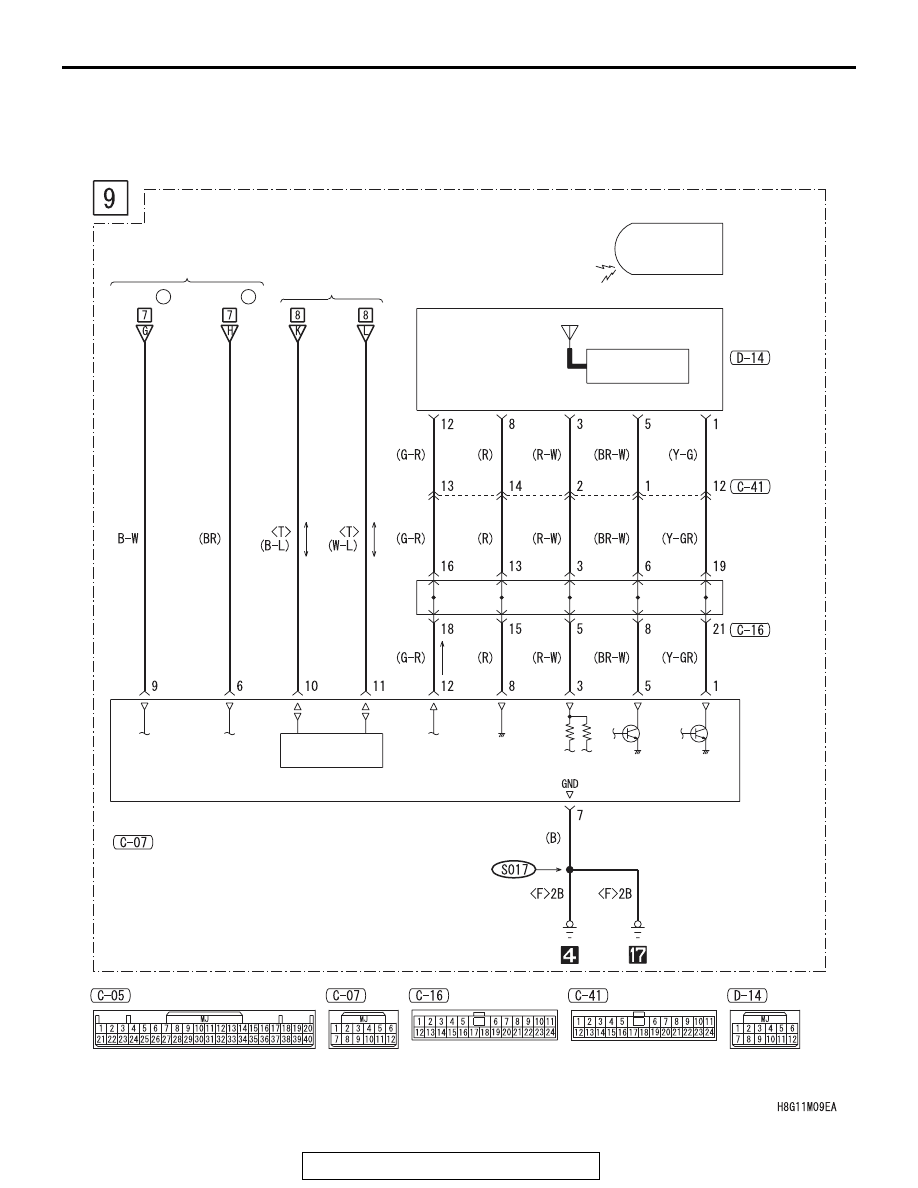

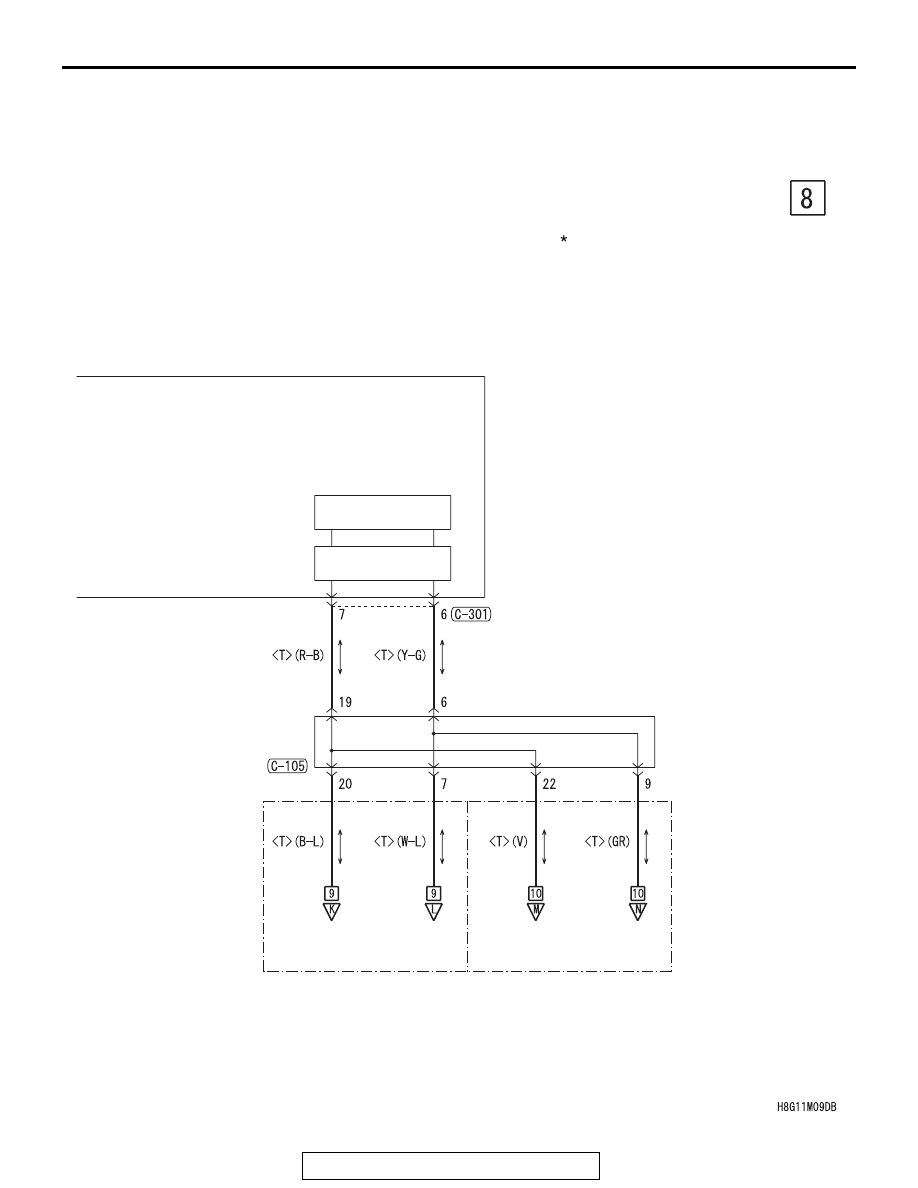

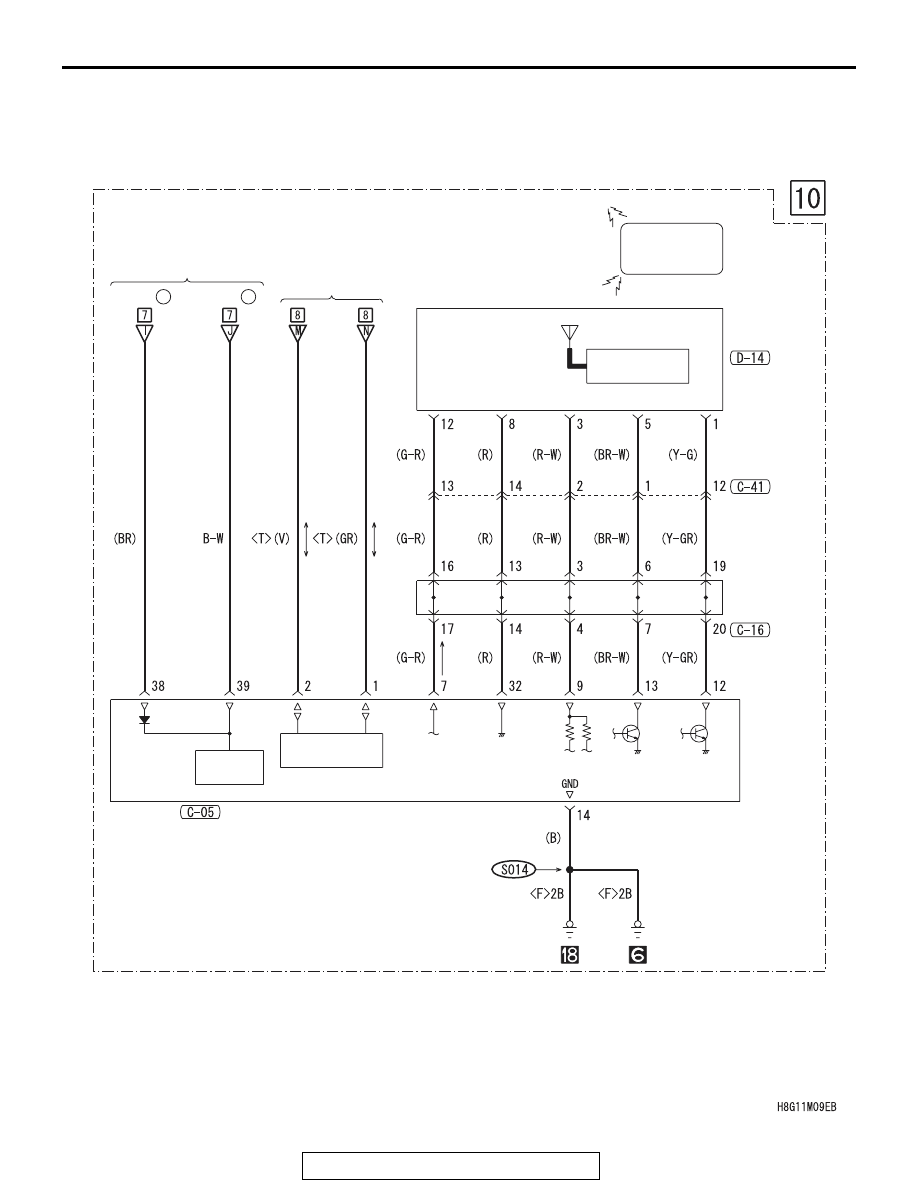

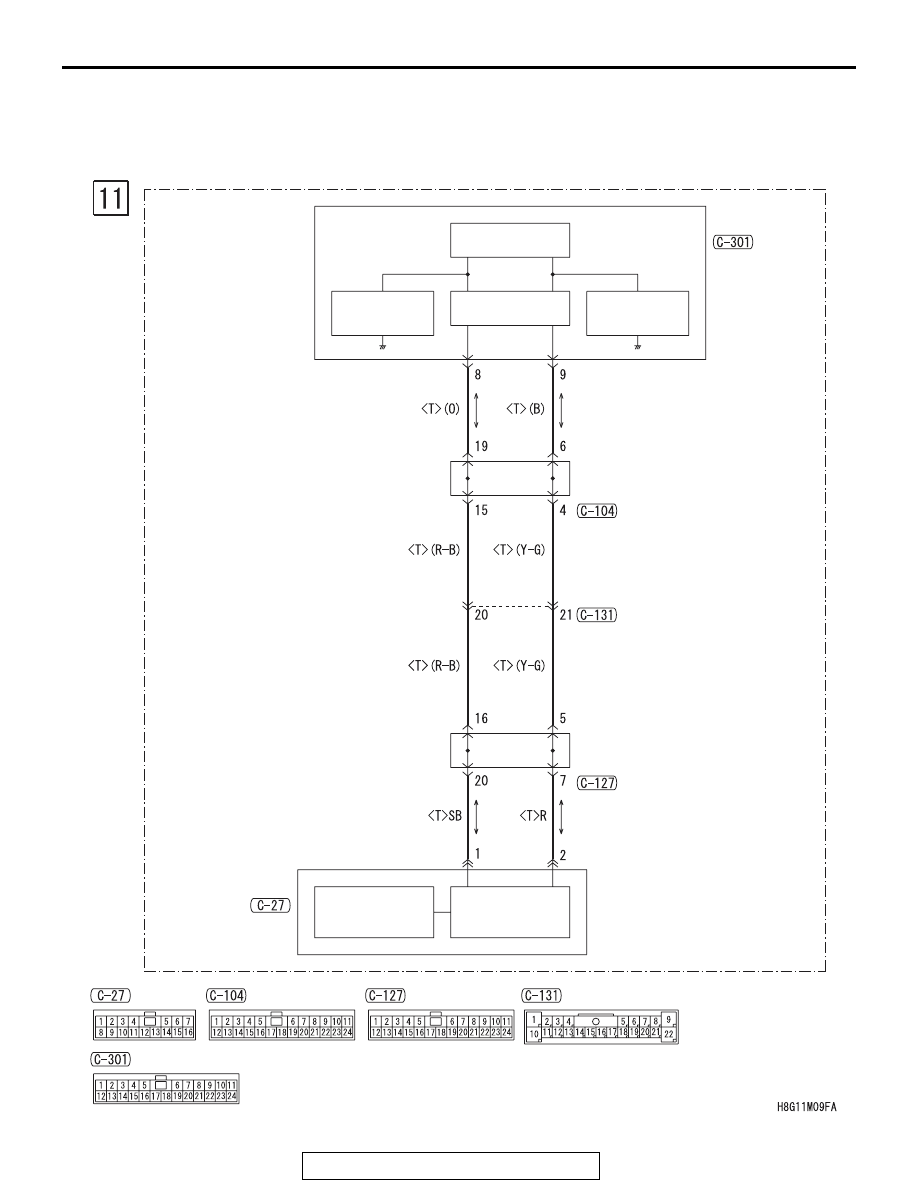

CIRCUIT DIAGRAMS
90-169
JOINT
CONNECTOR
(CAN1)
CAN DRIVE
CIRCUIT
INTERFACE
CIRCUIT
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
<VEHICLES WITHOUT KOS>
<VEHICLES WITH KOS>
·ABS, ASC, ACD, AYC AND S-AWC
·AIR CONDITIONING SYSTEM
·AUTO-CRUISE CONTROL SYSTEM
·BRAKE WARNING LIGHT,
FUEL WARNING LIGHT AND
OIL PRESSURE WARNING LIGHT
·CHARGING SYSTEM
·COOLING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOOR AJAR WARNING TONE ALARM
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER TONE
ALARM
·KEYLESS OPERATING SYSTEM
(KOS)
·METER AND GAUGE
·MFI SYSTEM
·PARKING BRAKE WARNING
TONE ALARM
·REAR WINDOW DEFOGGER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·TC-SST
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
NOTE
:
