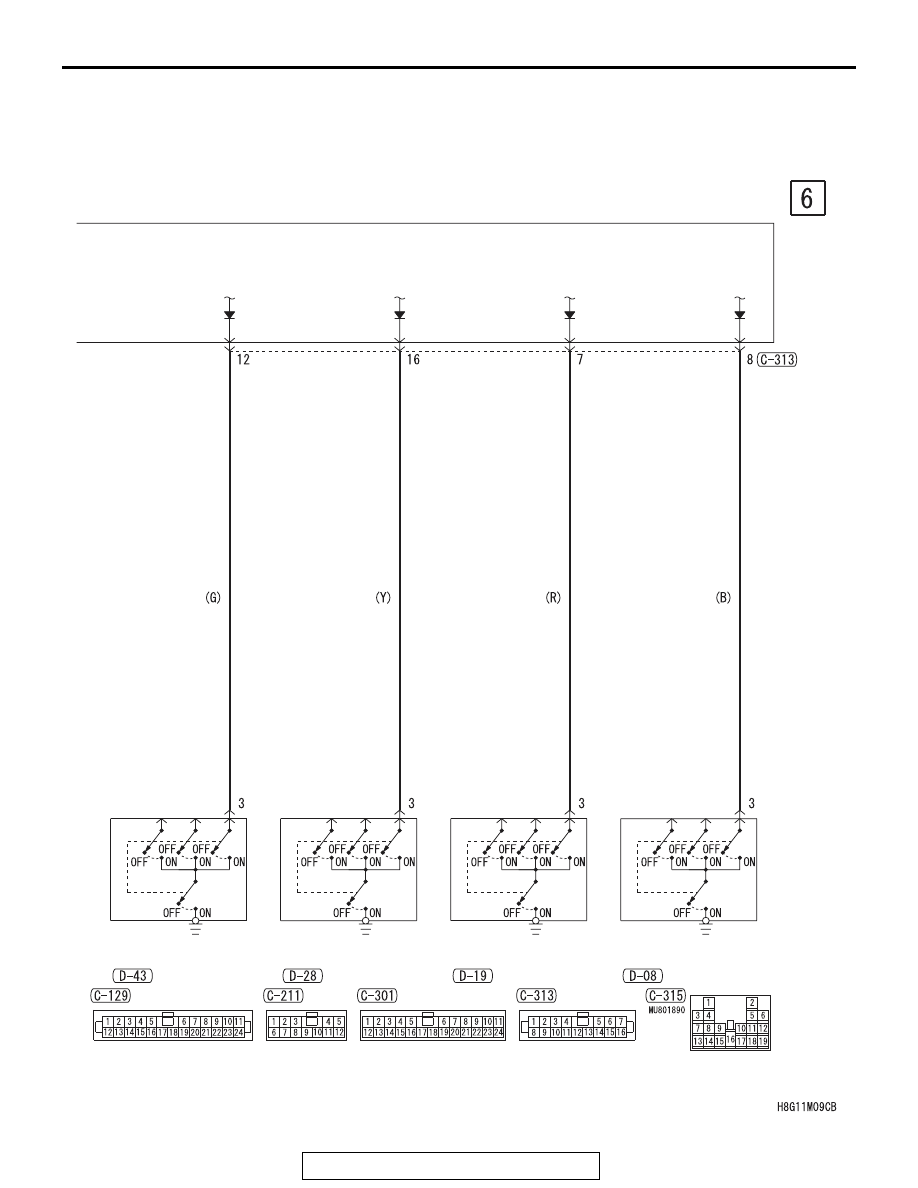

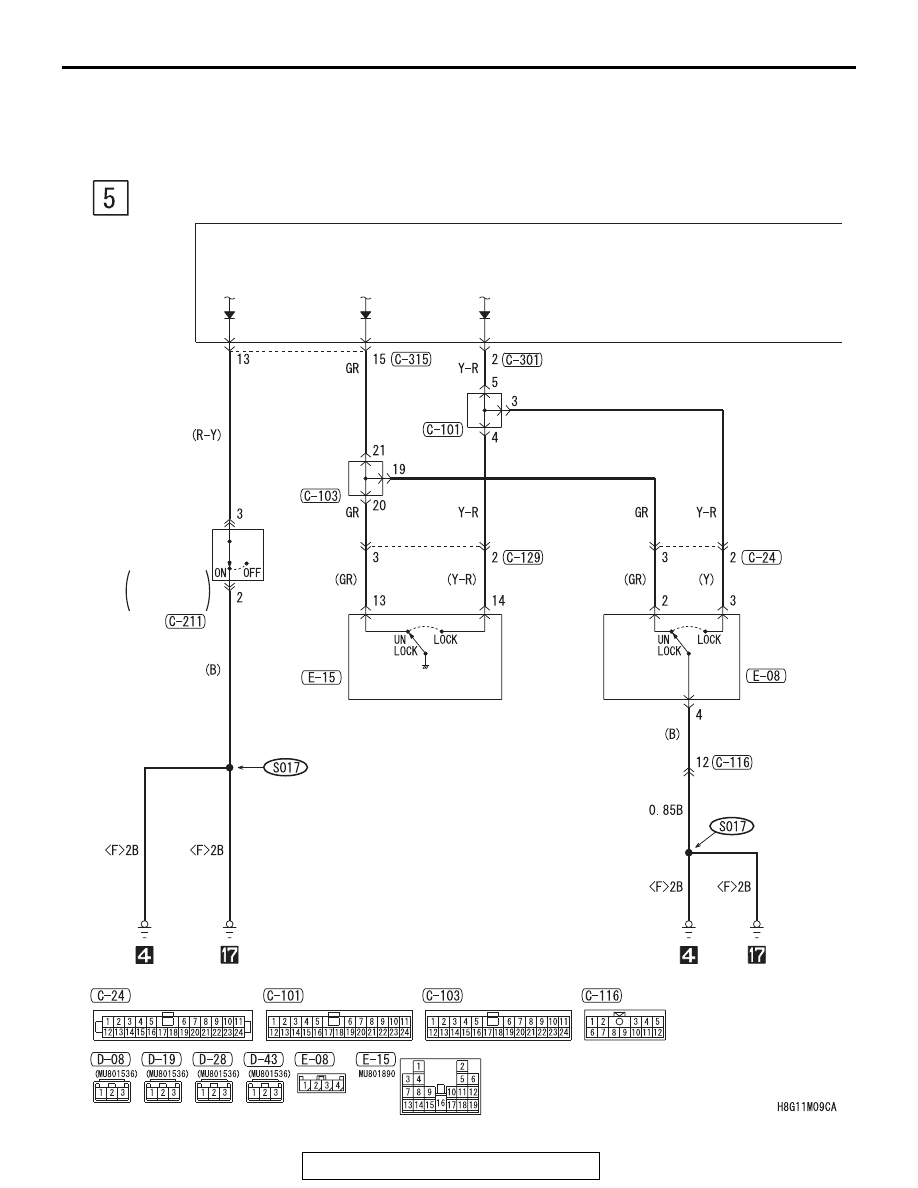

CENTRAL DOOR LOCKING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-165

DOOR
LOCK
RELAY

PASSENGER'S
DOOR UNLOCK
RELAY

REAR DOOR
LOCK ACTUATOR
(LH)

REAR DOOR
LOCK ACTUATOR
(RH)

JOINT
CONNECTOR
(4)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

CENTRAL DOOR LOCKING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-166

CENTRAL DOOR LOCKING SYSTEM (CONTINUED)

ETACS-ECU

FRONT
POWER
WINDOW
SUB SWITCH

POWER
WINDOW
MAIN
SWITCH

JOINT
CONNECTOR
(3)

JOINT
CONNECTOR
(1)

WHEN
REMOVING
KEY: ON

KEY
REMINDER
SWITCH

DOOR
LOCK
SWITCH

DOOR
LOCK
SWITCH

CENTRAL DOOR LOCKING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-167

FRONT DOOR
SWITCH (RH)

FRONT DOOR
SWITCH (LH)

REAR DOOR
SWITCH (LH)

REAR DOOR
SWITCH (RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

CENTRAL DOOR LOCKING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-168

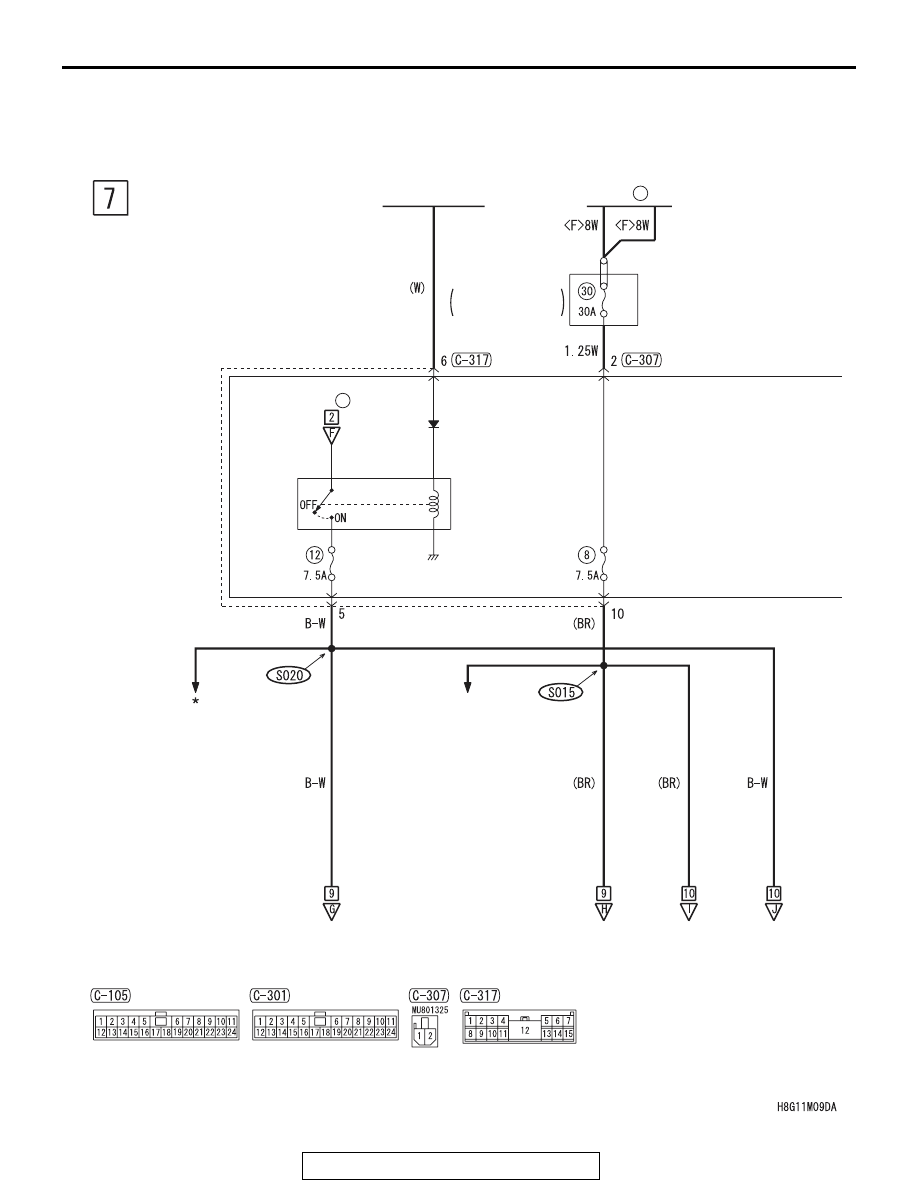

CENTRAL DOOR LOCKING SYSTEM (CONTINUED)

IGNITION
SWITCH (IG1)

ETACS-ECU

FUSIBLE
LINK

34

IG1
RELAY

FUSIBLE
LINK

36

RELAY BOX

ENGINE
COMPARTMENT

·AIR CONDITIONING SYSTEM
·BRAKE WARNING LIGHT,
 FUEL WARNING LIGHT AND OIL
 PRESSURE WARNING LIGHT
·DAYTIME RUNNING LIGHT (DRL)
·FOG LIGHT
·HEADLIGHT
·IMMOBILIZER SYSTEM
·KEYLESS OPERATION SYSTEM (KOS)
·METER AND GAUGE
·SEAT BELT WARNING TONE ALARM
·TAILLIGHT, POSITION LIGHT,
 LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
