POWER DISTRIBUTION SYSTEM
TSB Revision

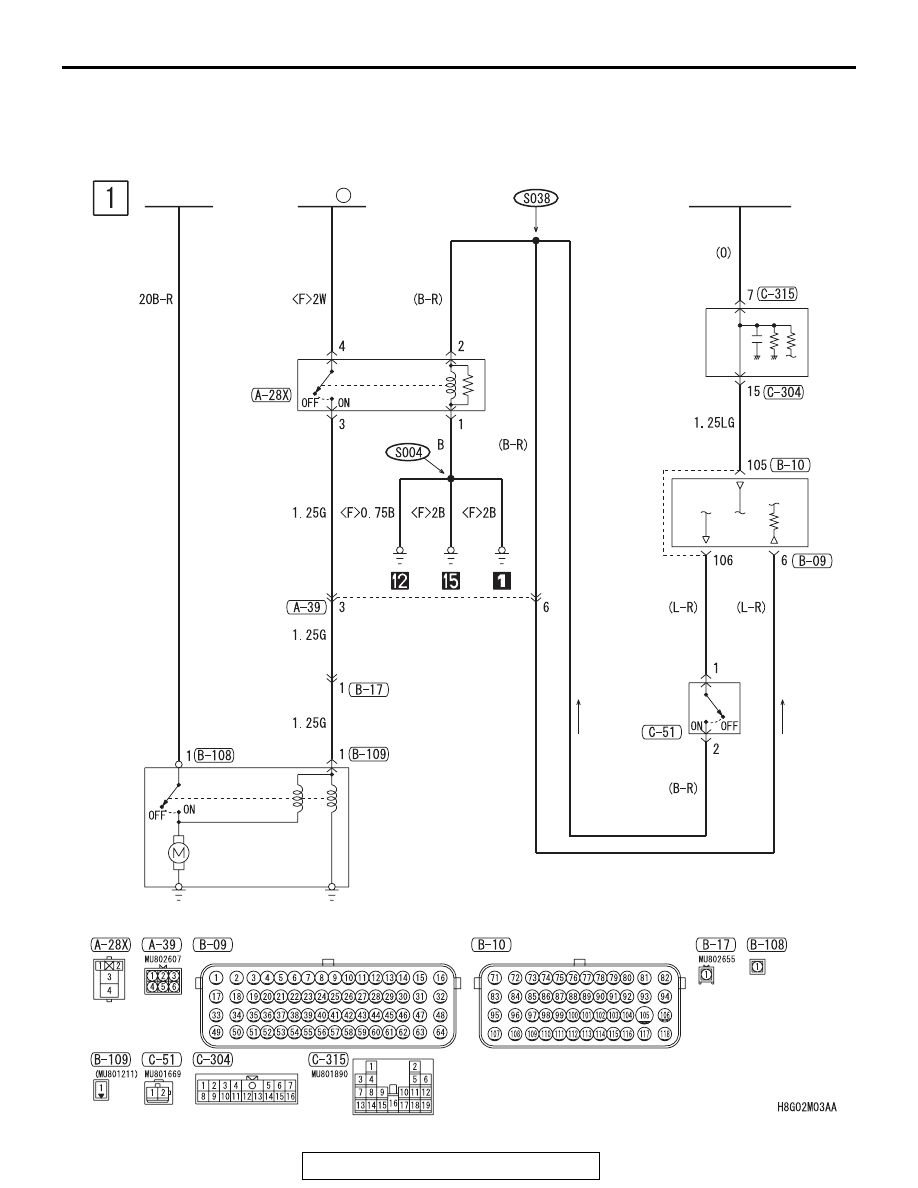

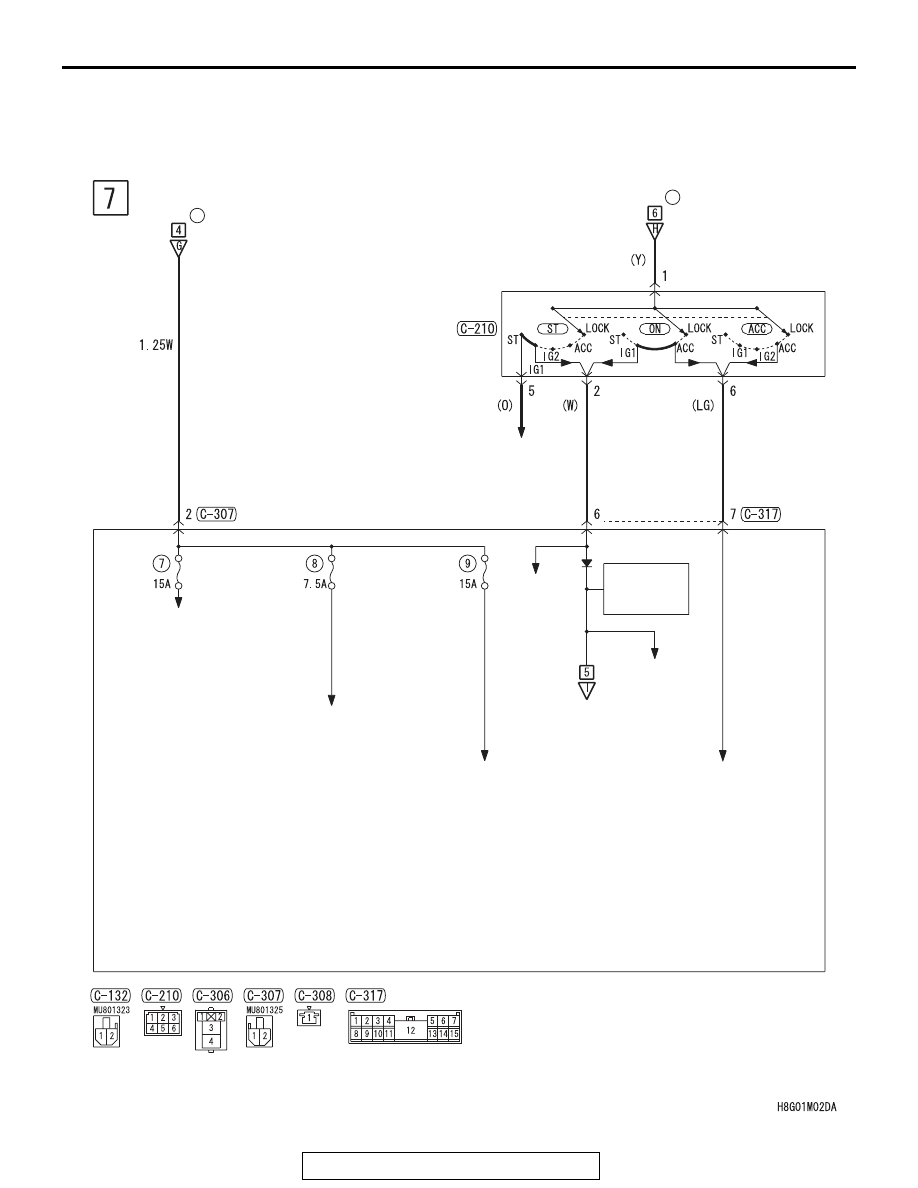

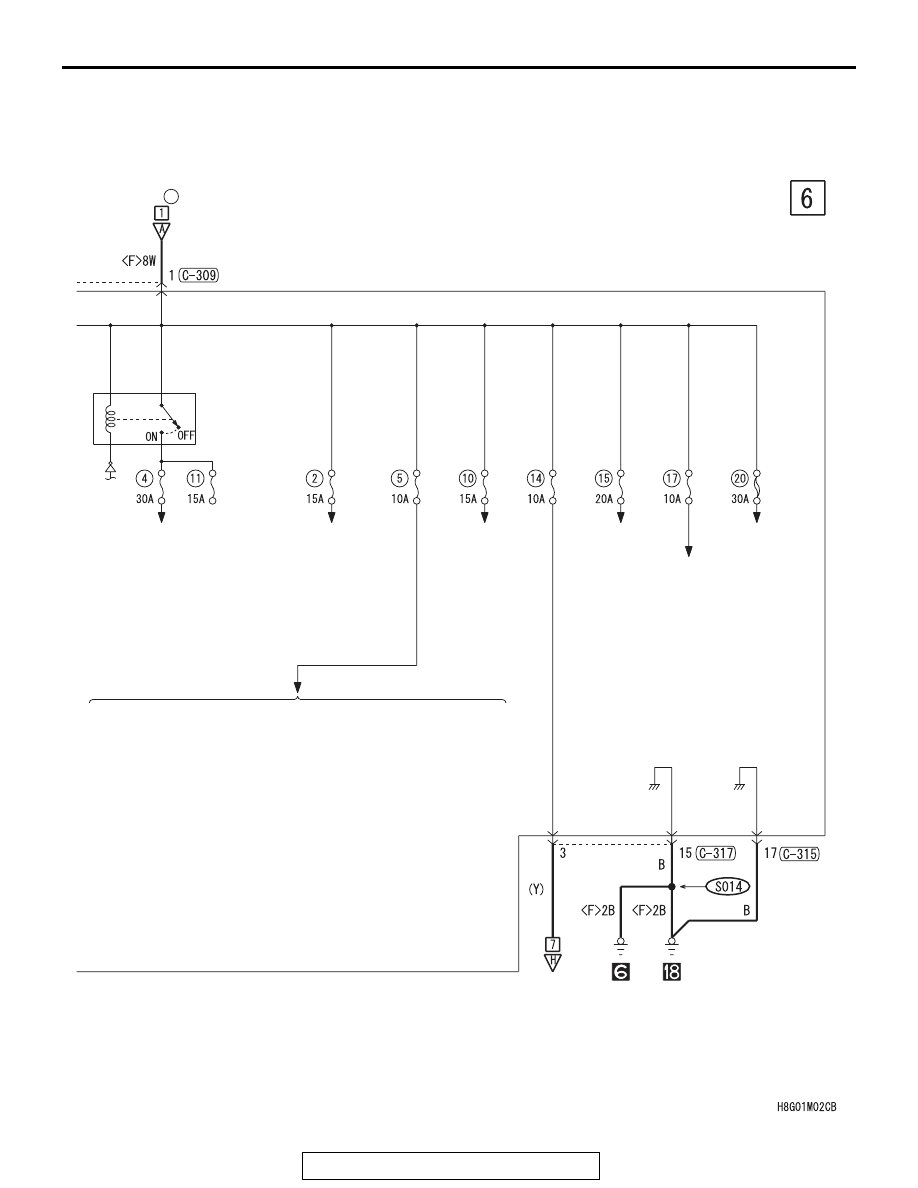

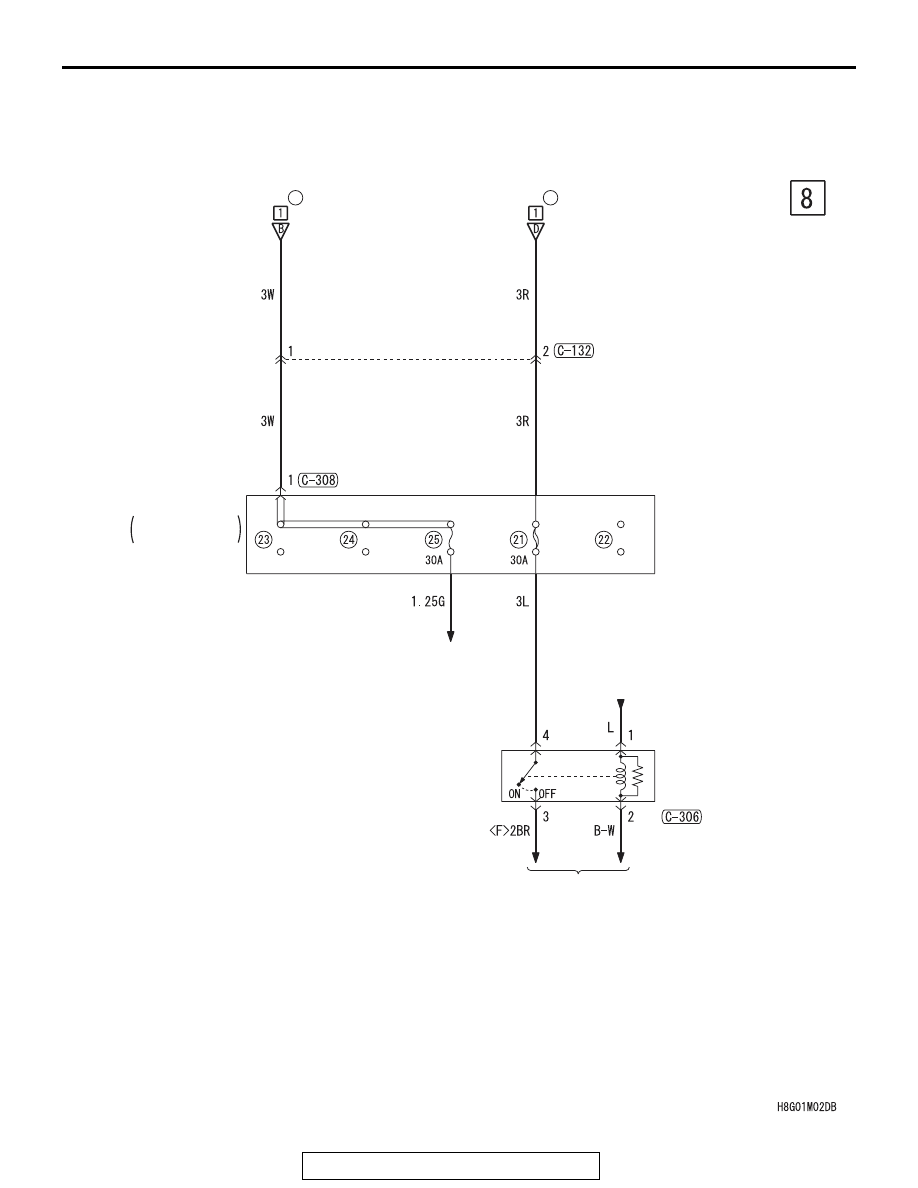

CIRCUIT DIAGRAMS
90-33
ACC
RELAY 3
WINDSHIELD
WIPER AND
WASHER
·CENTRAL DOOR
LOCKING SYSTEM
·TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT
SUNROOF
·ABS, ASC, ACD,
AYC AND S-AWC
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
POWER WINDOWS
FUSIBLE
LINK
34
·ABS, ASC, ACD, AYC AND S-AWC
·AIR CONDITIONING SYSTEM
·AUDIO SYSTEM
·AUTO-CRUISE CONTROL SYSTEM
·BACKUP LIGHT
·BRAKE WARNING LIGHT,
FUEL WARNING LIGHT AND
OIL PRESSURE WARNING LIGHT
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·COOLING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT AND IGNITION
KEY HOLE ILLUMINATION LIGHT
·DOOR AJAR WARNING TONE ALARM
·FOG LIGHT
·HANDS FREE SYSTEM
·HEADLIGHT
·IGNITION KEY REMINDER TONE
ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM (KOS)
·METER AND GAUGE
·MFI SYSTEM
·MITSUBISHI MULTI-COMMUNICATION
SYSTEM (MMCS)
·POWER WINDOWS
·PARKING BRAKE WARNING
TONE ALARM
·SEAT BELT WARNING TONE ALARM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
·TAILLIGHT, POSITION LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·TC-SST
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·ABS, ASC, ACD,
AYC AND S-AWC
·AUTO-CRUISE CONTROL
SYSTEM
·DAYTIME RUNNING
LIGHT (DRL)
·MFI SYSTEM
·SHIFT LOCK MECHANISM
·STOPLIGHT
·TC-SST
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
