CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-25

AC607380

3

2

1

20

21

23

22

5

25

4

6

7

8

9

24

AC

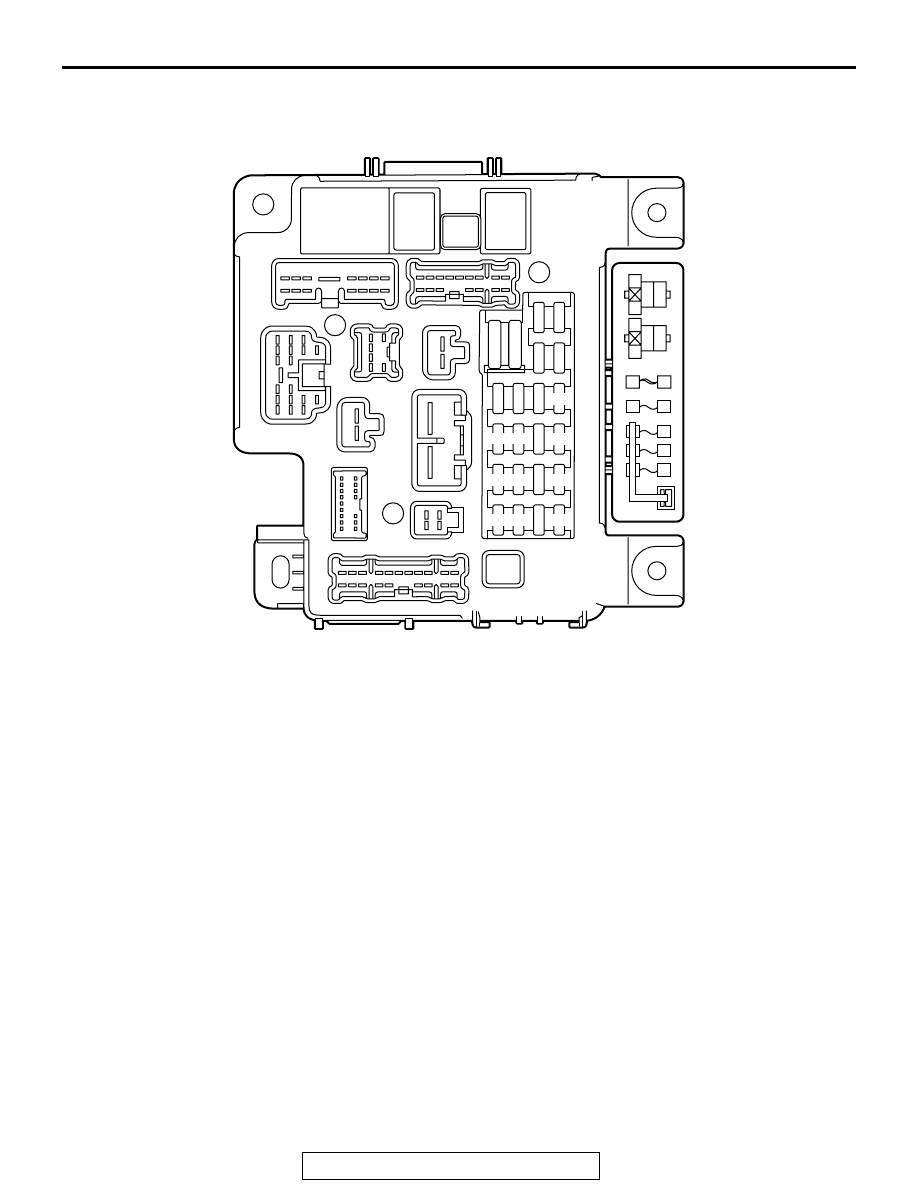

Fuse box in ETACS-ECU

10

11 12

15

13

14

16

18

17

19

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-26

CENTRALIZED RELAY

Connector No. Name

Connector No. Name

A-15X

Fog light relay

A-27X

Fuel pump relay 1

A-16X

Horn relay

A-28X

Starter relay

A-17X

A/C compressor clutch relay

A-29X

Headlight relay (Low)

A-18X

Theft-alarm horn relay

A-30X

−

A-19X

−

A-31X

−

A-20X

No connection

A-32X

−

A-21X

Headlight relay (High)

A-33X

−

A-22X

Throttle actuator control motor
relay

A-34X

MFI relay

A-23X

−

A-35X

Radiator fan relay

A-24X

Daytime running light relay

A-36X

Condenser fan relay

A-25X

Injector relay

A-37X

Fan control relay

A-26X

Electric pump relay

AC609168AU

A-15X

A-16X

A-17X

A-18X

A-19X

A-20X

A-21X

A-22X

A-23X

A-24X

A-25X

A-26X

A-27X

A-28X

A-29X

A-30X

A-31X

A-32X

A-33X

A-34X

Front of
vehicle

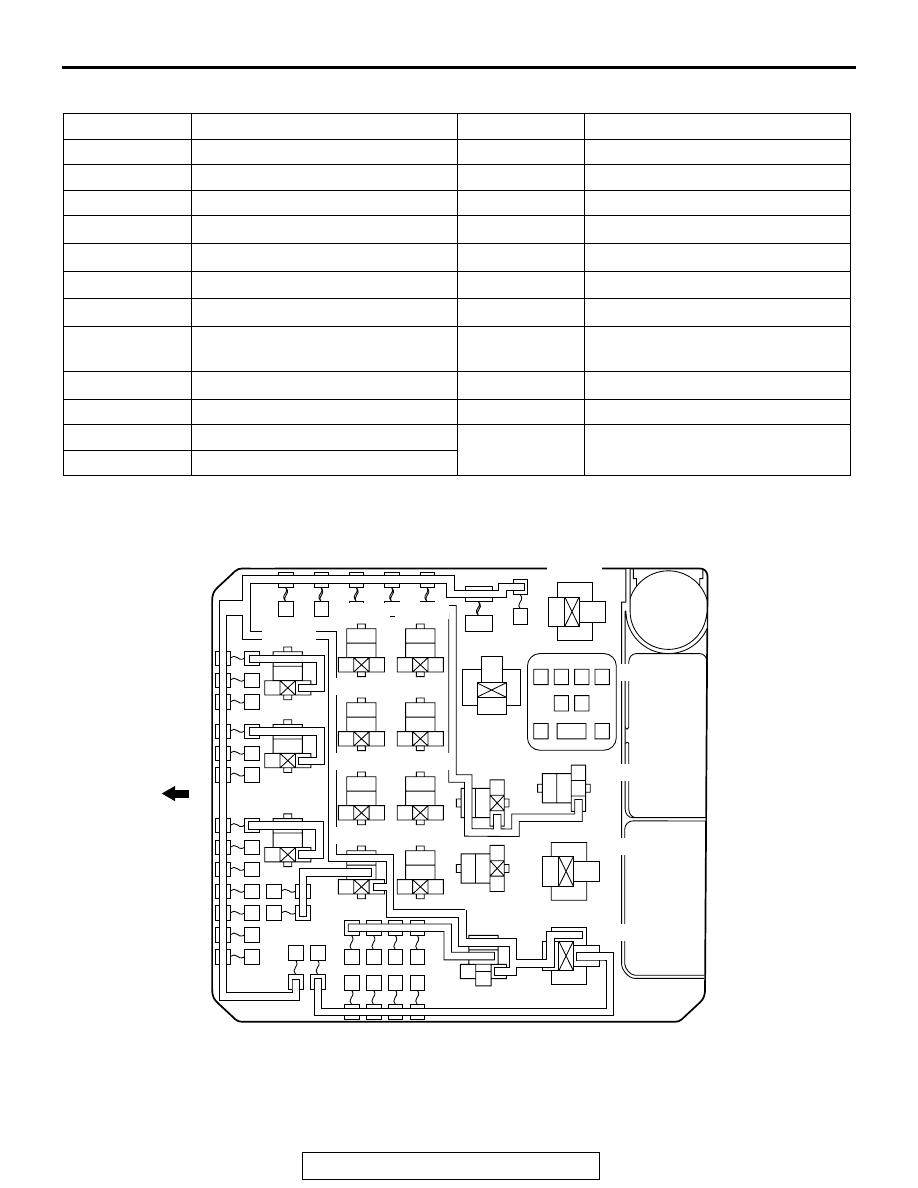

Relay box in engine compartment

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-27

AC706168

AC

A-35X

A-36X

A-37X

Front of vehicle

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-28

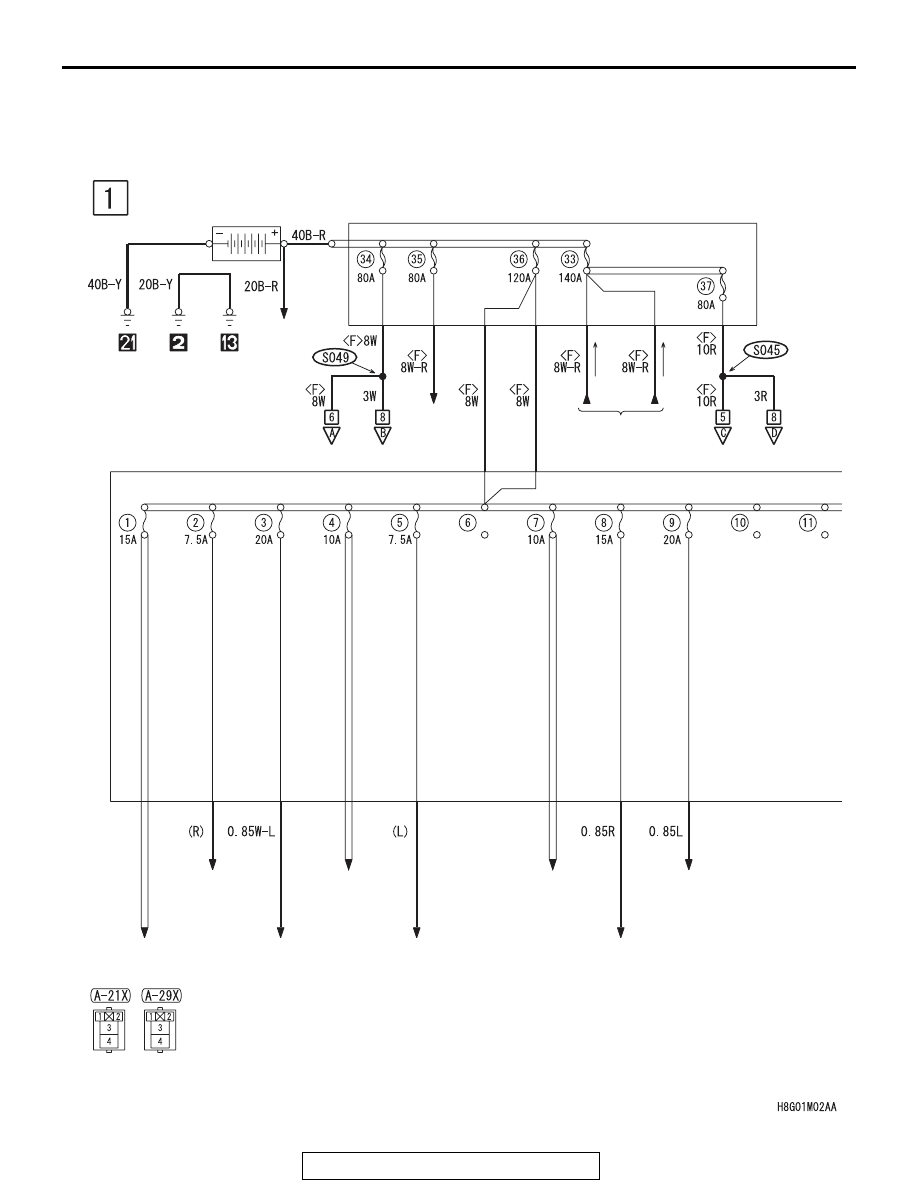

POWER DISTRIBUTION SYSTEM

M1901000403298

BATTERY

CHARGING
SYSTEM

STARTING
SYSTEM

RELAY BOX (ENGINE COMPARTMENT)

CHARGING SYSTEM

·HORN
·THEFT-ALARM
 SYSTEM

AIR CONDITIONING
SYSTEM

·AUTO-CRUISE
 CONTROL SYSTEM

·MFI SYSTEM

FOG LIGHT

TC-SST

·AUTO-CRUISE
 CONTROL SYSTEM

·MFI SYSTEM

FOG LIGHT

FUSIBLE LINK BOX

ABS, ASC,
ACD, AYC AND
S-AWC

THEFT-ALARM
SYSTEM
