Mitsubishi Evolution X. Manual - part 1107





DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-63

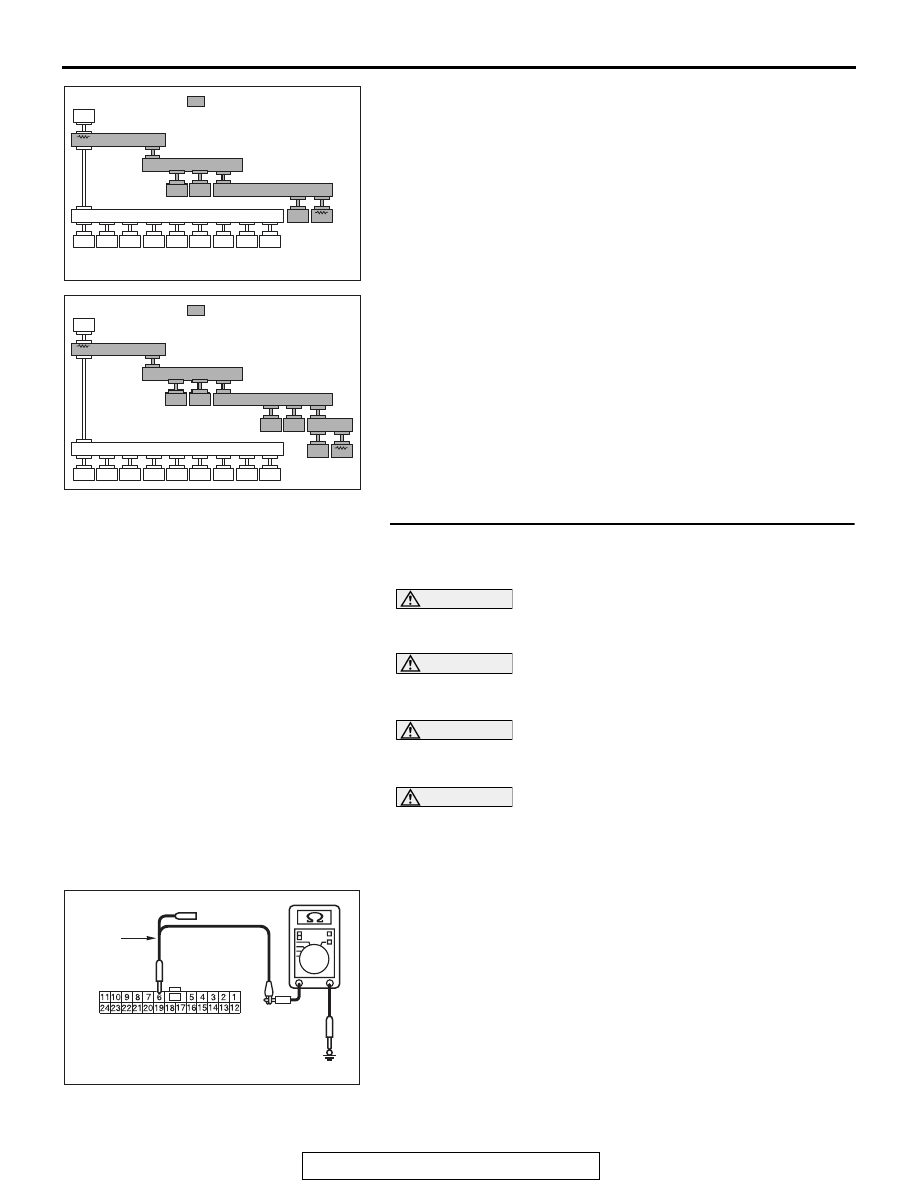

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES :
Repair the wiring harness between S-AWC-ECU

connector C-46 and joint connector (CAN2) C-104.

NO :  Check S-AWC-ECU connector C-46, and repair if

necessary. If the S-AWC-ECU connector is in good
condition, replace the S-AWC-ECU.

STEP 12. Check the wiring harness between joint
connector (CAN2) C-104 and ETACS-ECU connector C-301
for a short to ground.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-7

.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect ETACS-ECU connector and joint connector

(CAN2), and measure at the wiring harness side.

(2) Measure the resistance between joint connector (CAN2)

terminal 6 and body ground.

OK: 1 kilo ohm or more

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

AC709707

Harness side: C-104

AT

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-64

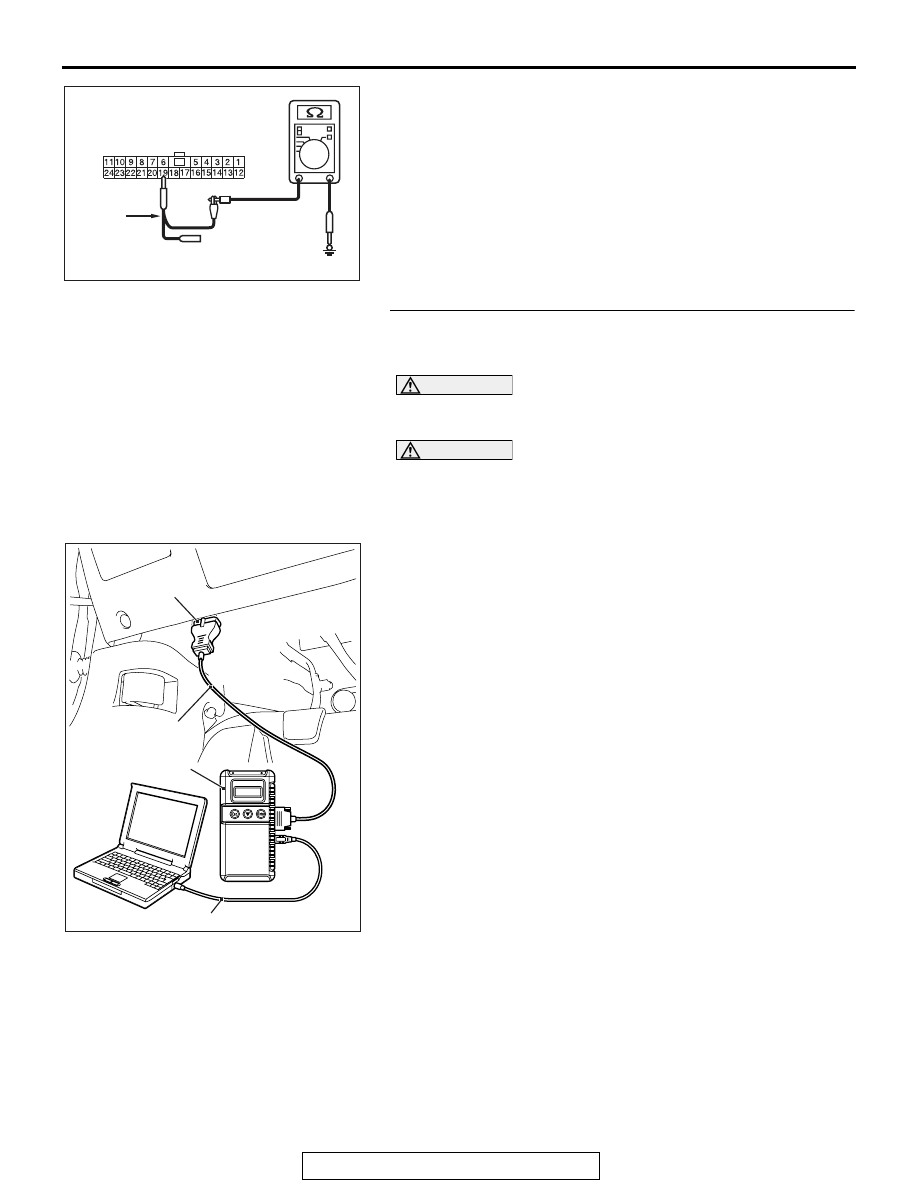

(3) Measure the resistance between joint connector (CAN2)

terminal 19 and body ground.

OK: 1 kilo ohm or more

Q: Do all the resistances measure 1 kilo ohm or more?

YES : Check ETACS-ECU connector C-301, and repair if

necessary. If the ETACS-ECU connector is in good
condition, replace the ETACS-ECU.

NO :  Repair the wiring harness between ETACS-ECU

connector C-301 and joint connector (CAN2) C-104.

STEP 13. Using scan tool MB991958, diagnose the CAN
bus line. (checking the ASC-ECU for internal short to
ground)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect ASC-ECU connector A-05.

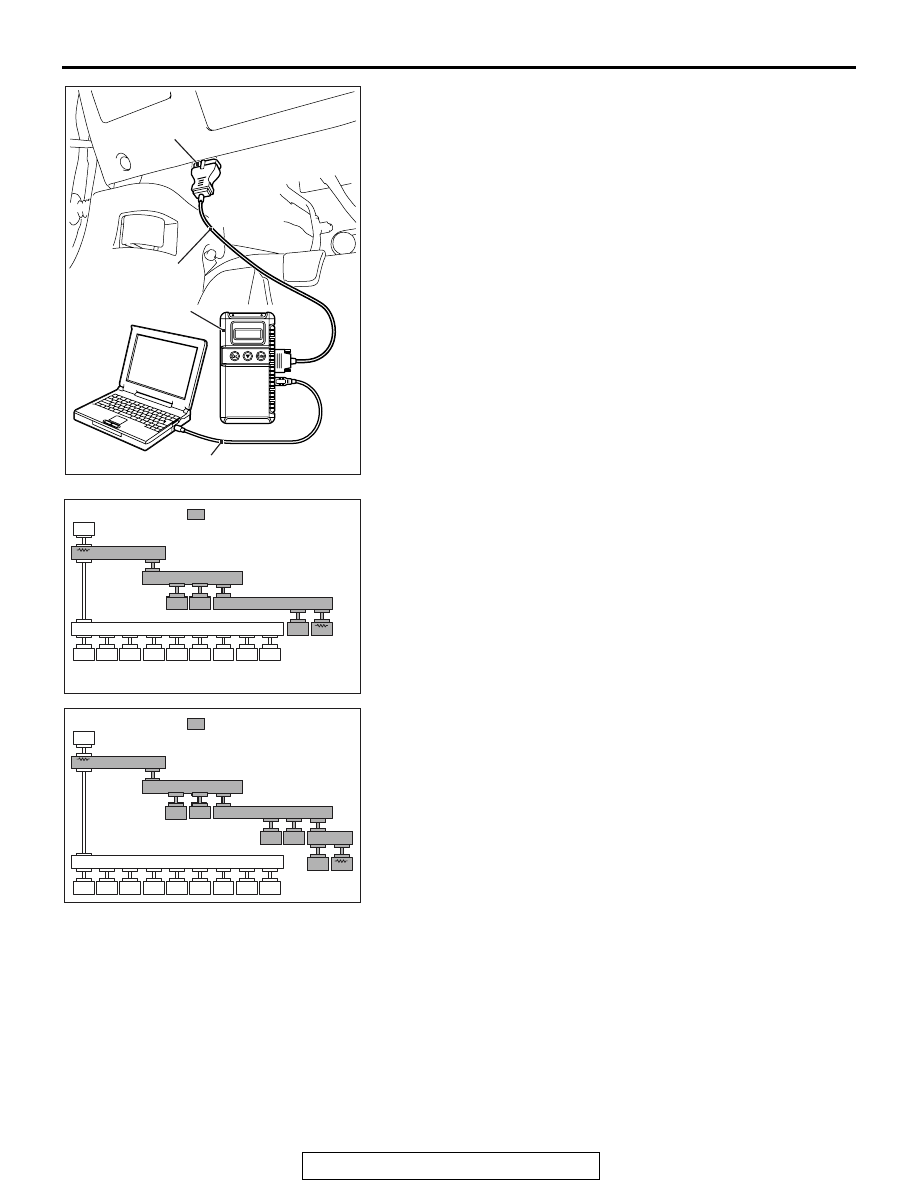

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

AC709707AU

TEST
HARNESS

Harness side: C-104

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-65

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES :
Repair the wiring harness between ASC-ECU

connector A-05 and joint connector (CAN3) C-127.

NO :  Check ASC-ECU connector A-05, and repair if

necessary. If the ASC-ECU connector is in good
condition, replace the ASC-ECU.

STEP 14. Using scan tool MB991958, diagnose the CAN
bus line. (checking the ECM for internal short to ground)

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Disconnect ECM connector B-10.

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-66

(2) Connect scan tool MB991958 to the data link connector.
(3) Turn the ignition switch to the "ON" position.

(4) Diagnose CAN bus lines, and check if the scan tool

MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as
shown in the figure.

Q: Does scan tool MB991958 screen correspond to the

illustration?
YES :
Repair the wiring harness between ECM connector

B-10 and joint connector (CAN3) C-127 <M/T>, or
check intermediate connector A-13, and repair if
necessary. If the intermediate connector is in good
condition, repair the wiring harness between ECM
connector B-10 and joint connector (CAN4) A-14
<TC-SST>.

NO :  Check ECM connector B-10, and repair if necessary.

If the ECM connector is in good condition, replace the
ECM.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC709542 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

ENGINE

J/C (1)

ETACS

<M/T>

SAS

S-AWC

AC709543 AC

: Red section on screen

M.U.T.

J/C (3)

J/C (2)

KOS/WCM

SRS

A/C

AUDIO

MMCS

Sat Radio

HFM

OCM

METER

ASC

LEVER

J/C (1)

ETACS

<TC-SST>

SAS

S-AWC

J/C (4)

TC-SST

ENGINE
