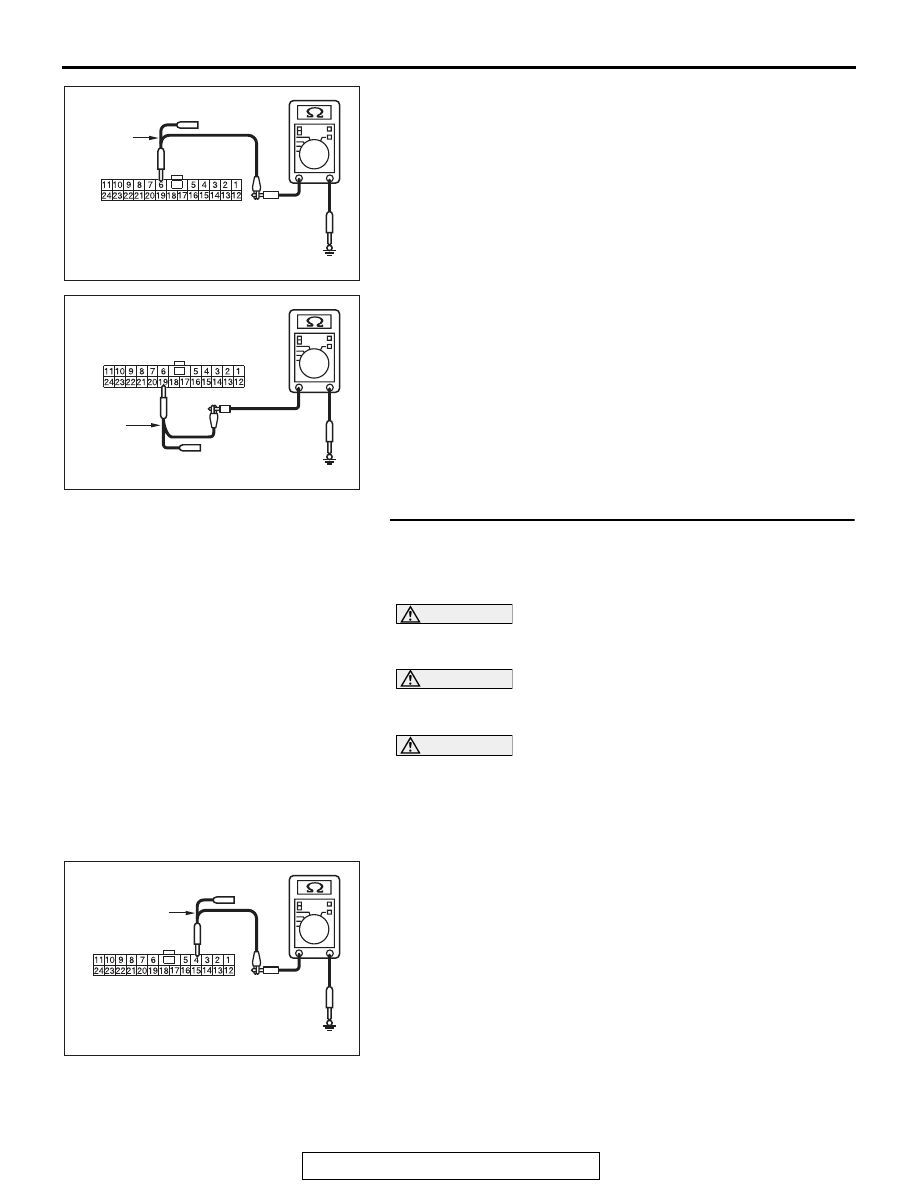

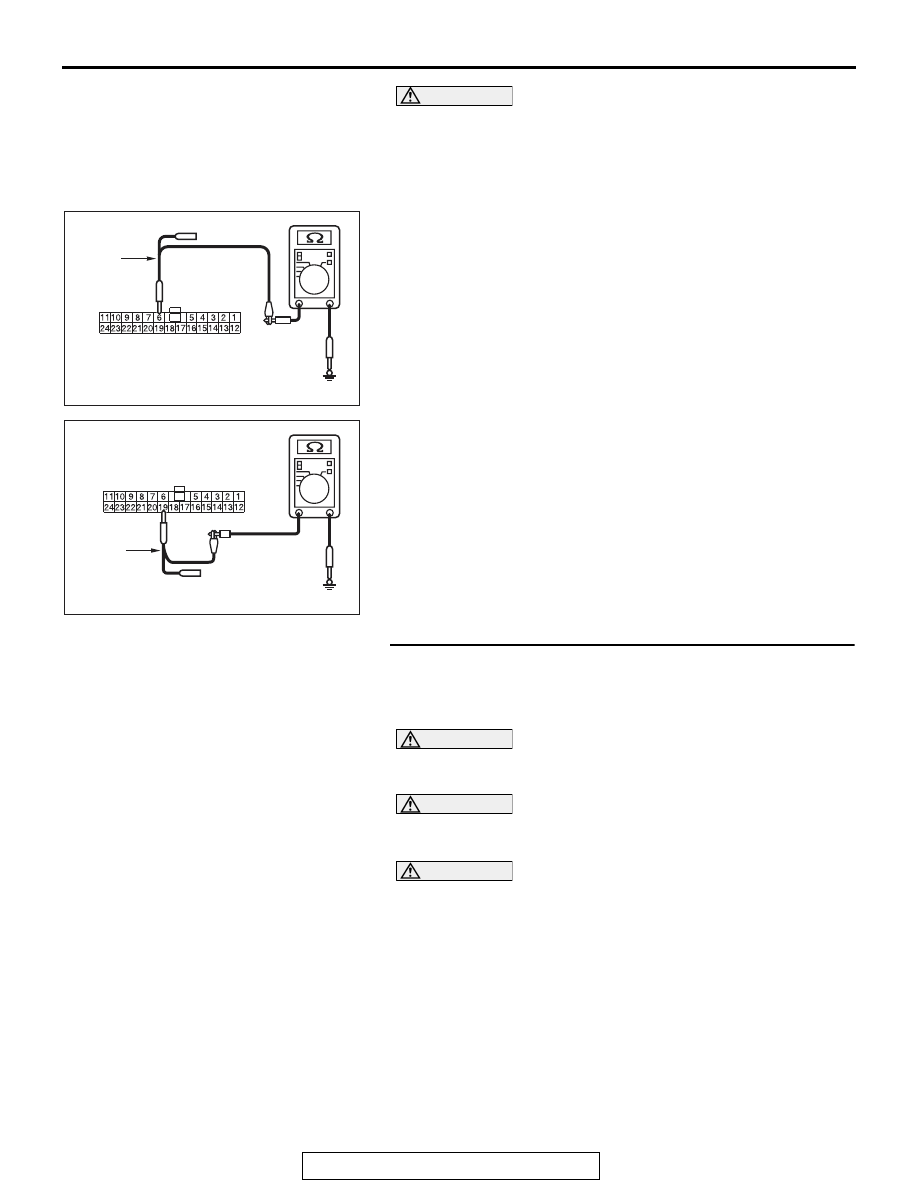

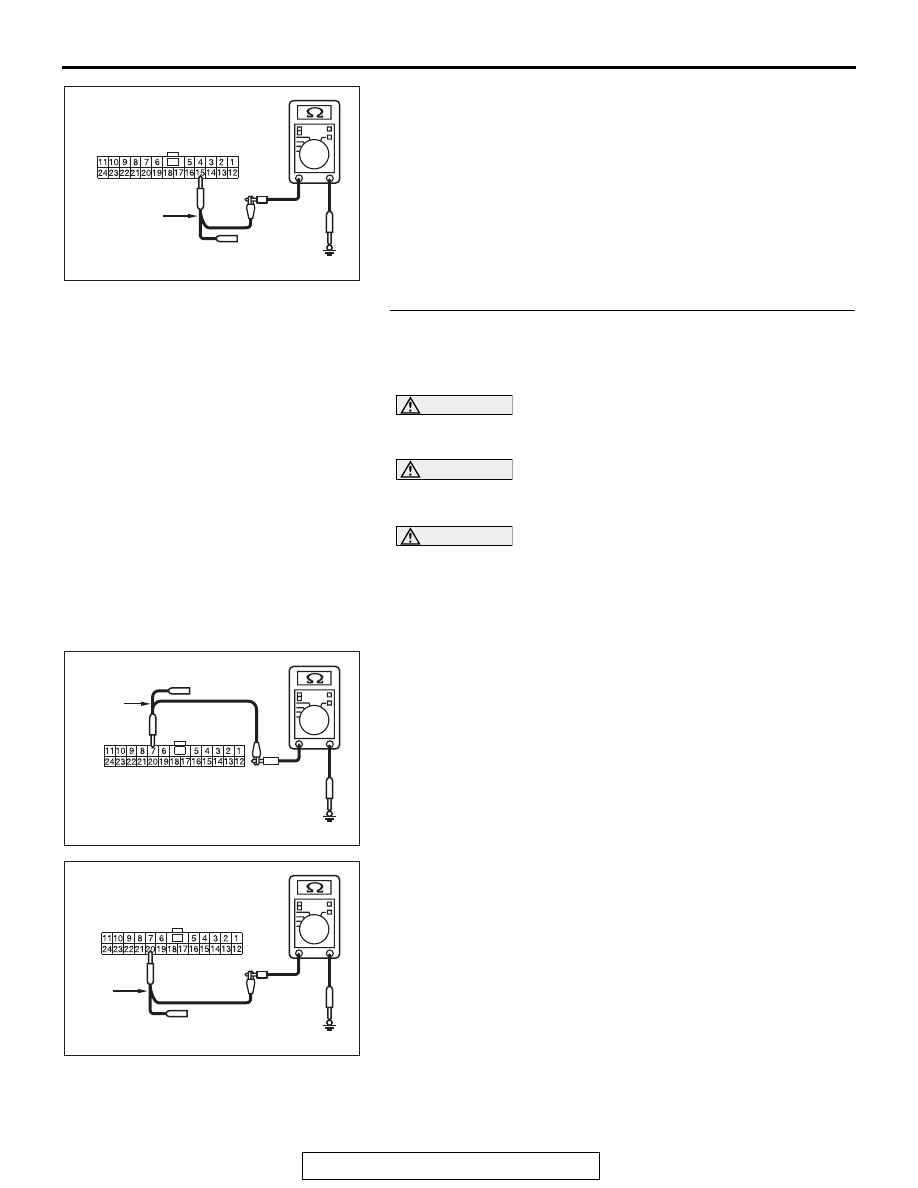

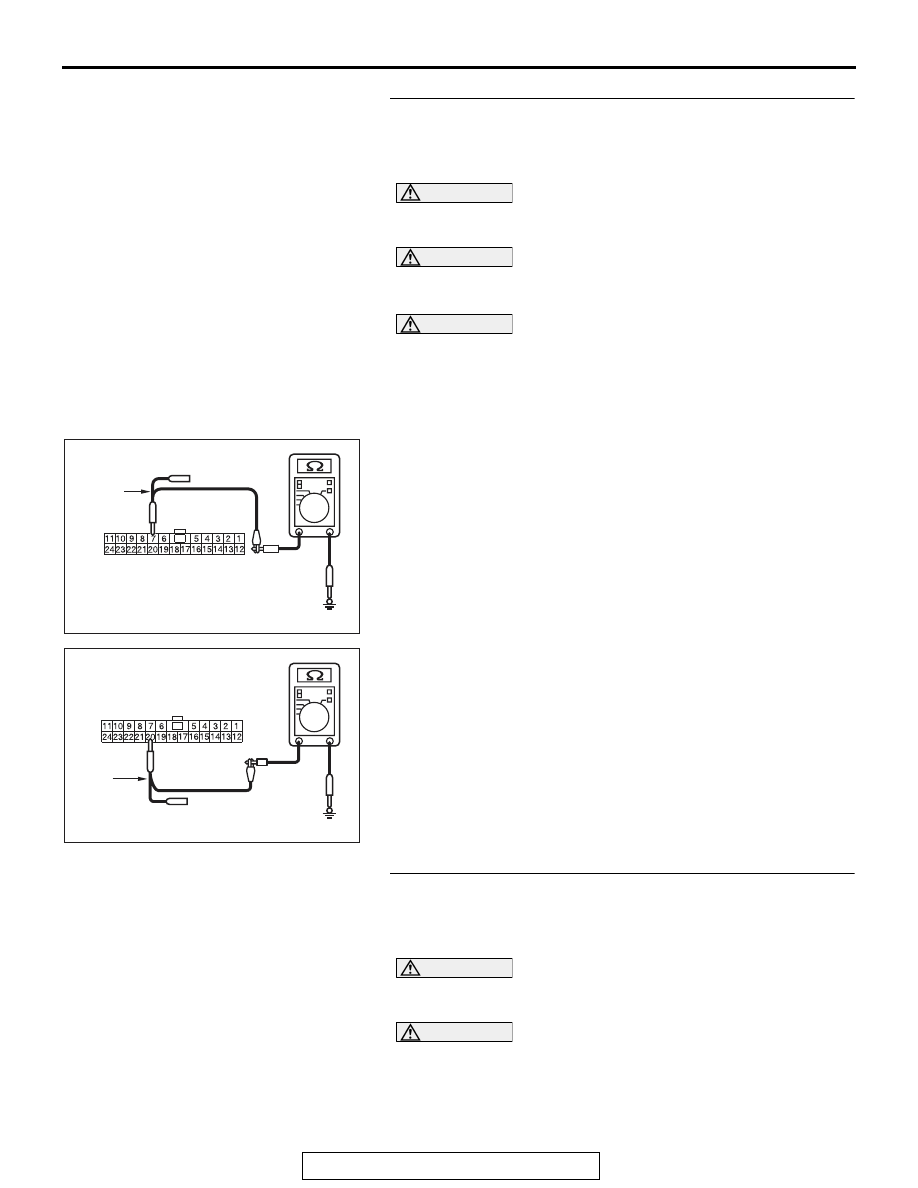

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-55 CAUTION The test wiring harness should be used. For details refer to (1) Disconnect joint connector (CAN2), and measure the resistance at the wiring harness side of joint connector (2) Measure the resistance between joint connector (CAN2) terminal 6 and body ground. OK: 1 kilo ohm or more (3) Measure the resistance between joint connector (CAN2) terminal 19 and body ground. OK: 1 kilo ohm or more Q: Do all the resistances measure 1 kilo ohm or more? YES : Go to Step 4. STEP 4. Check the wiring harness between joint connector CAUTION Disconnect the negative battery terminal. For details refer . CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect joint connector (CAN3), and measure the resistance at the wiring harness side of joint connector AC709707 Harness side: C-104 AT TEST AC709707AU TEST Harness side: C-104 |
