CHASSIS ELECTRICAL

54A-43

Tone alarm
answer back
<Vehicles with
KOS>

Adjusts the tone
alarm answer back
function

Not sound tone alarm

No function

At keyless

Sounds when the keyless entry system is
activated.

At F.A.S.T.

Sounds when KOS is activated (default).

At Both

Sounds when the keyless entry system or
KOS is activated.

Timer lock timer Timer lock period

adjustment

30 sec

30 seconds (default)

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Panic alarm
switch

With/without panic
alarm function

Disable

No function

Enable

With function (default)

F.A.S.T. key out
of car

With/without KOS
key exterior
detection function

Enable

No function

Disable

With function (default)

F.A.S.T. feature KOS function

adjustment

Both enable

All KOS functions are enabled (default).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

F.A.S.T. unlock
disable time

Adjusts the door
unlock inhibition
period after door
lock is activated

0 sec

0 seconds

3 sec

3 seconds (default)

5 sec

5 seconds

Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting content

THEFT-ALARM SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-44

THEFT-ALARM SYSTEM

GENERAL INFORMATION

M2545700200176

When the doors are locked using the keyless entry
function or KOS (except when locked by using the
key cylinder or door lock switch), the improper open-
ing of door or trunk causes the ETACS-ECU function
and control to give off an alarm with the flashing of
headlights and the intermittent sounding of horns.
Also, the ETACS-ECU warns that the theft-alarm
system is being set by flashing the theft-alarm indica-
tor.

.

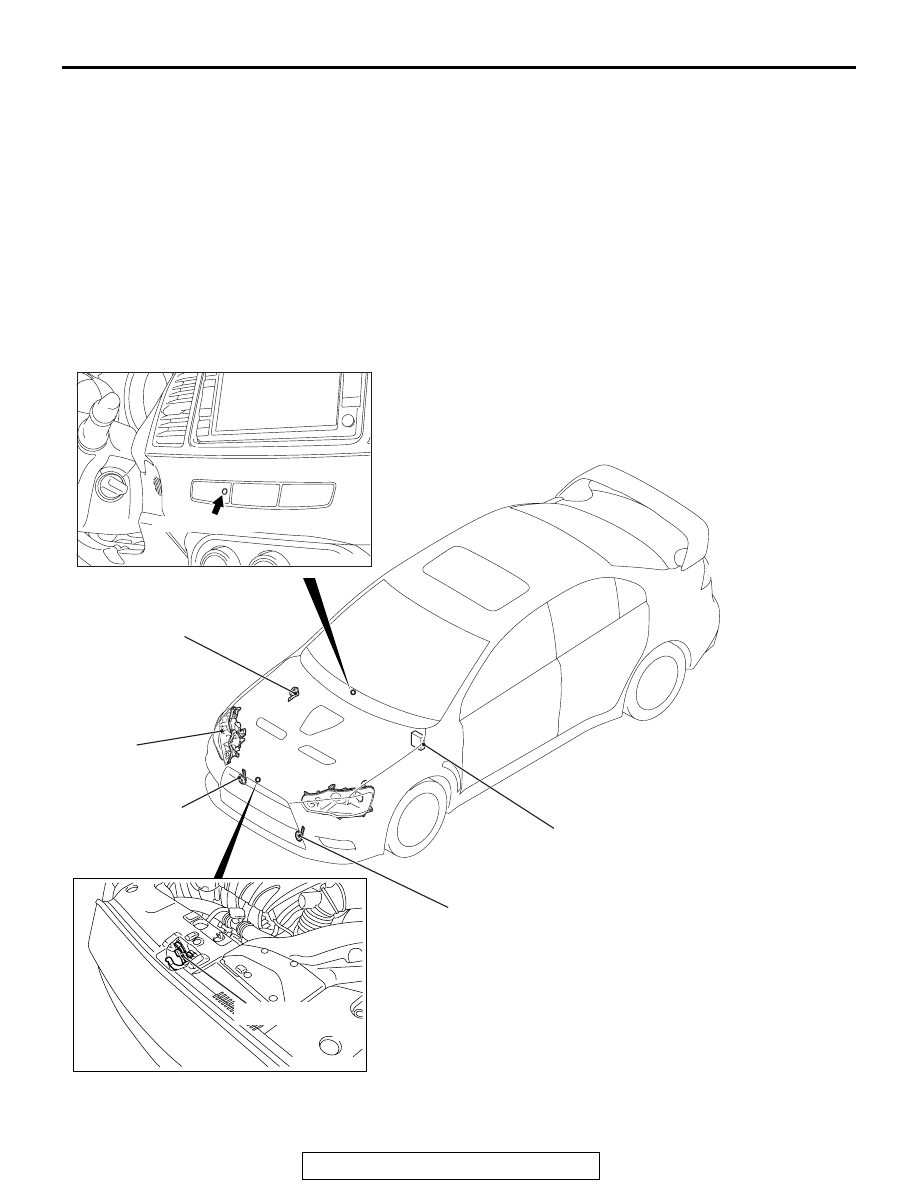

CONSTRUCTION DIAGRAM

AC705524

AC704958

Theft-alarm horn

AB

Horn (HIGH)

Horn (LOW)

Headlight

ETACS-ECU

AC608323

Theft-alarm indicator

Hood latch switch

THEFT-ALARM SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-45

THEFT-ALARM FUNCTION

AC709522

Door(s) is locked by the
keyless entry function or
the keyless operation system
(including lock operation
  by the timer lock)

Alarm history

output function

System disarmed

Ready to be
armed suspended

Ready to be armed

Ready to be
triggered

Exterior protection

Protection suspended

· Ignition switch is turned ACC position or
  OFF position
· Simultaneous output (4 times) is completed
 When any operation above is done

· Ignition switch is turned ON position
· Inserting the key in the key cylinder
  or keyless operation key is approved
· Previous alarm information exists
 When all operations above are done

All doors and trunk,
hood remains closed
for 20 seconds

All doors and hood,
trunk remain closed

Any of the doors or trunk,
hood is open and "Ready to
be triggered" cannot be performed
within 180 seconds.

In 175 seconds

· Door(s) is unlocked by
  the keyless entry function
  or the keyless operation system
· Inserting the key in the key
  cylinder or keyless operation key
  is approved
 When any operation above is done

Door(s) is locked by the
keyless entry function
or the keyless operation
system
(including lock operation
  by the timer lock)

· Operating the keyless entry function
  or the keyless operation system
· Inserting the key in the key
  cylinder or keyless operation key
  is approved and turning the
  ignition switch to ACC
 When any operation above is done

· Door(s) is unlocked by
  the keyless entry function
  or the keyless operation system
·Inserting the key in the key
  cylinder or keyless operation key
  is approved and turning the
  ignition switch to ACC
 When any operation above is done

Ready to be
triggered trunk open

Trunk remains closed
for 2 seconds

 Trunk is opened by operating
 the keyless entry function
 or the keyless operation system

AB

· Hood is opened
· Door(s) is opened in
  an unauthorized way
When any operation
above is done

· Hood is opened
· Door(s) or trunk,
  is opened in an
  unauthorized way
When any operation
above is done

· Hood is opened
· Door(s) or trunk is opened
  in an unauthorized way
When any operation above
is done

PANIC ALARM SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-46

Operating the door lock with the keyless entry func-
tion or keyless operation key (except for operating
the door lock with the key cylinder) makes the vehi-
cle ready for the alarm, and "ping" tone starts. After
20 seconds, the incorrect door/trunk/hood opening
(opening door or trunk without unlocking by the key-
less entry function or keyless operation key) sounds
the room alarm with "Beep" tone under for the alarm
state. In addition, the headlights blink, and the horns
sound intermittently for 175 seconds to execute exte-
rior protection

.

ALARM HISTORY OUTPUT FUNCTION

If the exterior protection is activated between the last OFF
operation and the next ON operation of the ignition switch, this
function informs the driver by flashing the security indicator.

PANIC ALARM SYSTEM

GENERAL INFORMATION

M2540000100830

If danger is perceived near the vehicle and if the igni-
tion switch is in the OFF position or the key has been
removed, press the panic button on the ignition key
or the keyless operation key for one second, then the
headlights flash and the horn sounds for approxi-
mately 3 minutes.
PANIC ALARM SYSTEM OPERATION TABLE

Operation of keyless operation key or ignition key

System operation

Panic button

Press once (press and hold
for 1 second)

Starts the panic alarm (headlights flash and horn
honks for abut three minutes)

Lock button, Unlock button,
Trunk button, Panic button

Press again

Stops the panic alarm in progress
