Mitsubishi Evolution X. Manual - part 108





AUDIO AND NAVIGATION SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-35

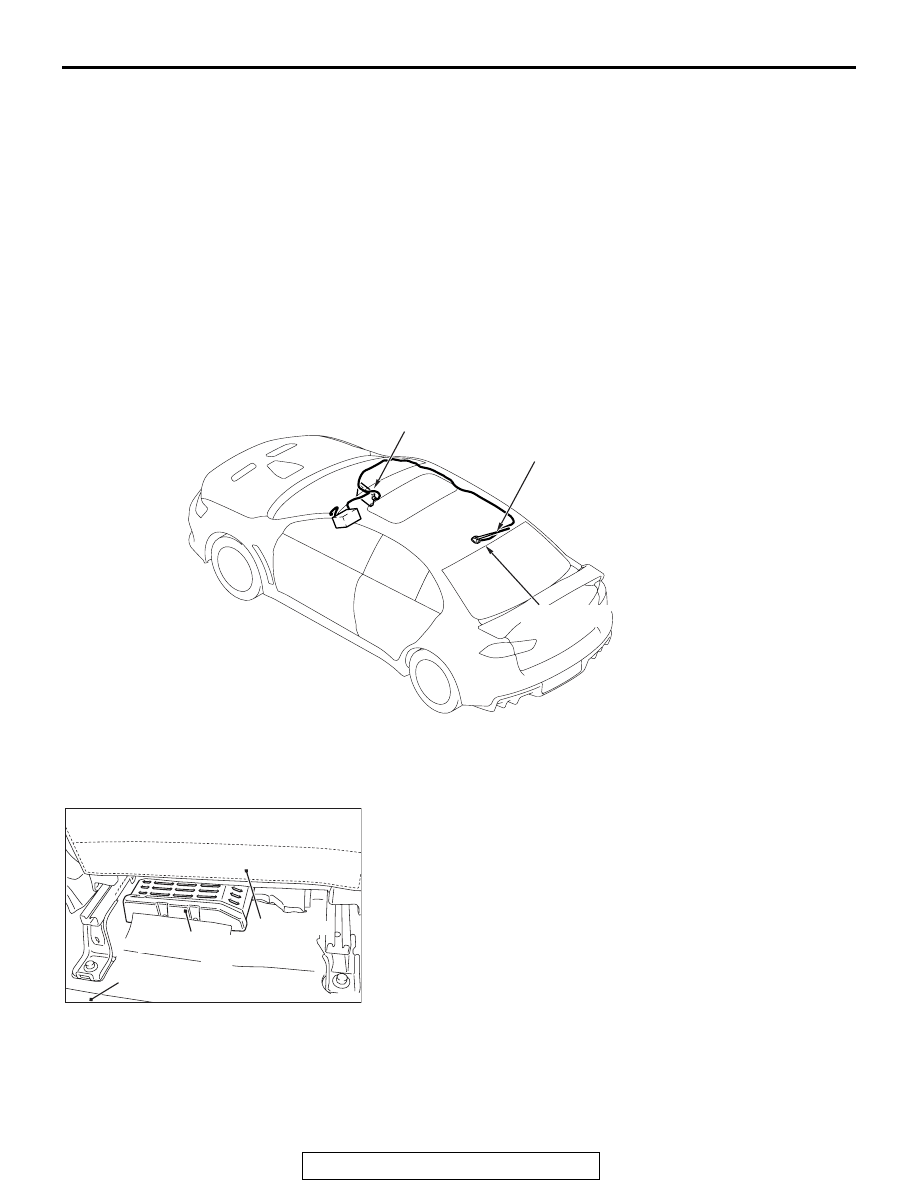

SATELLITE RADIO

M2543800000021

The satellite radio is a broadcast technology that
offers a clear digital sound directly by using satellites.

• The registered service provider is SIRIUS™ satel-

lite radio.

• This service offers listeners more than 100 pro-

grams such as news, sports, music, and enter-
tainment.

ANTENNA

M2545100100133

The roof antenna has been adopted for the radio.
The antenna base incorporates the radio amplifier.
When the satellite radio tuner is installed, the
antenna base that also corresponds to the satellite
radio is installed.

CONSTRUCTION DIAGRAM

AUDIO AMPLIFIER

M2547000200043

The 8-ch high-power audio amplifier with integrated DSP (total
maximum output of 650 W) equipped with the front seat (left
side) has been combined with the 9-speaker 7-position system,
adopting the Rockford Fosgate

® premium sound system. The

audio amplifier offers the clear treble without distortion.

AC708816

Roof antenna (for radio)

Satellite radio tuner (Vehicles with satellite radio)

Antenna base

AB

AC608321AD

Front seat
(left side)

Audio amplifier

Rear seat

AUDIO AND NAVIGATION SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-36

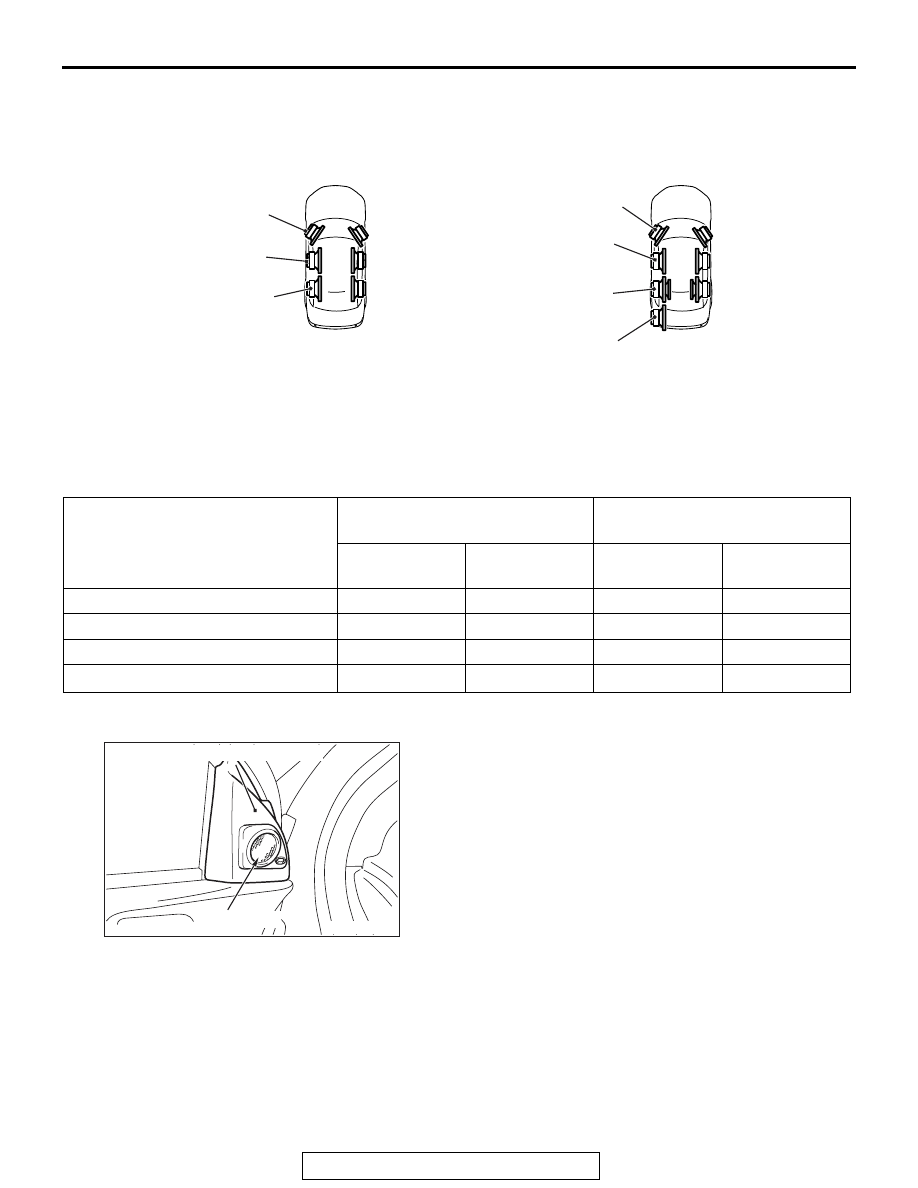

SPEAKER

M2545000100136

The following two types of speakers are available.

• 6 speakers (tweeter: 3.5 cm, front door: 16 cm,

rear door: 16 cm)

• 9 speakers 7 position system (tweeter: 3.5 cm,

front door: 16 cm, rear door: 2-way coaxial 16
cm, subwoofer: 25 cm) <Rockford Fosgate

® pre-

mium sound system>

SPECIFICATION

TWEETER

For the front door sash trim, two types of tweeters,
the balance dome tweeter <Vehicles with 6 speak-
ers> and soft dome tweeter <Vehicles with 9 speak-
ers 7 position system>, have been established. The
soft dome tweeter can play clearer treble with less
distortion compared to the balance dome tweeter.

AC705512

Front door
speaker

Rear door
speaker

Tweeter

Front door
speaker

Rear door
speaker

Tweeter

Subwoofer

AB

<6 speakers>

<9 speakers 7 position system>

Item

<Vehicles with 6 speakers>

<Vehicles with 9 speakers 7
position system>

Allowable
input power

Rated input
power

Allowable
input power

Rated input
power

Front tweeter

25W

3W

50W

25W

Front door speaker

35W

15W

75W

50W

Rear door speaker

35W

15W

50W

25W

Subwoofer

−

−

150W/150W

75W/75W

AC706049AB

Tweeter

Front door sash trim

AUDIO AND NAVIGATION SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-37

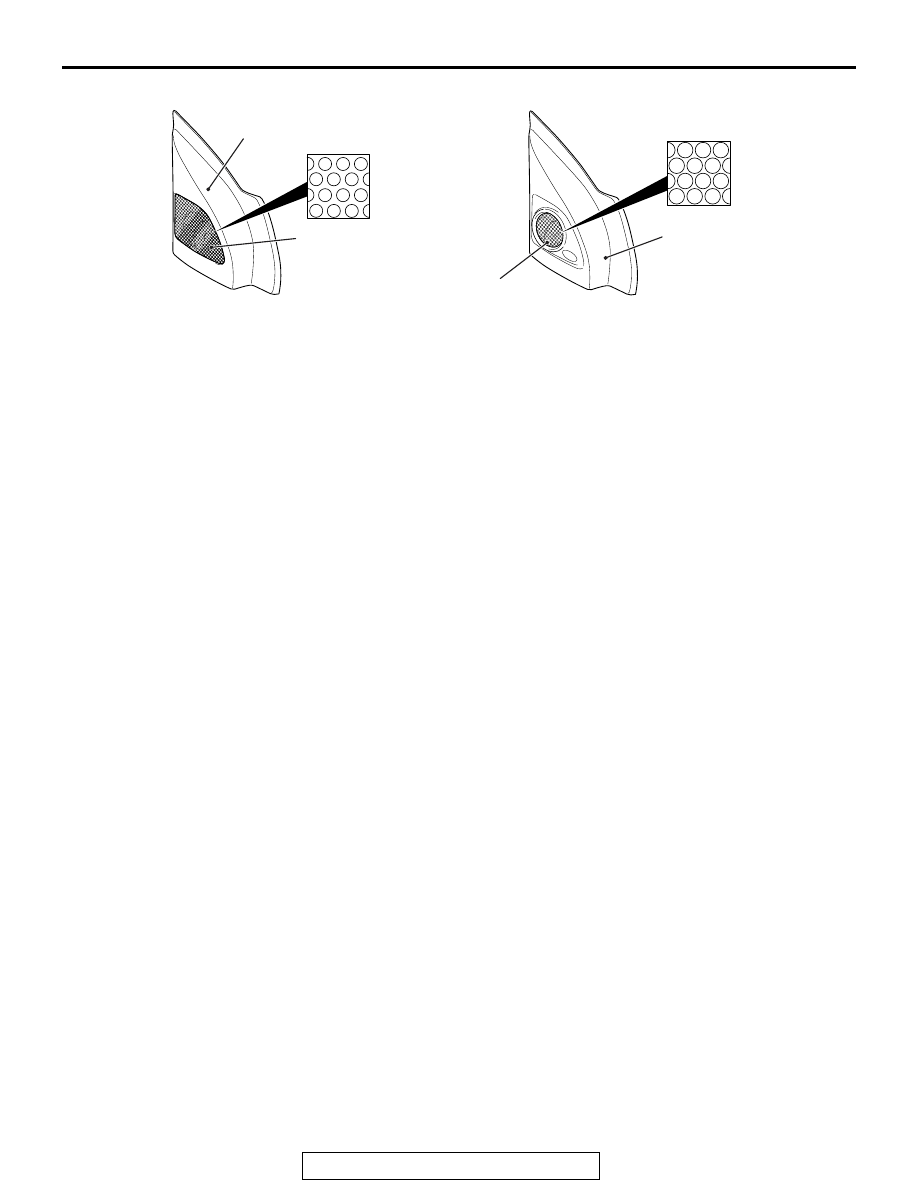

Also, two types of front sash trim, a resin type <vehi-
cles with 6 speakers> and punching metal type
<vehicles with 9 speaker 7 position system>, are
available. With the punching metal type, the metal is
adopted for the punching part to enlarge the punch-
ing opening, enabling the playback of cleaner treble.

DOOR SPEAKER

.

Front door speaker

• For vehicles with 6-speaker, the 16-cm paper

cone speaker has been established.

• For vehicles with 9-speaker 7-position system,

the 16-cm PP (polypropylene) cone speaker has
been established.

Compared to the paper cone speakers, the PP
(polypropylene) cone speakers can playback crisper
bass.

.

Rear door speaker

• For vehicles with 6-speaker, the 16-cm paper

cone speaker has been established.

• For vehicles with 9-speaker 7-position system,

the 16-cm PP (polypropylene) cone 2-way coax-
ial speaker has been established.

 As for the PP (polypropylene) cone 2-way coaxial
speaker, high/low-pitched speakers have been
arranged on the same axle, corresponding to the
well-balanced and wide pitch ranges.

.

AC507688

AC704906

<Vehicles with 9 speaker 7 position system>

AB

<Vehicles with 6 speaker>

Front sash trim

Punching part (Metallic)

Front sash trim

Punching part (resin)

AUDIO AND NAVIGATION SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-38

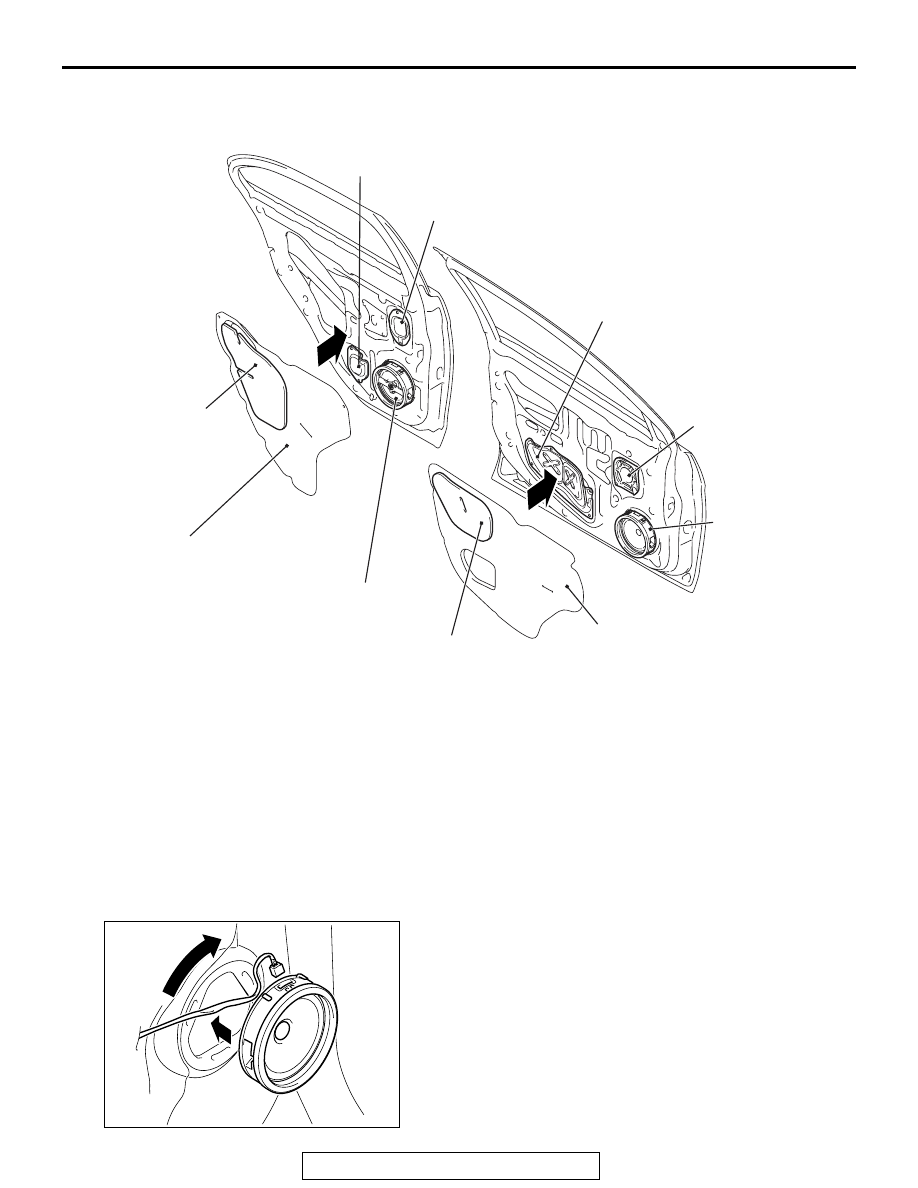

Door speaker box

NOTE: The parts with "*" are installed exclusively to the vehicles with 9 speaker 7 position system (Rockford
Fosgate premium sound system).
For vehicles with 9-speaker 7-position system, the
door opening of the vehicle has been blocked by the
door speaker bracket (front: sheet metal cover, rear:
resin cover), door speaker cover (resin cover), and
acoustic material of door water proof film to make the
door into a speaker box, thus improving the sound
quality. As an advantage of the door speaker bracket

(sheet metal cover), the rigidity of the areas around
the speaker has been increased, and the higher
sound pressure, suppression of high harmonic, and
suppression of dumping are achieved to improve
sound quality.

.

Serviceability

The one-touch installable speaker (with 3 tabs, fixed
by rotating) has been adopted to improve service-
ability.

AC608347

Front door speaker

Rear door speaker

AC

Acoustic material*

<Front door speaker>

<Rear door>

Door speaker bracket*
(Resin cover)

Door speaker cover*
(Resin cover)

Door water
proof film

Acoustic material*

Door water
proof film

Door speaker bracket*
(Sheet metal cover)

Door speaker cover*
(Resin cover)

AC507245AB
