MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-453

REMOVAL AND INSTALLATION

M1546001000240

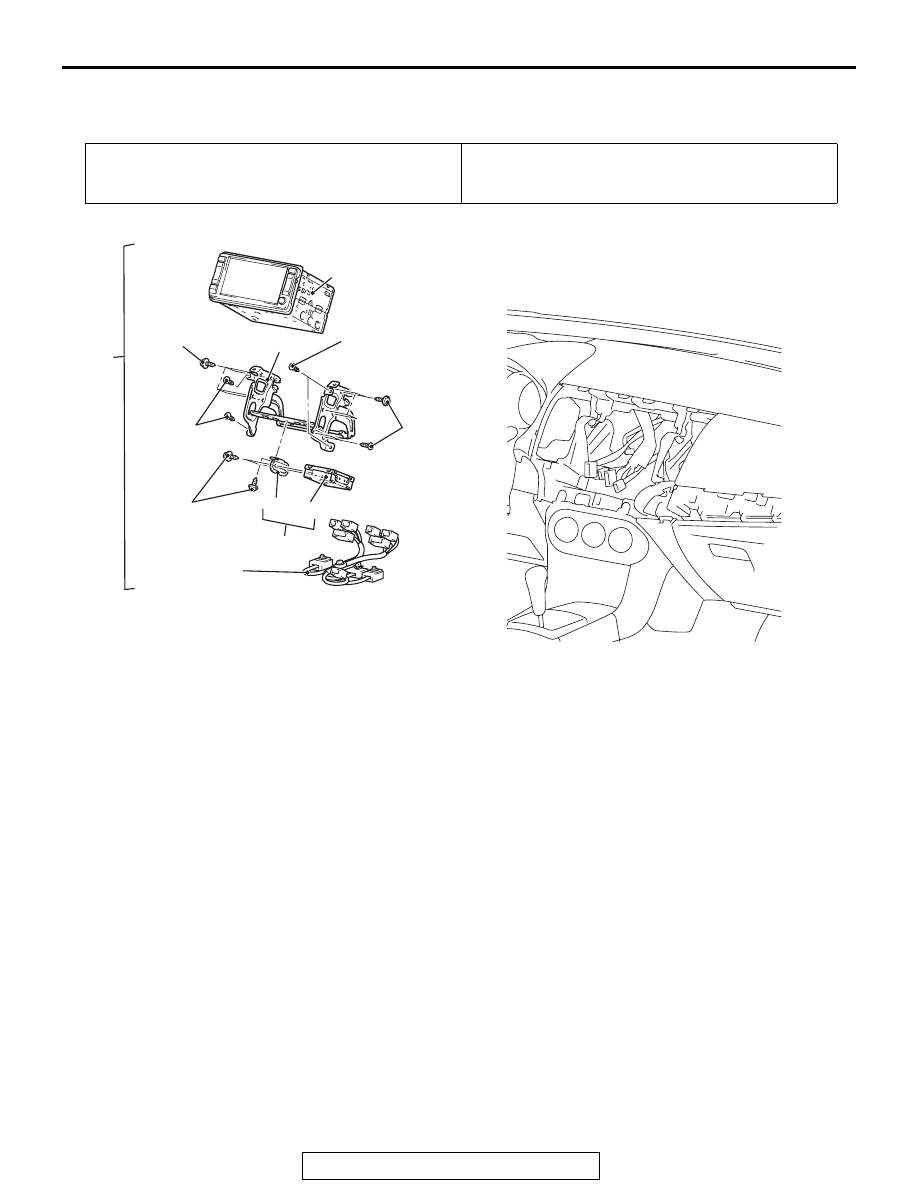

Multivision display

Pre-removal operation
• Removal of Instrument center panel (Refer to GROUP

52A

− Instrument Center Panel assembly

P.52A-7

)

Post-installation operation
• Installation of Instrument center panel (Refer to GROUP

52A

− Instrument Center Panel assembly

P.52A-7

)

AC609098

2

7

AC

4

3.0 ± 1.0 N·m
27 ± 8 in-lb

6

5

1

3

3.0 ± 1.0 N·m
27 ± 8 in-lb

3.0 ± 1.0 N·m
27 ± 8 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

1.5 ± 0.5 N·m
14 ± 4 in-lb

Removal Step

1.

Multivision display assembly

2.

Multivision display

3.

CAN box unit assembly

4.

CAN box unit

5.

CAN box unit bracket

6.

Bracket (LH/RH)

7.

Navigation harness

Removal Step (Continued)

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-454

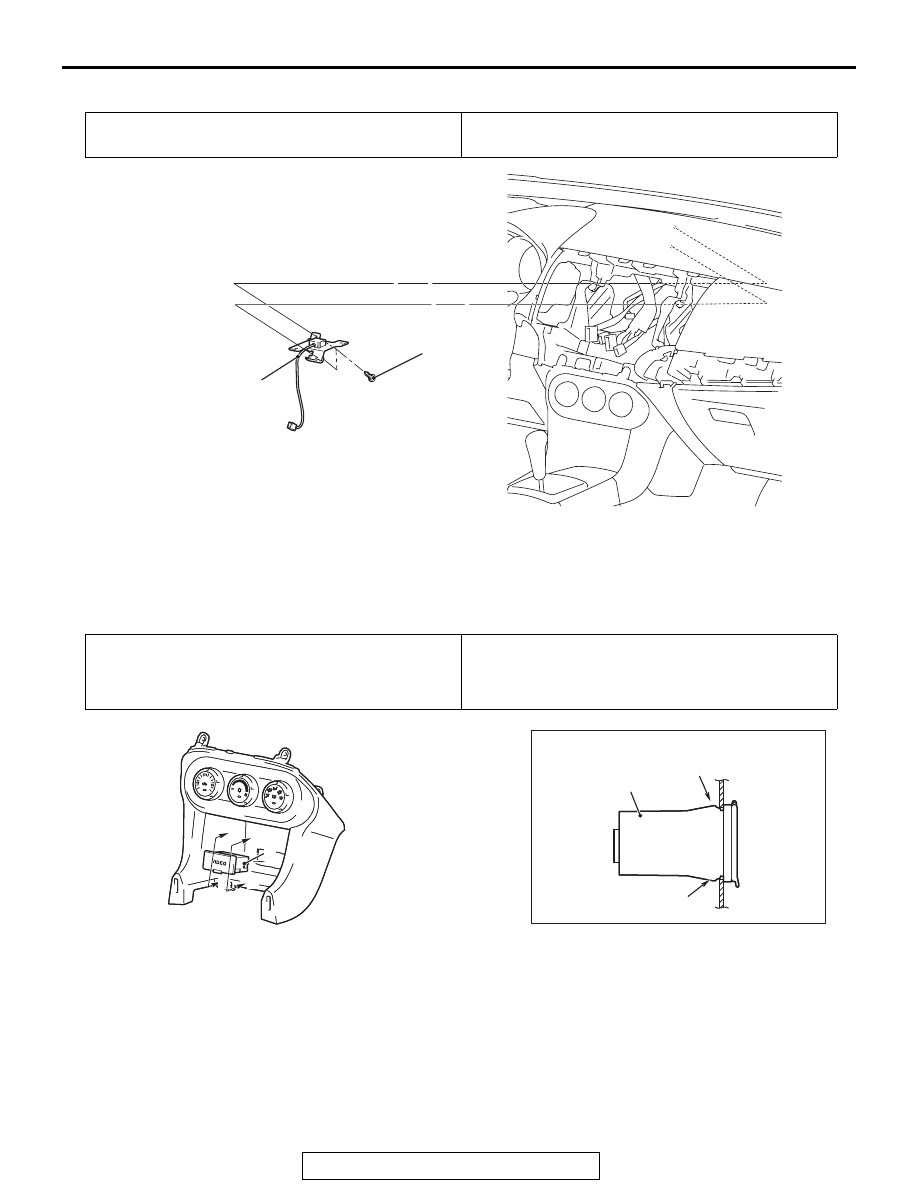

GPS antenna

Audio and video adaptor

Pre-removal operation
• Removal of multivision display assembly

Post-installation operation
• Installation of multivision display assembly

AC709281

1

1.5 ± 0.5 N·m
14 ± 4 in-lb

Removal Step

1.

GPS antenna

Pre-removal operation
• Removal of instrument panel center lower (Refer to

GROUP 52A

− Instrument Center Panel assembly

P.52A-7

)

Post-installation operation
• Installation of instrument panel center lower (Refer to

GROUP 52A

− Instrument Center Panel assembly

P.52A-7

)

AC608892

AC608892

1

Section A – A

Claw

Claw

A

AE

A

A

1

A

Removal Step

1.

Audio and video adaptor

HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-455

INSPECTION

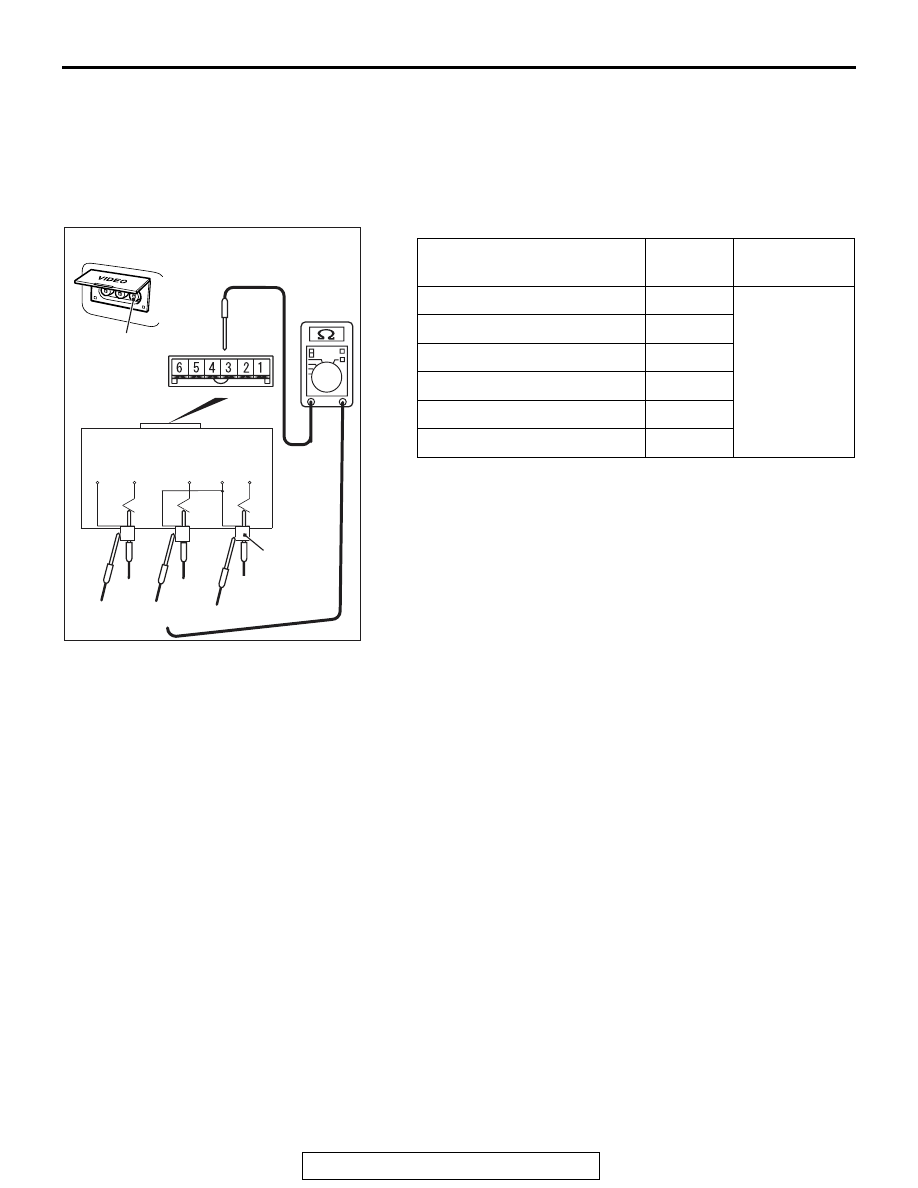

AUDIO AND VIDEO ADAPTER INSPECTION

M1546312900011

1. Remove the audio and video adapter. (Refer to

P.54A-453

.)

2. Check that continuity exists between the terminal and the

pin jack of audio and video adapter.

HANDS-FREE CELLULAR PHONE SYSTEM

GENERAL INFORMATION

M1544401200031

With the hands free cellular phone system by regis-
tering a cellular phone for Bluetooth

™

*

 with voice rec-

ognition to the hands free module, the telephone
function becomes available without operating the cel-
lular phone directly. The hands free cellular phone
system can be used without connecting the cellular
phone to the vehicle via wiring cable.

NOTE:

*

: Bluetooth

™

 is the short-distance digital

wireless communication technology using 2.45 GHz
frequency band. The communication effective area is
within 10 m, and the feature is that the communica-
tion can be achieved even when an obstacle is
present between the communicating devices.

.

The connecting position of
pin jack side circuit tester

Terminal
number

Measurement
value

1

2

Continuity
exists (2

Ω or

less)

2

1

3

5

4

4

5

5

6

6

AC707484

AUDIO

L (MONO)

AUDIO

R

VIDEO

IN

Yellow

1

2

3

4

5

AB

6

Pin Jack

Pin Jack

Red

White

HANDS-FREE CELLULAR PHONE SYSTEM

TSB Revision

CHASSIS ELECTRICAL

54A-456

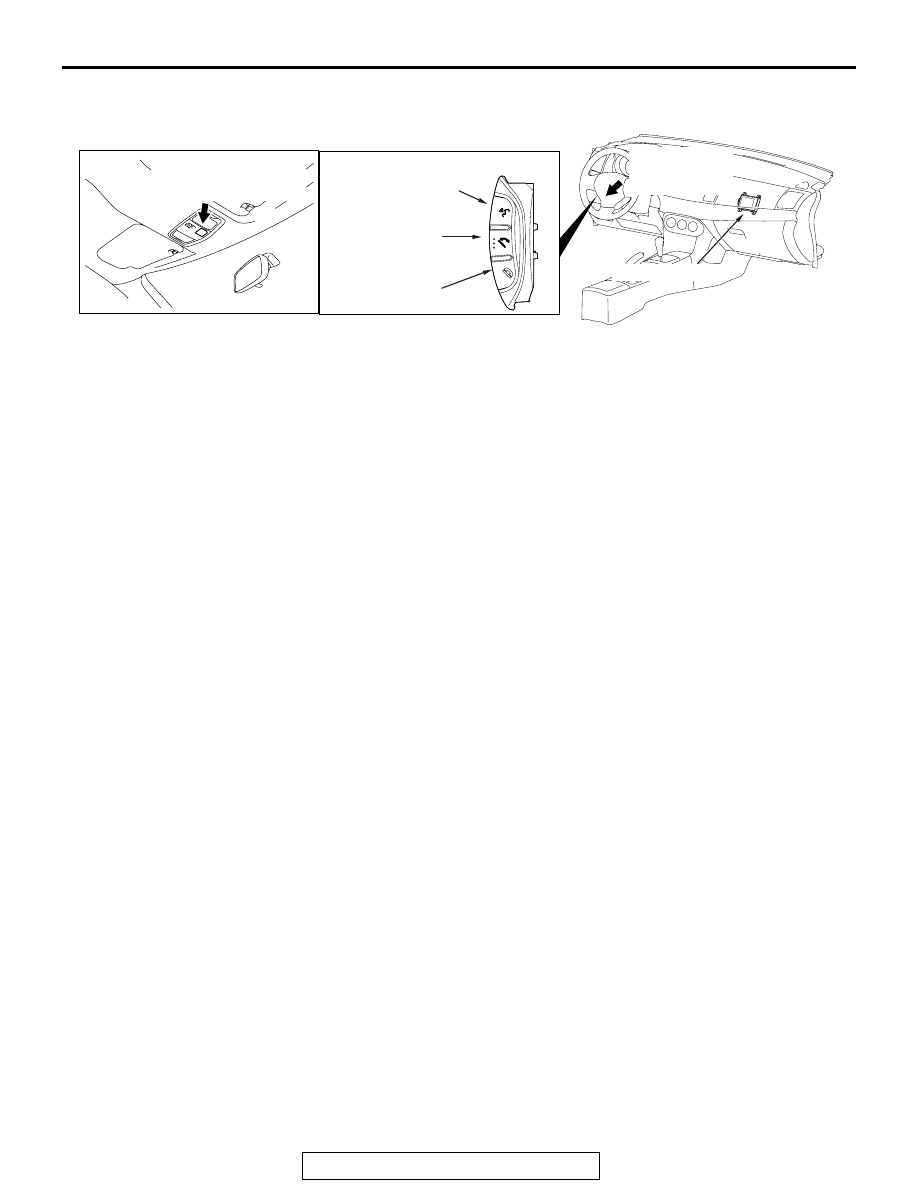

Construction diagram

When the registered cellular phone is inside the vehi-
cle, the hands free cellular phone system operates
as follows.
NOTE: The owner’s manual contains details on pair-
ing a cellular phone with the Bluetooth system,
speaker enrollment, and other functions.

• When the cellular phone receives a call, the

occupant can start conversation by pressing
"Pick-up" in the steering voice control switches on
the steering wheel. When the conversation ends,
the occupant can finish the call by pressing
"Hang-up" in the steering voice-control switches.

• To make a call, press "Speech" in the steering

voice control switches on the steering wheel, call
up the registered receiver's information in the
voice input mode, press "Pick-up". Then, the
transmission starts to call the receiver. Also,
when the conversation ends, the occupant can
finish the call by pressing "Hang-up" in the steer-
ing voice control switches.

• The communication directly via a cellular phone

can be switched to the communication via a
hands free device. Also, the communication via a
hands free device can be switched to the commu-
nication directly via a cellular phone.

• The voice input mode corresponds to the follow-

ing languages: English, American Spanish,
Canadian French.

• The voice of occupant is picked up by the micro-

phone unit incorporated in the front dome light,
and then transmitted to the cellular phone via
hands free module. Also, the receiver's voice is
transmitted from the cellular phone to radio and
CD player <vehicles without MMCS> or Multivi-
sion display <vehicles with MMCS> via hands
free module, and then output from the vehi-
cle-mounted speaker.

• Using the steering audio remote control switch,

the volume can be adjusted.

• The reception state of the cellular phone is indi-

cated on the display section of radio and CD
player <vehicles without MMCS> or Multivision
display <vehicles with MMCS>.

.

AC700417



Microphone unit
(built in front dome light)

“Speech”
 switch

“Pick-up”
 switch

“Hang-up”
 switch



Steering wheel
voice control
switch



Hands free module

AE
