MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-377

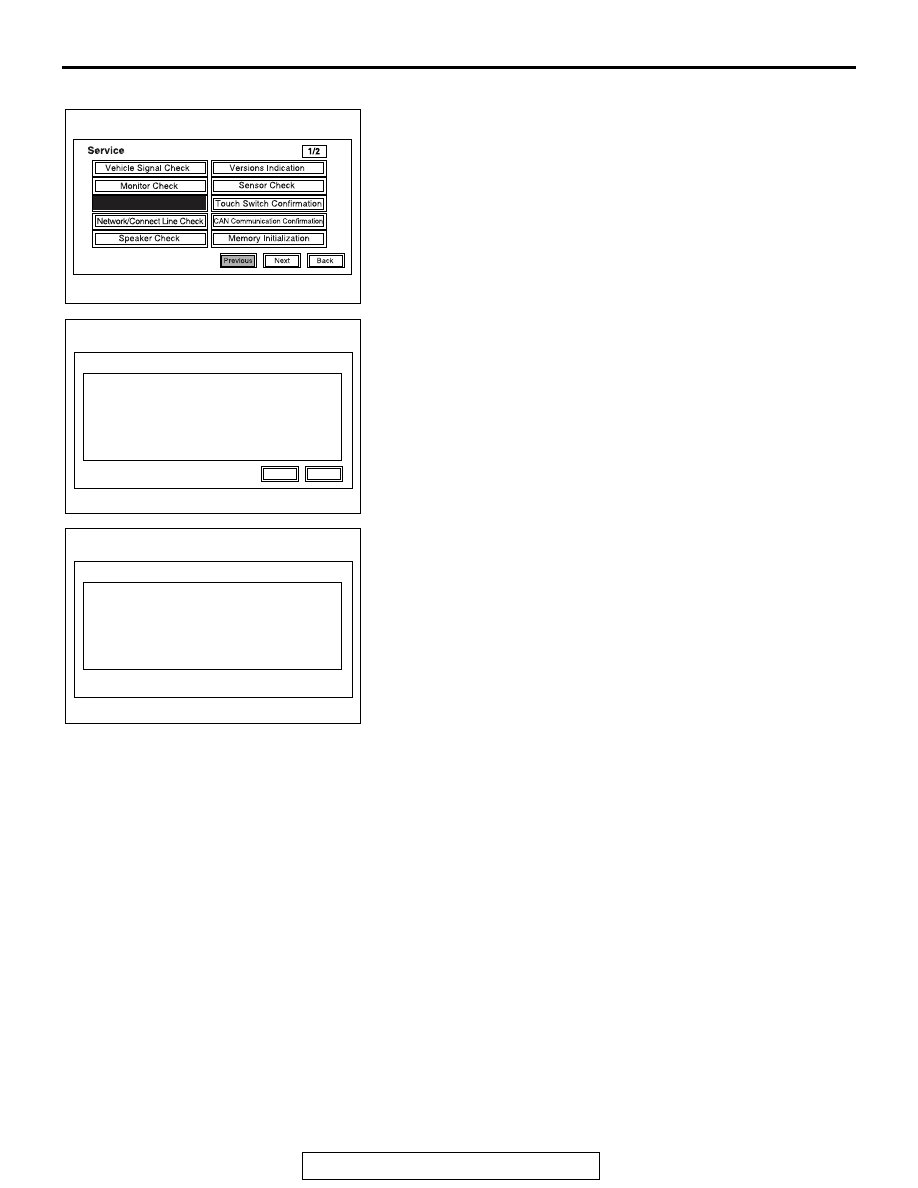

MEMORY INITIALIZATION

1. Select "Memory Initialization" on "Service" screen.

2. If you select "Start" on "Memory Initialization" screen, the

settings such as registered locations and music server will
be erased (initialized) from the memory.
NOTE: If the ignition switch is turned to "LOCK" (OFF) posi-
tion during the initialization, the initialization will be sus-
pended. If the ignition switch is turned to "ACC" or "ON"
position, the initialization will be resumed.

3. After the memory initialization is complete, the navigation

system will restart automatically.

.

AC611541

AB

Back

Start

Memory Initialization

You can erase all of the back up data.

After erasing the data, the system will reboot.

If you push Start, the data will be deleted.

AC606338

ln Early Period Of Memory

Please do not switch off until rebooting is completed.

AC606339

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-378

CAN COMMUNICATION CONFIRMATION

1. Select "CAN Communication Confirmation" on "Service"

screen.

2. If "List Of Connection Equipment" is selected on "CAN

Communication Confirmation" screen, the system will
determine which equipment is installed according to the
connected equipment reference table. Then the equipment
which are connected to the CAN box unit will be displayed.

CAN BOX UNIT-CONNECTED EQUIPMENT REFERENCE
TABLE

3. If "Version Indication" is selected on "CAN Communication

Confirmation" screen, the version for each item is displayed.

Screen indication

Equipment

HVAC

A/C-ECU

SATR

Satellite radio tuner

HFM

Hands free module

FCM

ETACS-ECU

ORC

SRS-ECU

OCM

Occupant classification-ECU

CNN

Combination meter

WCM

Wireless control module

AC611541

AB

CAN Communication Confirmation

List Of Connection Equipment

Version Indication

CAN BOX Memory Data Indication

Back

AC606340

CAN List Of Connection Equipment

HVAC

OCM

SATR

CCN

HFM

FCM

ORC

WCM

Back

AC608176

Version Indication

Hardware : 1.2

CAN MATRIX : 05.25

NM : 43.24

DIAG : 00h

TPMC : 33.11

Software : 01.02.03

CAN DRIVER : 73.00

KWP2000 : 49.10

Back

DBKOM : 49.17

AC606342

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-379

4. If "CAN BOX Memory Data Indication" is selected on "CAN

Communication Confirmation" screen, "CAN BOX Memory
Data Indication" will be displayed.

5. If any item is selected on "CAN BOX Memory Data

Indication" screen, its relevant information is displayed.

• Various Data

• Coding Data

• VIN

• Tell-Tale Stack

CAN BOX Memory Data Indication

Various Data

Coding Data

VIN

Tell-Tale Stack

Chrono Stack

Back

AC606343

Various Data

Origin : 04h    Supplier : 85h

System ID : 08h    Variation ID : 10h

Serial ID : 0000h

Back

AC611722

AB

AC611723

AB

VIN

current VIN

    0123456  0123456  012

Original VIN

    0123456  0123456  012

Back

AC606346

Tell-Tale Stack

Historical
    DTC : C197h
    Odometer : 0132h
Interrogation
    DTC Read Counter : 04h
    Odometer : 01a5h

Back

Next

Previ

2/8

AC606347

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-380

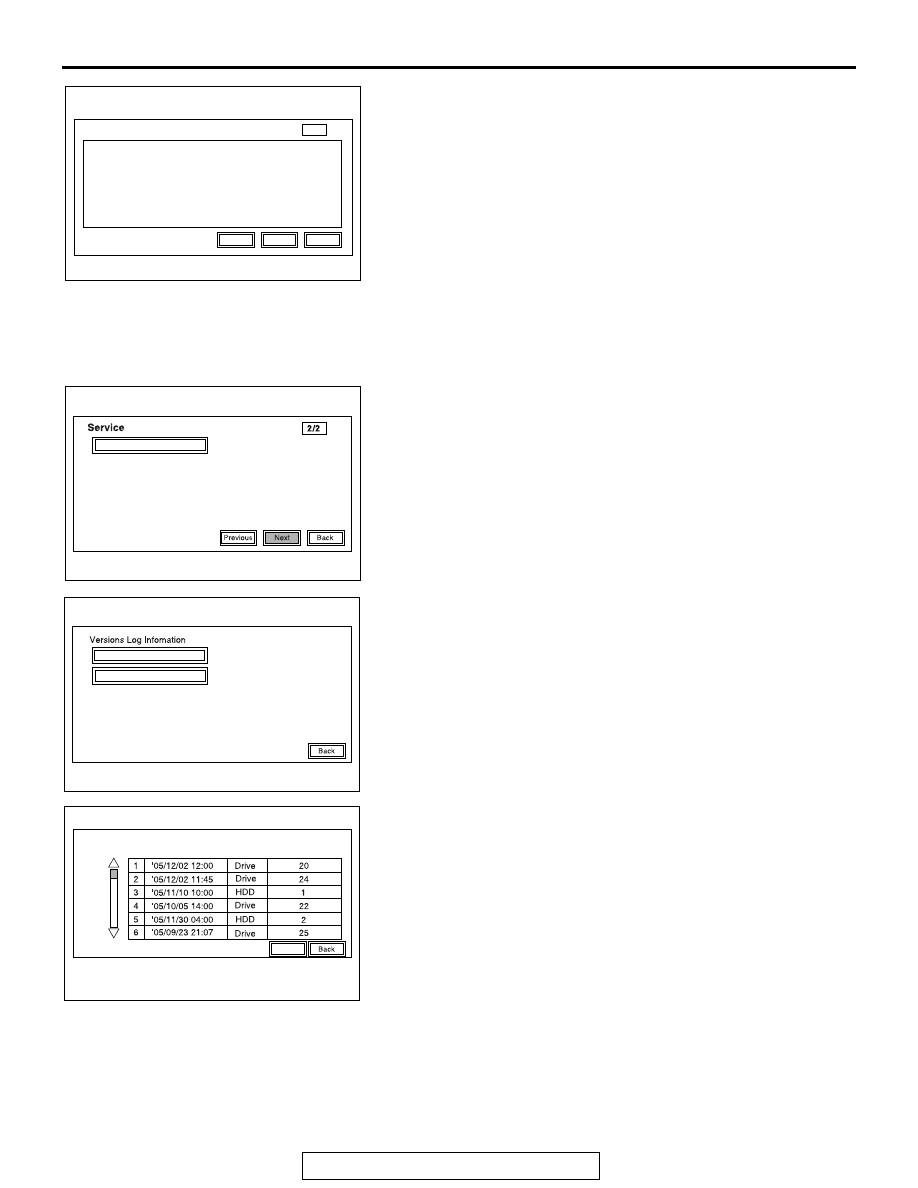

• Chrono Stack

.

VERSIONS LOG INFORMATION

Displays logs for drive and HDD.

Service Data Log

1. Select "Versions Log Information" on "Service" screen.

2. Select "Service Data Log" on the "Versions Log Information"

screen.

3. The logs are displayed from the latest one.

4. The log data is erased by pressing "Delete."

Chrono Stack

DTC Value : 0197h

DTC Status : A0h

Odometer Mileage : 1B27h

Accumulation Timer : 06C4h

IG Counter : 15h

Back

Next

Previ

2/8

AC606348

AC611544

Versions Log Information

AB

AC611719

Service Data Log

Time Adjustment Log

AB

AC707631

Service Data Log

Time

Item

Factor

Delete
