Mitsubishi Evolution X. Manual - part 1002

MMCS

TSB Revision

CHASSIS ELECTRICAL

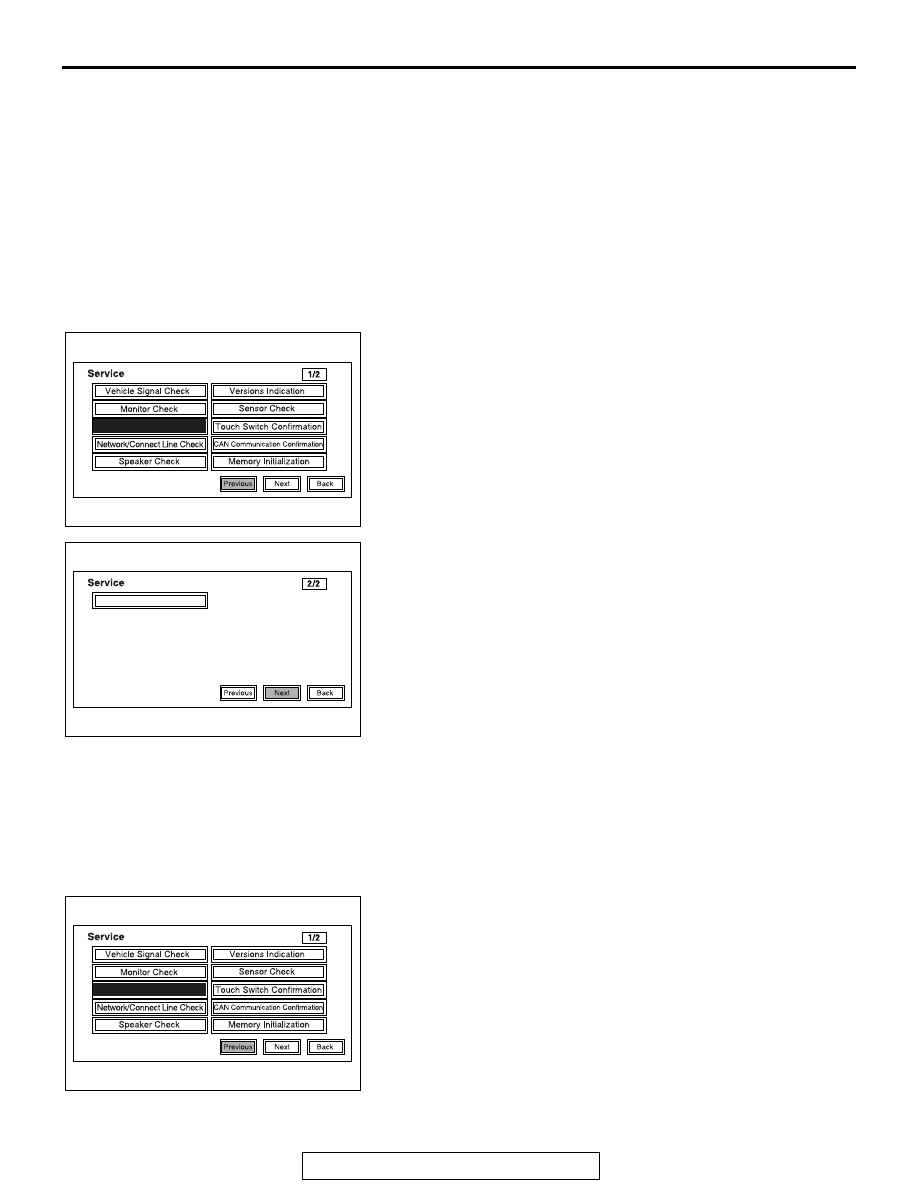

54A-369

DIAGNOSIS TIPS CONCERNING THE
NAVIGATION FUNCTION

1. The precision of the GPS positioning is limited

due to its operation principles. So, some of cus-
tomer reports do not mean that the system is
defective.

Prior to troubleshooting, question your customer
about how the navigation system is used and
where he/she drives. If you determine that the
system is OK, explain to your customer about
how the system works and how the customer
should operate it.

2. If the system is not OK, diagnose the system

according to the trouble symptom chart.

SERVICE MODE

M1546016600260

.

HOW TO INITIATE THE SERVICE MODE

1. With the navigation system active, press and hold both the

"NAVI" and "SET" buttons for 3.5 seconds.

2. The service mode will be initiated. Then "Service" screen

will be displayed.

.

HOW TO TERMINATE THE SERVICE MODE

If the operations below are done, the service mode will be ter-
minated.

•  If "Back" button is selected on "Service" screen, the service

mode will terminate and then return to the previous screen.

• If "NAVI" button is pressed with the service mode active, the

service mode will terminate and change to the navigation
screen.
NOTE: If "NAVI" button is pressed, the following functions
of the service mode will terminate.

.

•

Vehicle Signal Check

•

Monitor Check

•

Network/Connect Line Check

•

Speaker Check

•

Versions Indication

•

Sensor Check

•

Touch Switch Confirmation

•

CAN communication Confirmation

•

Memory Initialization

•

Versions Log Information

.

VEHICLE SIGNAL CHECK

1. Select "Vehicle Signal Check" on "Service" screen.

AC611541

AB

AC611544

Versions Log Information

AB

AC611541

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

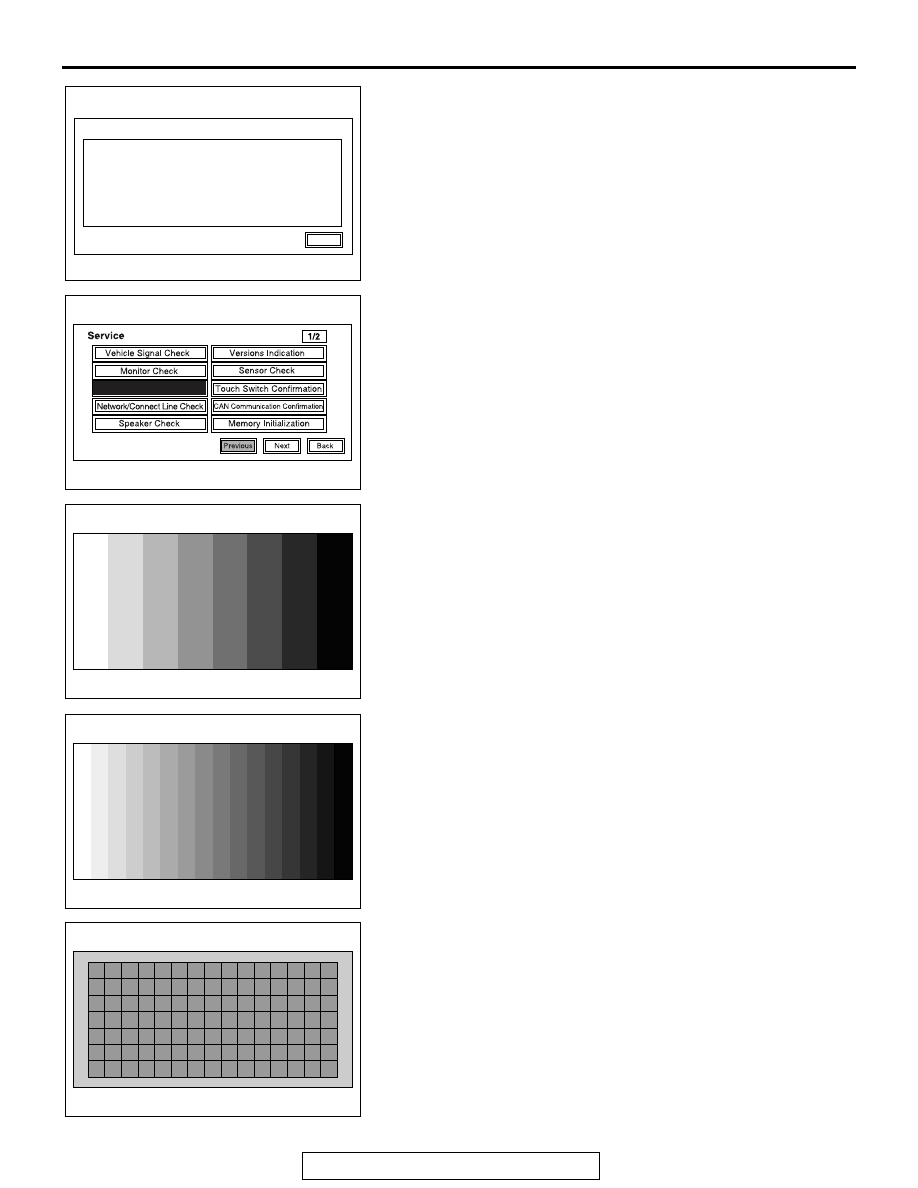

54A-370

2. The check results will be displayed for the items below.

• "Speed": "ON" when the vehicle speed is 6 km/h or more,

and "OFF" when the vehicle speed is 4 km/h or less.

• "ILL": "ON" when the lighting switch is on (headlight posi-

tion), and "OFF" when they are off (except headlight posi-
tion).

• "Shift Position R": "ON" when the selector lever is at R posi-

tion, and "OFF" when it is at the other position.

.

MONITOR CHECK

1. Select "Monitor Check" on "Service" screen.

2. Eight color bars will be displayed.

3. When "Enter" is pressed on the navigation unit joystick while

the eight color bars are shown, gray scale will be displayed
with a 16-step gradation.

4. When "Enter" is pressed while the gray scale is shown with

a 16-step gradation, a crosshatch pattern will be displayed
(Each cell should be square).

Back

Vehicle Signal Check

Speed
ILL
Shift Position R

:    OFF
:    ON
:    OFF

AC612651

AC611541

AB

AC611390

AC606321

AC611391

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-371

5. When "Enter" is pressed on the navigation unit joystick while

the crosshatch pattern is shown, the screen will turn white.

6. When "Enter" is pressed on the navigation unit joystick while

the screen is white, it will turn black.

7. When "Enter" is pressed on the navigation unit joystick while

the screen is black, the screen will turn red.

8. When "Enter" is pressed on the navigation unit joystick while

the screen is red, it will turn green.

9. When "Enter" is pressed on the navigation unit joystick while

the screen is green, it will turn blue.

10.When "Enter" is pressed on the navigation unit joystick while

the screen is green, it will return to the "Service" screen.

.

AC611392

AC611393

AC606322

AC606323

AC606324

MMCS

TSB Revision

CHASSIS ELECTRICAL

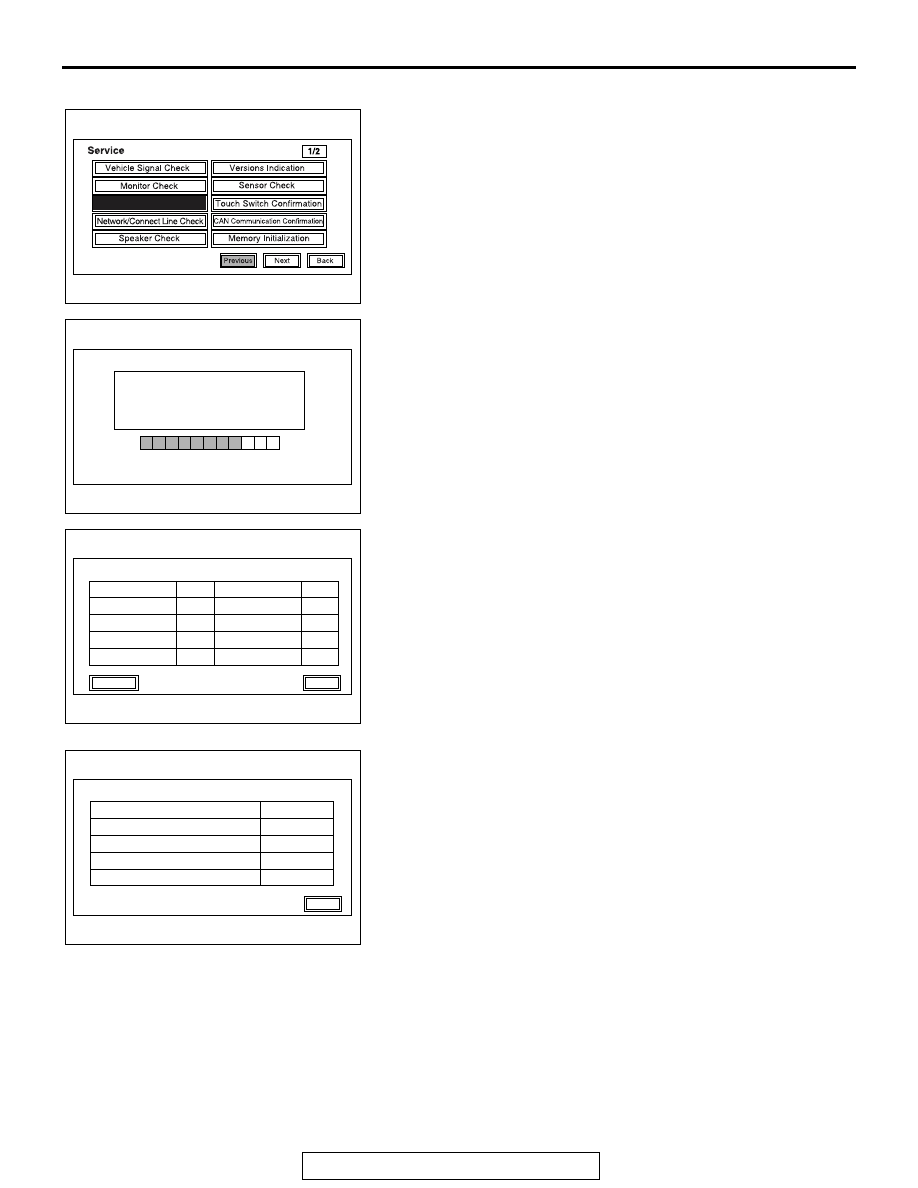

54A-372

NETWORK AND CONNECT LINE CHECK

1. Select "Network/Connect Line Check" on "Service" screen.

2. A network and connect line check will be initiated. The

"Network/Connect Line Check" screen will display how the
check is in progress.

3. When the network and connect line check is finished, the

screen will change to "Network/Connect Line Result" to
show the check results.

NOTE: If there is "NG" or "N/A" as the check results, select
"NG Code" on the "Network/Connect Line Result" screen.
Then "NG code Indication" screen will show the NG code.

4. If "Back" is selected on "Network/Connect Line Result", the

screen will return to "Service" screen.

.

AC611541

AB

Network/Connect Line Check

Now checking the connection of the line.

Please wait.

AC606325

Back

Network/Connect Line Result

DVD Drive

HDD Drive

SDRAM

Rear Camera

GPS Receiver

NG

OK

OK

N/A

OK

N/A

N/A

OK

N/A

Premium Audio

Rear Seat Display

CAN BOX

Video Input

NG Code

AC608174

Back

NG Code Indication

DVD Driver

0103

AC606327
