SUNROOF

TSB Revision

BODY

42A-23

SUNROOF

M2420016000617

The electric sliding glass sunroof with tilt-up mecha-
nism has been adopted as an option. This sunroof
has the following characteristics:

• A lightweight sunroof has been adopted.

• The sunroof tilts up for approximately 30 mm (1.2

inches) to improve ventilation.

• The integrated switch for the sunroof allows for all

slide open/close, tilt up/down and stop opera-
tions. Operations other than open are available at
one touch. When the open switch is operated, the
sunroof lid glass stops approximately 30 mm (1.2
inches) before the fully-open position. This posi-
tion is called comfort position. The sunroof lid
glass can be fully opened by operating the open
switch again.

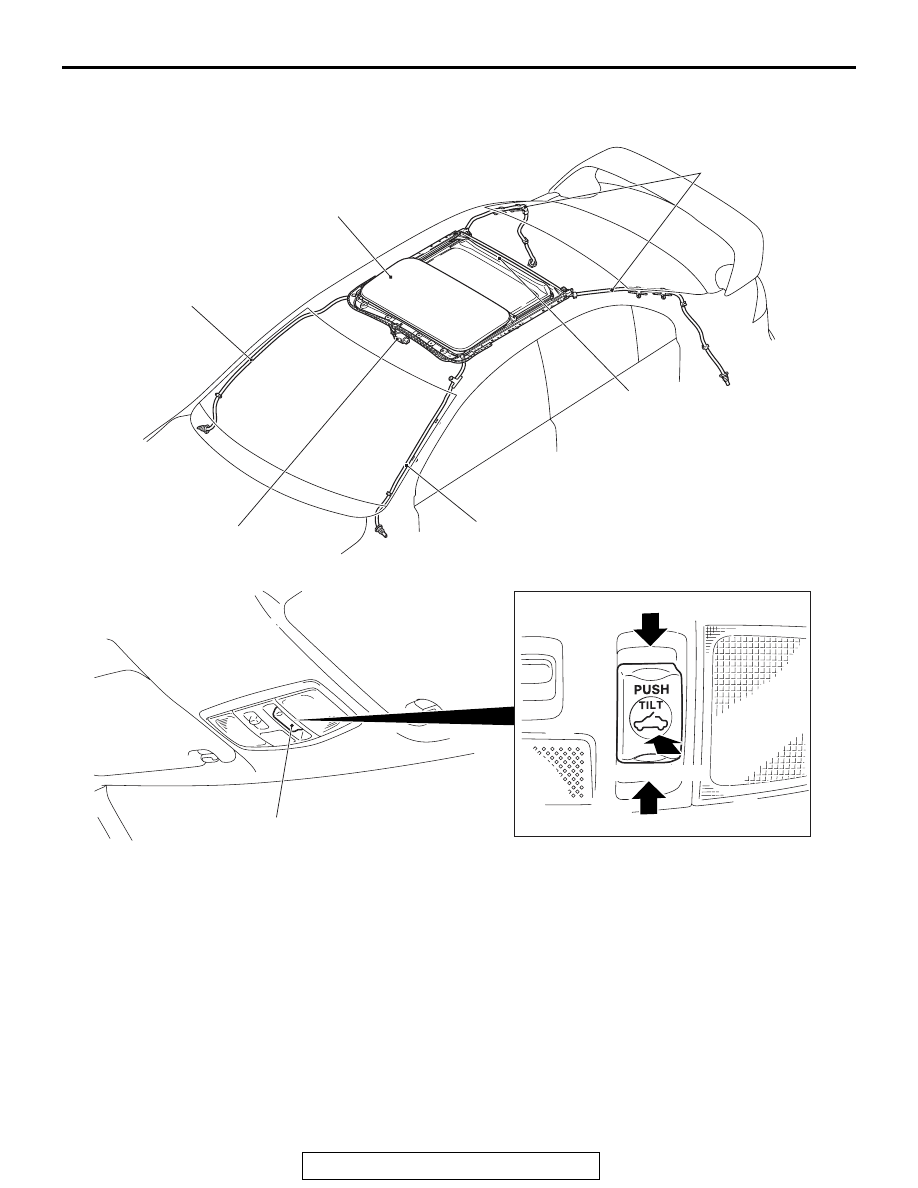

AC705682AC

Sunroof lid glass

Sunshade

Sunroof motor assembly
(integrated into sunroof ECU)

Drain pipe

r

Drain pipe

Drain pipe

AC505239

AC505240

AC506511AC

Sunroof switch

Open switch

Close/down switch

Tilt-up switch

SUNROOF

TSB Revision

BODY

42A-24

• If external force is applied during slide closing or

tilt down operations that obstructs operations, the
sunroof lid glass will move in the reverse direc-
tion.

• By turning ON the sunroof window lock switch

(integrated in the power window main switches)
of the driver's power window switch, the sunroof
operation is prevented.

DESCRIPTION OF CONSTRUCTION AND
OPERATION

.

SAFETY MECHANISM

• If any obstacle such as a hand or a head is

detected to be pinched during a sunroof lid glass
closing operation, the sunroof lid glass is opened
by approximately 200 mm (7.9 inches) or more.

• During the sunroof lid glass closing operation, by

continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating
the safety mechanism even when the obstacle is
detected to be pinched.

• During the safety mechanism activation, when

the sunroof close switch is operated, the sunroof
lid glass stops. By continuing the close switch
operation, the sunroof lid glass can be forcibly
closed without activating the safety mechanism
even when the obstacle is detected to be
pinched.

.

SUNROOF TIMER FUNCTION

The sunroof ECU (integrated into the sunroof motor
assembly) receives the ignition switch (IG1) signal
transmitted by ETACS-ECU. If the ignition switch
(IG1) signal turns OFF, the sunroof ECU allows the
sunroof switch to open/close (timer activation) the
sunroof for approximately 30 seconds. During the
timer operation, if the driver’s or passenger’s door
open is detected from the door switch signal trans-
mitted by ETACS-ECU, the sunroof timer function
stops at this time.

.

SUNROOF MOTOR ASSEMBLY

The sunroof motor assembly, which consists of the
motor main body, drive gear, and sunroof ECU, is
installed in front of the housing.

.

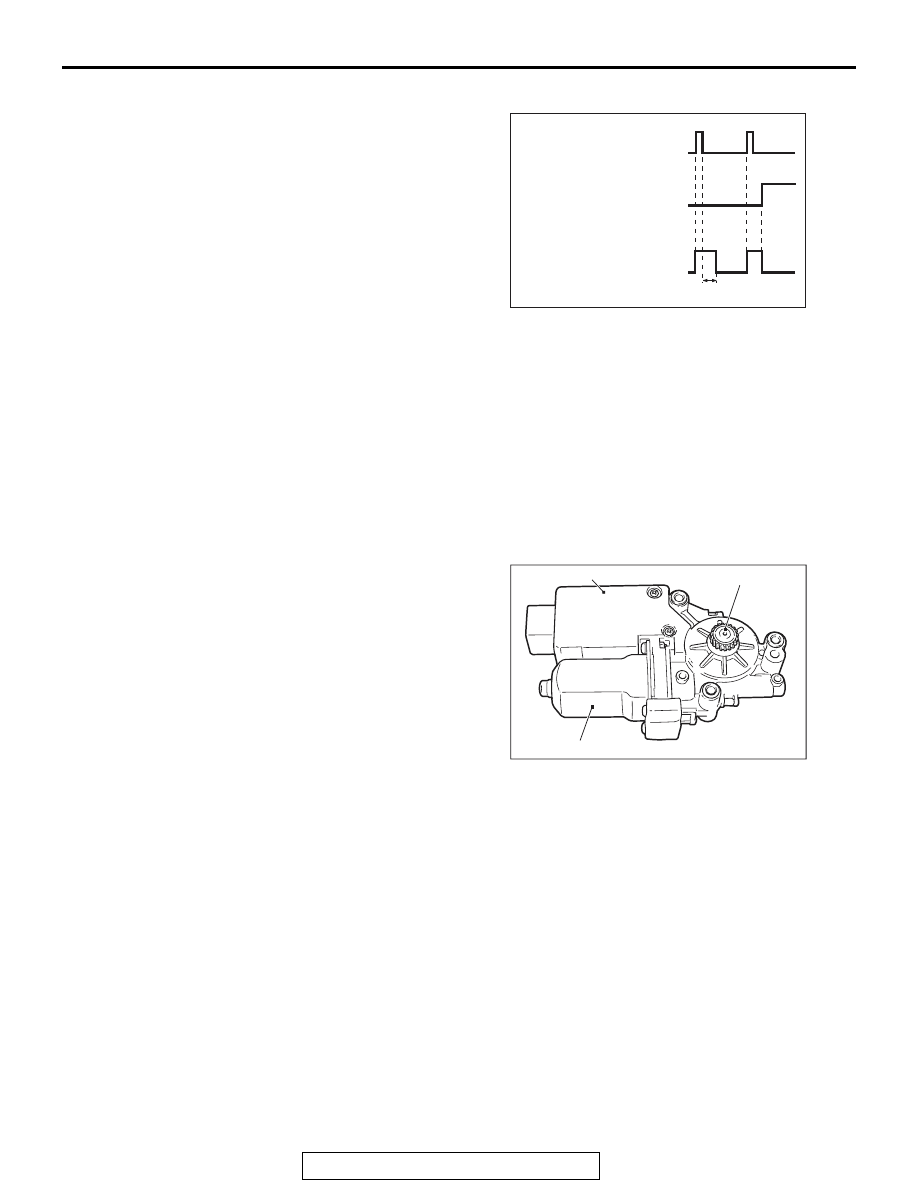

AC607037

ZC600258

AB

t

OFF

ON

OFF

(Close)

ON

(Open)

Ignition switch (IG1)

Sunroof operation

(Disabled) OFF

(Enabled) ON

t: 30 Seconds

(Short of timer operation time)

Driver's or passenger's
door switch

AC506532AD

Sunroof ECU

Drive gear

Sunroof motor

SUNROOF

TSB Revision

BODY

42A-25

SUNROOF ECU

The sunroof ECU incorporates a microcomputer and
controls motor operations with the sunroof switch
signals, depending on various conditions.

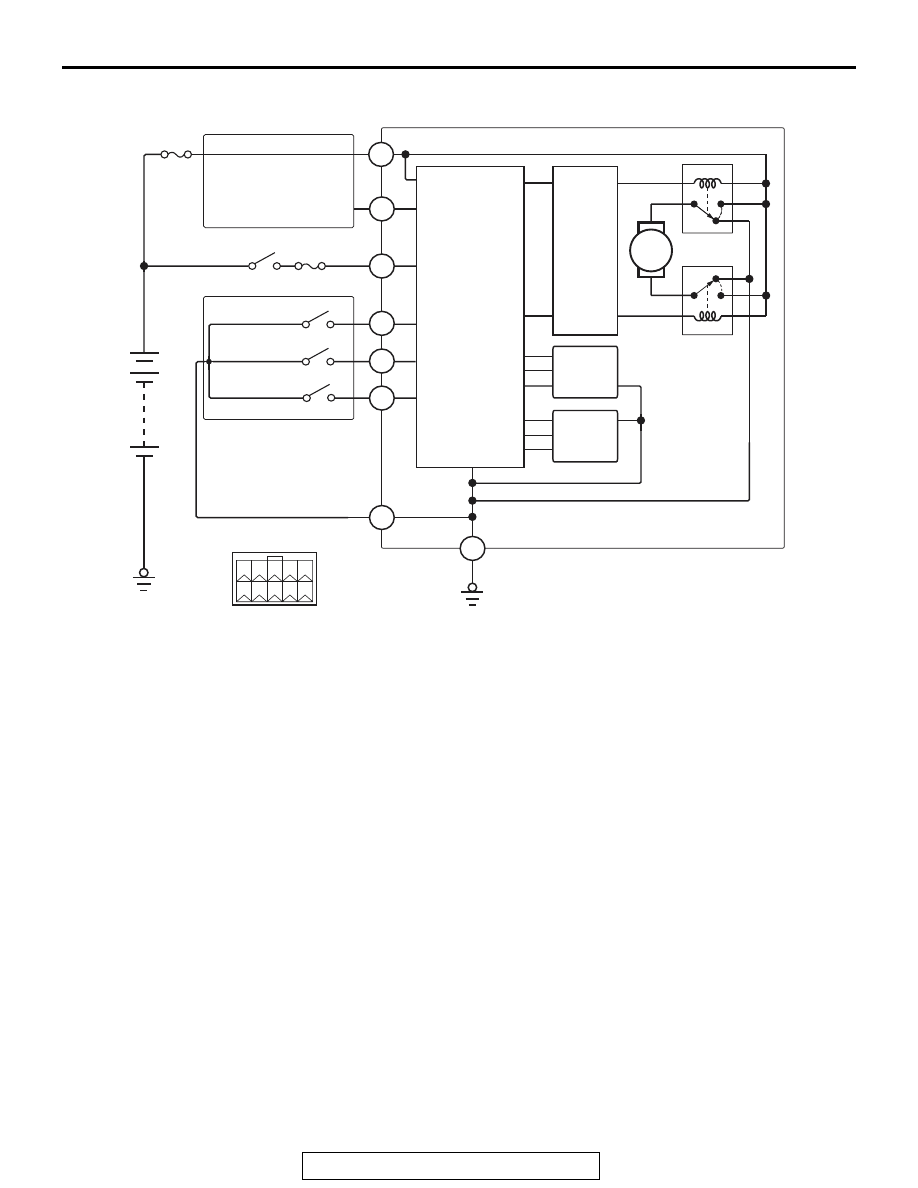

AC609032

ZC604430

M

AB

ETACS-ECU

EEPROM

5

4

3

2

1

10

9

8

7

6

10

3

6

7

1

5

4

2

Open switch

Tilt-up switch

Close/Tilt-down
switch

Sunroof switch

Ignition switch

Sunroof-ECU

Sunroof motor assembly

Motor

Sensor

Driver

circuit

LOOSE PANELS

TSB Revision

BODY

42A-26

LOOSE PANELS

M2420000200247

The front floor backbone brace and rear seat back
brace have been installed to improve the body rigid-
ity.

CONFIGURATION FUNCTION

M2420002500329

Using the ETACS system of scan tool MB991958,
the following function can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

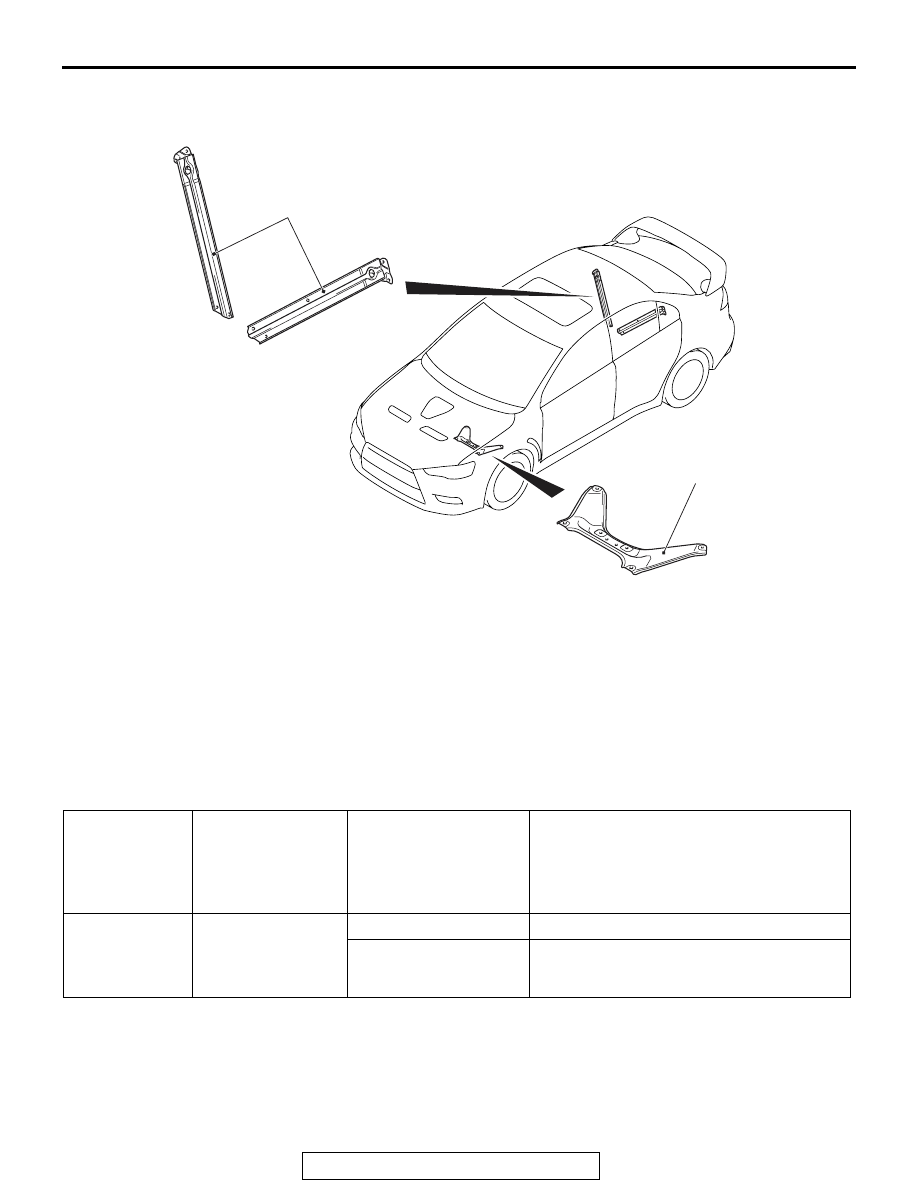

AC705674AB

Rear seatback brace

Front floor backbone brace

Adjustment
item (scan tool
MB991958
M.U.T.-III
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Auto door
unlock by P
position

Auto door unlock by
P position function
<Vehicles with
TC-SST>

Disable

No function (default)

Always enabled

Always with function
